China Wire Rope Sling manufacturer

Vinyl Coated Steel Aircraft Cable Wire Rope 50 ft 1/8

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1182
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

Steel GradeSteel wire ropeStandardAiSi, ASTM, bs, DIN, GB, JIS, AISI
Place of OriginShanghai, ChinaTypeCoated Wire Rope
ApplicationIndustryAlloy Or NotIs Alloy
High Light:

Nylon coated Wire Rope


PVC coated wire rope

Product Description

As the name implies, coated wire ropes refer to small diameter galvanized or stainless steel ropes which are jacketed with a range of coatings including PVC, polypropylene and nylon. Special coatings such as vinyl, urethane and polyester are also available upon your request. These coatings efficiently protect the inner wire ropes from corrosion as well as reduce tear and wear of ropes and other rigging components.

With robust structure and high breaking strength, coated wire ropes are used as washing lines, abattoir wire, computer security cables, lock cables and barrier ropes, etc.

Coating comparison are available in any color.

These coatings are regularly used to cover 7 × 7, 1 × 12 and 7 × 19 stainless steel or galvanized wire ropes as shown in the following pictures. As your request, coated wire ropes with other sizes of inner ropes can also be supplied.

7 × 7 steel wire rope with brown coating

Coated 7 × 7 steel wire rope

1 × 12 steel wire rope with brown coating

Coated 1 × 12 steel wire rope

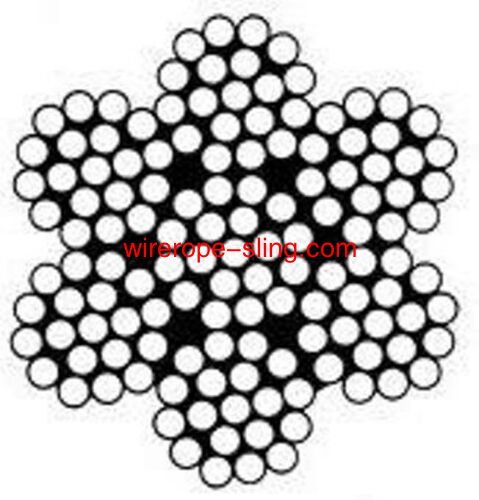

7 × 19 steel wire rope with brown coating

Coated 7 × 19 steel wire rope

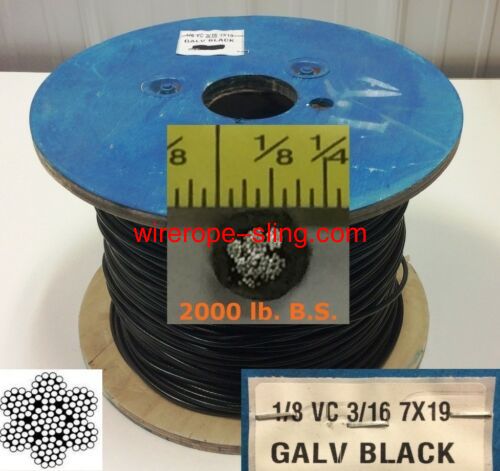

1/8" (ID) VC 3/16" (OD) 7 x 19 BLACK Vinyl Coated AIRCRAFT CABLE

Length: 50 feet More Lengths & Sizes Available

2000 lb. Break Strength(17% more tensile strength than 7x7 cable).

Black Vinyl Coated Aircraft Cable

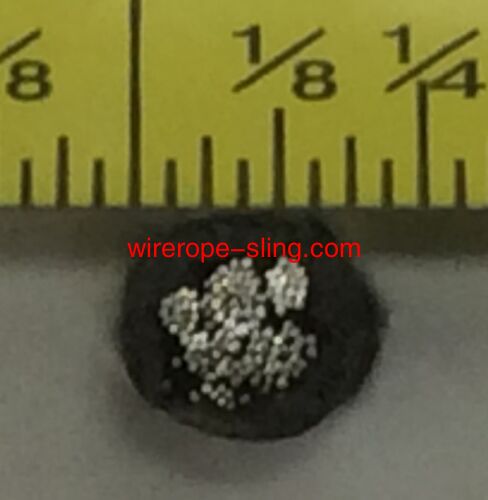

Diameter: 1/8" VC 3/16"/4.75 mm (7 x 19)

Breaking Strength: 2000 lbs.

Working Load Limit: 400 lbs. for a Safety Factor of 5

Extremely UV Resistant

Very Smooth no sharp points

 Galvanized & Vinyl Coated for long life and durability

Actual Spool Size and appearance may vary. Length and size of cable is guaranteed.

Easy Installation: Pliable, weatherproof & maintenance-free.

Useful for:

*Poultry Netting Support(33% stronger than 12 GA high tensile wire) Also more flexible & the black color blends in.

*Sports Purposes

*Clothes Line Wire

*Guy Line Wire

*Dog Run

*Deer Fence


Not For Use in Aircraft Cable Controls

Do Not Exceed 20% of Products Breaking Strength

We Assume No Responsibility For Misapplication Or Misuse of this Cable.

For Zip Lines We Recommend Using 5/16" or 3/8" Cable

Table Of Weight Factor And Minimum Breaking Strength Factor For The Wire Rope

ItemRope constructionWeight factor K(kg/100m·mm)K2/K1nK2/K1pMinimum breaking strength factor K’K'1/K'2
Natural fiber coreSynthetic fiber coreSteel coreFiber coreSteel core

Note1 : in item 2 and item 4, when the wire quantity is 19 or much less, the weight factor should be 3% less than the factor in the table.
Note 2: in item 11, the weight factor and min. breaking strength factor of the 6VX21 and 6VX24 construction wire rope with fiber core should be 8% less than the factor in table. For 6VX30 construction, it is 10%.
n item 12, the weight factor and min. breaking strength factor of the 6VX37S construction wire rope should be 3% greater than the factor in table.
Note 3: K1p is the weight factor for wire rope with polypropylene core.
