China Wire Rope Sling manufacturer

Versatile Aircraft Cable 1/16 Inch High Dimensional Precision Breaking Strength 480lb

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: 7x7SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1MTRS
Price: USD1600/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100TONS monthly

Detail Information

Length:500 FtStandard:ASTM, BS, DIN, GB, JIS
Construction:7 X 7Finish:Stainless
Diameter:1/16"HS Code:73121000
Alloy Or Not:Non-alloySteel Grade:Carbon Steel
High Light:

aircraft wire cable

,

aircraft wire rope

Product Description

1/16 Inch 7x7 304 Stainless Steel Aircraft Cable Breaking Strength 480lb





Product Applications

Stainless Steel Aircraft Cables are widely used in elevators, lifting equipment, maneuvering wires, metallurgy, mining, machinery, aviation, automobiles, marine, marine fishery and other fields.



Versatile Aircraft Cable 1/16 Inch High Dimensional Precision Breaking Strength 480lb 0





TEM Usage
Normal For General Purposes
Seale For External Friction Loads
Warrington For High Flexibility Loads
Seale Warrington For High Friction and Flexibility Loads
Non-Roatating For Tower Cranes and Others
Filler For Lifts
Strand 1+6 For Reinforced Electric Cable (ASCR)
Strand 7+12 For Producing Brake Shock Strand For Cars

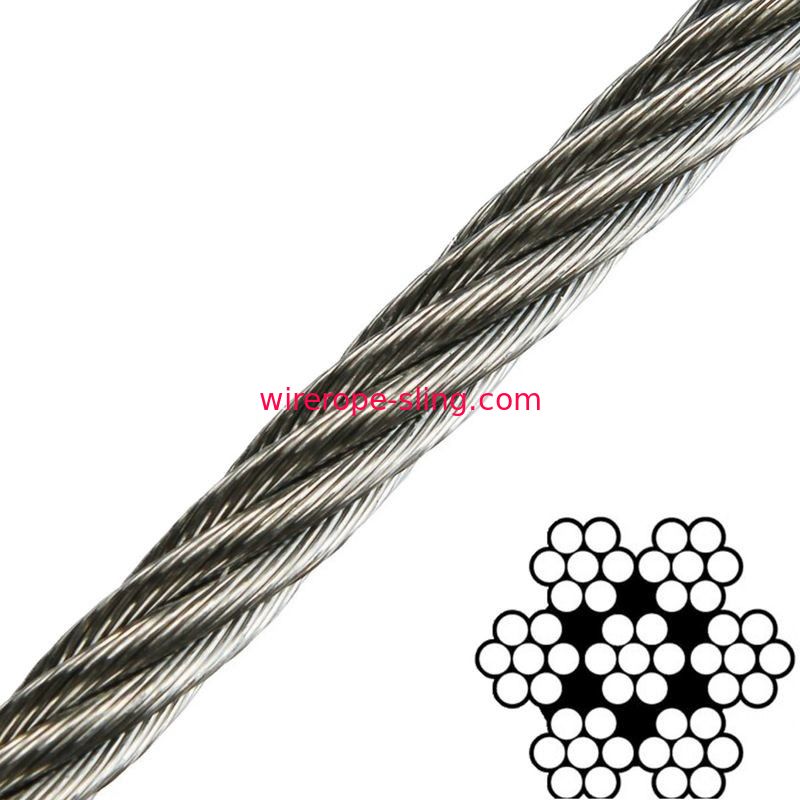

7x7 Stainless Steel Cable is one of the most common, cost effective and versatile wire ropes. The 7x7 construction is of medium flexibility and is used in many of the same applications as 7x19 stainless steel cable but where a little less flexibility is needed.



Meets the Performance requirements of Applicable Federal Specification RR-W-410.

Independent Lab tested and verified.



Trade Terms



Trade Terms EXW, FOB, CIF or Others
MOQ 1 Ton
FOB Price 1550-2666USD/Ton
Port SHANGHAI,China or Others
Shipment By Sea, By Air
Payment Terms T/T, L/C or Others
Payment Condition 30% Before Production, 70% before delivery
Supply Capability 300Tons/month
Sample Availability Yes
Sample Time 3-7days
Packing

Soft Coil, Poly Bag, Woven Bag, Carton,Plastic Spool,

Wooden Spool, Wooden Case, Wooden Pallet,etc.

Delivery Time 25-30 days after confirmation
Service OEM or Customized








1/16" Stainless Aircraft Cable
  • Flexible 7 x 7 Construction
  • Type 304
  • Min. Breaking Strength: 480 lbs
  • Not suitable for Aircraft Controls
  • 5000 ft/reel
  • Weight 8 lbs/mft

Safety Notice



Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicks or abrasion, which may cause failure or reduce the strength of the Wire Rope.



Wire Rope and Steel Cable must be stored, used and maintained in accordance with the normal safety standards.

Verify that replacement Wire Ropes are correct for your application and meet your specifications.

Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application.



Technical Table

Versatile Aircraft Cable 1/16 Inch High Dimensional Precision Breaking Strength 480lb 1
