Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE / ISO 9001 : 2008 |
| Model Number: | 7x19GAC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1MTRS |
| Price: | USD1600/TON |
| Packaging Details: | Plastic Reels |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100TONS monthly |
|
Detail Information |
|||
| Length: | 500 Ft | Standard: | ASTM, BS, DIN, GB, JIS |
|---|---|---|---|
| Construction: | 7 X 19 | Finish: | Stainless |
| Diameter: | 1/8" To 3/16" | HS Code: | 73121000 |
| Alloy Or Not: | Non-alloy | Steel Grade: | Carbon Steel |
| High Light: |
aircraft wire cable,aircraft wire rope |
||
Product Description

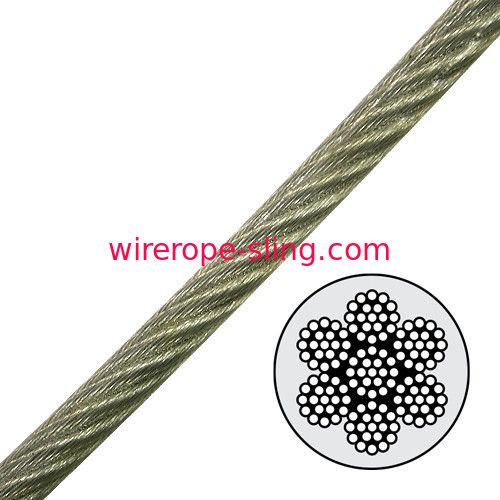

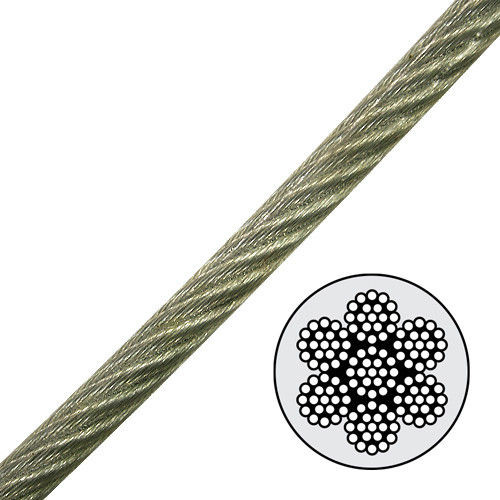

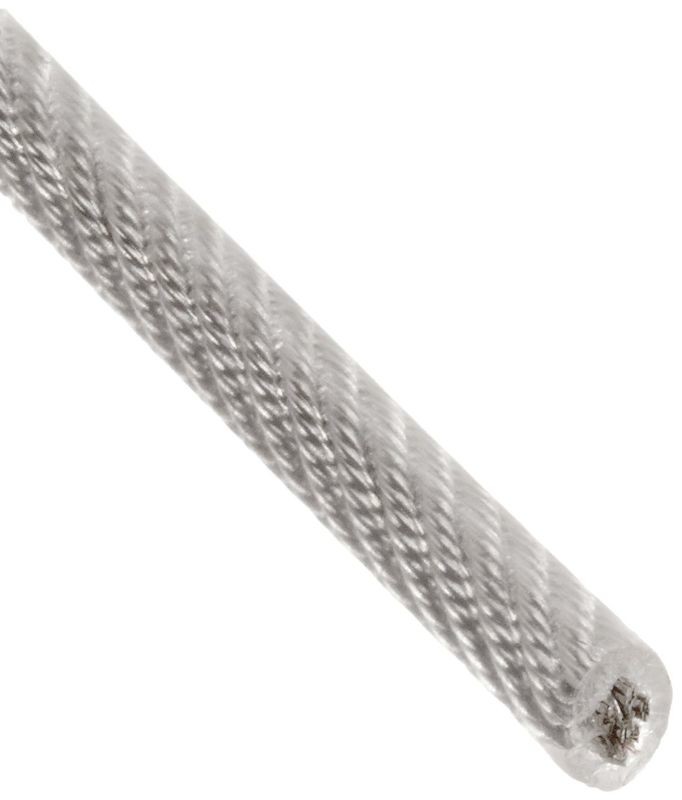

7x19 1/8" to 3/16" Steel Aircraft Cable Galvanized , vinyl coated wire rope 2000lb WLL
7x19 1/8" to 3/16" Steel Aircraft Cable Galvanized , vinyl coated wire rope 2000lb WLL
| Spool Length | 5000 ft |
| Breaking Strength | 2000 lb |
| Strand Core | 7 x 19 |
| Finish | Galvanized - Vinyl Coated |
| Diameter | 1/8" (Coated to 3/16") |
| Material | Steel |
| Work Load Limit | 400 lb |
| Type | Aircraft Cable |
| Product Weight | 0.0433 |
| UOM | Each |
About Aircraft Cable
This type of cable is made of special strength wires primarily for aircraft controls and miscellaneous uses
in the aircraft industry. Commercial grade aircraft cable cannot be used for aircraft controls. However,
it is used in many general-purpose applications such as slings, winch line, non-aircraft control cables and more.
Aircraft cables are available in smaller diameters than wire rope. For example, aircraft cables are
available in 3/64 in(1.2mm) diameter while most wire ropes begin at a 1/4 in(6mm) diameter.
Galvanized aircraft cable is galvanized drawn. In mild environments it’s an economical alternative to
stainless steel.
Stainless Steel aircraft cable is made up of corrosion resistant steel wires and is therefore the highest
quality aircraft cable available. While it tests at approximately the same pulling strength as galvanized
aircraft cable, it lasts longer under harsh conditions such as salt water and acidic (caustic) envrionments.
Type 316 has a higher corrosion resistance ranking than type 302/304, while type 302/304 has a higher
strength and fatigue resistance ranking. As the carbon content of the stainless steel alloy increases,
strength and fatigue resistance also increase, but corrosion resistance is reduced.
Regular construction of aircraft cables are: 7x19, 7x7, 3x7, 1x19, 1x7.
| Cable Diameter | Coated to | Approx. Wt. per 1000 Ft. in Lbs. | Breaking Strength in Pounds* | Construction |
|---|---|---|---|---|
| 1/16" | 3/32" | 9.3 | 480 | 7x7 |
| 1/16" | 1/8" | 11.8 | 480 | 7x7 |
| 3/32" | 1/8" | 18.5 | 920 | 7x7 |
| 3/32" | 3/16" | 25.8 | 920 | 7x7 |
| 1/8" | 3/16" | 35.2 | 1,700 | 7x7 |
| 1/4" | 5/16" | 122 | 6,100 | 7x7 |
| 3/32" | 1/8" | 19.9 | 1,000 | 7x19 |
| 1/8" | 3/16" | 36.2 | 2,000 | 7x19 |
| 3/16" | 1/4" | 77.5 | 4,200 | 7x19 |
| 3/16" | 5/16" | 77.5 | 4,200 | 7x19 |
| 1/4" | 5/16" | 123 | 7,000 | 7x19 |
| 5/16" | 3/8" | 197 | 9,800 | 7x19 |
| 3/8" | 7/16" | 270 | 14,400 | 7x19 |
Galvanized Aircraft Cable(GAC)
1. Application: Being used for important machine and apparatus
2. Characteristic: Straight and have a good cast; Small tolerance, flexible
As per GB, as well as customer`s request
3. Surface Coating: Galvanized
4. Construction : 1x19 6x19+IWS 6X19+FC 6X7+IWS 6X7+FC
5. Diameter :1.0mm to 12mm
6. Packing type: Ply Wooden reel and pallet or coil with paper box . You request welcomed .
7. Remarks during use and handling:
During transportation, handle softy and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel wire ropes must be stored in dry and well ventilated indoors.
Pay attention to direction of pay-off and take-up to avoid importing additional stress.
At work site, pay attention to the threading direction and avoid additional stress and curving of the wire ropes.
