China Wire Rope Sling manufacturer

Flexible Aircraft Grade Cable , Vinyl Coated Cable Large Safety Factor

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: 7x19GAC
Payment & Shipping Terms:
Minimum Order Quantity: 1MTRS
Price: USD1600/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100TONS monthly

Detail Information

Steel Grade:Carbon SteelStandard:ASTM, BS, DIN, GB, JIS
Construction:7 X 19Finish:Stainless
Diameter:3/16"HS Code:73121000
Alloy Or Not:Non-alloyLength:500 Ft
High Light:

aircraft wire cable


aircraft wire rope

Product Description

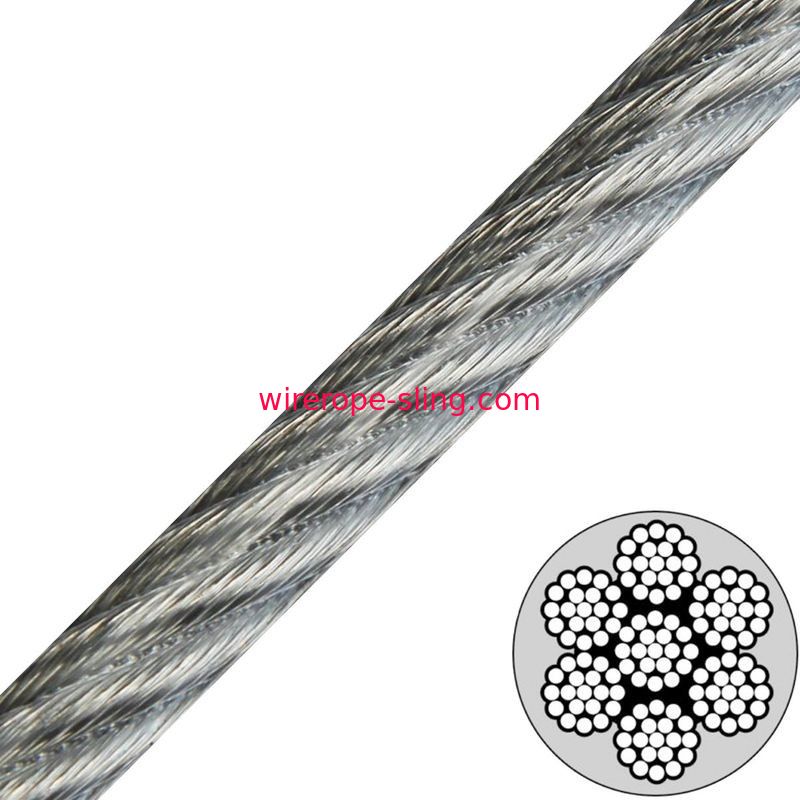

3/16(7x19) Break Strength 4200lb Galvanized Aircraft Cable Vinyl Coated to 1/4"


The raw materials for Aircraft Cable are galvanized steel wire and stainless steel wire for carbon structural steel. The coating of galvanized steel wire should be uniform, continuous, free from cracks and spalling. After the inspection is qualified, the raw material is wrapped up in accordance with the specified work wheel in accordance with the requirements of the process, loaded into the twisting strand on the twisting machine, and then close to the rope. Twist direction (see wire rope twisting method) except single strand rope is left twist, all are right alternate twist. The core is usually made of cotton or linen and soaked in neutral oil or metal core. The twist distance of wire rope should be 6 to 8 times that of rope diameter. The twist distance between strand and single strand wire rope should not exceed 12 times of the diameter of strand. The twist distance of the strand and the twist distance of the steel wire should be uniform on its full length. The diameter of the central wire of the rope strands should be thickened. The twisted rope also takes the oil as the tempering medium for low temperature tempering, in order to eliminate the twisting stress of the wire rope and to further remove the hydrogen in the galvanized steel wire, so as to improve the fatigue resistance and breaking tension of Aircraft Cable.


Galvanized Aircraft Cable with Clear Vinyl Coated Outside Vinyl is a low cost, general purpose coating which is very flexible and easy to strip. Typical applications for vinyl coated steel cable include security cables, lock cable systems, animal runs and display purposes.


Flexible Aircraft Grade Cable , Vinyl Coated Cable Large Safety Factor 0


Cable railing has a vinyl coating to make it easy to handle while also providing a corrosive-resistant protective layer. The strong and flexible construction makes it excellent for a variety of railings: porch, deck, stairs, dock, etc. A thin diameter keeps the view of the area unobstructed.
Do not exceed suggested working load limit; not intended for overhead lifting or aircraft use.
Be sure to check our categories of wire rope clips and wire rope thimbles for everything you need for the job. We also carry a wide selection of wire rope in thicker diameters.


Technical Table


Flexible Aircraft Grade Cable , Vinyl Coated Cable Large Safety Factor 1


7*7 Plastic Coated Steel Cable. Marine Wire Rope
Wire rope construstion
7*7, 7*19
Wire rope material
Carbon steel #60
Coat material
2.0 mm, coat to 3.0 mm
Transparent, or as your requirement
Lifting, loading, fishing and marine industries
Advantages of Nylon Coated Wire Rope
Abrasion resistant, Resilient, pleat retentive, Resists damage from oil and many chemicals
Coil, Wooden case, Carton
1000 meters
