Commercial Grade Aircraft Wire Cable , Galvanized Wire Rope Break Strength 920lb

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: 7x7GAC
Payment & Shipping Terms:
Minimum Order Quantity: 1MTRS
Price: USD1600/TON

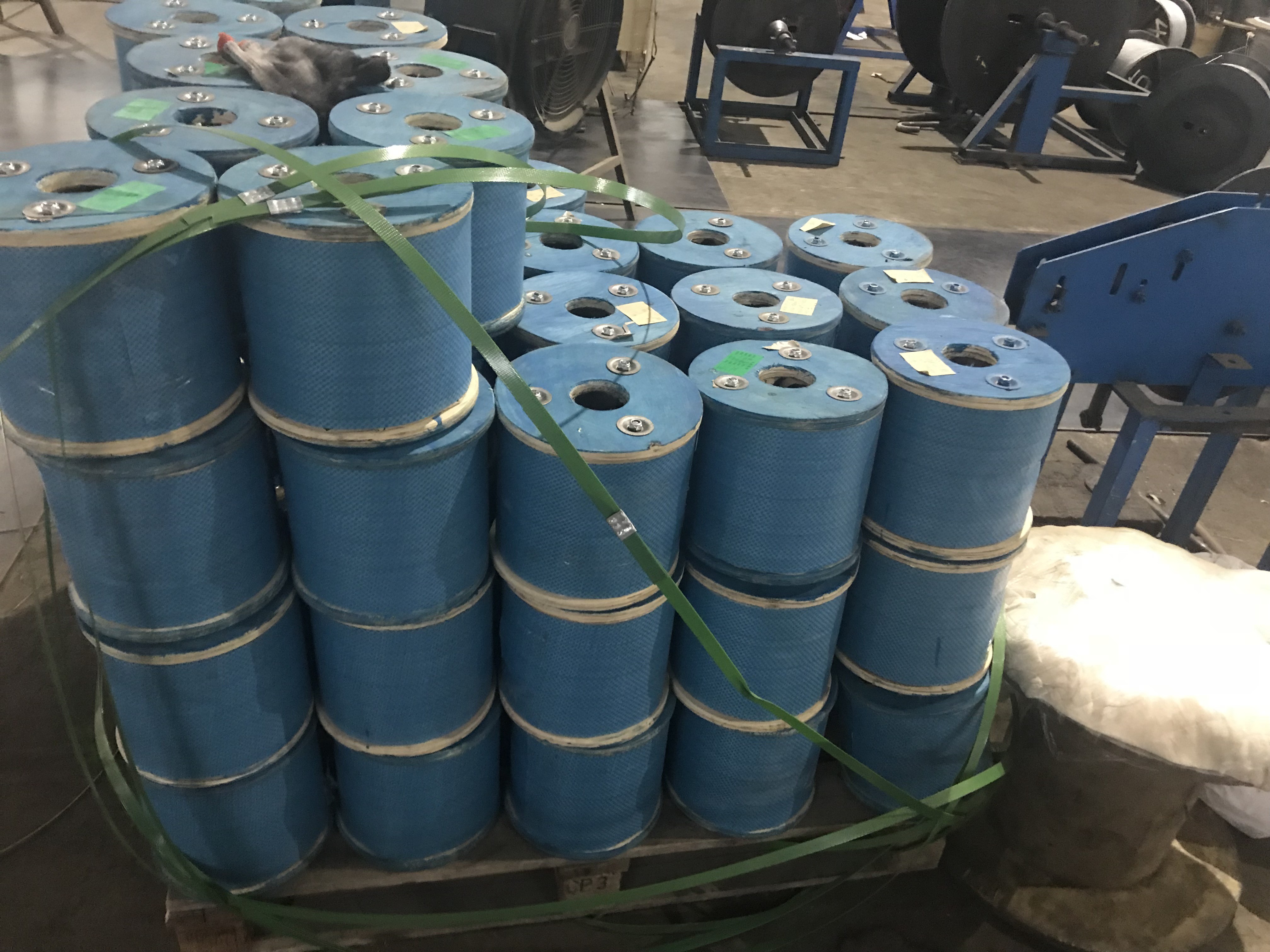

Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100TONS monthly

Detail Information

Diameter:1/8"Standard:ASTM, BS, DIN, GB, JIS
Construction:7 X 7Finish:Galvanized
Length:500 FtHS Code:73121000
Alloy Or Not:Non-alloySteel Grade:Carbon Steel
High Light:

aircraft wire cable

,

aircraft wire rope

Product Description



1/8" Stainless Aircraft Steel 7x7 Wire Rope Cable For Railing / Decking / Diy Balustrade



The varieties of Aircraft Cable include single strand wire rope, organic core steel wire rope and metal core wire rope. The typical structures are 1 x 7, 1 x 19, 6 x 7+IWS, 6 x 19+IWS, 6 x 7+NF, 6 x 19+NF, etc. The raw materials for Aircraft Cable are galvanized steel wire and stainless steel wire for carbon structural steel. The coating of galvanized steel wire should be uniform, continuous, free from cracks and spalling. After the inspection is qualified, the raw material is wrapped up in accordance with the specified work wheel in accordance with the requirements of the process, loaded into the twisting strand on the twisting machine, and then close to the rope. Twist direction (see wire rope twisting method) except single strand rope is left twist, all are right alternate twist. The core is usually made of cotton or linen and soaked in neutral oil or metal core. The twist distance of wire rope should be 6 to 8 times that of rope diameter. The twist distance between strand and single strand wire rope should not exceed 12 times of the diameter of strand. The twist distance of the strand and the twist distance of the steel wire should be uniform on its full length. The diameter of the central wire of the rope strands should be thickened. The twisted rope also takes the oil as the tempering medium for low temperature tempering, in order to eliminate the twisting stress of the wire rope and to further remove the hydrogen in the galvanized steel wire, so as to improve the fatigue resistance and breaking tension of Aircraft Cable.

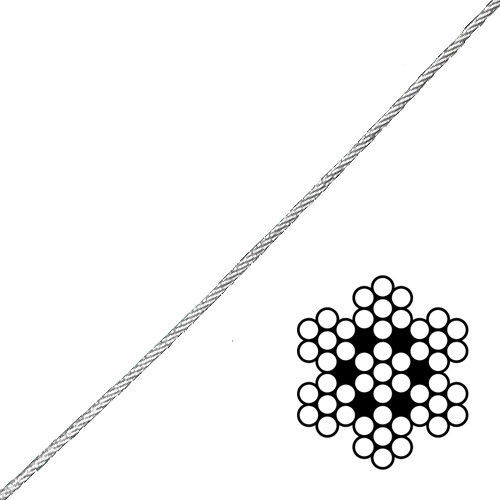

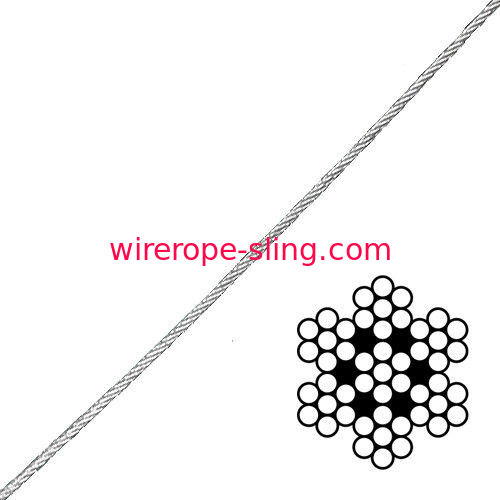

7x7 Galvanized aircraft cable is one of the most common, cost effective and versatile wire ropes. The 7x7 construction is of medium flexibility and is used in many of the same applications as 7x19 GAC but where a little less flexibility is needed. This small diameter wire rope is not intended for aircraft use, but designed for industrial, agricultural and marine applications.

Meets the Performance requirements of Applicable Federal Specification RR-W-410.

Independent Lab tested and verified.







Adheres to Federal Specification RR-W-410, Type VI, Class 2

Please inform your LKS Salesperson if you wish to quote MIL-Spec MIL-DTL-83420 or commercial grade domestic.



3/32" Galvanized Aircraft Cable

  • Flexible 7 x 7 Construction
  • Commercial Grade
  • Min. Breaking Strength: 920 lbs
  • Not suitable for Aircraft Controls
  • 500 ft/reel
  • Weight 32 lbs/mft



Product Attributes



Spool Length 500 ft
Breaking Strength 920 lb
Strand Core 7 x 7
Finish Galvanized
Diameter 3/32"
Material Steel
Work Load Limit 184 lb
Type Aircraft Cable
Product Weight 8
UOM Spool of 500



Galvanized Aircraft Cable(GAC)



1. Application: Being used for important machine and apparatus



2. Characteristic: Straight and have a good cast; Small tolerance, flexible



As per GB, as well as customer`s request



3. Surface Coating: Galvanized



4. Construction : 1x19 6x19+IWS 6X19+FC 6X7+IWS 6X7+FC



5. Diameter :1.0mm to 12mm



6. Packing type: Ply Wooden reel and pallet or coil with paper box . You request welcomed .



7. Remarks during use and handling:



During transportation, handle softy and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel wire ropes must be stored in dry and well ventilated indoors.



Pay attention to direction of pay-off and take-up to avoid importing additional stress.



At work site, pay attention to the threading direction and avoid additional stress and curving of the wire ropesCommercial Grade Aircraft Wire Cable , Galvanized Wire Rope Break Strength 920lb 0
