China Wire Rope Sling manufacturer

K18X7 Steel Crane Wire Rope Hosting Non Rotating For Container Deck Cranes

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: K18X7 (6/1)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Alloy Or Not:Non-alloyLay:RHOL, LHOL
Wire Gauge:0.75-40mmLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelStandard:AISI, ASTM, BS, DIN, GB, JIS
HS Code:73121000Material:Steel
High Light:

crane pendant cable

,

overhead crane wire rope

Product Description

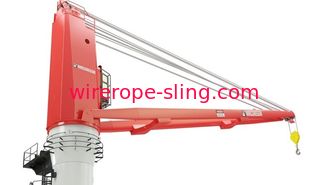

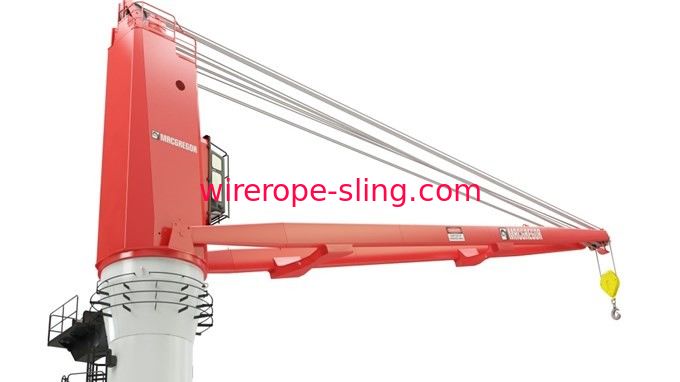

K18X7 (6/1) Hosting Crane Steel Wire Rope for Container Deck Cranes





Product Details

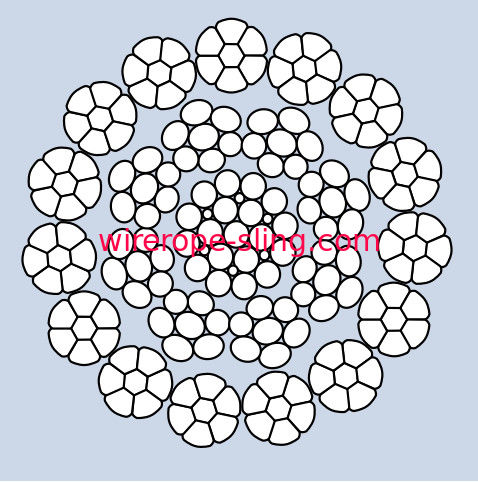

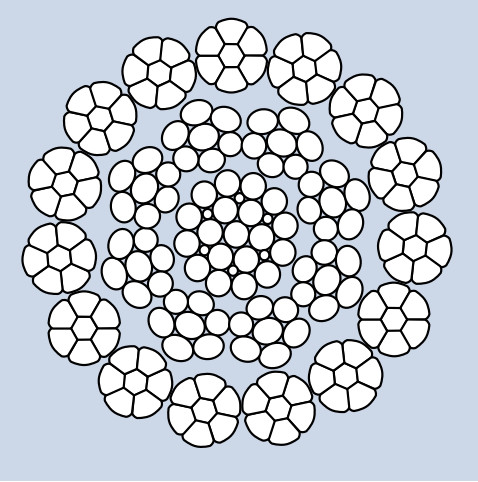

The non rotating wire rope of class 18*7 is divided into two kinds of core and steel core. We often label the 18*7+FC core category, and the 18*7+IWS steel core category. In many cases, we refer to 18*7+IWS for abbreviated as 19*7. As a steel core rope, 19*7 plays a very good supporting role in the rope strands during the production of wire rope, and in the load stage, it can effectively share the part of the load and withstand the advantages of 19*7 when it is resistant to high temperature and extrusion. The 18*7+FC rope core rope makes the softening and bending properties of the wire rope further strengthened, and the oil storage capacity of the rope core rope is strong, the lubrication effect is good, and the wear and corrosion of the inner steel wire can be slowed down.









The Deck Crane and Wire Ropes Features



The Container Deck Cranes Wire Rope is mainly the Container Deck Cranes Wire Rope lifting wire rope. FC and so on; Container Deck Cranes Wire Rope wire rope damage common problems are: broken wire and broken strand; wire rope curved wave shape; steel rope jumping stock or rope diameter locally larger; multi ply non rotating wire rope long phenomenon; outer rope strands loosening; there are many factors causing the quality of the above wire rope, large part, large part All of these are due to the repeated bending of the wire rope during the movement of the wire rope, causing the wire rope to break off the wire or to wear off the wire, and the improper cutting of the wire rope during the handling or opening of the wire, such as the loosening of the 35W*7 or the Container Deck Cranes Wire Rope division. If the machine is not maintained regularly, there will be many quality problems.



Wire Rope Specification for Crane Model



Crane Type

Wire Rope Specification

Tensile strength

Length(meters)

QY8D

6×29Fi+FC-10MM

1960MPa

120m

QY12

6×19W+FC-14MM

1870MPa

120m

QY16K

4V×39S+5FC-14MM

1870MPa

145/70m

QY25K

4V×39S+5FC-14MM

1870MPa

155/90m

QY25E

6×19W+FC-16MM

1870MPa

145/85m

QY20

6×19W+FC-16MM

1870MPa

150/80m

QY20B

6×19W+FC-16MM

1870MPa

150/85m

QY25Ai

6×25Fi++IWRC-17MM

1870MPa

145/85m

QY35K

4V×39S+5FC-18MM

1870MPa

150/115m

QY50K

4V×39S+5FC-18MM

1870MPa

180/120m

QY65K

4V×39S+5FC-20MM

1870MPa

185m

QY65K

4V×39S+5FC-18MM

1870MPa

125m

QY80

4V×39S+5FC-22MM

1870MPa

232/160m

QY100

4V×39S+5FC-22MM

1870MPa

245/160m

QUY50

35W×7-18MM

1870MPa

215m

QUY50

6×29Fi+IWRC-18MM

1870MPa

160m



K18X7 Steel Crane Wire Rope Hosting Non Rotating For Container Deck Cranes 0

Safety Notice



Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicks or abrasion, which may cause failure or reduce the strength of the Wire Rope.



Wire Rope and Steel Cable must be stored, used and maintained in accordance with the normal safety standards.

Verify that replacement Wire Ropes are correct for your application and meet your specifications.

Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application.
