Engineering Luffing Wire Rope Marine Grade Stainless Steel Long Fatigue Life

China Engineering Luffing Wire Rope Marine Grade Stainless Steel Long Fatigue Life supplier
Engineering Luffing Wire Rope Marine Grade Stainless Steel Long Fatigue Life supplier Engineering Luffing Wire Rope Marine Grade Stainless Steel Long Fatigue Life supplier

Large Image :  Engineering Luffing Wire Rope Marine Grade Stainless Steel Long Fatigue Life

Product Details:

Place of Origin: China
Brand Name: LKS
Certification: CE, BV, SGS, ISO9001:2008
Model Number: 6x36 (14/7+7/7/1)

Payment & Shipping Terms:

Minimum Order Quantity: 1mtrs
Price: USD1.0-4.8 per mtrs
Packaging Details: Wooden Reel
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 1000tons Monthly
Contact Now
Detailed Product Description

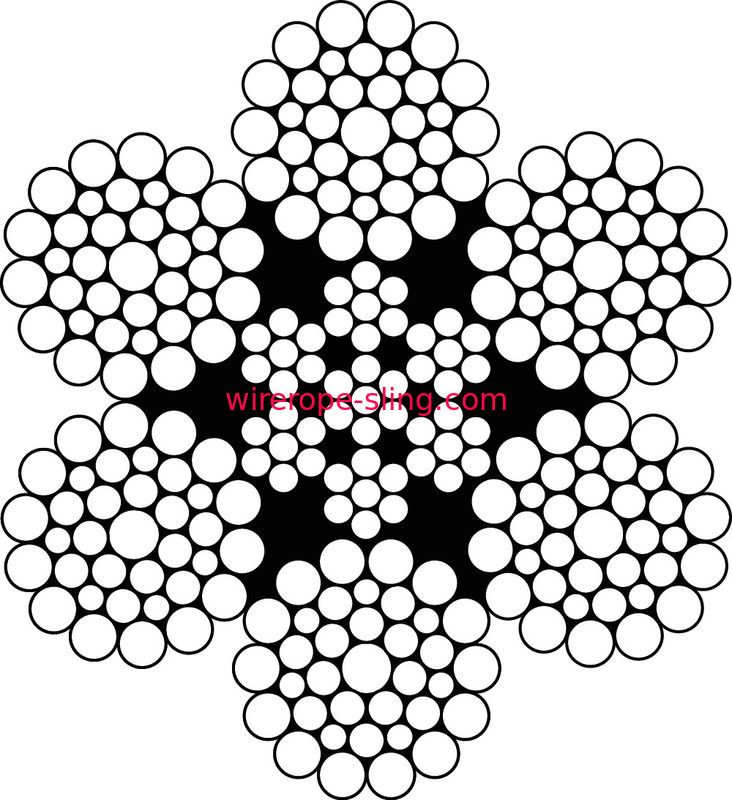

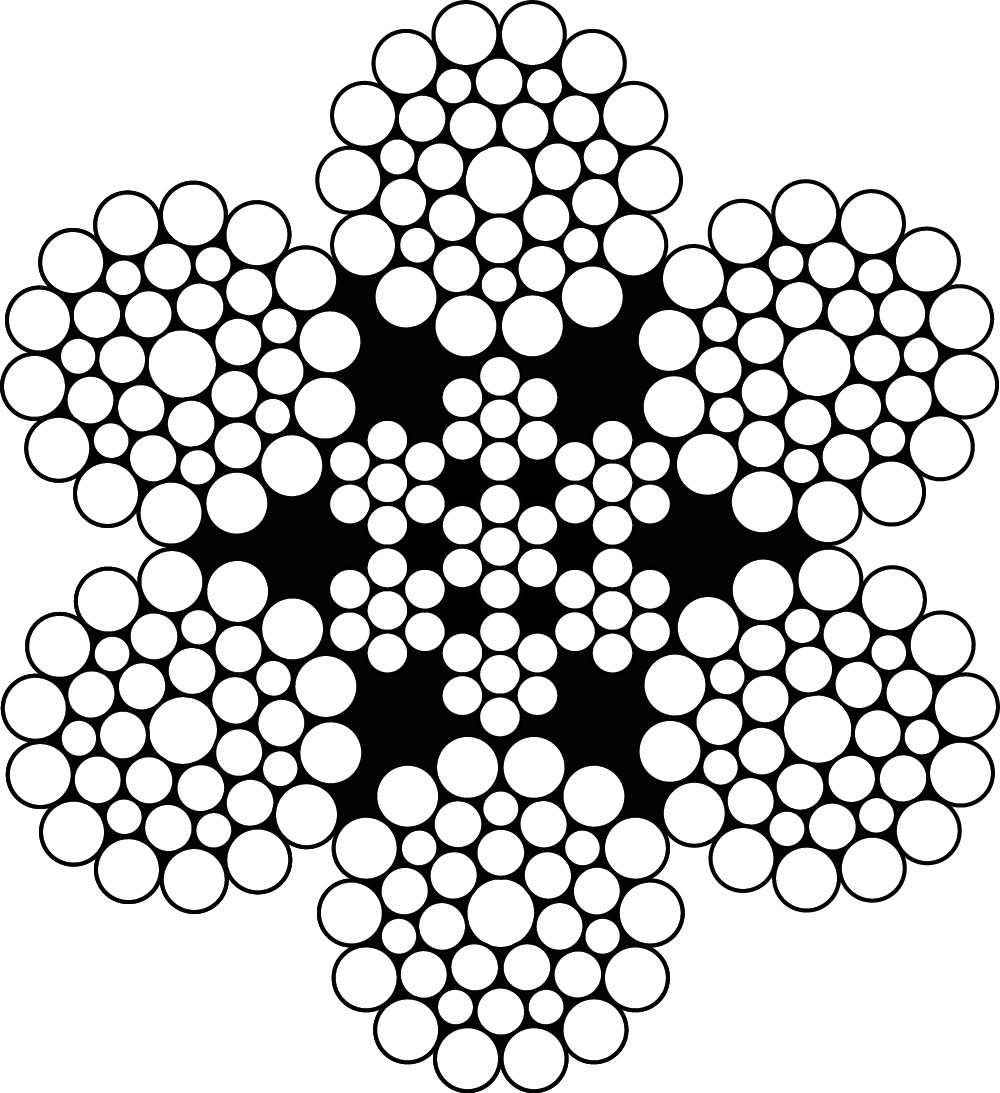

Material: Steel Construction: 6x36 (14/7+7/7/1)
Safety Factor: 5:1 Applications: Winch / Luffing Ropes
Diameter: 8mm To 60mm OEM/ ODM: Available

IWRC Wire Rope 6X36 1770N / MM2 Tensile Strength Luffing Wire Rope







Product Details



6x36 is a flexible general engineering wire rope readily available in galvanised, ungalvanised and marine grade stainless steel. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. The construction has been designed to give a flexible rope with a good fatigue life. A 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, examples of which are shown below:



Applications

  • Holding and closing ropes for grab cranes
  • General engineering applications
  • Wire rope slings
  • Crane ropes
  • Winch ropes
  • Hoist rope
  • Wire rope rigging applications
  • Lifeboat falls
  • Mooring ropes
  • Pursing wires
  • Luffing ropes
  • Tow ropes



IWRC Wire Rope 6X36 1770N / MM2 Tensile Strength Luffing Wire Rope

Breaking Loads

Nominal Diameter

Approximate Mass

Minimum Breaking Loads

1770 Mpa

1960 Mpa

[mm]

[kg/m]

[kN]

[Kg]

[kN]

[Kg]

8 0.262 40.3 4,113 44.7 4,555
9 0.331 51.0 5,206 56.5 5,764
10 0.409 63.0 6,427 69.8 7,117
11 0.495 76.2 7,776 84.4 8,611
12 0.589 90.7 9,255 100.5 10,248
13 0.691 106.5 10,862 117.9 12,028
14 0.802 123.5 12,597 136.8 13,949
16 1.047 161.3 16,453 178.6 18,219
18 1.325 204.2 20,824 226.1 23,059
19 1.476 227.5 23,202 251.9 25,692
20 1.636 252.0 25,708 279.1 28,468
22 1.980 305.0 31,107 337.7 34,447
24 2.356 362.9 37,020 401.9 40,994
26 2.765 426.0 43,448 471.7 48,111
28 3.207 494.0 50,389 547.0 55,798
30 3.681 567.1 57,845 628.0 64,054
32 4.188 645.2 65,814 714.5 72,879
34 4.728 728.4 74,298 806.6 82,274
36 5.301 816.6 83,296 904.3 92,238
38 5.906 909.9 92,809 1007.6 102,771
40 6.544 1008.2 102,835 1116.4 113,874
42 7.215 1111.5 113,376 1230.8 125,546
44 7.918 1219.9 124,431 1350.9

137,788
