Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE, CCS, Lloyd’s, ABS,DNV |
| Model Number: | 6 x K21F - SFC |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1000mtrs |
| Price: | USD1200 per Ton |
| Packaging Details: | Wooden Reel or as request |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000tons monthly |
|
Detail Information |
|||
| Packing: | Wooden Reel,Steel Reel | Surface: | Galvanized/Ungalvanized |
|---|---|---|---|
| Tensile Strength: | 1570,1670,1770,1870,1960MPA | Length: | 500mtrs/1000mtrs/2000mtrs Available |
| Material: | Steel | Lay: | RHOL, LHOL |
| Standard: | ASTM, BS, GB, JIS | Alloy Or Not: | Non-alloy |
| High Light: |
crane pendant cable,overhead crane wire rope |
||
Product Description

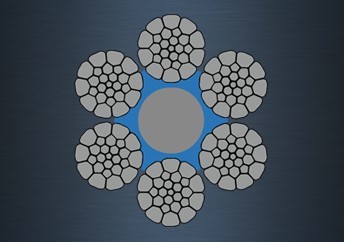

6 x K21F - SFC Crane Steel Wire Rope stands for a 6-stand round strand rope in SUPERFILL® design featuring a PLASTFILL® insert. Its extremely robust design including a plastic-infused fibre core makes this compacted steel wire rope ideal for use as a dragline in gravel mining, scraper installations, and on logging winches.Six compacted strands makes wire rope big breaking load and smoothly running on the drum.A plastic-infused fibre core makes more flexible.
►MULTILAYER SPOOLING
►SUPERFILL®
►PLASTFILL®
Specifications
The minimum diameter ratio of the diameter steel rope and the drum
| Wire Rope Construction | Minimum drum dia. (mm) | Wire Rope Construction | Minimum drum dia. (mm) | ||
| (d=Wire Rope dia.) | (d=Wire Rope dia.) | ||||
| 6&8 strands wire rope | 6×7 6T×7 6×10TS | 42×d | Micro rotating wire rope | 18×7 | 34×d |
| 6×19 6×19S 6×19W | 30×d | 18×19S 18×19W | 26×d | ||
| 6×26WS 6×21Fi | 28×d | 18×26WS | 24×d | ||
| 6×25Fi 6×31WS | 25×d | 4V×39S 4V×48S 4×36WS | 26×d | ||
| 6×29Fi 6×37 6×36WS | 22×d | Micro non rotating wire rope | 24W×7 | 30×d | |
| 6×41WS 6×49SWS | 19×d | 35W×7 | 30×d | ||
| 8×19S 8×19W | 25×d | Compacted Wire Rope | 6×K19S 6×K26WS | 30×d | |
| 8×26WS | 24×d | 6×K31WS 6×K41WS | |||
| 8×25Fi 8×31WS | 20×d | 8×K25Fi 8×K29Fi | 30×d | ||
| 8×36WS | 18×d | 8×K36WS 8×K41WS | |||
| 6V×30 6×34 6×37 | 30×d | 15×K7 18×K7 35W×K7 | 36×d | ||
Applications
Choose the most suitable wire rope for your applications
With the increasing demand for the steel wire rope used in the port crane and the increasing demand for quality, the structure of the steel wire rope used for port cranes has been gradually developed from 6 x 37+FC to line contact and non rotating wire rope, in which the line contact wire rope has 6 x 36WS+IWRC, 6 x 26WS+IWRC and 6 x 29Fi+IWRC, The non rotating wire rope includes 18 x 7+FC, 35W x 7, 4V * 39S+5FC and so on. At present, many port cranes have more and more demand for contact wire rope. Because the tensile force and service life of the surface contact wire rope with the same specification are much larger than that of the wire contact wire rope, such as 6 x K36WS+IWRC, 8 x K26WS+IWRC, 35W x K7, etc.
Technical Table
| Breaking Loads | |||
|---|---|---|---|
| Nominal Diameter | Weight | Minimum Breaking Loads | |
| 1770 Mpa | |||
| [mm] | [kg/m] | [kN] | [Kg] |
| 22 | 2.1 | 375 | 38,239 |
| 26 | 2.75 | 517 | 52,719 |
| 29 | 3.7 | 643 | 65,568 |
| 36 | 5.25 | 955 | 97,383 |
| 40 | 6.47 | 1,232 | 125,629 |
