Crawler Crane Luffing Compacted Steel Wire Rope K9 X K19S Rotation Resistance

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: K9 x K19S
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.75-40mmLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL, LHOL
HS Code:73121000Alloy Or Not:Non-alloy
High Light:

crane pendant cable

,

overhead crane wire rope

Product Description

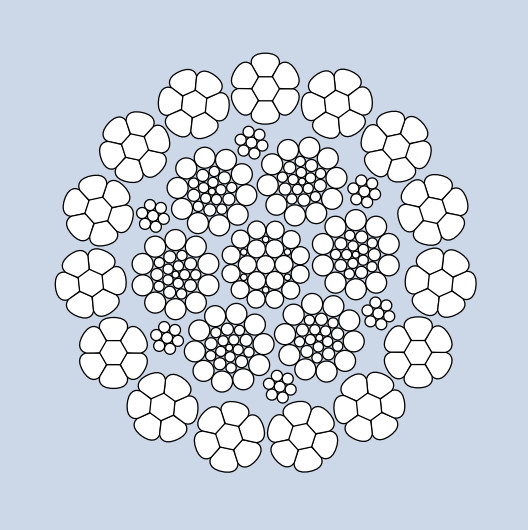

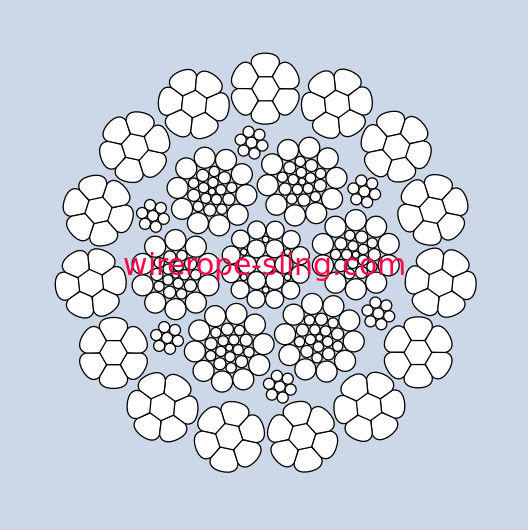

K9 x K19S Mobile and Crawler Crane Luffing Compacted Steel Wire Rope





Product Details

Luffing Wire Ropes
Large rope tension and multiple reeving require special ropes. Therefore characteristic of our luffing ropes is for example the excellent performance during the boom set up.



Ropes ready to use for cranes and construction machinery are our strength for years. We are the original equipment manufacturer of well-known construction machinery manufacturers, e.g.LIEBHERR and further construction machinerys manufacuters, and have the comprehensive know-how in production and application of crane and construction machinery ropes The choise of a specific rope construction of our very extensive portfolio of ropes for your machine requires the special application- and rope-know-how of our consultants, because of the dependence on crane system, operation conditions and abrasion behaviour of the ropes.Our complete documentation guarantees you traceability for all operations We guarantee rapid availability with our fully automatic high rack storage in Memmingen with a capacity of more than 4000 tons and further storages worldwide Professional logistic partners ensure quick deliver.









Crane Wire Ropes Types



Crane Wire Rope if 6 or 8 strands of wire ropes, such as 6*19S, 6*19W, 6*25Fi, 6*29Fi, and so on, will be rotated along the rope core when the load is torsional, which will make the wire rope loose in the course of the use of Crane. If 35W x K7, 15 x K7 and DIPA1315Z are selected without rotation or resistance rotation, the service life of the wire rope can be improved, the safety of the staff and equipment and the increase of working efficiency will be greatly improved. At present, Crane Wire Rope is dedicated to 35W * K7, 15 * K7, DIPA1315Z, 24W * K7, 16 x K7 and so on; the anti rotation of these Crane Wire is realized by changing its structure and twisting direction. It can make the self rotation trend of Crane Wire Rope minimum.
Since the non rotating wire rope has an independent rope core, its twist is opposite to that of the outer strand. This structure, even at the height of the lifting height and the width of the load, the torque between the wire rope core and the outer stock counteracts each other, and the wire rope will not be torsional. Because there are no dynamic pulleys installed in Crane at home and abroad, the single rope tension of wire rope is larger. This should be equipped with wire rope with good flexibility, good abrasion resistance, good rotation resistance and good extrusion resistance. Especially for multi-layer winding pre winding winch, it is recommended to use the same twist wire rope to avoid the imprint of the inner strand. At present, the diameter of Crane Wire Rope35W*K7 and 15*K7 such as 26mm, 28mm, 30mm, 32mm and 36mm are gradually twisted to the same direction by alternating twisting.



Wire Rope Specification for Crane Model



Crane Type

Wire Rope Specification

Tensile strength

Length(meters)

QY8D

6×29Fi+FC-10MM

1960MPa

120m

QY12

6×19W+FC-14MM

1870MPa

120m

QY16K

4V×39S+5FC-14MM

1870MPa

145/70m

QY25K

4V×39S+5FC-14MM

1870MPa

155/90m

QY25E

6×19W+FC-16MM

1870MPa

145/85m

QY20

6×19W+FC-16MM

1870MPa

150/80m

QY20B

6×19W+FC-16MM

1870MPa

150/85m

QY25Ai

6×25Fi++IWRC-17MM

1870MPa

145/85m

QY35K

4V×39S+5FC-18MM

1870MPa

150/115m

QY50K

4V×39S+5FC-18MM

1870MPa

180/120m

QY65K

4V×39S+5FC-20MM

1870MPa

185m

QY65K

4V×39S+5FC-18MM

1870MPa

125m

QY80

4V×39S+5FC-22MM

1870MPa

232/160m

QY100

4V×39S+5FC-22MM

1870MPa

245/160m

QUY50

35W×7-18MM

1870MPa

215m

QUY50

6×29Fi+IWRC-18MM

1870MPa

160m

Crawler Crane Luffing Compacted Steel Wire Rope K9 X K19S Rotation Resistance 0
