Mobile Crane Pendant Cable , Fiber Core Wire Rope 8 X K25F EPIWRC Wear Resistance

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 8 x K25F - EPIWRC (K)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.75-40mmLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL, LHOL
HS Code:73121000Alloy Or Not:Non-alloy
High Light:

crane pendant cable

,

overhead crane wire rope

Product Description

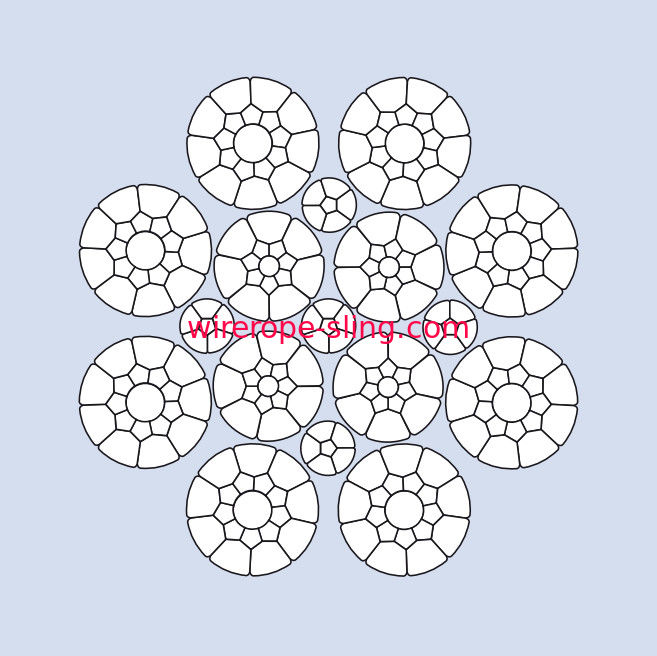

8 x K25F - EPIWRC (K) Mobile and Crawler Crane Pendant Steel Wire Rope





Product Details



Pendant Wire Ropes


Only by production with high dimensional accuracy and by the use of special
wire ropes with high breaking forces the specific demands on pendant ropes
in mobile and crwaler cranes can be reached. We set ourselves this challenge
everyday.



Ropes ready to use for cranes and construction machinery are our strength for years. We are the original equipment manufacturer of well-known construction machinery manufacturers, e.g.LIEBHERR and further construction machinerys manufacuters, and have the comprehensive know-how in production and application of crane and construction machinery ropes The choise of a specific rope construction of our very extensive portfolio of ropes for your machine requires the special application- and rope-know-how of our consultants, because of the dependence on crane system, operation conditions and abrasion behaviour of the ropes.Our complete documentation guarantees you traceability for all operations We guarantee rapid availability with our fully automatic high rack storage in Memmingen with a capacity of more than 4000 tons and further storages worldwide Professional logistic partners ensure quick deliver.









Reasonable  6 or 8 strand wire rope as the preferred wire rope for Crane



When Crane Wire Rope is used for lifting use, our common wire rope structure is 8*36WS+IWR, 8*31WS+IWR, 6*36WS+IWR. The port Crane wire rope is frequently carried on load operation, the load strength is higher and the winding is on the reel. This determines the characteristics of the port hoisting steel rope to be better. Fatigue performance and wear resistance and impact resistance, and have high breaking pull force, so in recent years, gradually to compacted stranded wire rope over, we often recommend to customers of the model 6*K36WS+IWR, 8*K36WS+IWR, we do not recommend the use of fiber core (core), because metal core (steel core) outer rope The strand has better supporting force, and the wire rope is not easy to deform.
For the port hoisting wire rope, it often has the problem of customer consultation deformation failure, through our team investigation, this is because the ratio of steel wire rope and steel wire outer layer steel wire is too small. In general, we suggest that the diameter of the roller and pulley should not be less than 400, and the ratio of the roller or pulley to the steel wire in the outer layer should not be less than 1200 under the condition of frequent and rapid operation



Wire Rope Specification for Crane Model



Crane Type

Wire Rope Specification

Tensile strength

Length(meters)

QY8D

6×29Fi+FC-10MM

1960MPa

120m

QY12

6×19W+FC-14MM

1870MPa

120m

QY16K

4V×39S+5FC-14MM

1870MPa

145/70m

QY25K

4V×39S+5FC-14MM

1870MPa

155/90m

QY25E

6×19W+FC-16MM

1870MPa

145/85m

QY20

6×19W+FC-16MM

1870MPa

150/80m

QY20B

6×19W+FC-16MM

1870MPa

150/85m

QY25Ai

6×25Fi++IWRC-17MM

1870MPa

145/85m

QY35K

4V×39S+5FC-18MM

1870MPa

150/115m

QY50K

4V×39S+5FC-18MM

1870MPa

180/120m

QY65K

4V×39S+5FC-20MM

1870MPa

185m

QY65K

4V×39S+5FC-18MM

1870MPa

125m

QY80

4V×39S+5FC-22MM

1870MPa

232/160m

QY100

4V×39S+5FC-22MM

1870MPa

245/160m

QUY50

35W×7-18MM

1870MPa

215m

QUY50

6×29Fi+IWRC-18MM

1870MPa

160m



Mobile Crane Pendant Cable , Fiber Core Wire Rope 8 X K25F EPIWRC Wear Resistance 0

Safety Notice



Inspect regularly for visible damage, distortion, elongation, corrosion, cracks, nicks or abrasion, which may cause failure or reduce the strength of the Wire Rope.



Wire Rope and Steel Cable must be stored, used and maintained in accordance with the normal safety standards.

Verify that replacement Wire Ropes are correct for your application and meet your specifications.

Avoid shock loads. Do not load Wire Rope to the breaking strength limits. End user must determine an appropriate safety factor for the application.
