China Wire Rope Sling manufacturer

Cable Railing Kits 1/8" 33Ft 1.5 Mm Wire Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-SSWR-7X7
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Safety export wooden/plastic reel/as the requirement of customer.
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Type:Stainless Steel,steel Wire Rope,cable Suspending KitsSteel Grade:Carbon Steel 45# 60# 70#,Low Carbon Steel
Alloy Or Not:Non-alloyApplication:Rope,Construction,Manufacturing,vineyard,clothline
Wire Gauge:1.0mm-8mmStandard:GB,ASTM,DIN,AISI,BS
Special Use:Free Cutting SteelTensile Strength:1570Mpa-1960Mpa
Material:45# /60#/70# High Carbon Steel,Stainless Steel 316/304 Or CarbonTwist Direction:RHRL,RHLL,LHRL,LHLL
High Light:

wire rope cable

,

steel rope cable

Product Description

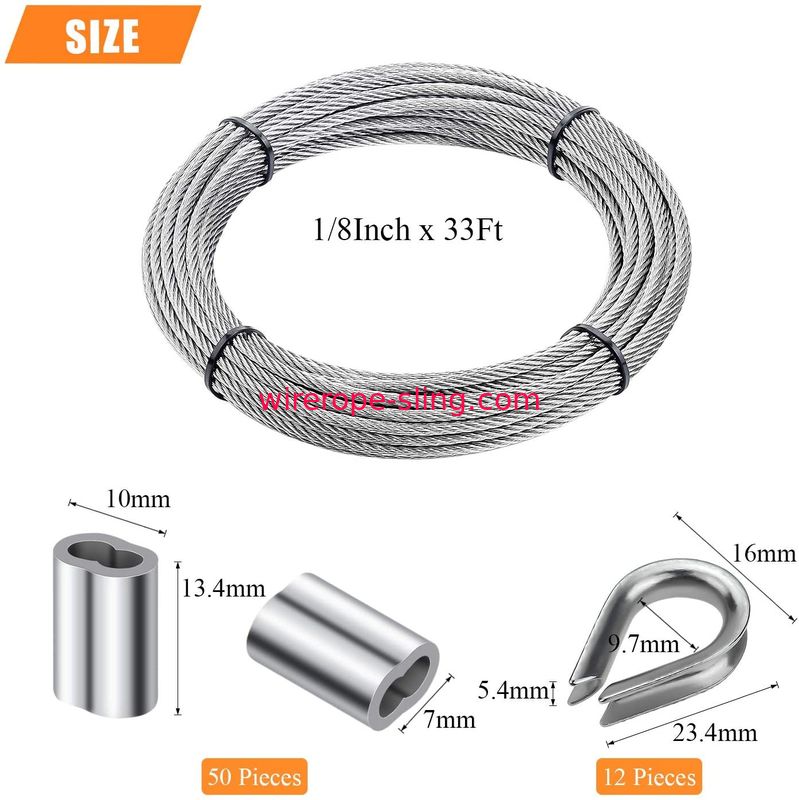

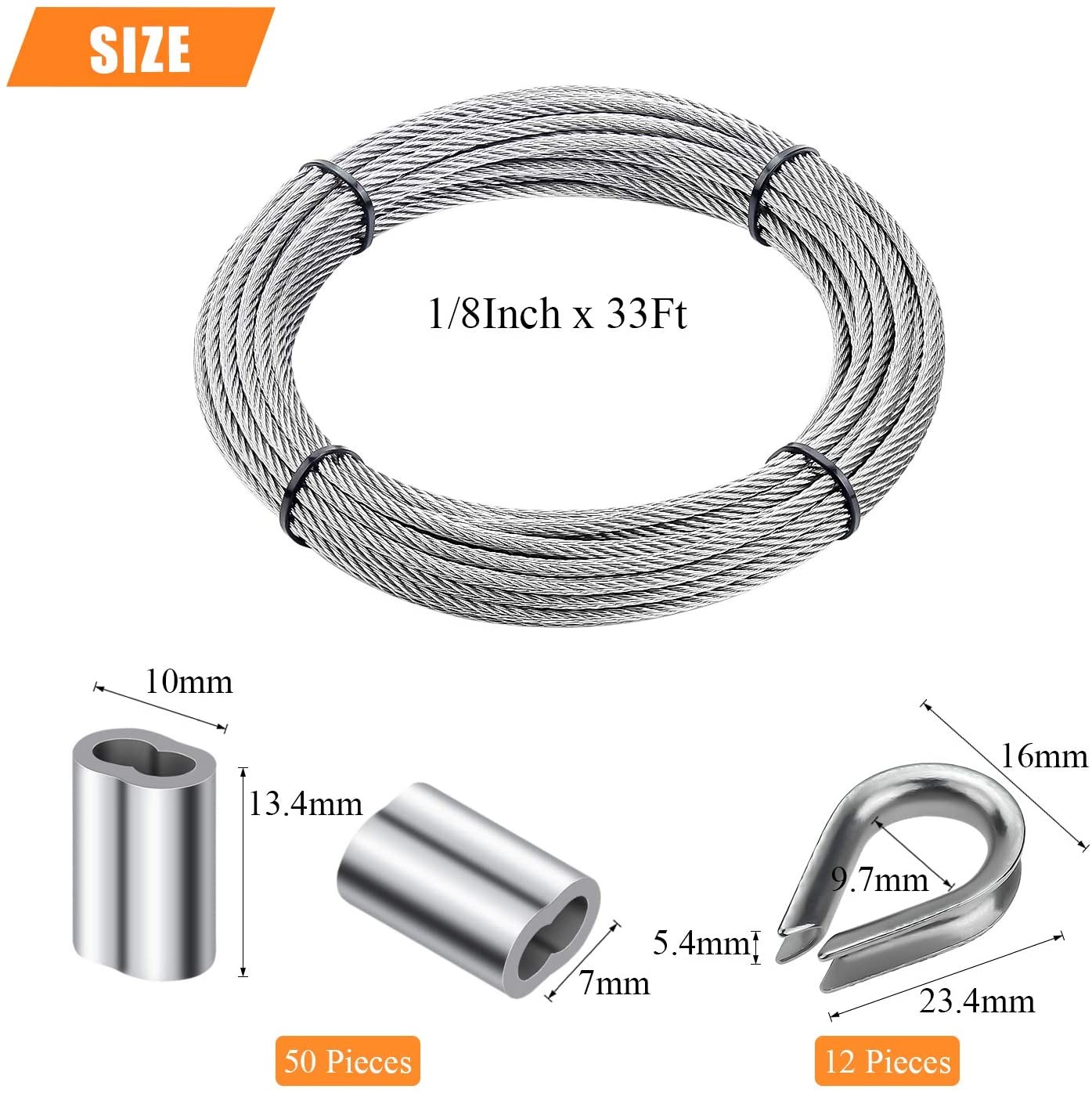

Cable Railing Kits, 1/8" Stainless Steel Wire Rope 33Ft with 50 PCS Aluminum Crimping Sleeves & 12 PCS Thimble

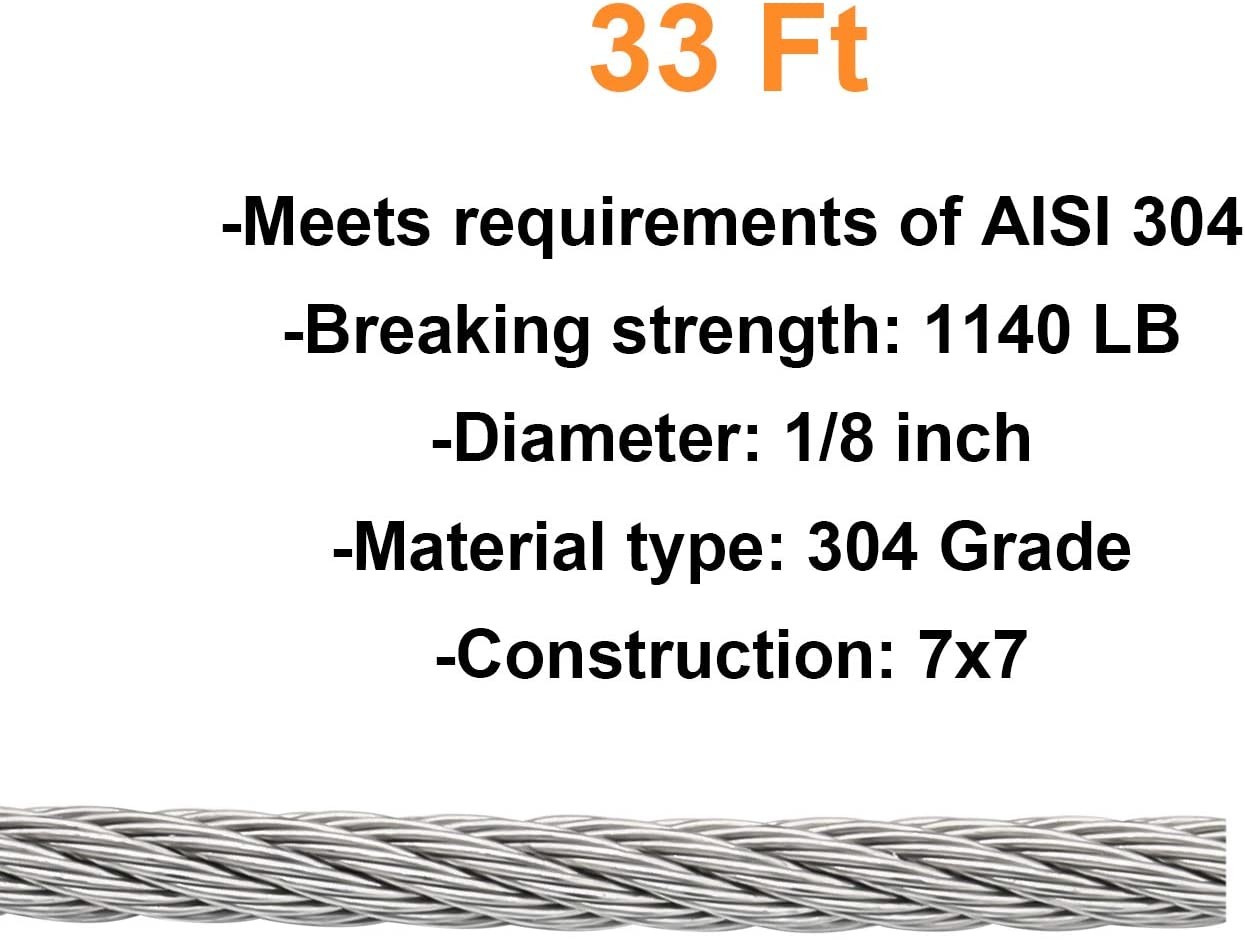

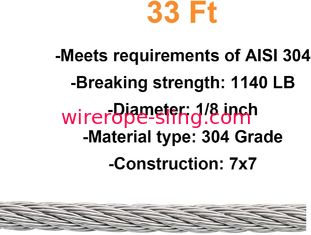

  • 【Sizes】1/8-Inch Diameter(3.2mm), 33-Feet Length, 1140 lb Breaking Strength. Wire rope sleeve and thimble fit for the wire rope cable.
  • 【Material】Cable and thimble are made of 304 stainless steel, durable and sturdy, anti-rust, it can be reserved a long time in wet environment, crimping loop sleeve are made of aluminum material, excellent corrosion resistance.
  • 【Features】Thimble and crimping loop sleeve can prevent the end wire rope from being squeezed or damaged by excessive force, which can provides excellent protection against surface abrasion of wire ropes. Keep cable from flatting around the eye causing the cable to weaken.
  • 【Wide Applications】Suitable for steel wire rope, clothes lines, dog leashes, clothes lines, wire rope applications or anything else that require strong cable, it will provide convenient service for your life and meet all your needs.

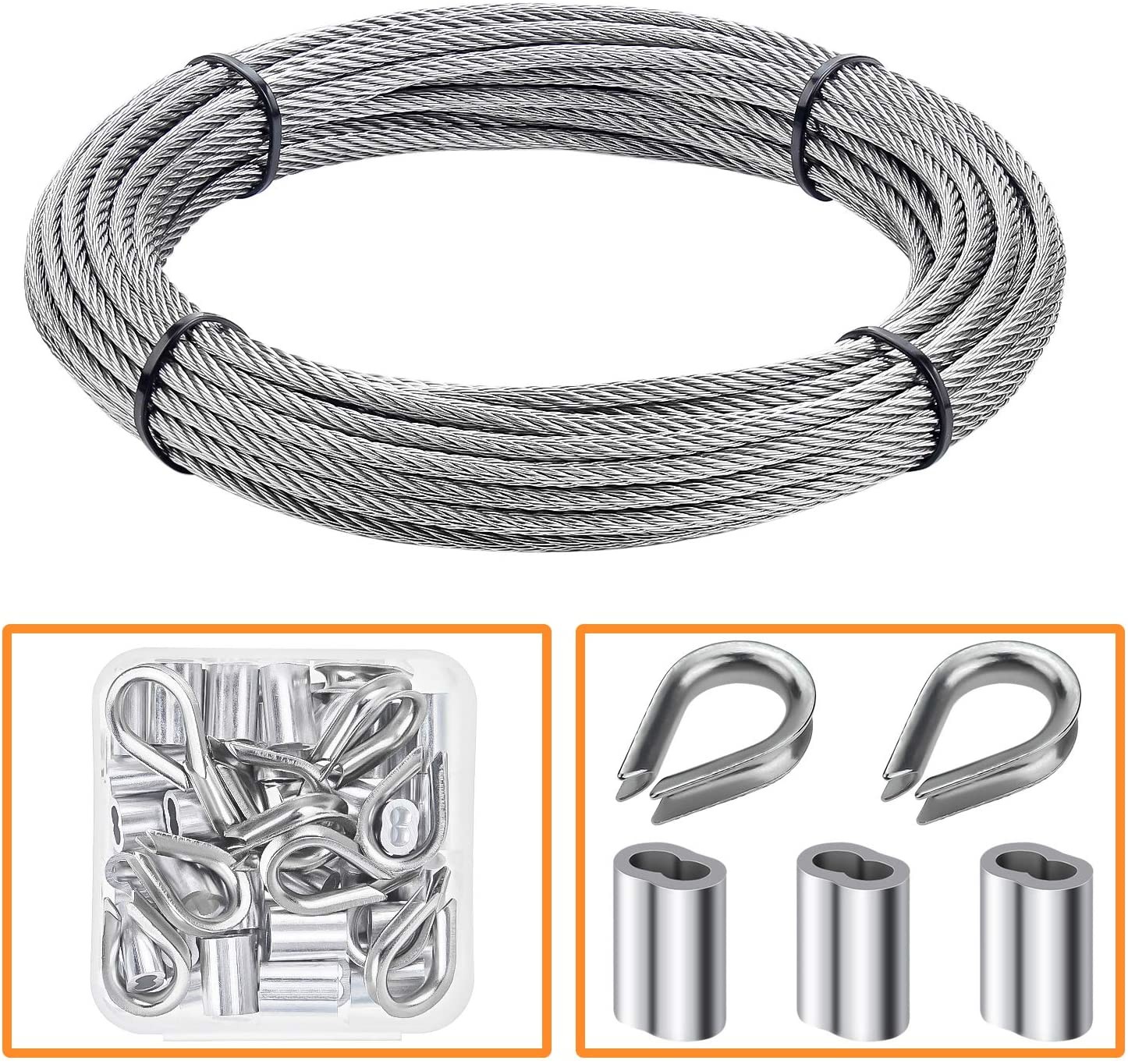

  • 【Cable Railing Kit Includes】1/8 inch x 33 feet 304 stainless steel wire rope cable, 50 pieces aluminum crimping sleeves and 12 pieces stainless steel wire rope thimble in a small plastic storage box.





Cable Railing Kits 1/8" 33Ft 1.5 Mm Wire Rope 0Cable Railing Kits 1/8" 33Ft 1.5 Mm Wire Rope 1



Stainless Steel Wire Roes for Marine & General Applications

Stainless steel wire ropes boast higher corrosion resistance to salt water than galvanized wire ropes, so they are the best choice of marine applications. Meanwhile, the bright appearance of galvanized wire ropes will dull over time, but stainless steel wire rope will maintain its bright and modern appearance for years. Therefore they are generally used in decoration for modern display and architectural purposes, such as railings, architectural cables, cable balustrades, handrails, etc.


  • The 304 material, as the most common type, is magnetic with excellent corrosion resistance and strength compared with galvanized steel wire ropes. But it still will corrode to some extent over year so it is not suitable for marine and food applications.
  • The 305 material is more corrosive resistant than 304. Meanwhile, it is largely non-magnetic perfectly suited for aeronautical and naval fields.
  • The 316 materials is the most corrosive resistant type and highly used in high corrosion environments and places with high salt spray. But the 316 material is about 10% less strength than 304 stainless steel.

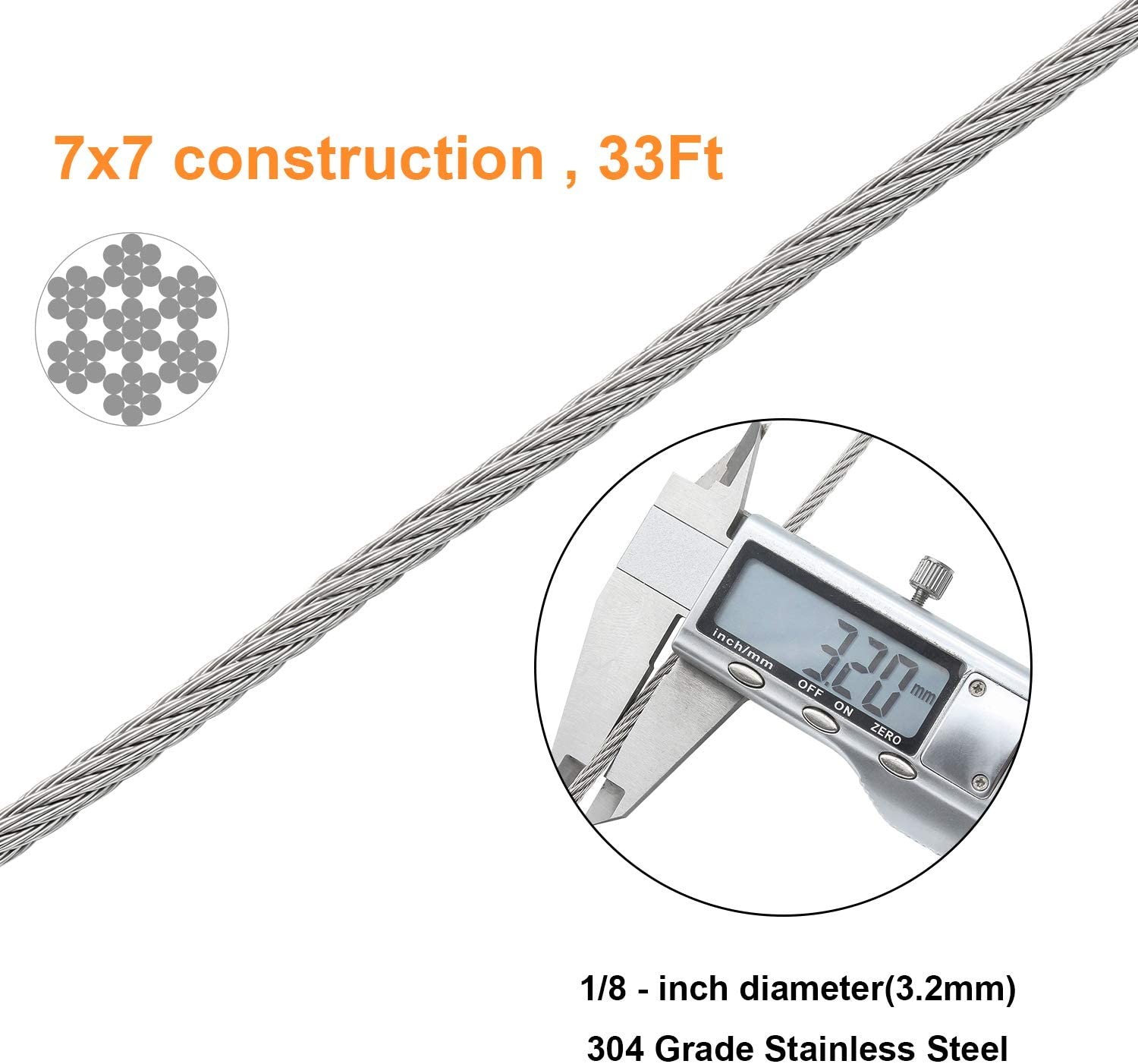

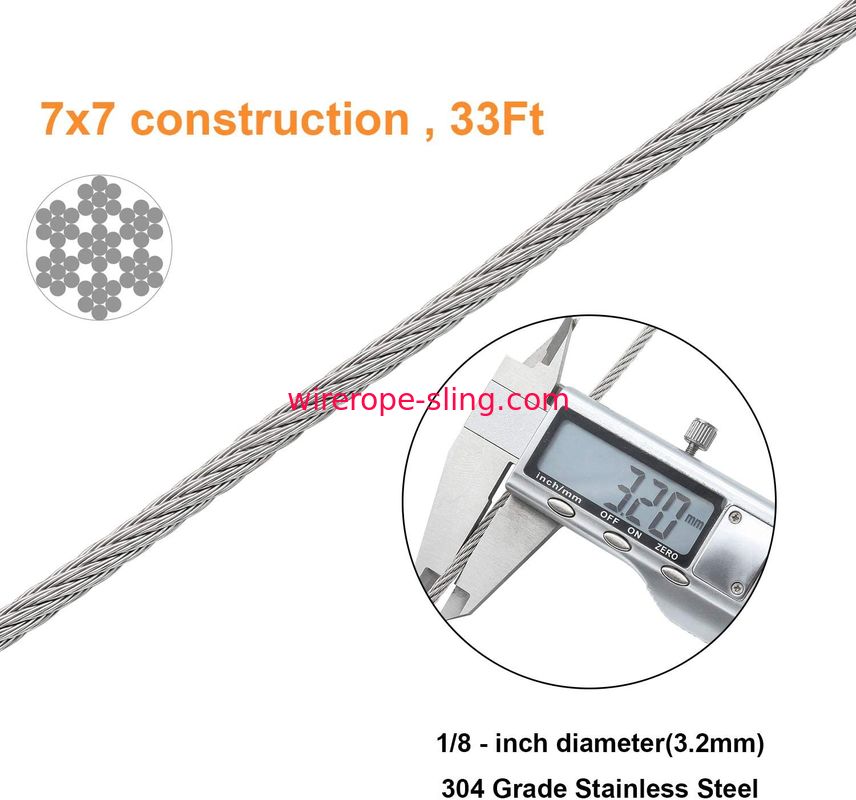

7 × 7 stainless steel wire rope
Cable Railing Kits 1/8" 33Ft 1.5 Mm Wire Rope 2

Features:

  • More flexible than 1 × 19 stainless steel wire rope.
  • More rigid than 7 × 19 stainless steel wire rope.
  • Excellent breaking load qualities.
  • Available form 0.54mm to 12mm in diameter

Application:

  • Marine industry such as rigging, sewage treatment work, steering cable and mast stay.
  • General engineering applications such as control cable, davit ropes and slings
Type Cable diameter Tensile strength Minimum breaking load Weight
SSWR-77-1 0.54mm 1770Mpa 0.18KN 0.0012kg/m
SSWR-77-2 0.68mm 1770Mpa 0.29KN 0.0018kg/m
SSWR-77-3 0.81mm 1770Mpa 0.41KN 0.0026kg/m
SSWR-77-4 0.9mm 1570Mpa 0.49KN 0.0032kg/m
SSWR-77-5 1mm 1570Mpa 0.56KN 0.004kg/m
SSWR-77-6 1.25mm 1570Mpa 0.88KN 0.005kg/m
SSWR-77-7 1.5mm 1570Mpa 1.27KN 0.009kg/m
SSWR-77-8 1.8mm 1570Mpa 0.83KN 0.013kg/m
SSWR-77-9 2mm 1570Mpa 2.25KN 0.016kg/m
SSWR-77-10 2.5mm 1570Mpa 3.52KN 0.025kg/m
SSWR-77-11 3mm 1570Mpa 5.07KN 0.034kg/m
SSWR-77-12 4mm 1570Mpa 9.01KN 0.063kg/m
SSWR-77-13 5mm 1570Mpa 14.08KN 0.098kg/m
SSWR-77-14 6mm 1570Mpa 20.28KN 0.142kg/m
SSWR-77-15 7mm 1570Mpa 27.6KN 0.193kg/m
SSWR-77-16 8mm 1570Mpa 36.05KN 0.253kg/m
SSWR-77-17 10mm 1570Mpa 56.3KN 0.393kg/m
SSWR-77-18 12mm 1570Mpa 81.1KN 0.566kg/m








Packaging & Shipping

Wrapped with hard strong plywood spool , reel , bobbin . covered with waterproof paper and clear plastic to aovid water or dirt.

1000m/reel 1500m/reel 2000m/reel 2500m/reel 3000m/reel and other length for your choice



Cable Railing Kits 1/8" 33Ft 1.5 Mm Wire Rope 3
