Compacted Steel Wire Rope With Cushioned Steel Core Ultra Long Service Life

China Compacted Steel Wire Rope With Cushioned Steel Core Ultra Long Service Life supplier
Compacted Steel Wire Rope With Cushioned Steel Core Ultra Long Service Life supplier Compacted Steel Wire Rope With Cushioned Steel Core Ultra Long Service Life supplier

Large Image :  Compacted Steel Wire Rope With Cushioned Steel Core Ultra Long Service Life

Product Details:

Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS-P6

Payment & Shipping Terms:

Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now
Detailed Product Description
Material: Steel Surface: Galvanized Or Ungalvanized
Tensile Strength: 1770N/mm2,1870N/mm2,1960N/mm2 Diameter: 16mm-36mm
Core: Fiber Processing: Compacted
Length: 500mtrs/1000mtrs/2000mtrs Available Packing: Wooden Reel



Compacted steel wire rope with Cushioned steel core Ultra long service life



Key Specifications/Special Features:



*Ultra long service life.

*High resistance to fatigue and wear resistance.

*Higher tension.

*It performs well in all kinds of lifting applications, especially suitable for container crane with high frequency and repeated operation.
*The experiment shows that the service life of LKS-KP6 is more than 60% higher than that of 8 high-performance steel core injection compacted wire rope relative to the competitor, and the service life of LKS-KP6 is 88% higher than that of the common wire contact wire rope.

Quality judgment/wire rope editing

1. Proportion. The diameter of the wire rope is the same, and the heavier the weight, the better the quality of the wire rope.

2. Wire rope core. The stronger the rope core, the heavier the weight, the better the supporting force for the outer strand of the wire rope, the better the quality of the wire rope.

3. Materials. The material is the steel number and the strength. The higher the steel number is, the better the quality of the wire rope is.

4. After the rope is cut, the quality of the loose steel is good, and the wire rope with relatively long twist distance is better than the short twist distance.

5.316 stainless steel wire rope anticorrosion ability is stronger than 304 stainless steel wire rope, 304 hot-dips galvanized steel wire rope anticorrosion ability, hot-dip galvanized steel wire rope quality is better, nylon coated steel wire rope quality than PE wrapped steel wire rope, PE plastic wire rope better than PVC coated steel wire rope quality, coating of galvanized steel wire rope anticorrosion Strong ability.



DIA.(mm) Weight(kg/m) Minimum Breaking Load(kN)
14 0.904 165
16 1.209 205
18 1.501 257
19 1.673 287
20 1.854 318
22 2.260 382
24 2.671 452
26 3.134 530
28 3.629 611
32 4.747 794
35 5.679 947
36 6.009 1,002

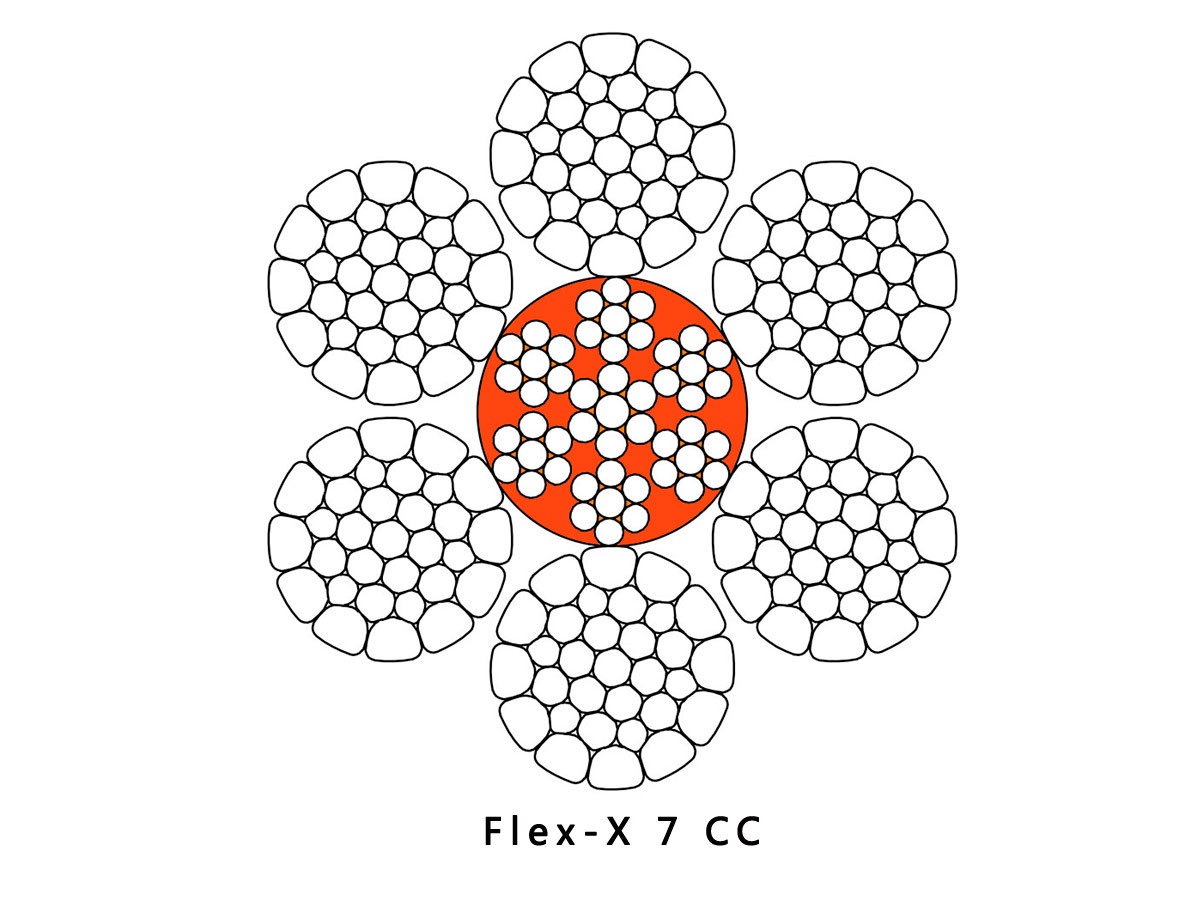

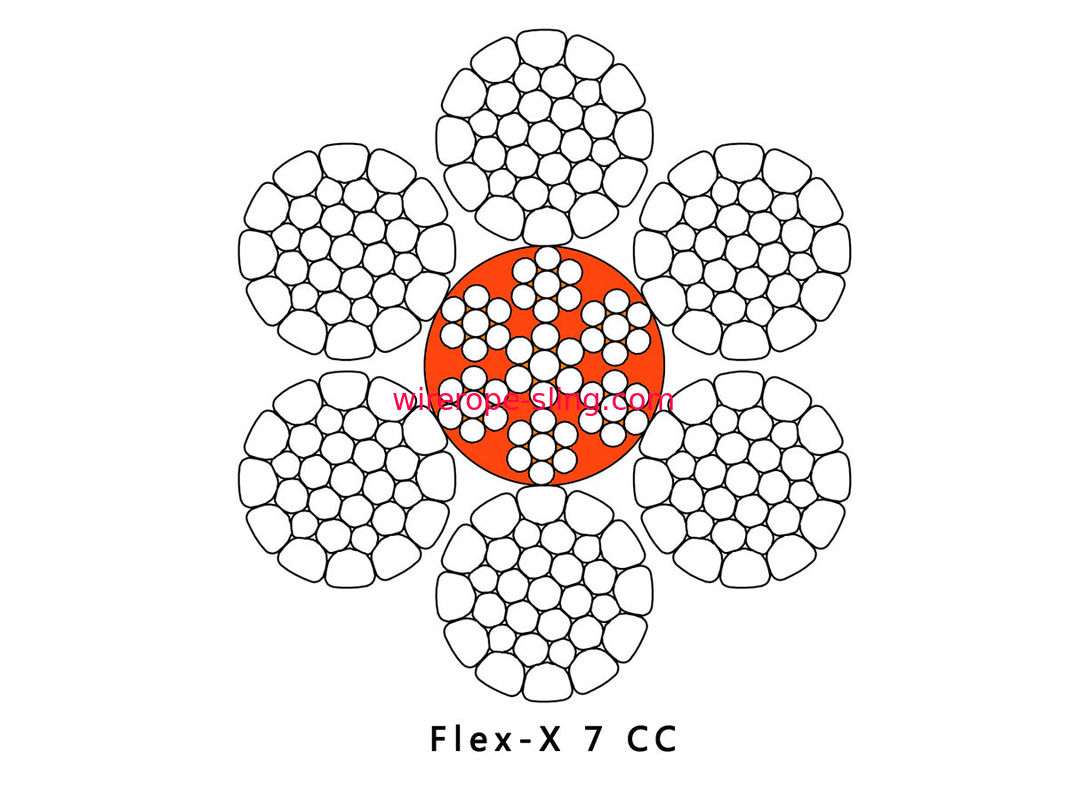

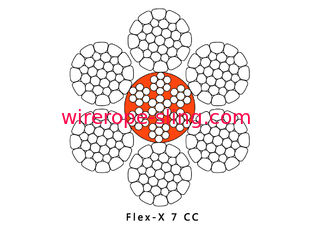

Wire Rope Cross Section;



Compacted Steel Wire Rope With Cushioned Steel Core Ultra Long Service Life
