Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 8-4 C
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Crane Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6mm-60mm
Core:Wire Rope CoreHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All strands compacted

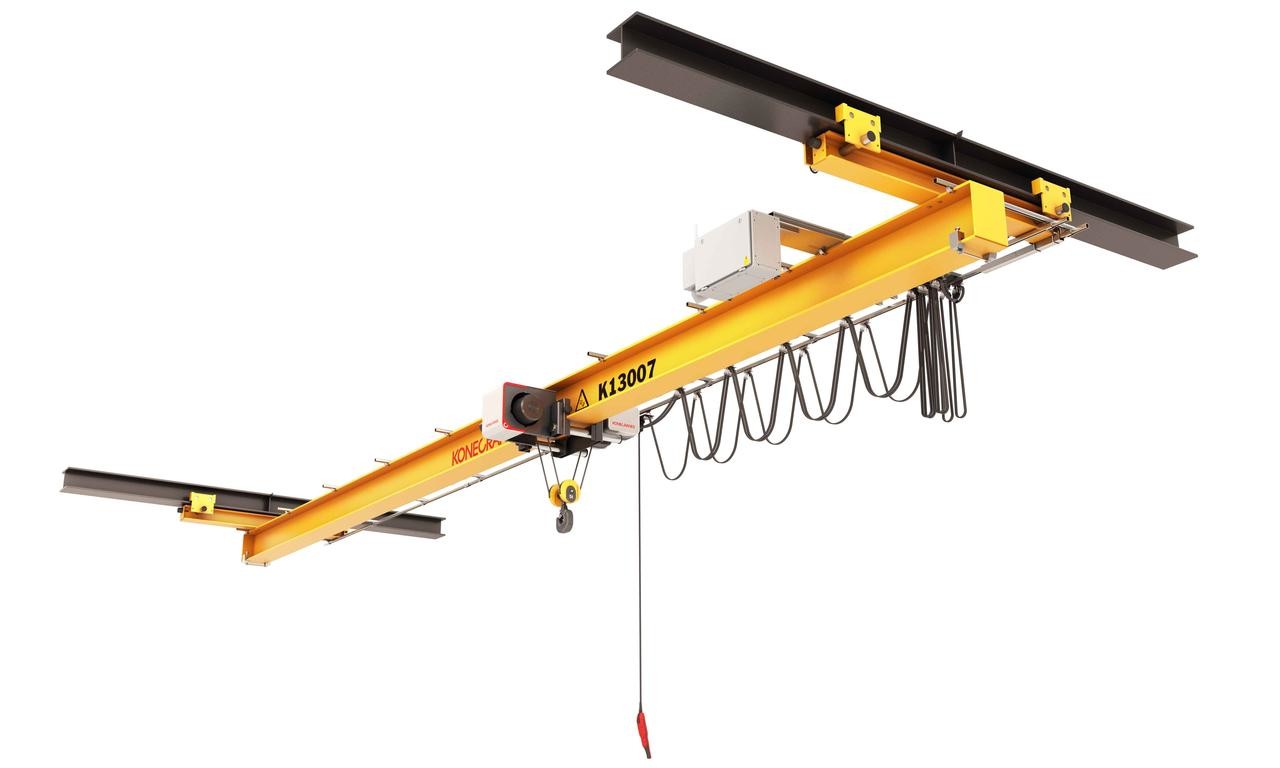

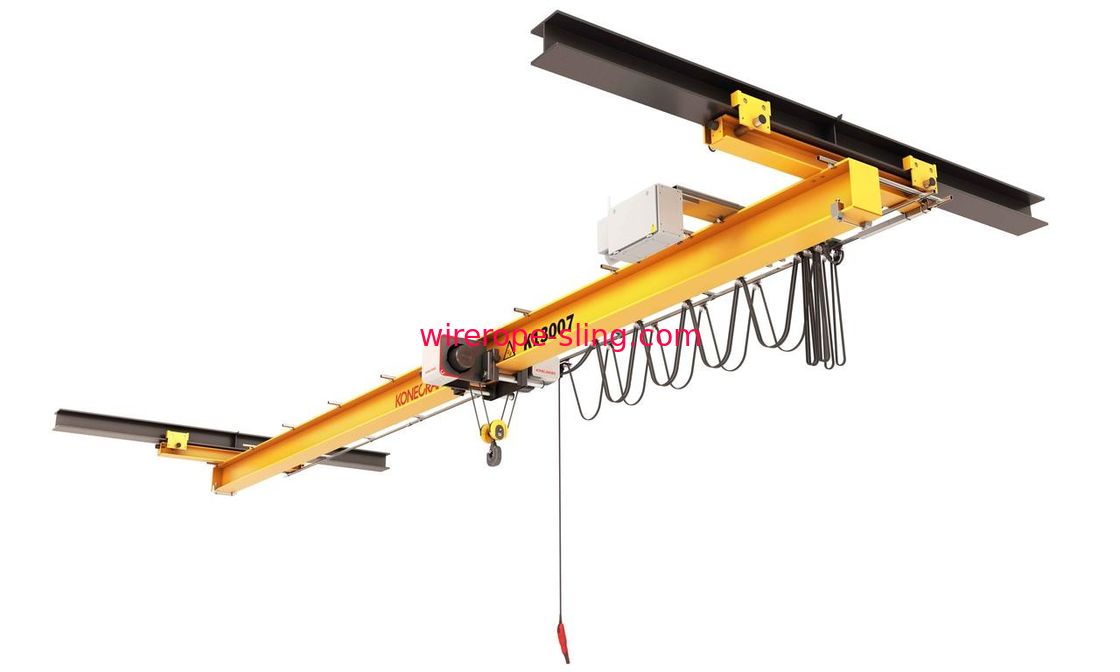

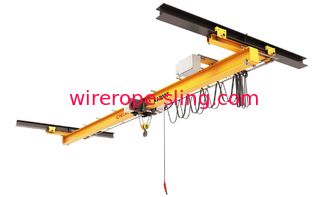

An overhead crane, commonly called a bridge crane, is atype of crane found in industrial environments. An overheadcrane consists of parallel runways with a traveling bridgespanning the gap. A hoist, the lifting component of a crane, travels along the bridge.

Whatever your need is, you can rely on us for crane wire rope for the following:

  • Offshore Pedestal Cranes
  • Tower Crane
  • Mobile Cranes
  • Overhead Cranes
  • Crane Pendants
  • Crane Trolley
  • Gantry Cranes
  • Excavators
  • Hoist Rope
  • Container Crane
  • Crane Jib Hoist
  • Crane Boom Hoist
  • Truck Cranes and many others.

Safety Information

Crane rope can break down due to improper maintenance, overloading, and misuse. Be sure to train machine operators and other personnel on proper maintenance and usage.

  • Avoid using crane wire rope that is corroded, damaged or worn out.
  • Avoid overloading the crane wire rope – get the appropriate crane rope for your use.
  • Carry out regular inspections on crane ropes to ensure safety and high-level performance.
  • Carry out periodic training for all staff on handling crane ropes to make sure everyone is aware of how to use crane ropes and know what the safety measures are.





Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 0



  • Rope category number (RCN) 04 according to ISO 4309
  • Double parallel stranded
  • Ordinary lay
  • Zinc-coated class B standard
  • Should not used with a swivel
  • Special lubrication
  • All strands compacted

COMPACTION

To increase the breaking force of our products without increasing the diameter of the rope, we compact the strands, the rope or both in combination. In addition to the greater metal cross section and the resulting higher breaking force, compacted ropes also have smoother strand and rope surfaces.
Compacted strands provide the rope with greater flexibility and minimise both friction and corrosion in the rope. In addition, they reduce the risk of negative imprints in the grooves of the rollers and improve the service life of the rope in the casing of multi-layer winding.
Furthermore, the compaction of the rope increases its pressure stability and, due to a lower tendency to indent and optimised pressure distribution, it improves the properties of the rope for multi-layer winding.

ADVANTAGES



• Increases the metallic cross section and the breaking forces
• Increases the surface contact between individual wires
• Achieves a smoother rope surface
• Improves the contact ratio between the rope and the rope groove
• Reduces the indenting of adjacent rope strands
• Improves the structure stability in the casing of multi-layer windings

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 1

Non-compacted

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 2

Compacted





ATTRIBUTES

Plastic padding ​Fettung Compressed


APPLICATIONS

Bridge crane - Hoisting rope Gantry crane (RTG/RMG) - Hoisting rope Straddle carrier - Hoisting rope Container crane (STS) - Hoisting rope Lattice boom crane - Boom pendant rope and adjusting rope Harbour crane - Boom pendant rope and adjusting rope Offshore crane - Boom pendant rope and adjusting rope Mobile crane - Hoisting rope ​Gripper crane - Hoisting rope







Technical Data
Ø   Weight Metallic
cross-section
MBK 1960 MBK 2160
mm   kg/100m mm2 kN kN
8   32.0 37.1 61.2 67.5
9   40.5 47.0 77.5 85.4
10   50.0 58.0 95.7 105
11   60.5 70.2 116 128
12   72.0 83.5 135 149
13   84.5 98.0 159 175
14   98.0 114 184 203
15   113 131 212 233
16   128 148 241 265
18   162 188 305 336
20   200 232 376 415

 CRANE TYPES AND WIRE ROPES





BRIDGE CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 15

orange = hoisting rope
green = trolley rope



TELESCOPING CRANEBridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 16

orange = hoisting rope
green = telescope rope



GANTRY CRANE (RTG/RMG)Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 17

orange = hoisting rope
green = trolley rope



STRADDLE CARRIER

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 18

orange = hoisting rope







LATTICE BOOM CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 19

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope

HARBOUR CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 20

orange = hoisting rope
blue = boom pendant rope and adjusting rope





OFFSHORE CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 21

orange = hoisting rope
blue = boom pendant rope and adjusting rope

MOBILE CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 22

orange = hoisting rope
blue = boom pendant rope and adjusting rope

REVOLVING TOWER CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 23

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope

EXCAVATING BUCKET / SCRAPERSBridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 24

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope

GRABBING CRANE

Bridge Crane Hoisting Steel Wire Rope LKS 8-4 C All Strands Compacted 25

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





Crane wire ropes play an important role in ensuring a smooth conduct of work processes in harbors, off-shore platforms or various other applications where cranes are needed. Whether you need tower crane ropes or offshore crane ropes, galvanized or stainless steel ropes, you will find the optimal solution in our company.
