Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 8-1 P
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Crane Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:6mm-60mm
Swivel:Should Not Used With A SwivelHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description





Rotating Tower Crane Boom Pendant Steel Wire Rope LKS 8-3 Double parallel stranded

LKING STEEL LIMITED are specialist suppliers of specialist crane ropes and wire, which are ideally suited to a broad range of both crane and hoist uses.

Overhead cranes, mobile cranes, all terrain cranes, crawler cranes, tower cranes, gantry cranes, off-shore pedestal cranes, dredger cranes, piling cranes, harbour cranes, and container cranes all use wire crane ropes, some cranes use more than one.

Where required crane ropes can be supplied with anti-spin / rotation proof properties as well as other key elements such as bend fatigue and abrasion resistance. For more information on the products and services we manufacture.

General and High Performance Wire Rope. The use of wire rope worldwide has undoubtedly changedwhat the lifting and rigging industry is today. Wire rope is used for crane ropes, mooring lines, drill lines, hoist ropes, drag lines, and boom lines to name a few applications.



Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 0

  • Rope category number (RCN) 04 according to ISO 4309
  • Double parallel stranded
  • Ordinary lay
  • Zinc-coated class B standard
  • Should not used with a swivel
  • Special lubrication

The LKS 8-3 is a double parallel stranded construction with 8 outer strands.

ATTRIBUTES

Fettung ​Double parallel stranded


APPLICATIONS

Bridge crane - Hoisting rope Telescopic crane - Trolley rope Gantry crane (RTG/RMG) - Hoisting rope Container crane (STS) - Hoisting rope Lattice boom crane - Boom pendant rope and adjusting rope Harbour crane - Boom pendant rope and adjusting rope Offshore crane - Boom pendant rope and adjusting rope Mobile crane - Boom pendant rope and adjusting rope Rotating tower crane - Boom pendant rope and adjusting rope Grab bucket/Scrapers - Haulage rope Gripper crane - Boom pendant rope and adjusting rope







Technical Data


Ø   Weight Metallic
cross-section
MBK 1960 MBK 2160
mm   kg/100m mm2 kN kN
8   30.1 34.9 52.6 58.0
9   38.1 44.1 66.6 73.4
10   47.0 54.5 82.3 90.6
11   56.9 65.9 100 110
12   67.7 78.5 118 131
13   79.4 92.1 139 153
14   92.1 107 161 178
15   106 123 185 204
16   120 140 211 232
18   152 177 266 294
20   188 218 329 363



CRANE TYPES AND WIRE ROPES



BRIDGE CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 14

orange = hoisting rope
green = trolley rope



TELESCOPING CRANERotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 15

orange = hoisting rope
green = telescope rope



GANTRY CRANE (RTG/RMG)Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 16

orange = hoisting rope
green = trolley rope



STRADDLE CARRIER

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 17

orange = hoisting rope







LATTICE BOOM CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 18

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope

HARBOUR CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 19

orange = hoisting rope
blue = boom pendant rope and adjusting rope

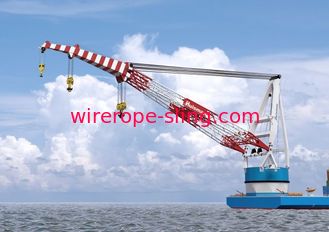

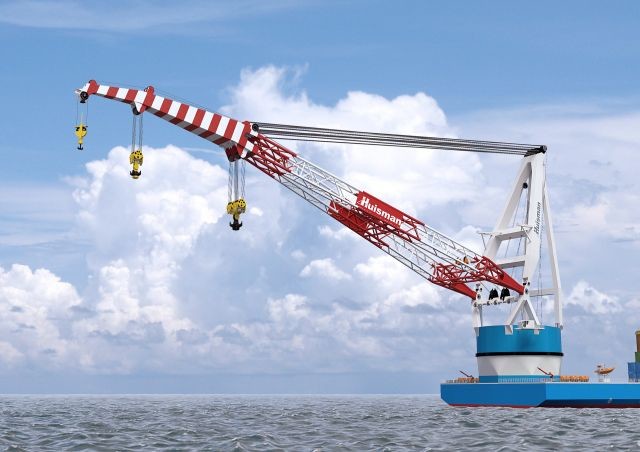

OFFSHORE CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 20

orange = hoisting rope
blue = boom pendant rope and adjusting rope

MOBILE CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 21

orange = hoisting rope
blue = boom pendant rope and adjusting rope

REVOLVING TOWER CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 22

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope

EXCAVATING BUCKET / SCRAPERSRotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 23

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope

GRABBING CRANE

Rotating Tower Crane Boom Pendant Metal Wire Rope LKS 8-3 Double Parallel Stranded 24

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





Good examples are: boom hoists should be crush resistant; clamshell closing lines must be resistant to bend fatigue, whilst overhead crane hoist rope requires strength and stability. For a container crane hoist rope or trolley rope the rope will need to be a combination of resistance to bending and abrasion as well as fatigue resistance. Tower erection rope should be rotation resistant; trolley rope needs low elongation properties and boom hoist rope needs high flexibility and breaking load strength.

It is usually recommended to choose a crane wire rope that is an exact or close match to the original rope supplied with the crane by the manufacturer, or else choose more superior crane ropes.
