Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,ISO9001 |
| Model Number: | LKS 15-1 C |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1mtrs |
| Price: | USD1800/tons |
| Packaging Details: | Standard Seaworthy Packing or as request |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100tons monthly |
|
Detail Information |
|||
| Product Name: | Hosting Wire Rope | Surface: | Galvanized/Ungalvanized |
|---|---|---|---|
| Length: | 500mtrs/1000mtrs/2000mtrs Available | Diameter: | 8mm-60mm |
| Core: | Wire Strand | HS Code: | 73121000 |
| Standard: | GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO | Packing: | Wooden Reel |
| High Light: |
wire rope cable,steel rope cable |
||
Product Description
The performance of mobile cranes (truck mounted cranes, crawler cranes) continues to be enhanced. In this context, great flexibility, the ability to handle heavy loads, and increased performance in general constitute the main objectives. LKS offers high performance hoisting ropes specifically designed for truck mounted cranes and combining superior breaking forces and multilayer spooling capability.
The LKS 15-1 C is a hoisting rope with 15 compacted outer strands. It primarily comes into use when a high degree of efficiency must be achieved due to high hoisting heights and multiple reeving.
APPLICATIONS
Technical Data
| Ø | Weight | Metallic cross-section |
MBK 1960 | MBK 2160 | |
|---|---|---|---|---|---|
| mm | kg/100m | mm2 | kN | kN | |
| 8 | 29.8 | 33.7 | 52.8 | 56.0 | |
| 9 | 37.7 | 42.6 | 66.8 | 71.8 | |
| 10 | 46.5 | 52.6 | 82.5 | 88.6 | |
| 11 | 56.3 | 63.3 | 99.8 | 107 | |
| 12 | 67.0 | 75.7 | 119 | 128 | |
| 13 | 78.6 | 88.9 | 139 | 150 | |
| 14 | 91.1 | 103 | 162 | 174 | |
| 15 | 105 | 118 | 186 | 199 | |
| 16 | 119 | 135 | 211 | 227 | |
| 18 | 151 | 170 | 267 | 287 | |
| 20 | 186 | 210 | 330 | 354 | |
| 22 | 225 | 255 | 399 | 418 | |
| 24 | 268 | 303 | 475 | 497 | |
| 26 | 314 | 356 | 557 | 584 | |
| 28 | 365 | 412 | 647 |
CRANE TYPES AND WIRE ROPES
|
BRIDGE CRANE
orange = hoisting rope
|
TELESCOPING CRANE
|
GANTRY CRANE (RTG/RMG)
|
STRADDLE CARRIER
orange = hoisting rope
|
LATTICE BOOM CRANE
orange = hoisting rope |
HARBOUR CRANE
orange = hoisting rope
|
OFFSHORE CRANE
orange = hoisting rope |

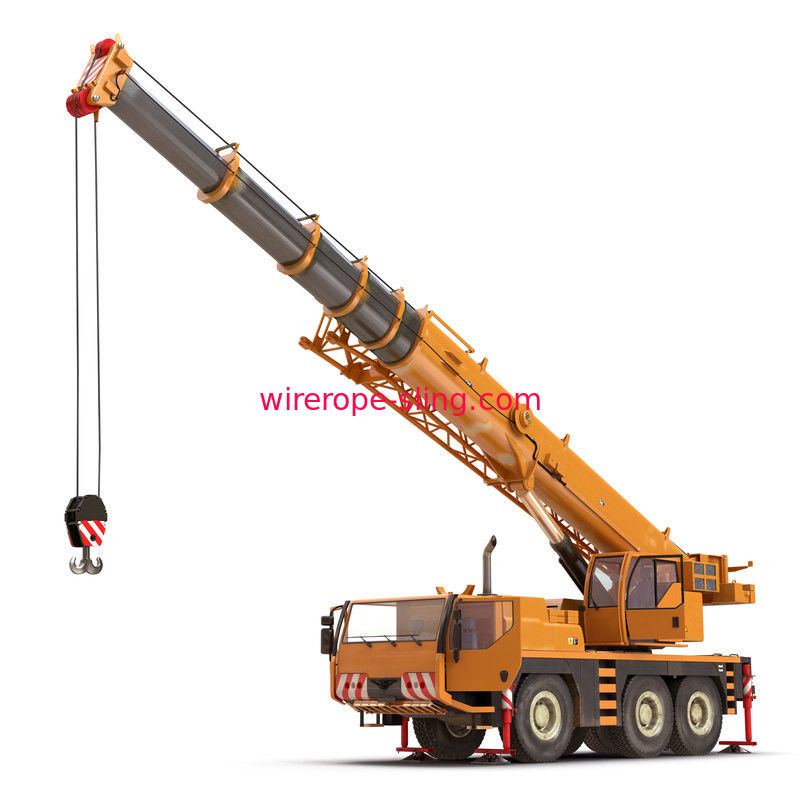

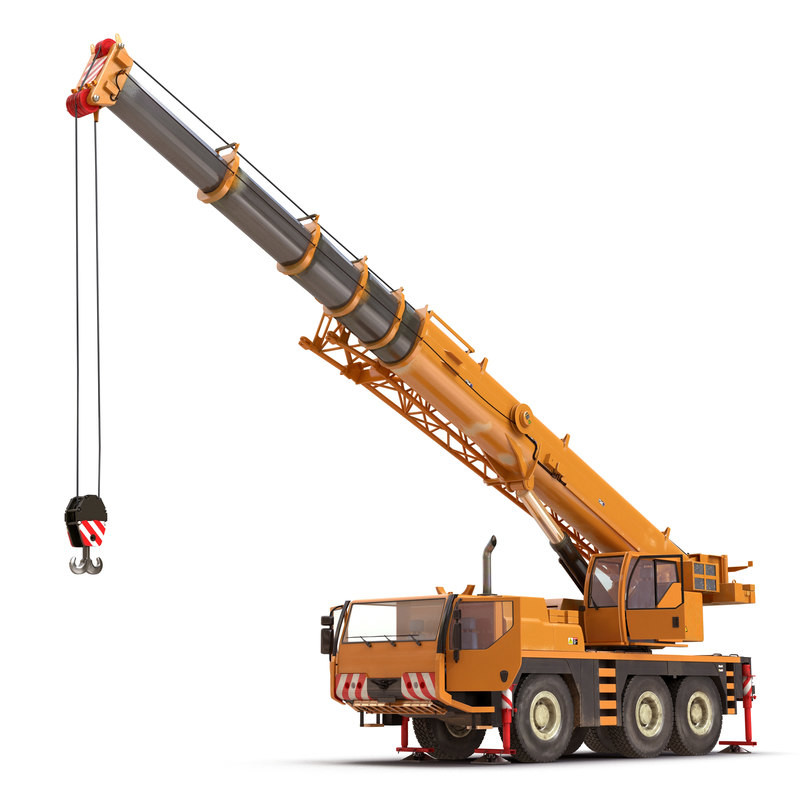

MOBILE CRANE
orange = hoisting rope |
REVOLVING TOWER CRANE
orange = hoisting rope |
EXCAVATING BUCKET / SCRAPERS
|
GRABBING CRANE
orange = hoisting rope |
|
Crane wire ropes play an important role in ensuring a smooth conduct of work processes in harbors, off-shore platforms or various other applications where cranes are needed. Whether you need tower crane ropes or offshore crane ropes, galvanized or stainless steel ropes, you will find the optimal solution in our company.
