Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged
Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: LKS 16-3 C
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now

Detail Information
Product Name:Hosting Wire RopeSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:8mm-60mm
Core:Wire StrandHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



 Offshore CRANE Hoisting Steel Wire Rope LKS 16-3 C Inner rope swaged

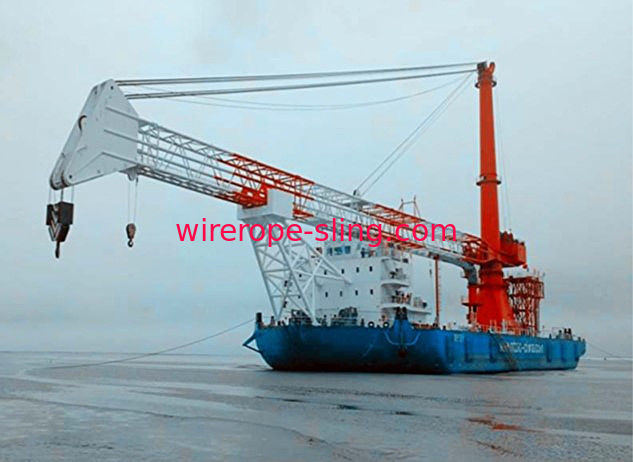

No matter if the cranes are loading and unloading vessels, operating from a platform or install offshore wind parks at sea, all these applications mean extreme stress for the wire ropes involved.

Therefore the top priority is maximum operational safety and reliability for all components. Tough operating conditions in the open sea will push the ship, its crane and ultimately its wire ropes to their limits when performing the often difficult assembly maneuvers.

  • Rope category number (RCN) 23-2 according to ISO 4309
  • EN 12385-3
  • Inner rope swaged
  • Lang lay
  • Zinc-coated class B standard
  • Rotation-resistant (a) EN 12385-3
  • Can be used with swivel
  • Special lubrication
  • Outer strands compacted

The new compacted version LKS 16-3 C of our classic hoisting rope LKS 16-1 is designed for use where very high breaking forces are required. In addition to the compacted outer strands like on the LKS 16-2, this construction also has a swaged core to create

ATTRIBUTES

Can be used with swivel Fettung Compressed​


APPLICATIONS

Telescopic crane - Hoisting rope Lattice boom crane - Main hoisting rope Harbour crane - Hoisting rope Offshore crane - Hoisting rope Mobile crane - Hoisting rope ​Rotating tower crane - Hoisting rope





Technical Data



Ø   Weight Metallic
cross-section		 MBK 1960 MBK 2160
mm   kg/100m mm2 kN kN
8   31.5 35.4 55.5 61.2
9   39.9 44.8 70.3 77.5
10   49.2 55.3 86.8 95.6
11   59.5 67.0 105 116
12   70.8 79.7 125 138
13   83.1 93.5 147 162
14   96.4 108 170 187
15   111 125 195 215
16   126 142 222 245
18   159 179 281 310
20   197 221 347 383
22   238 268 420 463
24   283 319 500 551
26   333 374 587 646
28   386 434 680
30   443 498 781






 CRANE TYPES AND WIRE ROPES





BRIDGE CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 9

orange = hoisting rope
green = trolley rope


TELESCOPING CRANEOffshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 10

orange = hoisting rope
green = telescope rope


GANTRY CRANE (RTG/RMG)Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 11

orange = hoisting rope
green = trolley rope


STRADDLE CARRIER

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 12

orange = hoisting rope






LATTICE BOOM CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 13

orange = hoisting rope
yellow = auxiliary hoisting rope
blue = boom pendant rope and adjusting rope
HARBOUR CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 14

orange = hoisting rope
blue = boom pendant rope and adjusting rope




OFFSHORE CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 15

orange = hoisting rope
blue = boom pendant rope and adjusting rope
MOBILE CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 16

orange = hoisting rope
blue = boom pendant rope and adjusting rope
REVOLVING TOWER CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 17

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = assembly rope
EXCAVATING BUCKET / SCRAPERSOffshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 18

orange = hoisting rope
blue = boom pendant rope and adjusting rope
green = backhaul rope
GRABBING CRANE

Offshore CRANE Hoisting Galvanized Steel Wire Rope LKS 16-3 C Inner Rope Swaged 19

orange = hoisting rope
blue = boom pendant rope and adjusting rope
yellow = closing rope





LKS group prides itself on its leading position in the wire rope manufacturing sector, providing the industry with some of the most durable and pioneering technologies available. As a company, we are constantly looking to challenge the boundaries of innovation, not only to exceed customer expectations but also to develop our business into wider markets and geographies.
