Special Non Rotating Steel Wire Rope For XZMP 110 Tons QY70K Mobile Crane

Product Description



XZMP QY160K Performance characteristics

Excellent lifting and driving performance.
The U-shaped lifting arm has super lifting capacity.
Combination balance weight technology, self-loading and unloading, rapid assembly.
The load-sensitive system controlled by PLC bus has smooth control performance.
Special single cylinder bolt telescoping technology to improve the active safety of telescoping system.
The torque limiter controlled by digital bus has strong anti-interference ability.
The main structural parts adopt automatic welding technology with zero welding defects and high reliability.

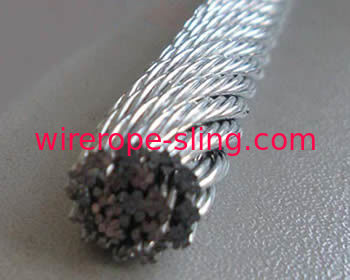

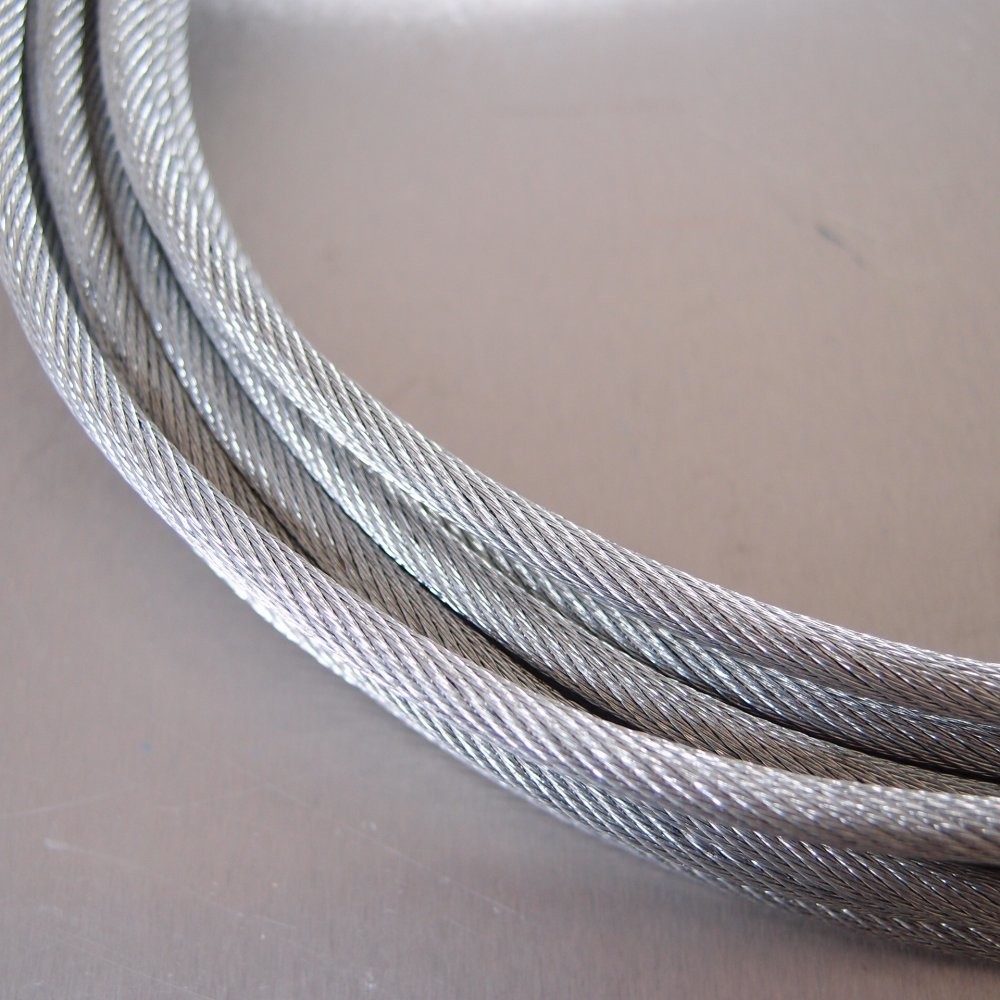

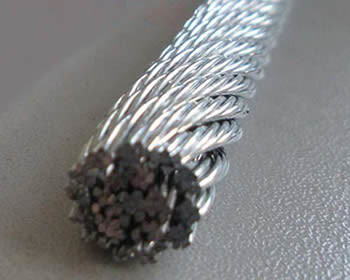

Compacted strand wire rope 35W*K7

Wire rope structure: 35W*K7
Type of wire rope: non-rotating wire rope in face contact
Scope of application: It can be used in situations with high workload and high safety and reliability requirements, such as offshore oil platforms, ship cranes, mobile cranes, rotary drilling rigs, imported truck cranes, main or auxiliary cranes, cranes in steel mills, etc.
Implementation criteria: YB/T5935-2010

Rotary excavator steel wire rope 35w*k7 product features: non-rotating steel wire rope composed of 35 compacted strands, especially suitable for complex pulley system occasions, excellent fatigue resistance, high tensile strength makes steel wire rope safer. Compared with the steel wire rope with the same diameter of 35W*7 structure, it has greater breaking tension. Softness is also its greatest feature, its anti-rotation ability is better than the structure of wire contact rope.

Model of Non-rotating Wire Rope for XZMP QY70k 70-ton Crane






Specifications
