Multilayer Steel Wire Rope Linear Contact 6 X 103 Fsns For Ratory Driller

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 6 x 103 FSNS
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Linear Contact Parallel Laid Wire Rope 6 X 103 FSNSSurface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:20mm-120mm
Core:FC/IWRHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Multilayer Linear Contact galvanised wire rope 6 x 103 FSNS for Ratory Driller





About Linear Contact Parallel Laid Wire Rope

The Linear Contact Wire Rope (also named as Parallel Laid Rope) is one manufactured to form linear contact between stands by winding all wires at the same pitch.

The linear contact between wires of each layer causes the abrasion between wires to be low.

There is less variation in product because each layer is twisted with linear contact. There are no hollow sections.

The breaking load is higher than Cross Laid Ropes of the same size because the effective cross section is higher.



Application

Various equipment for hoisting, derricking, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.



Specifications





Nominal Diameter Approx.Weight Nominal Tensile Strenght of Rope (Mpa)
1570 1670 1770 1870 1960
Minimun Breaking Load of Rope
D FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS
mm kg/100 (KN)
60 1370 1570 1800 1960 1910 2080 2030 2200 2140 2330 2240 2440
62 1460 1670 1920 209*0 2040 2220 2160 2350 2290 2490 2400 2610
64 1560 1780 2040 2230 2180 2370 2310 2510 2440 2650 2550 2780
66 1660 1890 2170 2370 2310 2520 2450 2670 2590 2820 2720 2950
68 1760 2010 2310 2510 2460 2670 2600 2830 2750 2990 2880 3140
70 1860 2130 2450 2660 2600 2830 2760 3000 2910 3170 3050 3320
72 1970 2260 2590 2820 2750 3000 2920 3170 3080 3350 3230 3520
74 2080 2380 2730 2970 2910 3160 3080 3350 3260 3540 3410 3710
76 2190 2510 2880 3140 3070 3340 3250 3540 3430 3740 3600 3920
78 2310 2650 3040 3300 3230 3520 3420 3730 3620 3940 3790 4130
80 2310 2650 3040 3300 3230 3520 3420 3730 3620 3940 3790 4130
82 2560 2920 3360 3650 3570 3890 3780 4120 4000 4350 4190 4560
84 2680 3070 3520 3830 3750 4080 3970 4320 4200 4570 4400 4790
86 2810 3220 3690 4020 3930 4270 4160 4530 4400 4790 4610 5020
88 2940 3370 3870 4210 4110 4470 4360 4740 4610 5010 4830 5250
90 3080 3520 4040 4400 4300 4680 4560 4960 4820 5240 5050 5490
92 3220 3680 4230 4600 4490 4890 4760 5180 5030 5480 5280 5740
94 3360 3840 4410 4800 4690 5110 4970 5410 5250 5720 5510 5990
96 3500 4010 4600 5010 4890 5330 5190 5640 5480 5960 5740 6250
98 3650 4180 4790 5220 5100 5550 5410 5880 5710 6210 5990 6510
100 3800 4350 4990 5430 5310 5780 5630 6120 5950 6470 6230 6780
102 3950 4530 5190 5650 5530 6010 5860 6370 6190 6730 6480 7060
104 4110 4700 5400 5880 5740 6250 6090 6620 6430 7000 6740 7330
106 4270 4890 5610 6100 5970 6490 6320 6880 6680 7270 7000 7620
108 4430 5070 5820 6340 6190 6740 6570 7140 6940 7550 7270 7910
110 4600 5260 6040 6570 6430 6990 6810 7410 7200 7830 7540 8210
112 4770 5460 6260 6810 6660 7250 7060 7680 7460 8120 7820 8510
114 4940 5650 6490 7060 6900 7510 7310 7960 7730 8410 8100 8810
116 5110 5850 6720 7310 7150 7780 7570 8240 8000 8710 8390 9130
118 5290 6060 6950 7560 7930 8050 7840 8530 8280 9010 8680 9440
120 5470 6260 7190 7820 7650 8320 8110 8820 8560 9320 8980 9770




Product Show

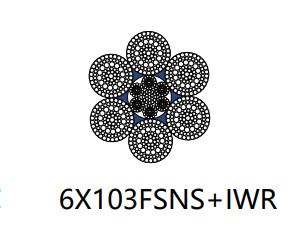

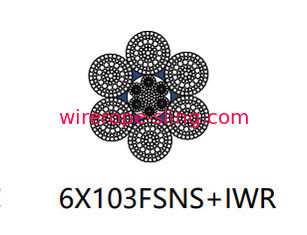

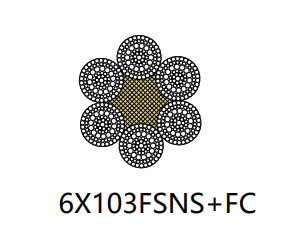

Multilayer Steel Wire Rope Linear Contact 6 X 103 Fsns For Ratory Driller 0
