Crane Stainless Steel Wire Rope Heat Resistance 6 X 37 Extreme Flexible

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 6x37
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Product Name:Round Strand Steel Wire Rope 6x37Surface:Galvanized/Ungalvanized
Length:500mtrs/1000mtrs/2000mtrs AvailableDiameter:5mm-120mm
Core:FC/IWS/IWRHS Code:73121000
Standard:GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISOPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description

Extreme Flexible Steel 6x37 wire rope , stainless steel crane wire rope



TIPS(Classification and use of wire ropes for coal mines)

The steel wire rope is mainly used in mine hoisting (including shaft hoisting, inclined shaft lifting), belt conveyer, no pole rope winch, overhead ropeway, electric shovel. The steel wire rope GB8918-2006 and general purpose wire rope GB/T20118-2006 can be divided according to the wire rope standard. In shaft hoisting in inclined shaft hoisting, requirements for the important purpose of steel wire rope. The winding type inclined shaft winch uses the 6*7+FC structure mostly, but the vertical shaft winch uses triangular strand wire mostly, and the vertical shaft balance rope uses multi layer non rotating steel wire rope 35W*7 or 18*7+FC, while 18*7+FC sometimes has more occasions to use as the lifting rope. Limited by technical level and production equipment, steel wire rope structure in the past is almost the general use of the general use of wire rope 6*19+FC, 6*37+FC, wire rope specifications are concentrated in the 11mm-32mm, the production cost of this wire rope is low, technical requirements are not high.



About Wire Rope

Wire rope is a machine with dozens–even hundreds– of individual wires which are formed and fabricated to move or operate at close tolerances to one another. When a wire rope bends, each of its many wires slides and adjusts to accommodate the differences in length between the inside and outside of the bend. The sharper the bend, the greater the movement.
Every wire has three basic components: the wires, strands and core. The core may be either fiber (FC) such as sisal, manila or jute, or an Independent Wire Rope Core (IWRC), which is actually a smaller wire rope within the strands of the outer wire rope.

The wires are predominantly constructed from high-carbon steel, but may also be formed from various metals such as iron, stainless steel, monel or bronze. Carbon steel wire rope is manufactured in various grades, including Improved Plow Steel (IPS), Extra Improved Plow Steel (EIPS) and Extra Extra Improved Plow Steel (EEIPS), which designate the nominal strength of the wire rope. EIPS is the most commonly used and manufactured grade today.

Wire rope generally comes with a "bright" or uncoated finish but several other options are available. A galvanized, zinc coating, a tin coating or a synthetic coating such as vinyl or nylon may also be applied to the rope's surface. Ropes with plastic coatings and plastic-filled interiors are also obtainable. It should be understood that these coatings can affect the characteristics and breaking strength of the wire rope.

Wire ropes are identified by classifications based upon the number of strands and nominal number of wires in each strand. A 6 x 19 classification for example, includes six strands with each strand consisting of 15-26 individual wires. The six strands of a 6 x 37 class wire rope are constructed of 27-49 individual wires. Other popular classifications include 19 x 7, 7 x 19 and 8 x 19.



Why LKS?

As a professional wholesaler and manufacturer for wire rope slings and assemblies, LKS has been the No.1 wire rope and sling supplier in SHANGHAI area. Our customers include ship building, military, construction and lifting service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.



Features

6x37 wire rope is a more flexible cable wire than 6 x 19 wire rope, due to the higher number of wires per strand. However, this configuration has less resistance to abrasion than 6 x 19 wire ropes. The actual rope construction is 6x36, with 6 strands/35 wires per strand. This type of steel cable is found in many industries, including crane work, dredging, excavating, logging, oil fields, and marine environments. Common applications include winch wire rope, choker and hoist ropes, boom lines, and trolley lines.
The grade of steel used in our 6 x 37 bright wire rope is known as EIPS, meaning Extra Improved Plowed Steel. EIPS wire rope has roughly 10% more strength than regular IPS. An independent wire rope core (IWRC) provides added strength and will also reduce the amount of stretch. A 6 x 37 IWRC wire rope will also offer more resistance to heat than a similar fiber core wire rope. The bright wire finish does not provide corrosion resistance as well as wire rope with a galvanized or stainless steel finish.



Applications

The principle applications of this type construction ar on draglines, logging ropes, rotary drill lines and cableway track lines..



Specifications



Nominal

Diameter

Approx. Weight Nominal Tensile Strength
D(mm) NF SF

IWR/

IWS

1570 1670 1770 1870 1960
Minimium Breaking Load of Rope (KN)
kg/100m FC

IWR/

IWS

FC

IWR/

IWS

FC

IWR/

IWS

FC IWR/IWS FC

IWR/

IWS

5 8.65 8.43 10 11.6 12.5 12.3 13.3 13.1 14.1 13.8 14.9 14.5 15.6
6 12.5 12.1 14.4 16.7 17 17.7 19.2 18.8 20.3 19.9 21.5 20.8 22.5
7 17 16.5 19.6 22.7 24.5 24.1 26.1 25.6 27.7 27 29.2 28.3 30.6
8 22.1 21.6 25.6 29.6 32.1 31.5 34.1 33.4 36.1 35.5 38.2 37 40
9 28 27.3 32.4 37.5 40.6 39.9 43.2 42.3 45.7 44.7 48.3 46.8 50.6
10 34.6 33.7 40 46.3 50.1 49.3 53.3 52.2 56.5 55.2 59.7 57.8 62.5
11 41.9 40.8 48.4 56 60.6 59.6 64.5 63.2 68.3 66.7 72.2 70 75.7
12 49.8 48.5 57.6 66.7 72.1 70.9 76.7 75.2 81.3 79.4 85.9 83.3 90
13 58.5 57 67.6 78.3 84.6 83.3 90 88.2 95.4 93.2 101 97.7 106
14 67.8 66.1 78.4 90.8 98.2 96.6 104 102 111 108 117 113 123
15 77.9 75.8 90 104 113 111 120 118 127 124 134 130 141
16 88.6 86.3 102 119 128 126 136 134 145 141 153 148 160
18 112 109 130 150 162 160 173 169 183 179 193 187 203
20 138 135 160 185 200 197 213 209 226 221 239 231 250
22 168 163 194 224 242 238 258 253 273 267 289 280 303
24 199 194 230 267 289 284 308 301 325 318 344 333 360
26 234 228 270 313 339 333 360 353 382 373 403 391 423
28 271 264 314 363 393 386 418 409 443 433 468 453 490
30 311 303 360 417 451 443 480 470 508 497 537 520 563
32 354 345 410 474 513 505 546 535 578 565 611 592 640
34 400 390 462 535 579 570 616 604 653 638 690 668 723
36 448 437 518 600 649 639 690 677 732 715 773 749 810
38 500 487 578 669 723 711 769 754 815 797 861 835 903
40 554 539 640 741 801 788 852 835 903 883 954 925 1000
42 610 595 706 817 884 869 940 921 996 973 1052 1020 1100
44 670 652 774 897 970 954 1031 1011 1093 1068 1155 1120 1210
46 732 713 846 980 1060 1040 1130 1100 1190 1170 1260 1220 1320
48 797 776 922 1070 1150 1140 1230 1200 1300 1270 1370 1330 1440
50 865 843 1000 1160 1250 1230 1330 1310 1410 1370 1490 1450 1560
52 936 911 1080 1250 1350 1330 1440 1410 1530 1490 1610 1560 1690
54 1010 983 1170 1350 1460 1440 1550 1520 1650 1610 1740 1690 1820
56 1090 1060 1250 1450 1570 1550 1670 1640 1770 1730 1870 1310 1960
58 1160 1130 1350 1560 1680 1660 1790 1760 1900 1860 2010 1950 2100
60 1250 1210 1440 1670 1800 1770 1920 1880 2030 1990 2150 2080 2250
62 1330 1300 1540 1780 1920 1890 2050 2010 2170 2120 2290 2220 2400
64 1420 1380 1640 1900 2050 2020 2180 2140 2310 2260 2440 2370 2560
66 1510 1470 1740 2020 2170 2150 2320 2270 2460 2400 2600 2520 2720
68 1600 1560 1850 2140 2320 2280 2460 2410 2610 2550 2760 2670 2890
70 1700 1650 1960 2270 2450 2410 2610 2560 2770 2700 2920 2830 3060
72 1790 1750 2070 2400 2600 2550 2760 2710 2930 2860 3090 3000 3240
74 1890 1850 2190 2540 2740 2700 2920 2860 3090 3020 3270 3170 3420
76 2000 1950 2310 2680 2890 2850 3080 3020 3260 3190 3450 3340 3610
78 2110 2050 2430 2820 3050 3000 3240 3180 3440 3360 3630 3520 3800
80 2210 2160 2560 2960 3200 3150 3410 3340 3610 3530 3820 3700 4000
85 2500 2430 2890 3350 3620 3560 3850 3770 4080 3990 4310 4180 4520
90 2800 2730 3240 3750 4060 3990 4320 4230 4570 4470 4830 4680 5060
95 3120 3040 3610 4180 4520 4450 4810 4710 5100 4980 5380 5220 5640
100 3460 3370 4000 4630 5000 4930 5330 5220 5650 5520 5970 5780 6250
105 3810 3720 4410 5110 5520 5430 5870 5760 6230 6080 6580 6370 6890
110 4190 4080 4840 5600 6060 5960 6450 6320 6830 6680 7220 7000 7570
115 4580 4460 5290 6130 6620 6520 7050 6910 7470 7300 7890 7650 8270
120 4980 4850 5760 6670 7210 7090 7670 7520 8130 7940 8590 8330 9000





Product Show

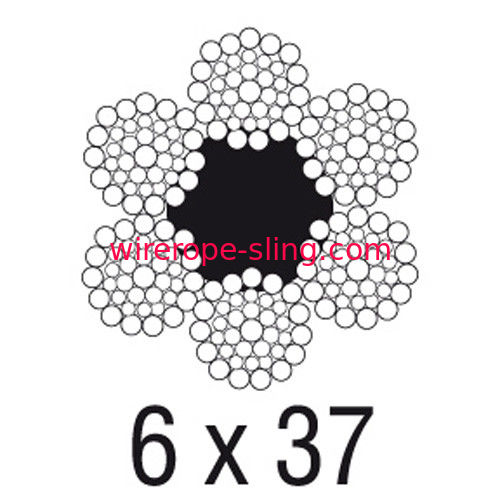

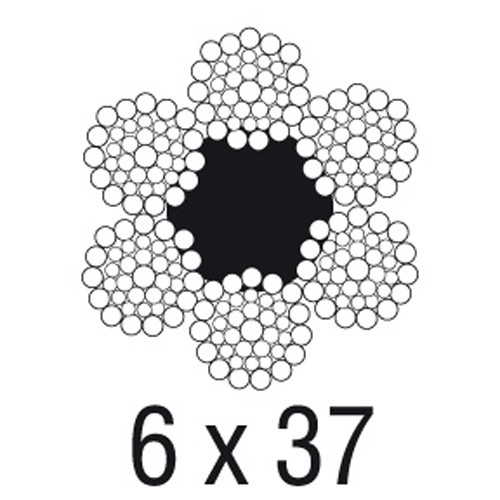

Crane Stainless Steel Wire Rope Heat Resistance 6 X 37 Extreme Flexible 0



Crane Stainless Steel Wire Rope Heat Resistance 6 X 37 Extreme Flexible 1
