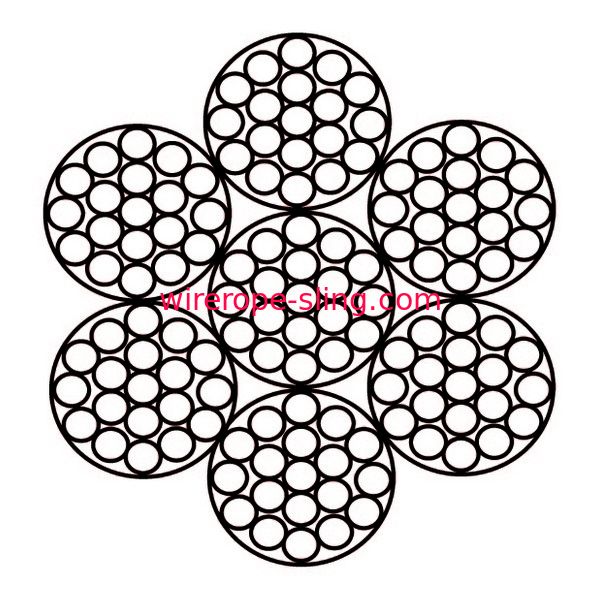

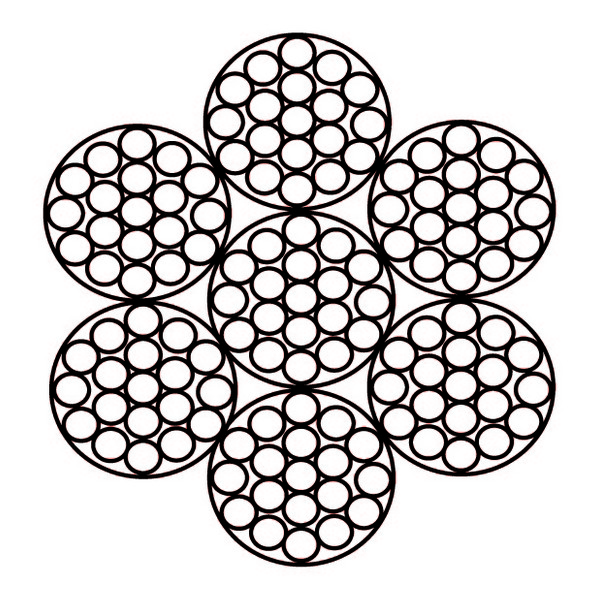

7 X 19 Wire Rope Pto Control Cable Sz Right Regular Lay For Heavy Truck

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: 7x19
Payment & Shipping Terms:
Minimum Order Quantity: 10000mtrs
Price: USD3000/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 50tons monthly

Detail Information

MOQ:10000 Meters If No StockHS Code:7312100000
Lay:LayMaterial:Steel
Tensile Strength:1960MPAZinc Coating:Over 15g/m2
Application:Control CableDiameter:1.5mm To 6.0mm
High Light:

pto control cable

,

push pull control cable

Product Description



7x19 wire rope for Wholesale Factory direct universal pto control cable for heavy truck





Control cables are specialized wire ropes designed for the positive and precise transmission of mechanical motion. Incorporated into equipment and machinery, these cables are responsible for connecting moving parts and controlling the interaction of those parts.

Industries such as aerospace, automation, oil and gas, marine, electrical, and manufacturing commonly employ these flexible, bendable wires. To accommodate commercial and industrial applications the wires are made of high strength metal that is twisted and braided around a core to create stranded wire.

Control cables are essential to the success of many operations and the safety of those operations as common uses include remote-access latch release cables and safety break cables.

To ensure the safety of workers and equipment, it is important to consider the specific qualities of a given control cable system. The diameter, length, thickness, maximum load, and working life of a cable should be compatible with its intended use.

Though referred to simply as cables, control devices are often comprised of an entire wire rope assembly complete with metal or rubber housings. These include wire fittings and terminals such as eyes, forks, studs, handles, pins, and other mounting apparatus with which components are connected. Fittings may be on one or both ends and are often hardwired into the cables for added security, though some instrumentation control cables come with change tool kits for added versatility.





Technical Table of Wire Rope



Diameter (mm) Min. Breaking load (Kg) Approx. Weight (Kg/100m)
Galvanized SUS 316 SUS 304
1.5 200 130 157 0.95
1.6 230 150 180 1.08
2.0 360 231 280 1.68
2.5 560 390 435 2.63
3.0 810 565 625 3.78
3.5 1100 745 835 5.28
4.0 1275 970 1100 6.71
5.0 2100 1520 1700 10.50
6.0 2950 2200 2450 15.20

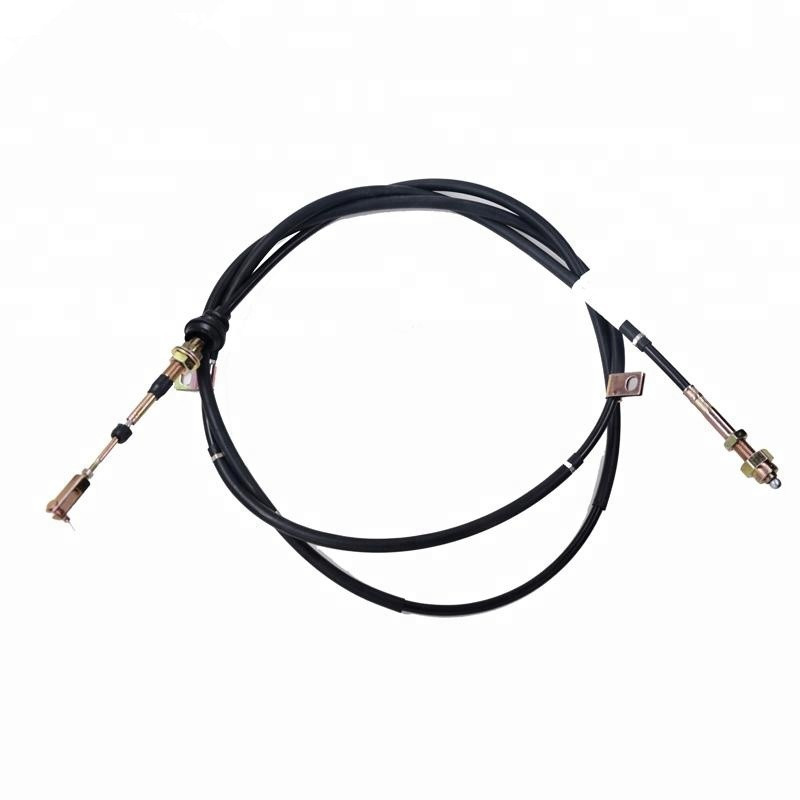

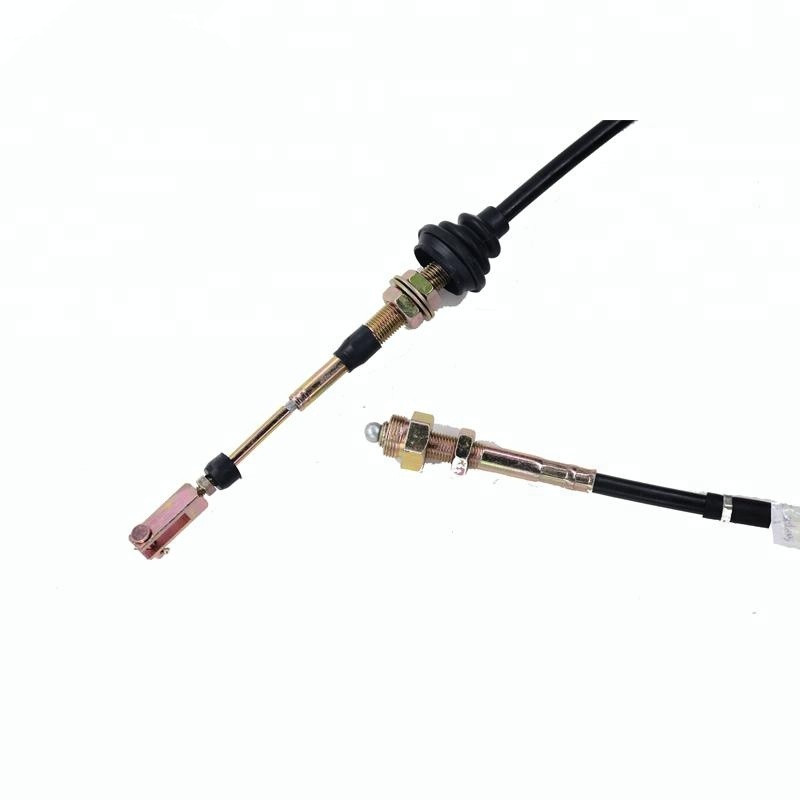

Wholesale Factory direct universal pto control cable for heavy truck Cable Assemblies

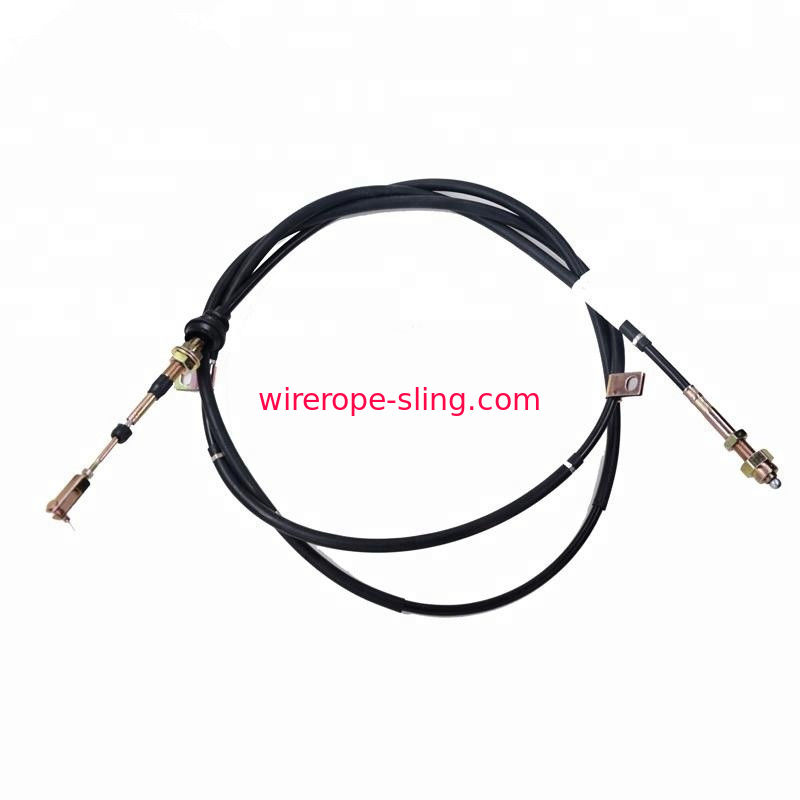

7 X 19 Wire Rope Pto Control Cable Sz Right Regular Lay For Heavy Truck 0

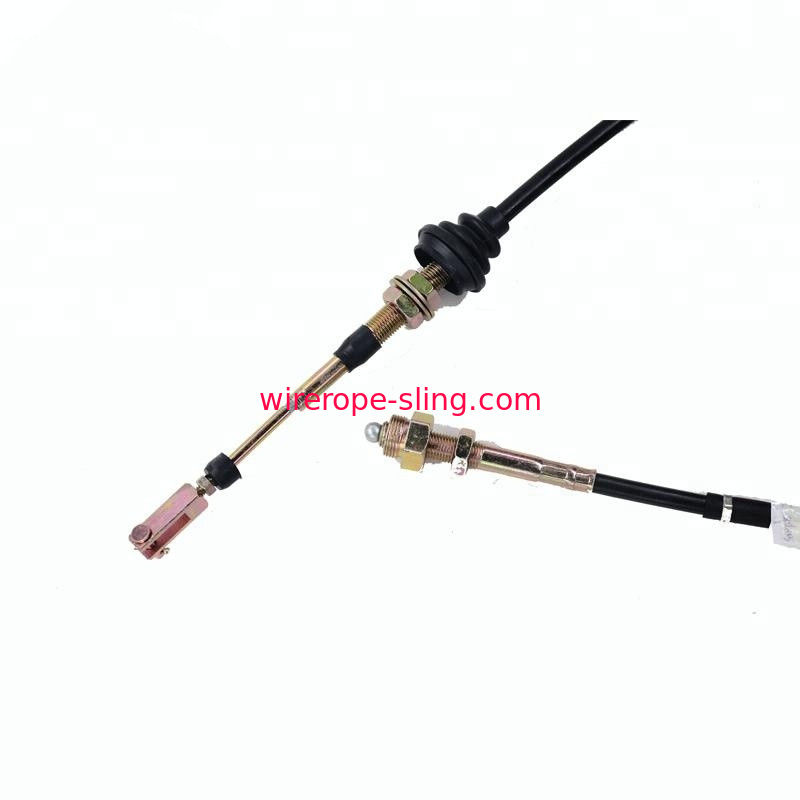

7 X 19 Wire Rope Pto Control Cable Sz Right Regular Lay For Heavy Truck 1



Item name:Wholesale Factory direct universal pto control cable for heavy truck
OEM
no
Application
TRUCK
Quality
High performance
Colour
Black or customizable
Character
Smooth,Tough and Durable
Certification
IATF16949:2016
Size
OEM standard size or customizable
Sample
Avalible
Delivery time
30-60 days depends on quantity
Market
WORLD
MOQ
500 pices
Brand
RUBEST
Payment ways
TT/LC/Paypal/Insurance
Port
Tianjin/Ningbo/Shanghai/Guangzhou

Technical Parameters

LIFT TIME TEST
CABLE NAME
PUSH & PULL TIMES
REAR BRAKE CABLE
150,000
FRONT BRAKE CABLE
200,000
CLUTCH CABLE
300,000
THROTTLE CABLE
500,000
COMPONENTS GLAV. STANDARD
GLAV. COLOUR
THICKNESS OF GLAV.
S.S.T


WHITE/YELLOW
2μm
12 TO 24 HOURS
4-5μm
24 HOURS
6μm
48 HOURS
BLACK
2μm
24 HOURS
4-5μm
48 HOURS
6μm
96 HOURS
PRODUCE CAPACITY
Motorcycle cable
Implementation Standard
QC/T228.1-1997
Production capacity
1 million / month
Auto cable
Implementation Standard
QC/T29101-1992
Production capacity
300,000 / month
CABLE MIN BREAKING STRENGTH
CABLE NAME
CABLE INNER
MIN BREAKING STRENGHT
CLUTCH CABLE
1*19
2.0MM
4.06KN
REAR BRAKE CABLE
1*19
2.3MM
4.86KN
FRONT BRAKE CABLE
1*19
2.5MM
6.01KN
THROTTLE CABLE
7*7
1.5MM
1.99KN
