Steel Bicycle Brake Cable Corrosion Resistance 1960 MPA Tensile Strength

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: 7x7
Payment & Shipping Terms:
Minimum Order Quantity: 10000mtrs
Price: USD3000/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 50tons monthly

Detail Information

Material:SteelApplication:Control Cable
MOQ:10000 Meters If No StockLay:Sz Right Regular Lay
Tensile Strength:1960MPAZinc Coating:Over 15g/m2
HS Code:7312100000Diameter:0.8mm To 6.0mm
High Light:

pto control cable

,

push pull control cable

Product Description

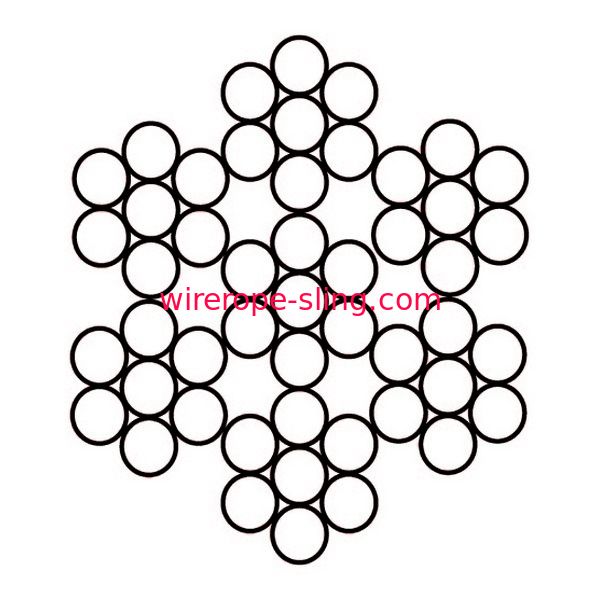

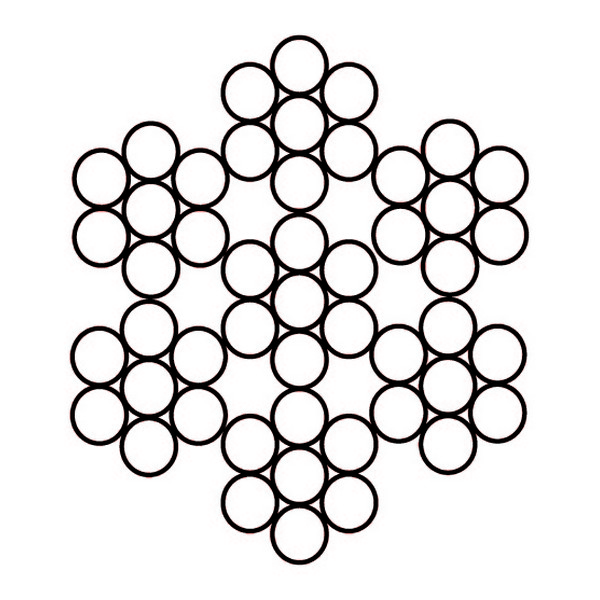

7x7 control cable for wire rope Inside Brake Shift Cables For Bicycle





As with all wire rope products, control cables consist of individual wire filaments which are twisted or braided into strands before being wrapped around a core. Each element of a control cable is crucial to its success. Together the conduit and core selection, the number of bends in the system, and the relative friction between the core and conduit determine the efficiency of control. The housing is also important and may be treated with flame retardant, oil resistance, or other such methods to better function in a particular workplace.
Though referred to simply as cables, control devices are often comprised of an entire wire rope assembly complete with metal or rubber housings. These include wire fittings and terminals such as eyes, forks, studs, handles, pins, and other mounting apparatus with which components are connected. Fittings may be on one or both ends and are often hardwired into the cables for added security, though some instrumentation control cables come with change tool kits for added versatility.

In addition to the aforementioned specifications, the specific type of control cable in use should be considered. Pull-pull and push-pull cables are the most popular choices in the precision transmission of mechanical motion.





Technical Table of Wire Rope



Diameter (mm) Min. Breaking load (Kg) Approx. Weight (Kg/100m)
Galvanized SUS 316 SUS 304
0.8 55 45 50 0.27
1.0 85 65 75 0.42
1.2 120 96 108 0.61
1.5 180 150 170 0.95
1.6 220 170 190 1.08
1.8 260 216 245 1.34
2.0 310 260 290 1.65
2.5 480 400 460 2.57
3.0 700 585 660 3.71
3.5 920 796 900 5.05
4.0 1200 1040 1150 6.60
5.0 1870 1620 1800 10.00
6.0 2700 2326 2570 14.40

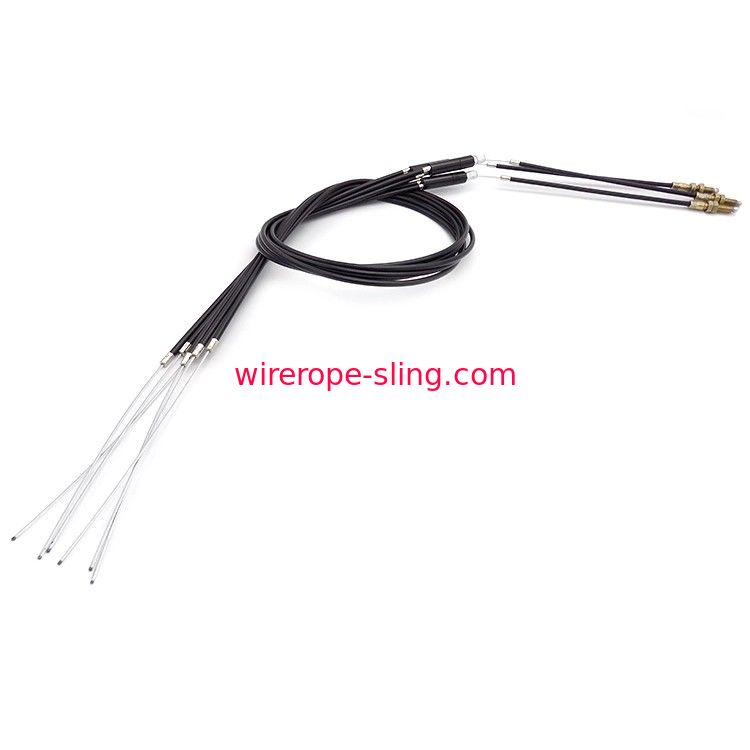

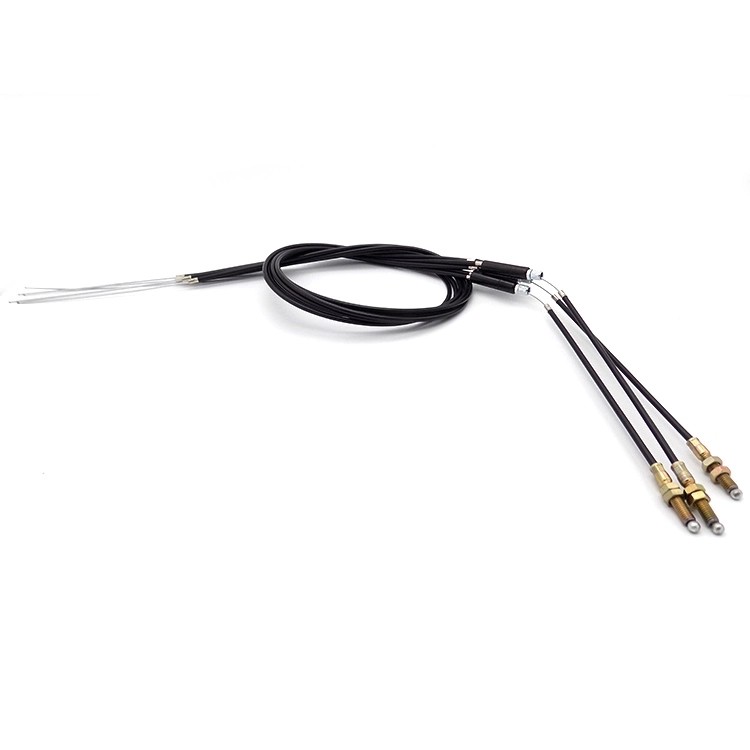

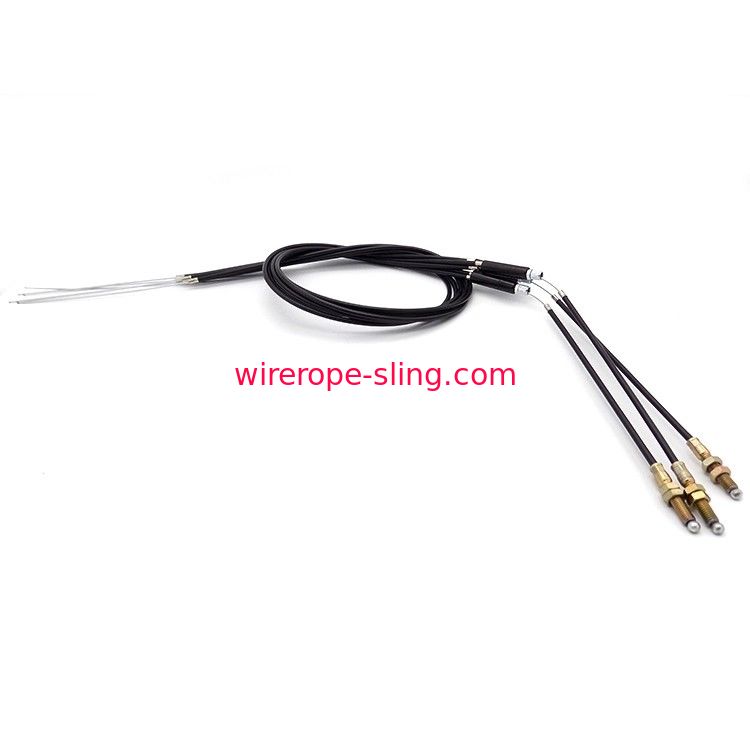

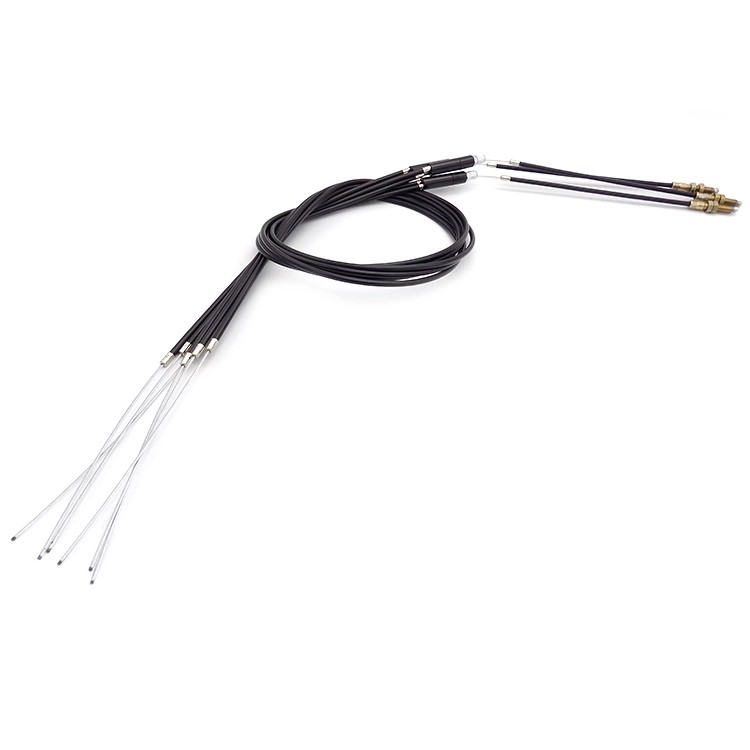

Steel Wire Rope Inside Brake Shift Cables For Bicycle

Steel Bicycle Brake Cable Corrosion Resistance 1960 MPA Tensile Strength 0
Steel Bicycle Brake Cable Corrosion Resistance 1960 MPA Tensile Strength 1

Product information
1. Diameter of inner steel 1.5mm Custom-made available
2. construction 1*7,7*7,7*19,etc
3. material of steel stainless steel or galvanized steel
4. MOQ 500pcs
5. construction liner+coiled shell+jacket
6. kits incude steel wire ,out casing ,end accessories

7. housing



PU,PVC,etc.
8. end parts of fittings

a large selection of end fittings,including eye

bolts,links,

springs,hooks,thimble,clips,stops,ball ,ball shanks ,

sleeve ,

stamped eye,handles,etc


9. Lead time 7days if there were enough material in stock
10. sample

Free sample available if all of dimensions same as our

existing one ,if not ,contact me ,to get a cost

efficient solution.

11. Detail Structure

of the products

1.Housing :liner (POM/ PTFE/ PE/ HDPE) + Coiled shell (metal wire )

(compressionless housing / brake housing)+plastic layer(PVC / PE / Etc

2.Inner wire: 1.0mm -3.0mm stainless or galvanized

3.Fittings :Screws/ terminals / thread studs / zinc nipples /

U shape fittings
