Flexible Control Cable Motorcycle Spare Part With Inner Push Pull Cable Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: 1x12
Payment & Shipping Terms:
Minimum Order Quantity: 10000mtrs
Price: USD3000/TON
Packaging Details: Plastic Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 50tons monthly

Detail Information

HS Code:7312100000Zinc Coating:Zinc Coating
Diameter:1.0mm To 1.8mmLay:Sz Right Regular Lay
Tensile Strength:1960MPAApplication:Control Cable
Material:10000 Meters If No StockMOQ:1.0mm To 1.8mm
High Light:

pto control cable

,

push pull control cable

Product Description

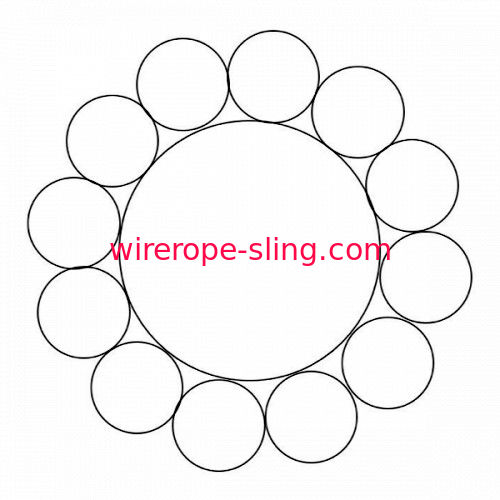

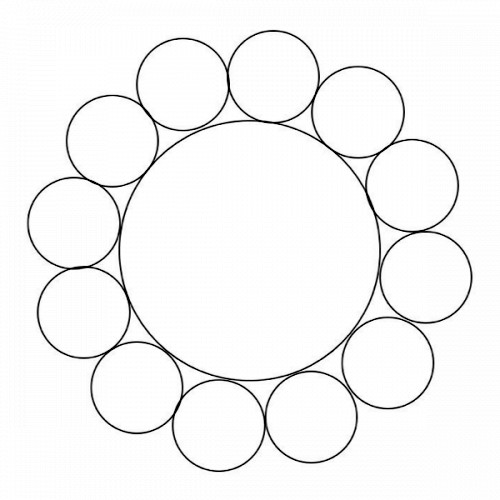

1x12 Motorcycle Spare Part Flexible Control Cables With Inner Push Pull Cable Rope





To ensure the safety of workers and equipment, it is important to consider the specific qualities of a given control cable system. The diameter, length, thickness, maximum load, and working life of a cable should be compatible with its intended use.

Control cables are specialized wire ropes designed for the positive and precise transmission of mechanical motion. Incorporated into equipment and machinery, these cables are responsible for connecting moving parts and controlling the interaction of those parts.

Stranded steel cable used to actuate the controls of an aircraft. Aircraft control cable is made of either stainless steel or galvanized carbon steel. There are three types of aircraft control cable: nonflexible, flexible, and extra-flexible cable. Nonflexible cable is made of seven (1 x 7) or 19 (1 x 19) strands of steel wire. Flexible cable is made of seven strands of wire, with each strand having seven separate wires. This is called 7 x 7 cable. Extra-flexible cable, the one most generally used, is made of seven strands of wire, with each strand made of 19 small wires. Extra-flexible cable is called 7 x 19 cable and is used in locations where the cable must pass over a pulley.



Technical Table of Wire Rope



Diameter (mm) Min. Breaking load (Kg) Approx. Weight (Kg/100m)
Galvanized SUS 316 SUS 304
1.0 105 80 95 0.49
1.2 150 120 140 0.70
1.4 200 160 190 0.95
1.5 230 185 215 1.09
1.6 250 210 245 1.24
1.8 310 265 310 1.56



Motorcycle Spare Part Flexible Control Cables With Inner Push Pull Cable Rope



Diameter 3.2mm
Construction pvc outer cable+steel cable
Material of steel cable Galvanized steel
MOQ 100pcs
Material of fitting(hook) Aluminum
Lead time About 20 working days
Sample Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.
Application



Used for all kinds of bike and motorcycle front brake & rear brake

Specification The brake cable set includes a front and rear brake cable as well as a front & rear derailleur shifting cables along with cable ferrules and cable ends.

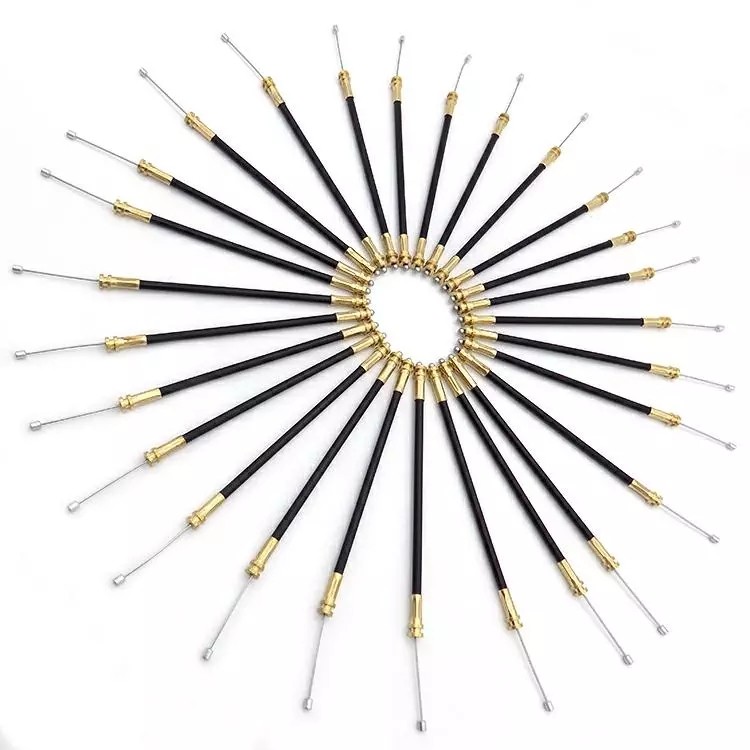

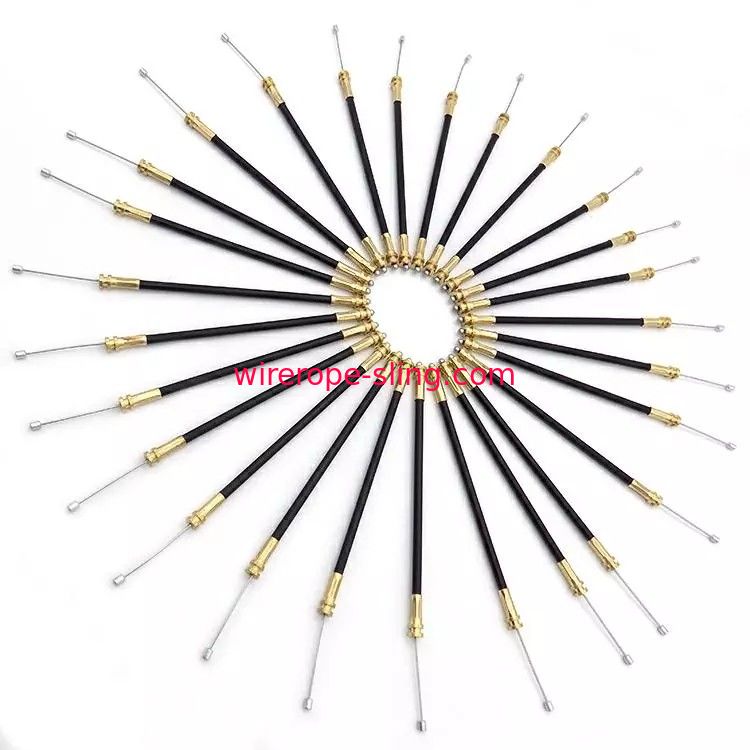

Finished products show



Flexible Control Cable Motorcycle Spare Part With Inner Push Pull Cable Rope 0

Flexible Control Cable Motorcycle Spare Part With Inner Push Pull Cable Rope 1Flexible Control Cable Motorcycle Spare Part With Inner Push Pull Cable Rope 2



FAQ


Q:How do we control the quality?

A: 100% of the products will be tested and test its quality reliability ,

from raw material to half assembling until finishing products,

Each product should pass all these QC procedures before shipping to customer.



Q: What is your trading and payment terms?

A:1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment or paypal for small amount .

2. Lead time : normally 15-25days after deposit received.

3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .

4. Shipping port: Shenzhen/Guangzhou China

5. Discounts : We offer discount for big quantity.



Q: How can I delivery the goods?

A: 1.By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days

2.Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.

3.Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
