Light Lifting Wire Rope Long Service 8x36WS IWRC Light Weight Port And Mobile Crane

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8x41WS
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Length:500mtrs/1000mtrs/2000mtrs AvailableSurface:Galvanized Or Ungalvanized
Tensile Strength:1770N/mm2,1870N/mm2,1960N/mm2Diameter:10mm-56mm
Core:Fiber/IWRCProcessing:Compacted
Material:SteelPacking:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



8x36WS+IWRC High performance Steel Wire Rope for loading and unloading operation



Pay attention to use Steel Wire Rope



In the course of use, the wire rope is strictly forbidden to be used and should not be affected by the impact force. When the wire is tied or suspended, the wire rope should not be contacted directly with the sharp corner of the object. In their contact, wooden plates, canvas, sacks or other pads should be used to prevent the damage of the wire rope from the fast corners of the object. Raw equipment and life accidents.



Multi layer non rotated steel wire ropes should be fastened and cut again before cutting, so as to prevent loosening of outer layer due to cutting and affect the service life.



The size of the pulley used is different from that of the wire rope. The general pulley is 25-30 times the diameter of the rope, smaller than the soft multiples, and larger than the hard ones. The rope wheel is too small to shorten the service life of the wire rope.



The wire rope should be lubricated during the use. If a wire rope is lacking in lubricating oil, the lubricating oil should be added













Special Features



  • Compared with class 8X19 Liner Steel Wire Rope, it has higher tensile strength and better performance.
  • Excellent wear resistance and extrusion resistance.
  • Provide longer service life
  • With smooth outer surface and larger contact area, it can reduce wear between steel rope and pulley and drum.


Technical Table



Dia.(mm) Weight(kg/m) MBL(kN)
1960 MPA 2160 MPA
10 0.491 85.3 91.5
11 0.594 98.1 113
12 0.706 114 127
13 0.829 147 157
14 0.961 169 183
16 1.256 217 228
18 1.590 275 298
19 1.771 302 323
20 1.962 333 355
22 2.375 398 423
24 2.826 487 518
26 3.317 576 610
28 3.847 655 700
32 5.024 844 914
36 6.358 1,060 1,120
40 7.850 1,290 1,320
44 9.499 1,500 1,590
48 11.304 1,880 1,890
52 13.266 2,130 2,220
56 15.386 2,470 2,574

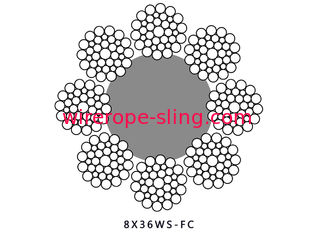

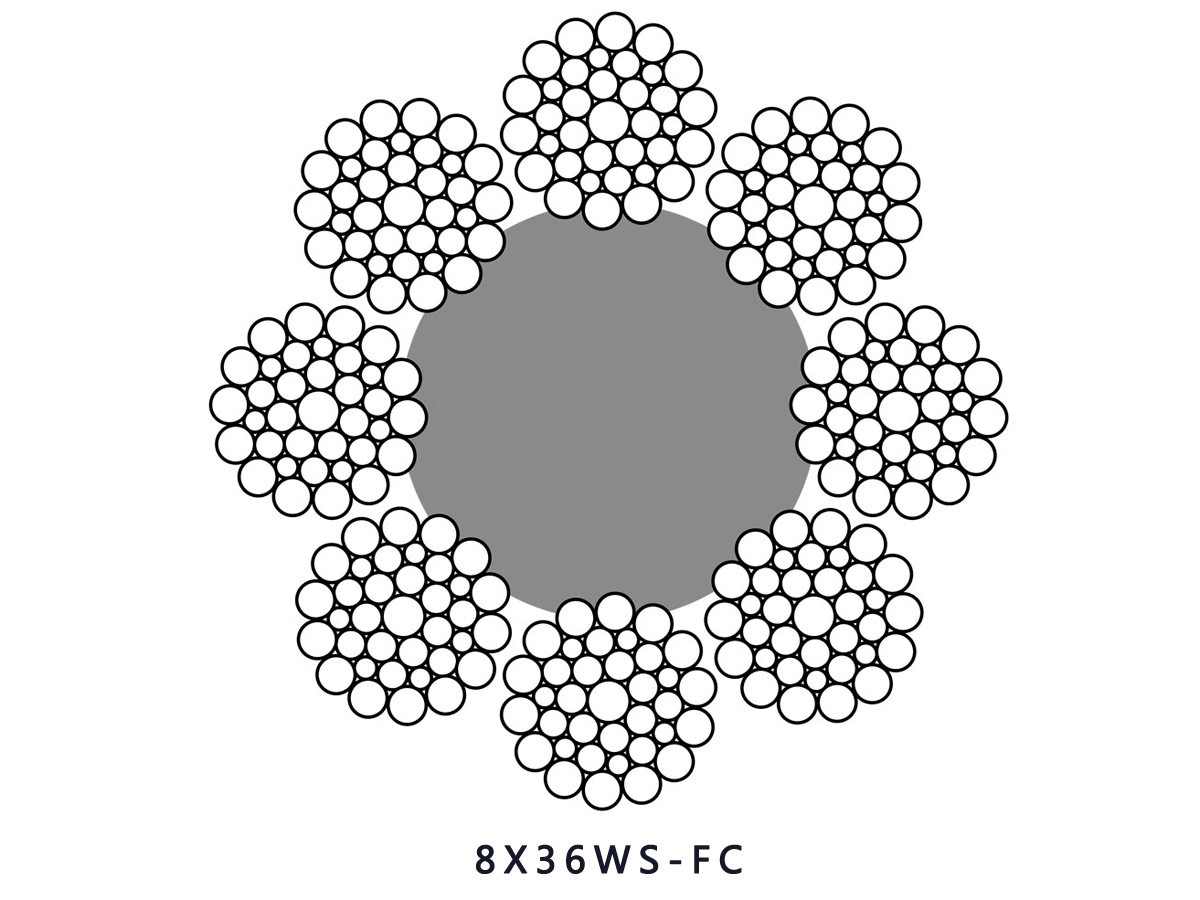

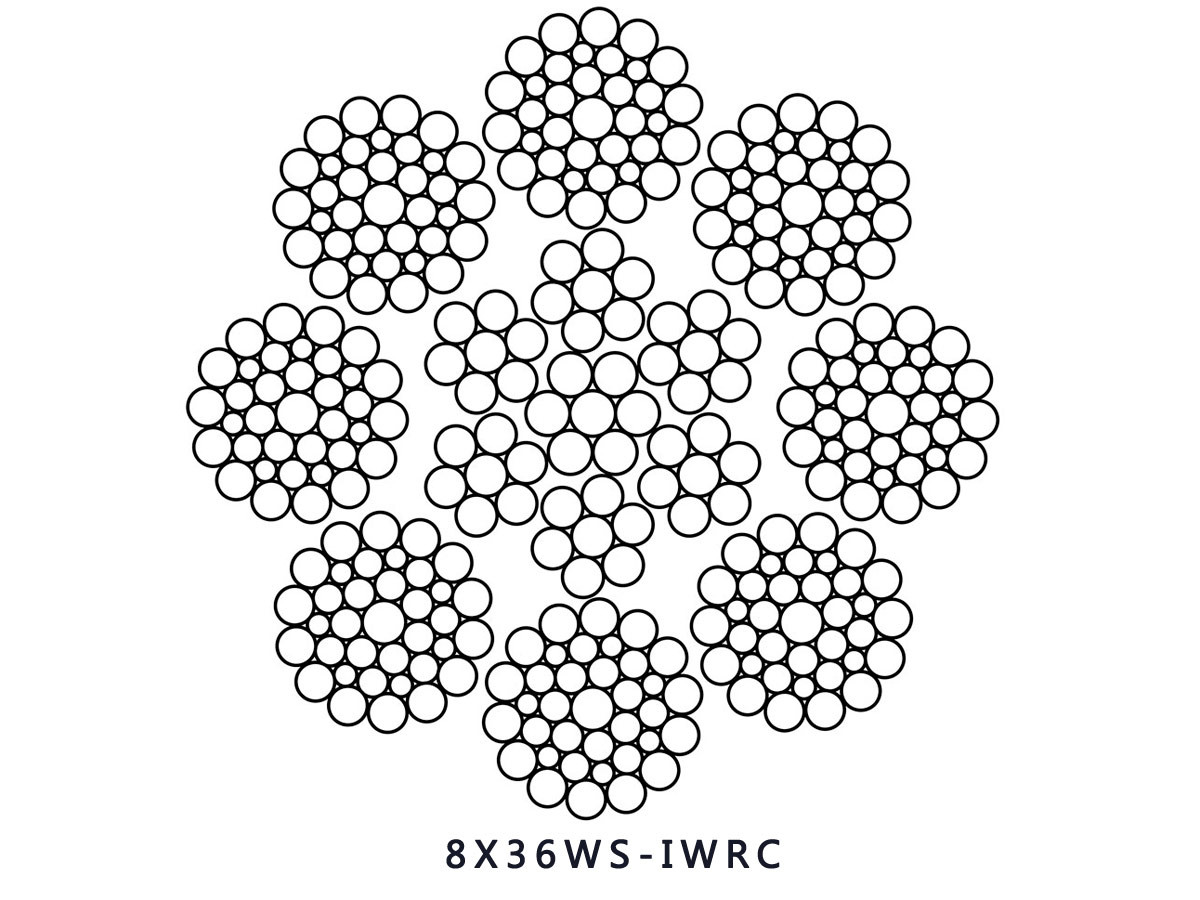

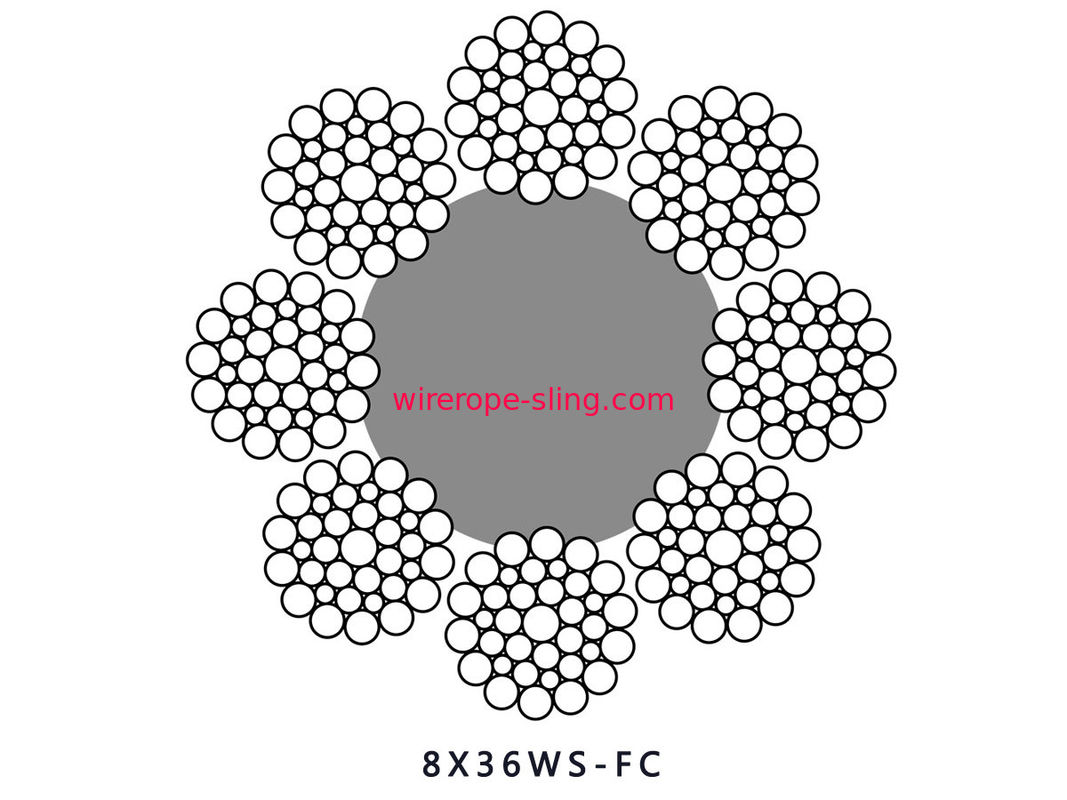

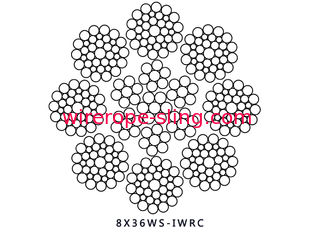

Wire Rope Cross Section;



Light Lifting Wire Rope Long Service 8x36WS IWRC Light Weight Port And Mobile Crane 0







Light Lifting Wire Rope Long Service 8x36WS IWRC Light Weight Port And Mobile Crane 1
