18X7 IWS Non Rotating Wire Rope 45mm - 73mm For Hoisting And Boom Lifting Crane

China 18X7 IWS Non Rotating Wire Rope 45mm - 73mm For Hoisting And Boom Lifting Crane supplier

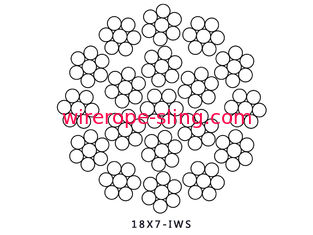

Large Image :  18X7 IWS Non Rotating Wire Rope 45mm - 73mm For Hoisting And Boom Lifting Crane

Product Details:

Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 6XK31WS-EPIWRC

Payment & Shipping Terms:

Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now
Detailed Product Description
Material: Steel Surface: Galvanized Or Ungalvanized
Tensile Strength: 1960N/mm2 Diameter: 45mm-73mm
Core: IWR Processing: Compacted
Length: 500mtrs/1000mtrs/2000mtrs Available Packing: Wooden Reel

The port lifting, small car cranes and mine shaft hoisting steel wire rope use the 18*7 type of multilayer non rotating wire rope. The structure of the wire rope is Valin style. The inner and outer twisting moment of the inner and outer layers makes use of the inner and outer rotation torque to make the wire rope have the characteristics of micro non-rotation, so we can say 18*7. The wire rope is especially suitable for the occasion of single rope lifting. The ordinary point contact and wire contact wire rope is a single layer twisting system, so the force lifting load often revolve and has great influence on the construction work.

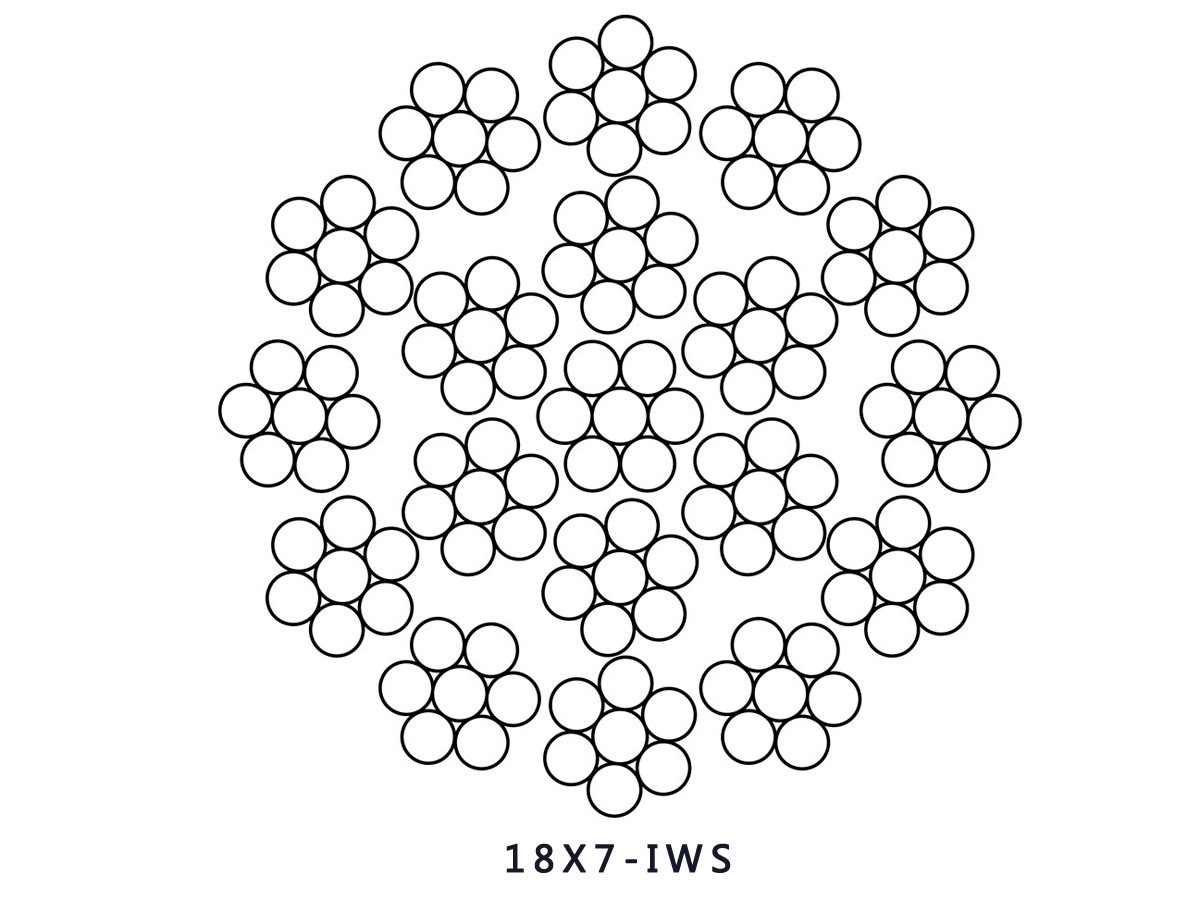

The non-rotating wire rope of class 18*7 is divided into two kinds of core and steel core. We often label the 18*7+FC core and the 18*7+IWS steel core category. In many cases, we refer to 18*7+IWS for abbreviated as 19*7. As a steel core rope, 19*7 plays a very good supporting role in the rope strands during the production of wire rope, and in the load stage, it can effectively share the part of the load and withstand the advantages of 19*7 when it is resistant to high temperature and extrusion. The 18*7+FC rope core rope makes the softening and bending properties of the wire rope further strengthened, and the oil storage capacity of the rope core rope is strong, the lubrication effect is good, and the wear and corrosion of the inner steel wire can be slowed down.



18X7 IWS Non Rotating Wire Rope 45mm - 73mm For Hoisting And Boom Lifting Crane



Key Specifications/Special Features:



*Use the technology of the strands oil.

*Excellent anti-rotation performance.

*Excellent wear resistance.



Technical Table



DIA(mm) WEIGHT(kg/m) Minimum Breaking Load(kN)
FC IWS 1770MPA 1960MPA
10 0.399 0.419 58.1 64.3
11 0.483 0.507 70.2 77.8
12 0.575 0.603 83.6 92.6
13 0.674 0.708 98.1 109
14 0.782 0.821 114 126
16 1.021 1.073 149 165
18 1.293 1.358 188 208
19 1.440 1.513 210 232
20 1.596 1.676 232 257
22 1.931 2.028 281 311
24 2.298 2.413 334 370
26 2.697 2.832 392 435
28 3.128 3.285 455 504
32 4.086 4.291 594 658
36 5.171 5.430 752 833
