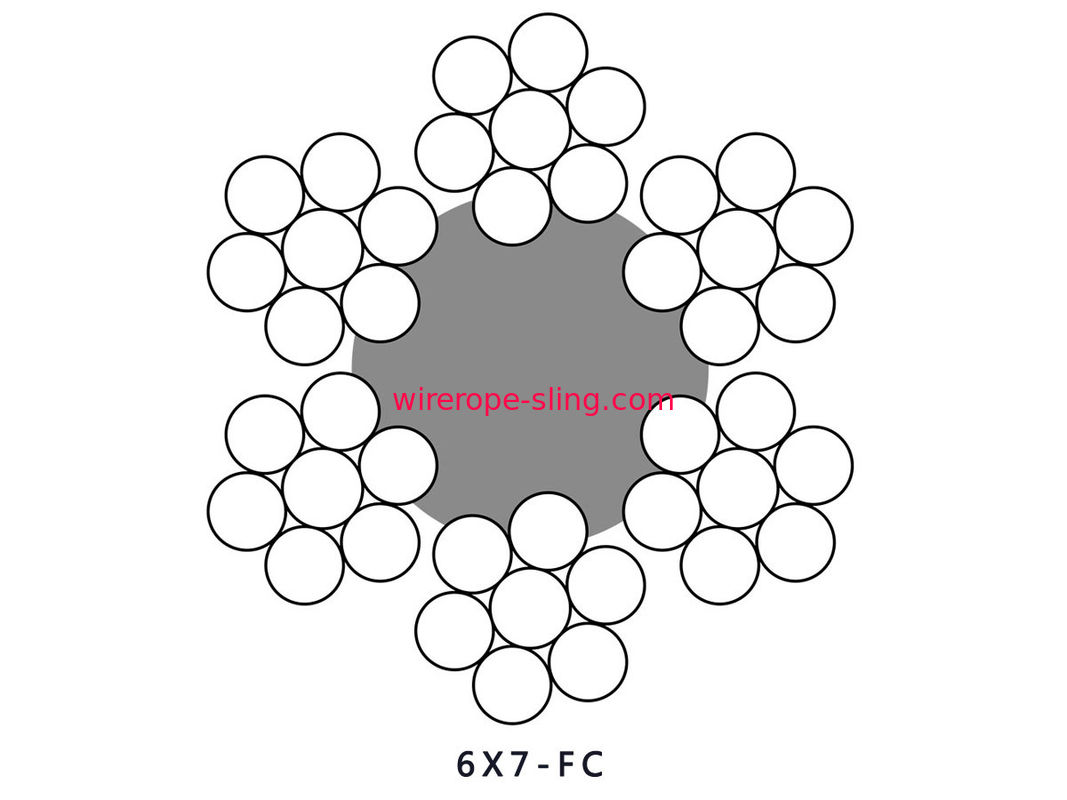

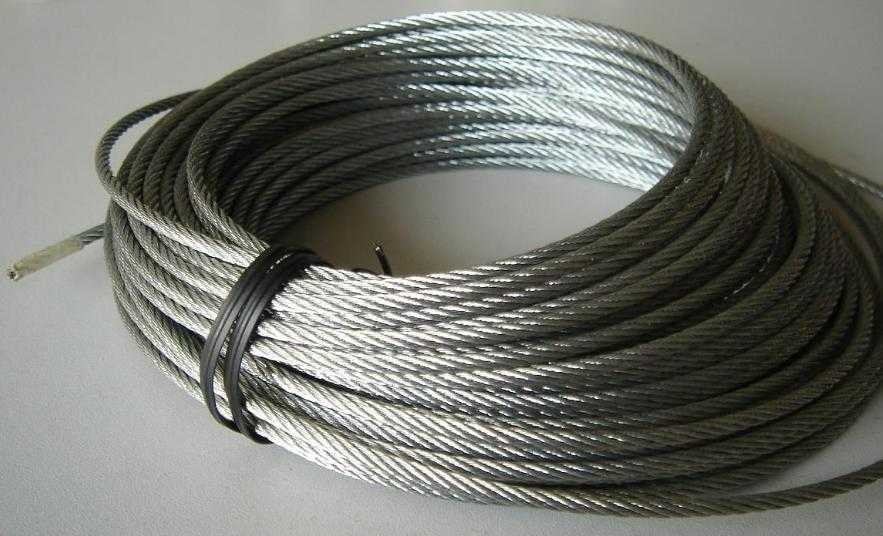

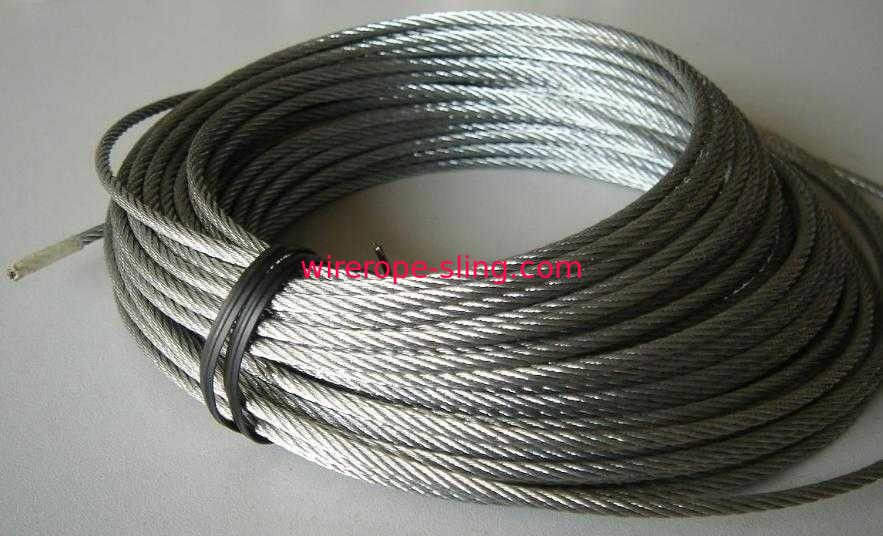

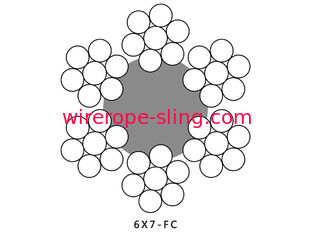

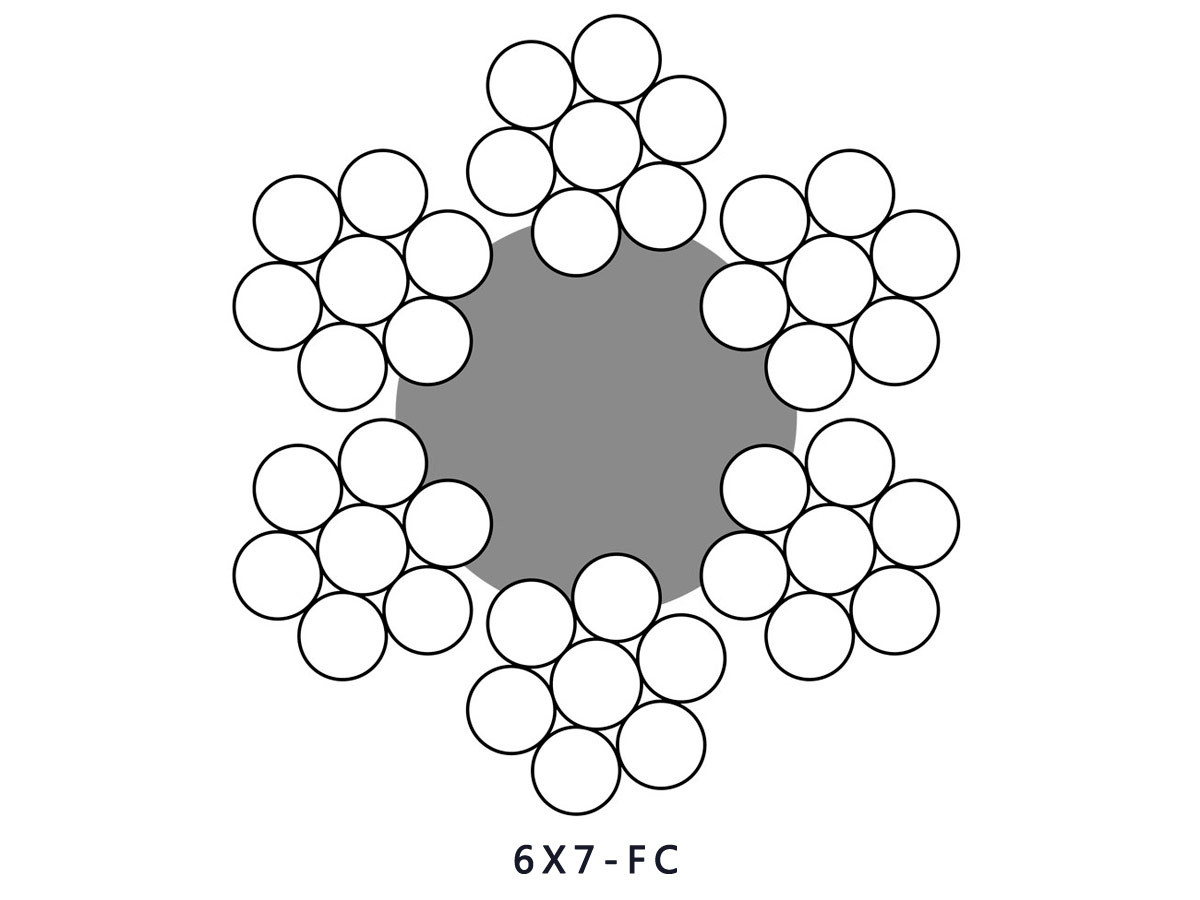

6X7 FC Oil Sanding Steel Wire Rope API - 9A Standard Of The American Petroleum Institute
6X7 FC Oil Sanding Steel Wire Rope API - 9A Standard Of The American Petroleum Institute 6X7 FC Oil Sanding Steel Wire Rope API - 9A Standard Of The American Petroleum Institute

6X7 FC Oil Sanding Steel Wire Rope API - 9A Standard Of The American Petroleum Institute

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 8x19S
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1200/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now

Detail Information
Material:SteelSurface:Ungalvanized
Tensile Strength:1370N/mm2/1770N/mm2Diameter:6mm-22mm
Core:FC/IWRLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel Reel
High Light:

wire rope cable

,

steel rope cable

Product Description



Detailed description



  • Performance meets or exceeds the requirements of the API-9A standard of the American Petroleum Institute.
  • Excellent wear resistance





Specification



Dia. Weight Tensile strength/MPA
mm in kg/100m 1770 1960 IPS EIP
MBL/KN
6 　 12.4 21.2 23.4 21 23
8 　 22.1 37.6 41.6 37 40.7
10 　 34.5 58.8 65.1 57.5 63.4
12.7 　 55.6 94.8 105 91.6 101
13 　 58.3 99.3 110 96 105.6
14.3 　 70.5 120 133 116 127
16 　 88.3 150 167 143 158
18 　 112 190 211 180 198
20 　 133 235 260 222 244
22 　 167 284 315 268 296
24 　 199 338 375 317 349
26 　 233 397 440 369 407
28 　 270 461 510 425 469
32 　 353 602 666 550 604



6X7 FC Oil Sanding Steel Wire Rope API - 9A Standard Of The American Petroleum Institute 0



If you need to obtain product specifications and parameters that are not yet listed in the form, please do not hesitate to contact us.



The relationship between structure and softness, wear resistance and fatigue property of wire rope

Generally speaking, the thicker the steel wire is, the better the wear resistance; the thinner the steel wire, the higher the fatigue resistance.

Therefore, the inclined shaft hoisting in mine wire rope mostly uses the wear resistant 6*7 and 6*19S structure. Tower crane and truck crane are frequently lifting and 35W*7 structure is chosen.







Construction Wire Rope Softness Wear resistance of wire rope Fatigue resistance of wire rope
6×7 ●●●●● ●●●●● ●
6×19 ●●● ●●● ●●
6×37 ● ●● ●●●
6×19W ●●● ●●● ●●●
6×19S ●●● ●●●● ●●●
6×25Fi ●●● ●●● ●●●●
6×29Fi ●●● ●●● ●●●●
6×31WS ●●● ●●● ●●●●
6×36WS ●●● ●●● ●●●●
6×41WS ●● ●●● ●●●●
6×K36WS ●●●● ●●●● ●●●●
8×19S ●● ●●● ●●●
18×7 ●● ●●● ●●●
18×19S ● ●● ●●●●●
35W×7 ● ●●● ●●●●●
35W×K7 ●●● ●●●●● ●●●●●





There are many other structures for wire ropes. They are not enumerated. The above information is for reference only, not for any other purpose.
