China Wire Rope Sling manufacturer

1/16inch x 66Feet Stainless Steel Wire Rope Cable 100Pcs Aluminum Crimping Sleeves and 20Pcs Stainless Steel Thimble Cable Railing Kits

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS1182
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: US$2.2-8.0 per set
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 5000 sets per month

Detail Information

Steel Grade304,316StandardAiSi
Place of OriginShanghai, ChinaTypeDrawn Wire
ApplicationArchitecture,Ropeway, Electricity,Machinery,etc.Alloy Or NotIs Alloy
Model Number7x19,7x7,1*19,6x7,6x12,6x19 FC/PP/WSC/IWRC coreBrand NameLKS
High Light:

304 stainless steel wire rope

,

Stainless Steel Wire Rope

Product Description

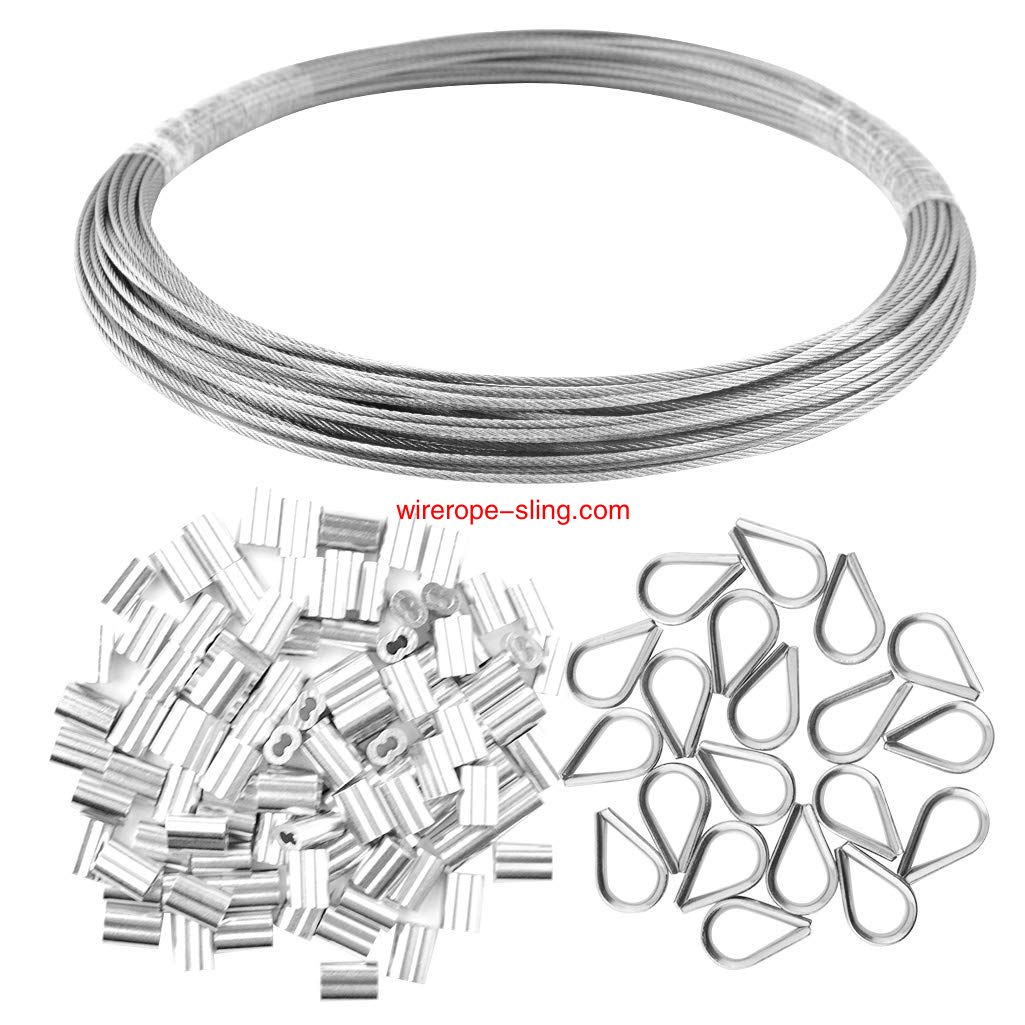

1/16inch x 66Feet Stainless Steel Wire Rope Cable 100Pcs Aluminum Crimping Sleeves and 20Pcs Stainless Steel Thimble Cable Railing Kits


  • PACKAGE INCLUDING: 1/16 inch 66 feet stainless steel wire rope cable, 100 pieces aluminum crimping sleeves and 20 pieces stainless steel thimble. Very suitable for cable railing system.

  • HIGH QUALITY MATERIAL: Cable railing kits are made of high quality stainless steel, corrosion resistance, with durability and strength. Wire rope cable is 1/16 inch in diameter and 66 feet in length.

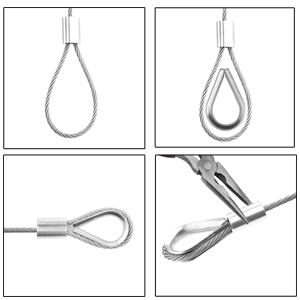

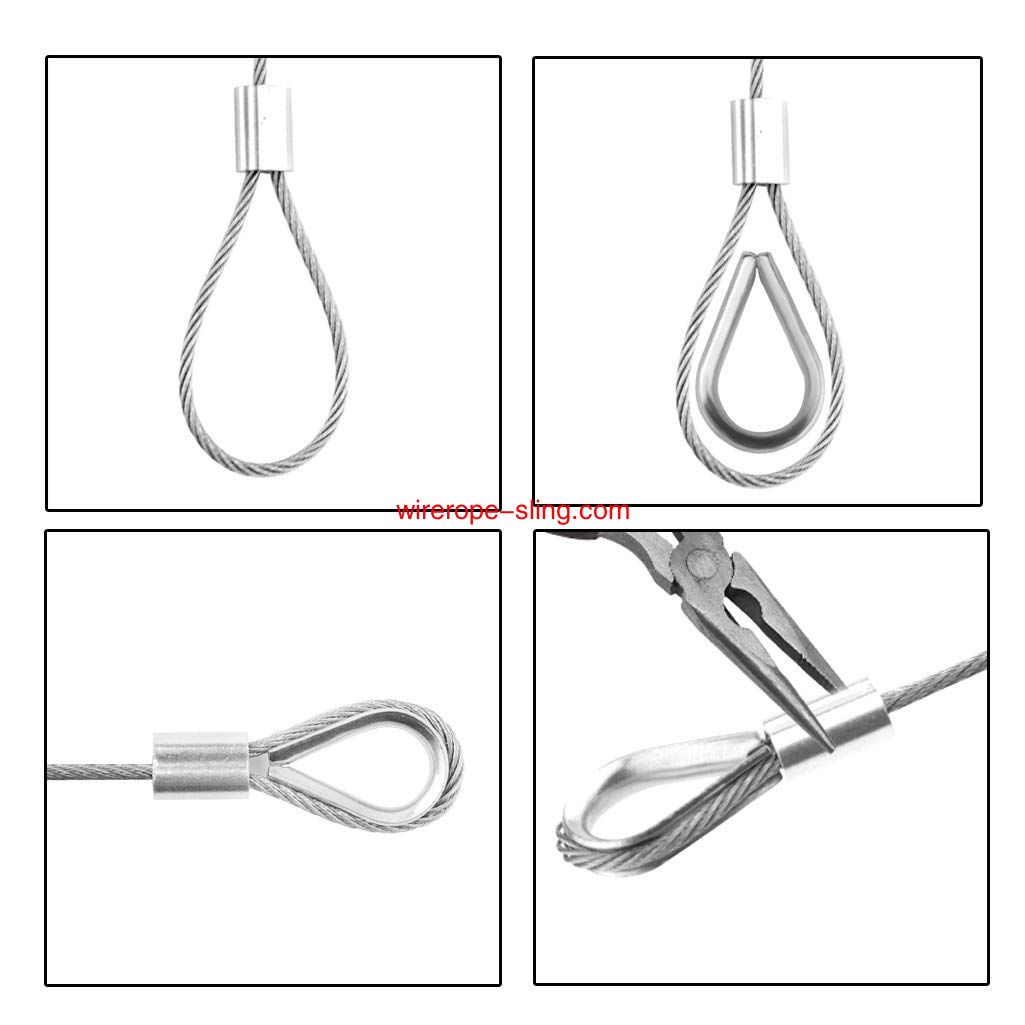

  • CRIMPING SLEEVES AND THIMBLE: Applicable to 1/16 inch diameter wire rope cable, with vise, pliers, press to lock both ends of the wire, can firmly fix both ends of the cable, strong and durable.

  • WIDELY USED: Wire rope cable is widely used for making cable balustrade system, homemade balustrade, outdoor sunshade, garden hanging lamp, gardening buoy, clothesline and other railings crafts.

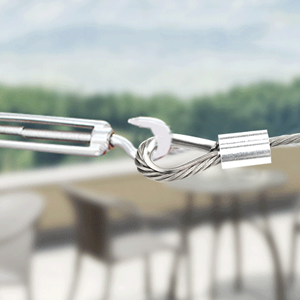

  • PROTECTION DESIGN:Wire rope cable can be tailored freely according to the length of use. Crimping sleeves and thimble can help prevent the cable from flattening around the hole and increase the service time of the cable.

2

3

4




Wire Rope Cable Stainless Steel Wire Rope Cable for Home Garden Outdoor

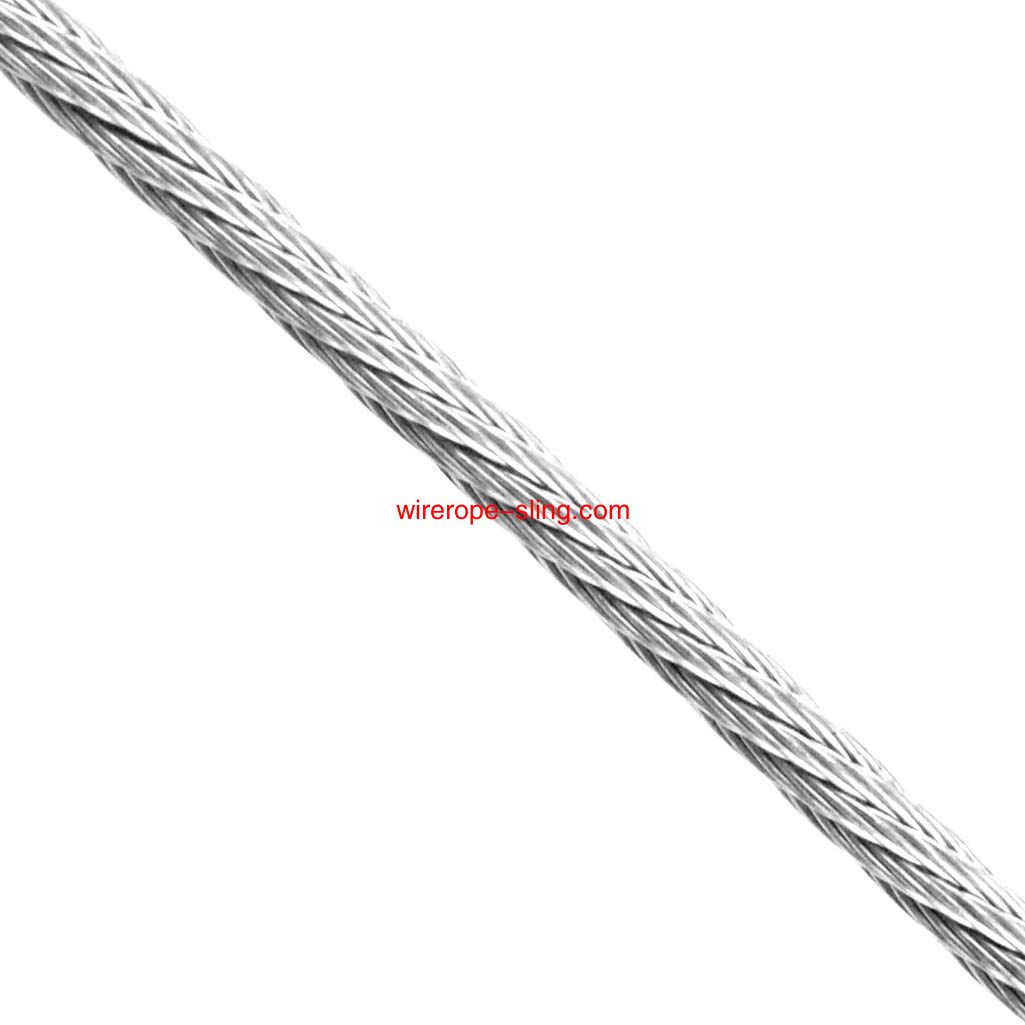

  • Wire rope cable is made of 304 stainless steel which have superior rust resistance and the excellent of oxidation resistance.

  • Wire rope cable is widely used for making cable balustrade system, homemade balustrade, outdoor sunshade, garden hanging lamp, gardening buoy, clothesline and other railings crafts.

  • Wire rope cable can be used in various occasions, such as gardens, pull wires, hanging, string, hanging clothes, hanging pictures, railings, decks, ships, etc.

  • Wire rope cable is suitable for outdoor and indoor cable railing projects, widely used in industrial and marine applications, used for traction, strapping, landscape and construction, railing system.


5

6

7




8

Stainless steel wire rope cable, aluminum crimping sleeves and stainless steel thimble.


  • High quality stainless steel, corrosion resistance, with durability and strength.

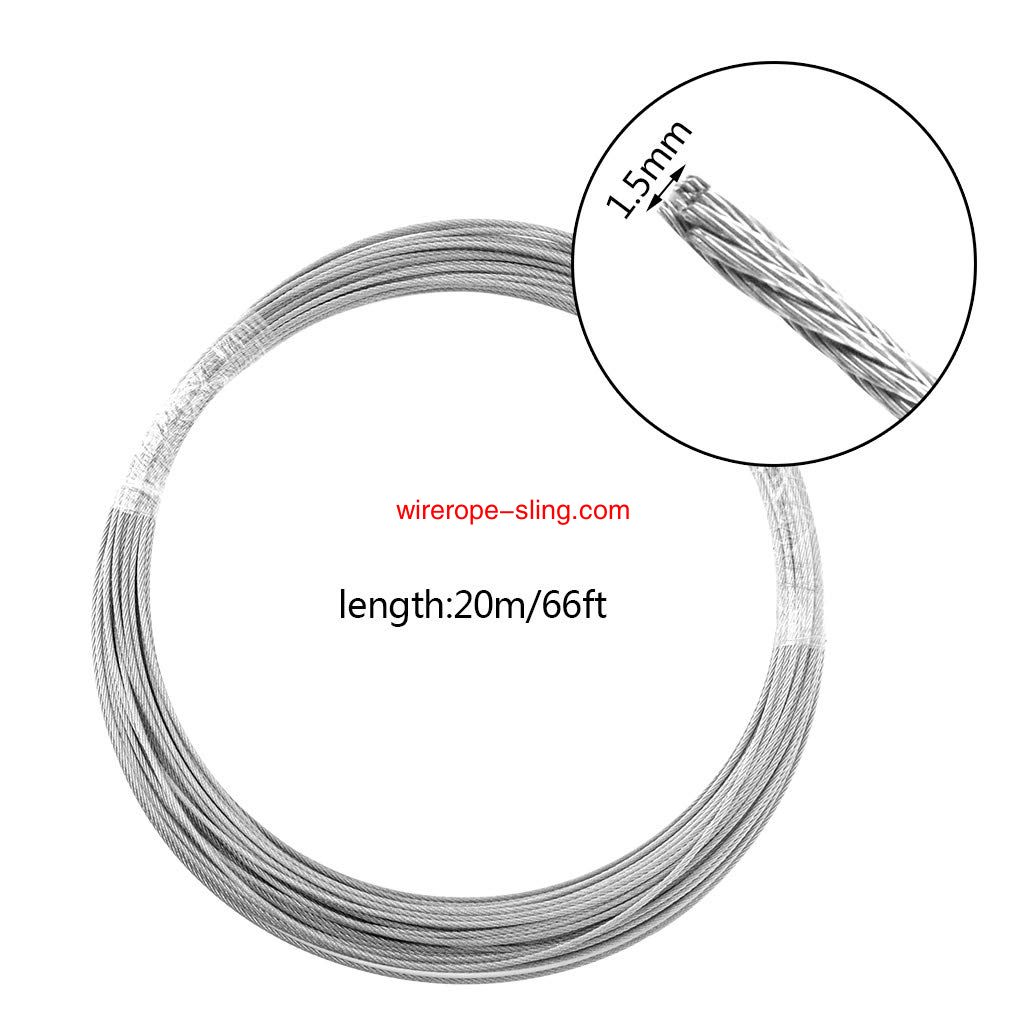

  • Wire rope cable: 1/16 inch in diameter and 66 feet in length.

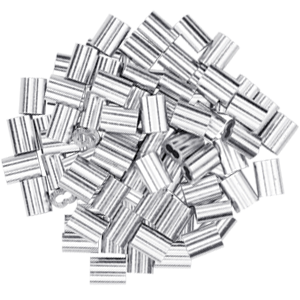

  • Aluminum crimping sleeves: 100 pieces and applicable to 1/16 inch diameter wire rope cable.

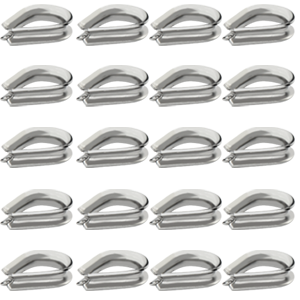

  • Stainless steel thimble: 20 pieces and applicable to 1/16 inch diameter wire rope cable.

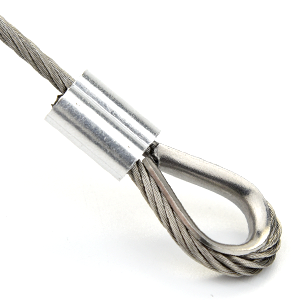

  • Crimping sleeves and thimble can help prevent the cable from flattening around the hole and increase the service time of the cable.

Normally, stainless steel wire rope is made of 304, 305 or 316. And here is a simple comparison of these materials:

  • The 304 material, as the most common type, is magnetic with excellent corrosion resistance and strength compared with galvanized steel wire ropes. But it still will corrode to some extent over year so it is not suitable for marine and food applications.

  • The 305 material is more corrosive resistant than 304. Meanwhile, it is largely non-magnetic perfectly suited for aeronautical and naval fields.

  • The 316 materials is the most corrosive resistant type and highly used in high corrosion environments and places with high salt spray. But the 316 material is about 10% less strength than 304 stainless steel.


7 × 7 stainless steel wire rope

The cross section of stainless steel wire rope SSWR-77

Features:

  • More flexible than 1 × 19 stainless steel wire rope.

  • More rigid than 7 × 19 stainless steel wire rope.

  • Excellent breaking load qualities.

  • Available form 0.54mm to 12mm in diameter

Application:

  • Marine industry such as rigging, sewage treatment work, steering cable and mast stay.

  • General engineering applications such as control cable, davit ropes and slings

TypeCable diameterTensile strengthMinimum breaking loadWeight
SSWR-77-10.54mm1770Mpa0.18KN0.0012kg/m
SSWR-77-20.68mm1770Mpa0.29KN0.0018kg/m
SSWR-77-30.81mm1770Mpa0.41KN0.0026kg/m
SSWR-77-40.9mm1570Mpa0.49KN0.0032kg/m
SSWR-77-51mm1570Mpa0.56KN0.004kg/m
SSWR-77-61.25mm1570Mpa0.88KN0.005kg/m
SSWR-77-71.5mm1570Mpa1.27KN0.009kg/m
SSWR-77-81.8mm1570Mpa0.83KN0.013kg/m
SSWR-77-92mm1570Mpa2.25KN0.016kg/m
SSWR-77-102.5mm1570Mpa3.52KN0.025kg/m
SSWR-77-113mm1570Mpa5.07KN0.034kg/m
SSWR-77-124mm1570Mpa9.01KN0.063kg/m
SSWR-77-135mm1570Mpa14.08KN0.098kg/m
SSWR-77-146mm1570Mpa20.28KN0.142kg/m
SSWR-77-157mm1570Mpa27.6KN0.193kg/m
SSWR-77-168mm1570Mpa36.05KN0.253kg/m
SSWR-77-1710mm1570Mpa56.3KN0.393kg/m
SSWR-77-1812mm1570Mpa81.1KN0.566kg/m
