China Wire Rope Sling manufacturer

T316 Stainless Steel 1/8" Aircraft Wire Rope For Cable Railing Kits 200 FT

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO9001:2008
Model Number: 7X7
Payment & Shipping Terms:
Minimum Order Quantity: 100sets
Price: USD5000/TON
Packaging Details: Seaworthy packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Steel Grade:300 SeriesStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.6mm-30mmType:Drawn Wire,Carbon Steel Wire
Alloy Or Not:Non-alloySpecial Use:Cold Heading Steel
Certificate:ISO, SGSPackaging:In Coil And Pallet
High Light:

coated stainless steel cable

,

stainless steel cable

Product Description

T316-Stainless Steel 1/8'' Aircraft Wire Rope for Cable Railing Kits (200 FT)

Product Details

Stalye T316-Stainless Steel 1/8'' Aircraft Wire Rope for Cable Railing Kits (200 FT) Includes Cable Cutter and 40 Pcs Aluminum Crimping Loop Sleeve

  • Cable Material: T316-Stainless Steel,Cable OD: 1/8 inch
  • Characteristic of 316-Stainless Steel Cable: Strong,Rustless, Ageing Resistance and Durable;

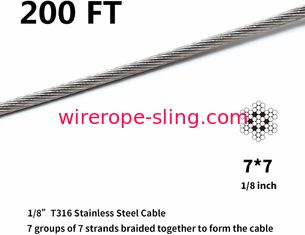

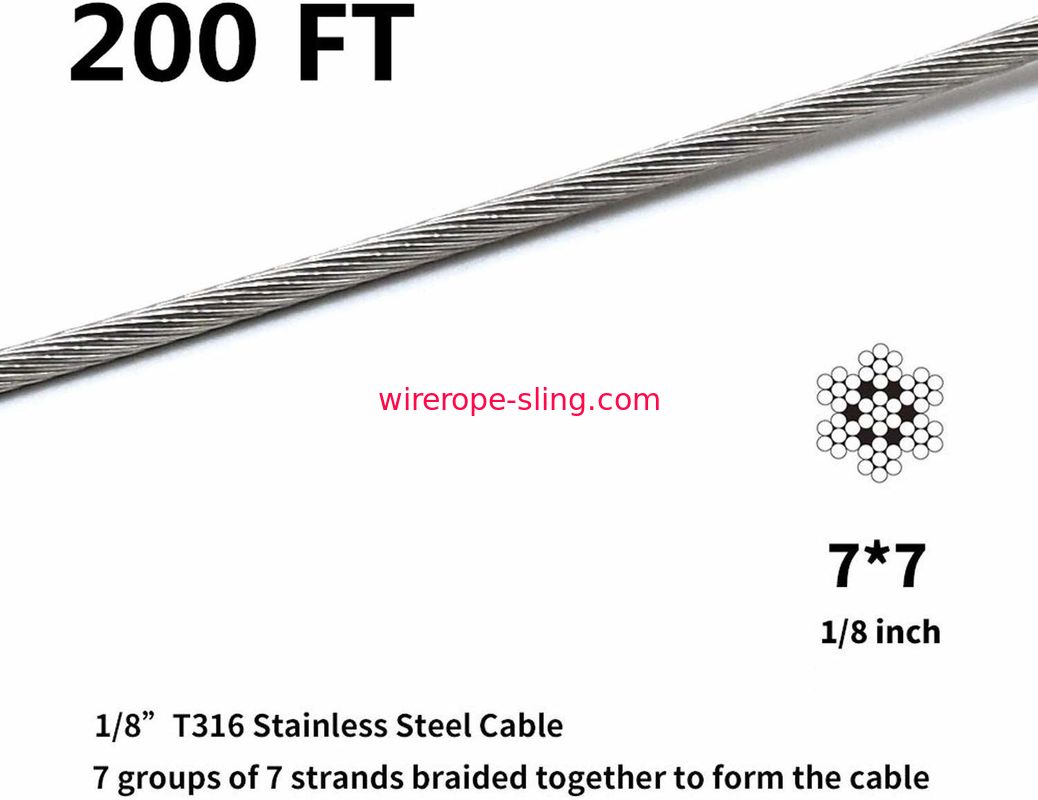

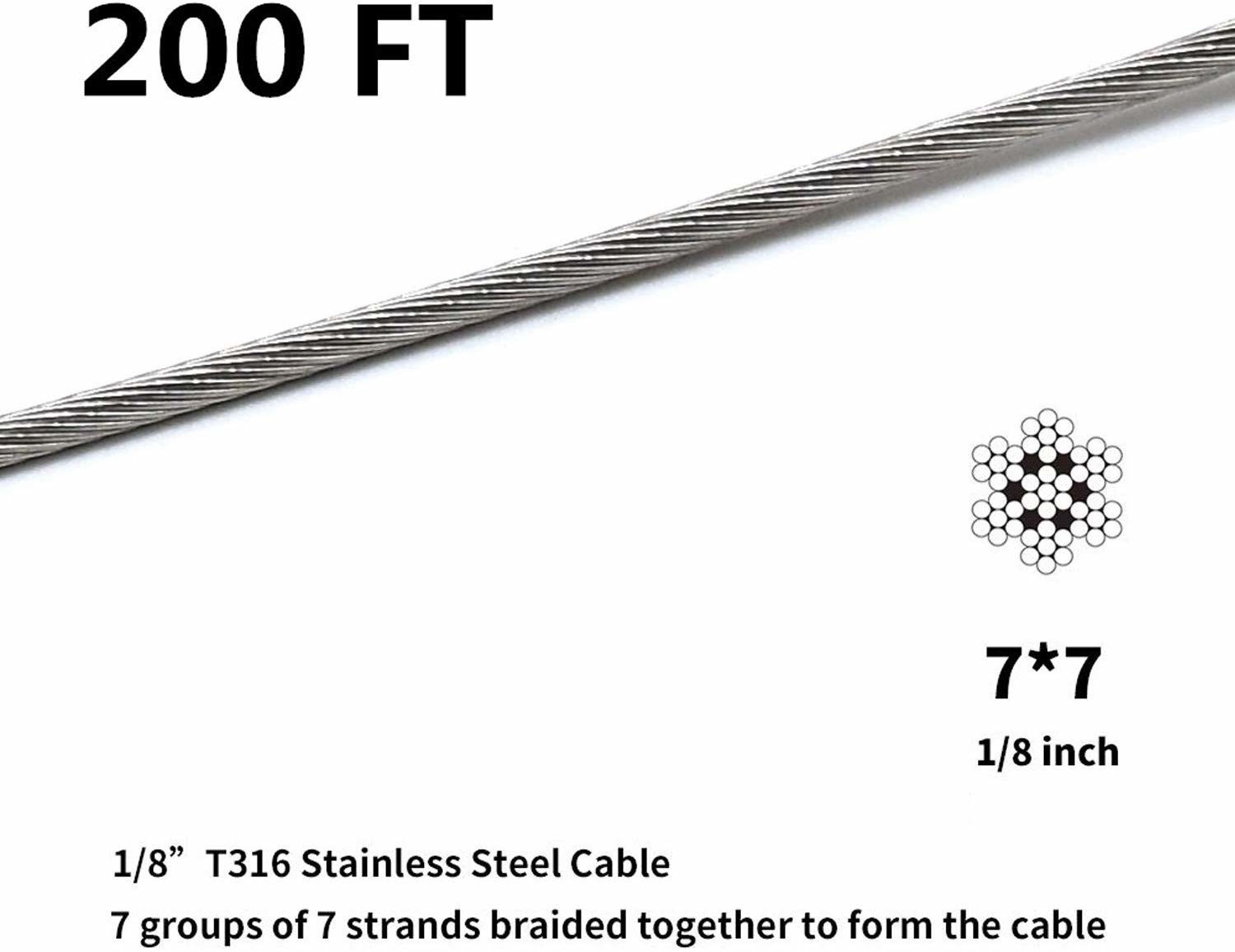

  • 7x7 construction (7 groups of 7 strands braided together to form the cable). Good type of cable for handling bends and corners on cable railings..

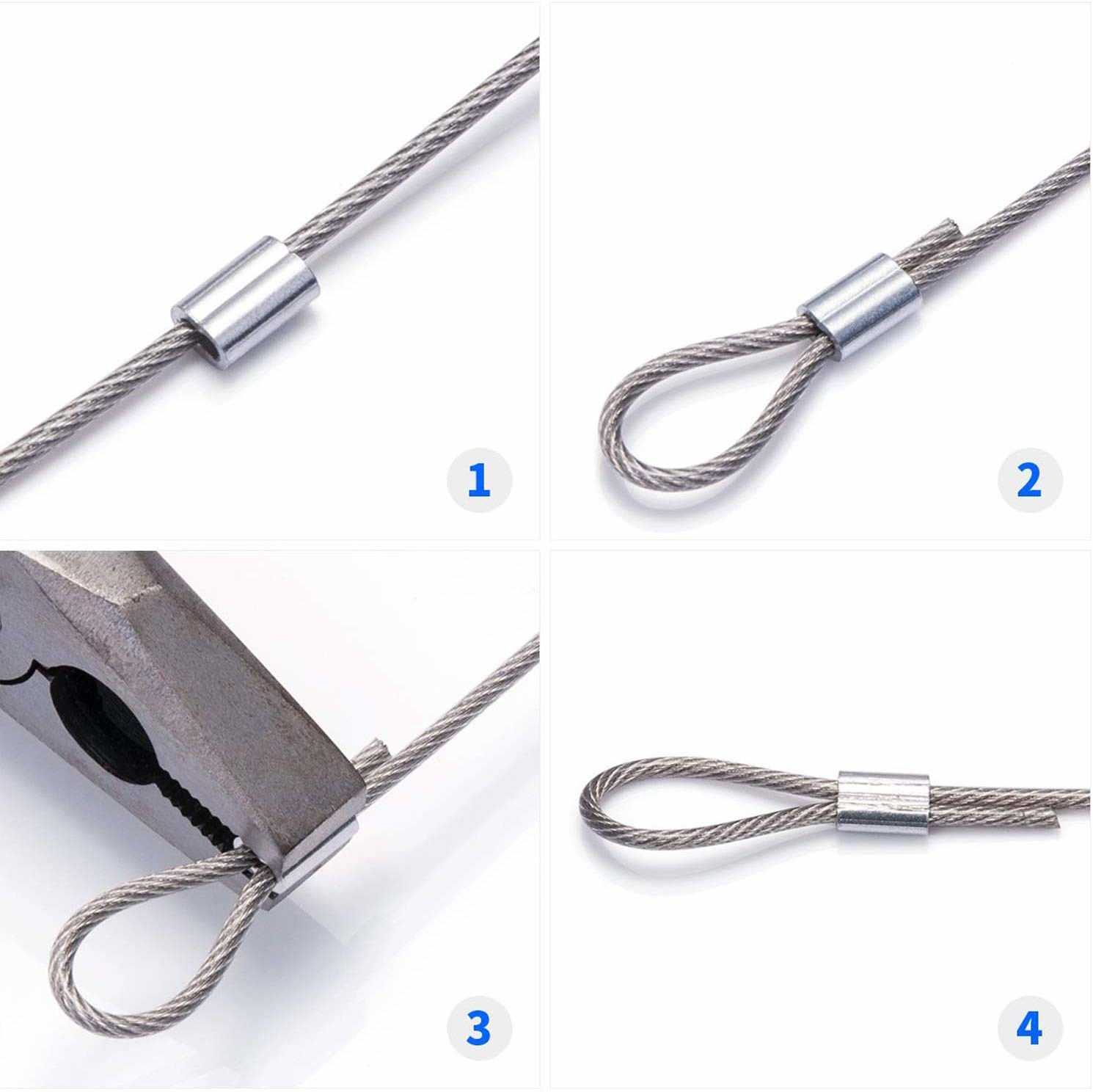

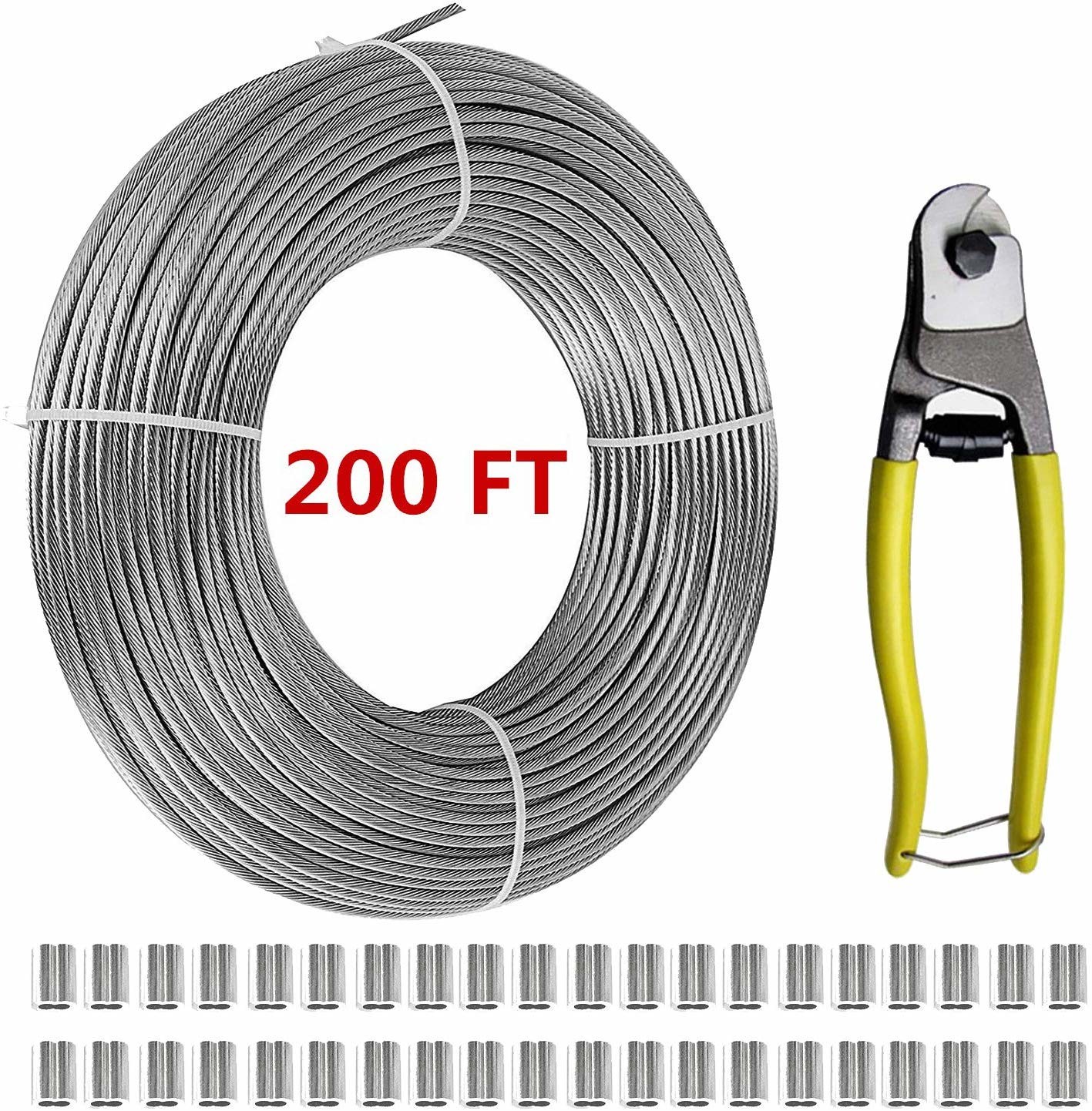

  • This product includes: 200FT Wire rope cable , Cable Cutter and 40 Pcs Aluminum Crimping Loop Sleeve
  • This Wire Rope Cable Can Be Used For Indoor and Outdoor.



Product description



*T316-Stainless Steel is a high quality Material,

*it is more corrosion resistance,Coxidation resistance and durable,

*We used this material for our wire rope, So it can be used for anywhere outdoor or indoor,

*If you want to design a cable railing system,hang some string lights or show posters in exhibition...,

*We think this cable is a very good choice!



Warm Tips:

1. Can not be used to hang overweight outdoor items, please tighten all screws for safety and good use results.

2. Please pay attention to personal safety during installation, especially when working at height.

3. Feel free to match the connection method according to your needs.



Product information



Item Weight 5.67 pounds
Package Dimensions 12.7 x 10.2 x 2.3 inches
Batteries Required? No




Chemical Composition





Type AISI C Max % Mn Max % P Max% S Max% Si Max% Cr% Ni% Mo%
201 0.15 5.50-7.50 0.06 0.03 1 16.000-18.00 0.5 -
202 0.15 7.50-10.00 0.06 0.03 1 17.00-19.00 3.-0-5.00 -
204CU 0.08 6.5-8.5 0.06 0.03 2 16.0-17.0 1.5-3.0 -
302 0.15 2 0.045 0.03 1 17.00-19.00 8.00-10.00 -
302HQ/ 0.03 2 0.045 0.02 1 17.00-19.00 9.00-10.00 -
304CU
304HC 0.04 0.80-1.70 0.04 0.015 0.3-0.6 18-19 8.5-9.5 -
303 0.07 2 0.045 0.25 Min 1 17-19 8.0-10.0 0.6
304 0.08 2 0.045 0.03 1 18.00-20.00 8.0-10.50 -
304L 0.03 2 0.045 0.03 1 18.00-20.00 8.00-12.00 -
310 S 0.055 1.5 0.04 0.005 0.7 25.0-28.0 19-22 -
314 0.25 2 0.045 0.03 1.50-3.00 23.00-26.00 19.00-22.00 -
316 0.06 2 0.045 0.03 1 16.00-18.00 10.00-14.00 2.00-3.00
316L 0.03 2 0.045 0.03 1 16.00-18.00 10.00-14.00 2.00-3.00
316Ti 0.08 2 0.045 0.03 0.75 16.00-18.00 10.00-14.00 2.00-3.00
347 0.08 2 0.045 0.03 1 17.00-19.00 9.00-13.00 -
321 0.06 2 0.045 0.01 .40-.60 17-19.00 9.4-9.6 -
ER308 0.08 2 0.045 0.03 1 17-19 9.5-13.0 -
ER308L 0.025 1.50/2.00 0.025 0.02 0.5 19.0/21.0 9.5/11.0 -
ER309 0.08 1.50/2.50 0.02 0.015 0.5 23.0/25.0 20.0/14.0 -
ER309L 0.025 1.50/2.50 0.02 0.015 0.5 23.0/25.0 12.0/14.0 -
ER316L 0.02 1.50/2.00 0.02 0.02 0.5 18.0/20.0 12.00-14.00 2.00-3.00
430L 0.03 1 0.04 0.03 1 16.00-18.00   -
434 0.08 1 0.04 0.03 1 16.00-18.00 - 0.90-1.40




Product Details

7x7 AISI316 stainless steel wire rope is used for a wide range of applications. More flexible than 1x19 but more rigid than 7x19, the 7x7 construction is often used where 1x19 lacks enough flexibility for an application or where 7x19’s weaker breaking load is too low for an application. Used extensively throughout the marine industry as well as for general engineering applications, 7x7’s excellent breaking load and flexibility in the smaller diameters make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:

  • Applications
  • Control cables
  • Guardrail
  • Standing rigging
  • Running rigging
  • Steering cable
  • Marine/Saltwater environment
  • Sewage treatment works
  • Wire rope slings
  • Davit ropes
Breaking Loads
Nominal Diameter Approximate Mass Minimum breaking loads - 1570 Mpa
[mm] [kg/m] [kN] [Kg]
1 0.004 0.59 60
2.0
0.016
2.37 241
2.5
0.023
3.71 378
3.0
0.034
5.34 544
4.0
0.060
9.49 967
5.0
0.095
14.80 1,509
6.0
0.136
21.40 2,182
7.0
0.185
29.10 2,967
8.0
0.242
38.00 3,874
10.0
0.378
59.30 6,046
12.0
0.545
85.40 8,708
14.0
0.741
117.00 11,930




Product Show

T316 Stainless Steel 1/8" Aircraft Wire Rope For Cable Railing Kits 200 FT 0

T316 Stainless Steel 1/8" Aircraft Wire Rope For Cable Railing Kits 200 FT 1
