Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CCS,DNV,BV |
| Model Number: | LKS-WRS1182 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 500sets |
| Price: | US$2.2-8.0 per set |
| Packaging Details: | Standard export carton |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, MoneyGram, Western Union |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Standard | AiSi, ASTM, DIN, EN, GB, JIS | Grade | 300 Series |
|---|---|---|---|
| Length | Reuqired | Application | Industry |
| Certification | RoHS | C Content (%) | 0.08% |
| Si Content (%) | 1.00% | Place of Origin | China |
| Brand Name | LKS | Model Number | AISI316 7x37 |
| Wire Gauge | 0.1mm-100mm | Product name | Stainless Seel Wire |
| Surface | Bright Finish | Usage | Marine,uplifting |
| Condition | Semi-soft Wire | Type | Soft |
| Material | 201/301/304/309/310/316/316L/321/410/430 | Keyword | Alsi 304 Stainless Steel Wire |
| Surface Finish | Annealed Pickled | Construction | 7x7 7x19 1x7 1x19 1x37 |
| High Light: |
stainless steel cable,cable railing kits |
||
Product Description

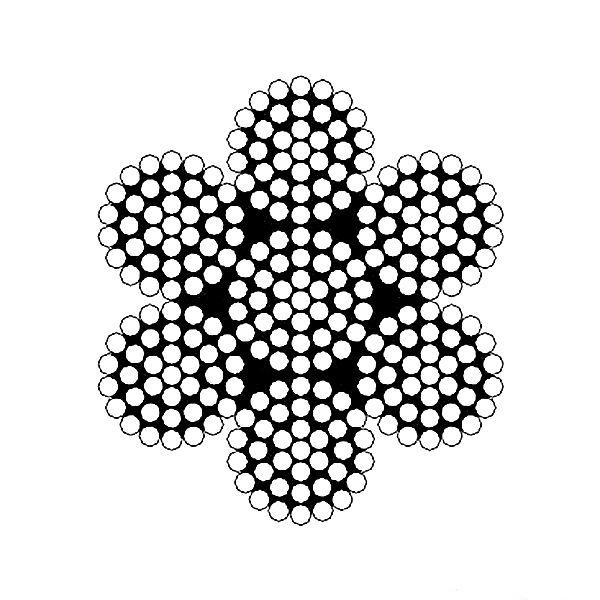

6x36 is the most flexible of our stainless steel wire ropes. Available in much larger diameters, 6x36 stainless steel wire ropes are often used for larger diameter stainless steel slings as well as for general engineering applications. The wire rope has an equal lay construction (warrington seale) and achieves a superior breaking load to the 6x19 construction range. 6x36 construction has been designed to give a flexible rope with a good fatigue life. 6x36 wire rope is available with either FC (fibre core) or IWRC (independent wire rope core) and is used for a wide range of applications, including:
Applications
Marine crane rope applications
Luffing ropes
Lifeboat falls
Davit ropes
Large diameter stainless steel wire rope slings
Marine/Saltwater environment
Sewage treatment works
7x37 Stainless Steel Cable Specification:
| Structure | Norminal diameter mm | Approximate Weight kg/1000m | Min. Breaking Strength N | Min. Breaking Strength kg |
| 7x37 | 10 | 400 | 54000 | 5510 |
| 12 | 576 | 73000 | 7449 | |
| 13 | 676 | 82000 | 8367 | |
| 14 | 784 | 89000 | 9082 | |
| 16 | 1024 | 124000 | 12653 | |
| 18 | 1296 | 157000 | 16020 | |
| 20 | 1600 | 194000 | 19796 | |
| 22 | 1936 | 235000 | 23980 | |
| 24 | 2304 | 280000 | 28571 | |
| 26 | 2704 | 328000 | 33469 | |
| 28 | 3136 | 381000 | 38878 | |
| 30 | 3600 | 437000 | 44592 | |
| 32 | 4096 | 497000 | 50714 | |
other diameter and structure available
| ||||
| Chemical Composition of common Stainless Steel | ||||||||
| % | ||||||||
| Component | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 17.00-19.00 | 8.00-10.00 | |
| 304L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 18.00-20.00 | 8.00-10.00 | |
| 316 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |

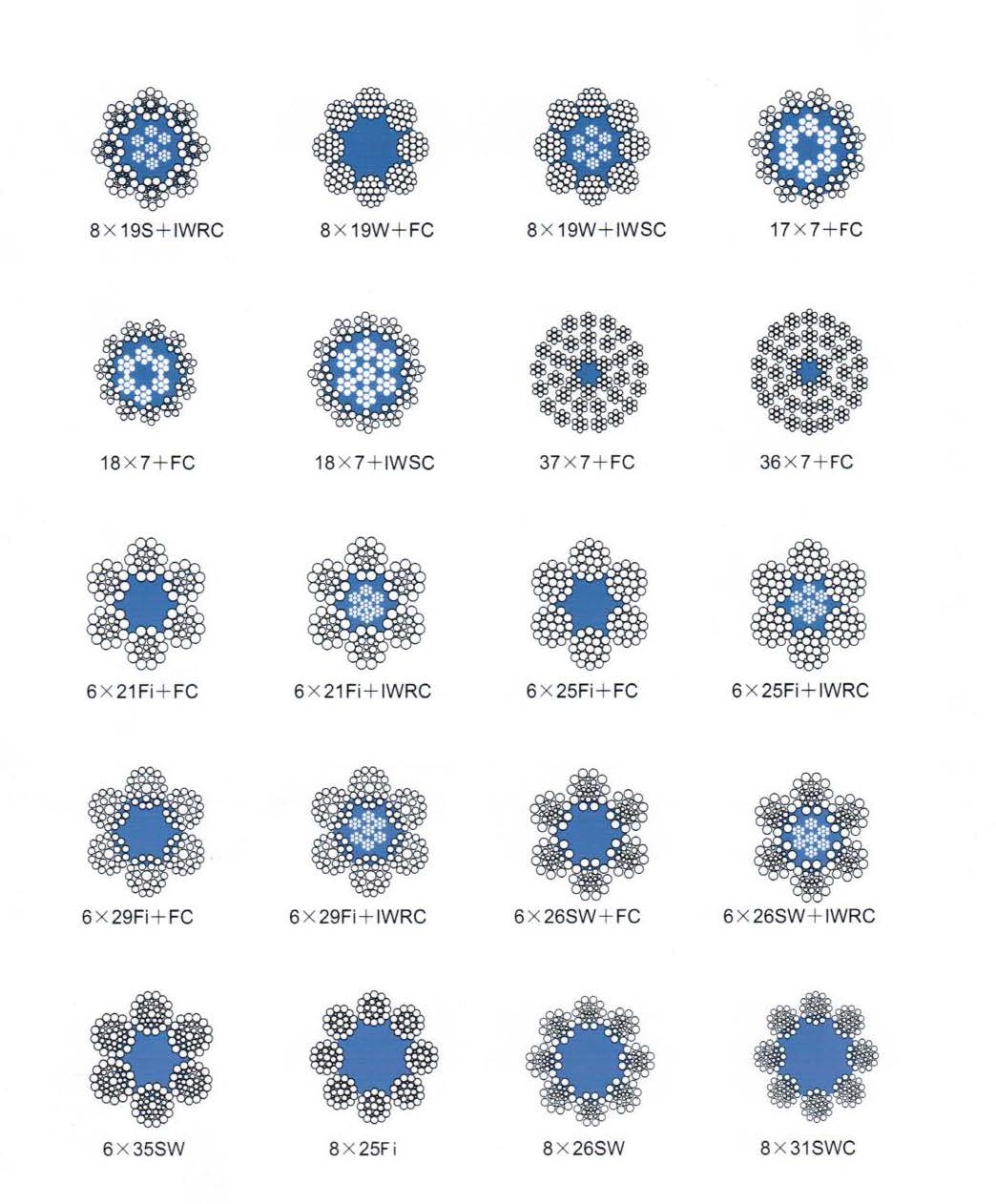

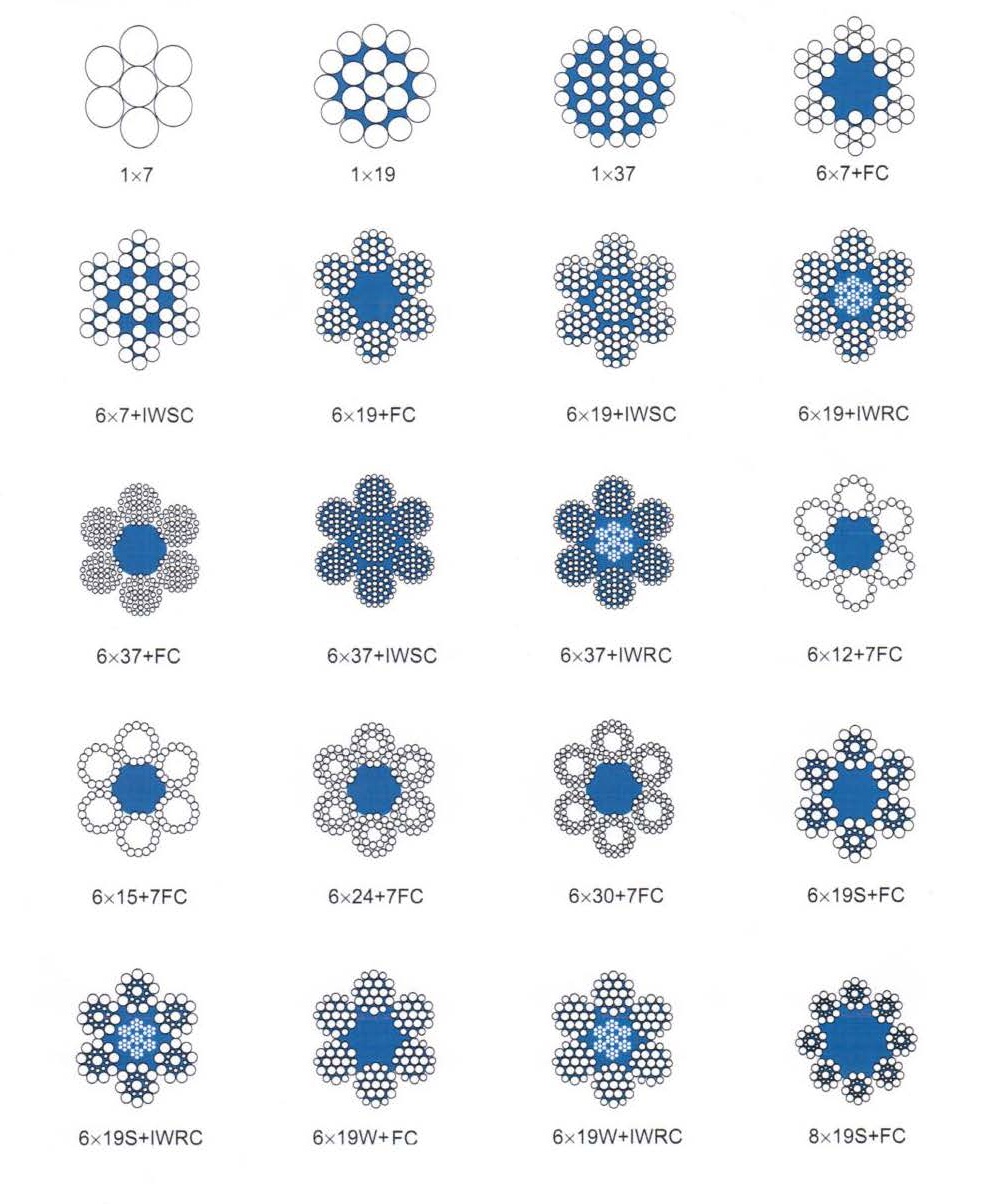

More Wire Ropes
a. Purpose: For which rope will be used.
b. Size: Diameter of the rope in millimeter or inches
c. Construction: Number of strands, number of wires per strand and type of strand construction.
d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
e. Lay: Right regular lay, left regular lay, right lang lay, left lang lay.
f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.
g. Grade of wire: Tensile strength of wires.
h. Breaking Load: Minimum or calculated breaking load in tones or pounds.
i. Lubrication: Whether lubrication is desired or not, and required lubricant.
j. Length: Length of wire rope.
k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.
l. Quantity: By number of coils or reels, by length or weight.
m. Remarks: Shipping marks and any other special requirement.
