China Wire Rope Sling manufacturer

High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: ISO9001
Model Number: MX
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: $15.00 - $50.00 / Pieces
Packaging Details: Standard export package
Delivery Time: 5-15 working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000 Piece/Pieces per Month

Detail Information

Type:Cable GripUsage:Insulation Protection
Material:Stainless Steel,Hot-dipped Galvanized Steel Cable GripPackaging:Plastic Bags And Carton Box
Color:Gray,whith,etcDuty:Standard Duty
Head:Single /Double HeadApplication:Cable System
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

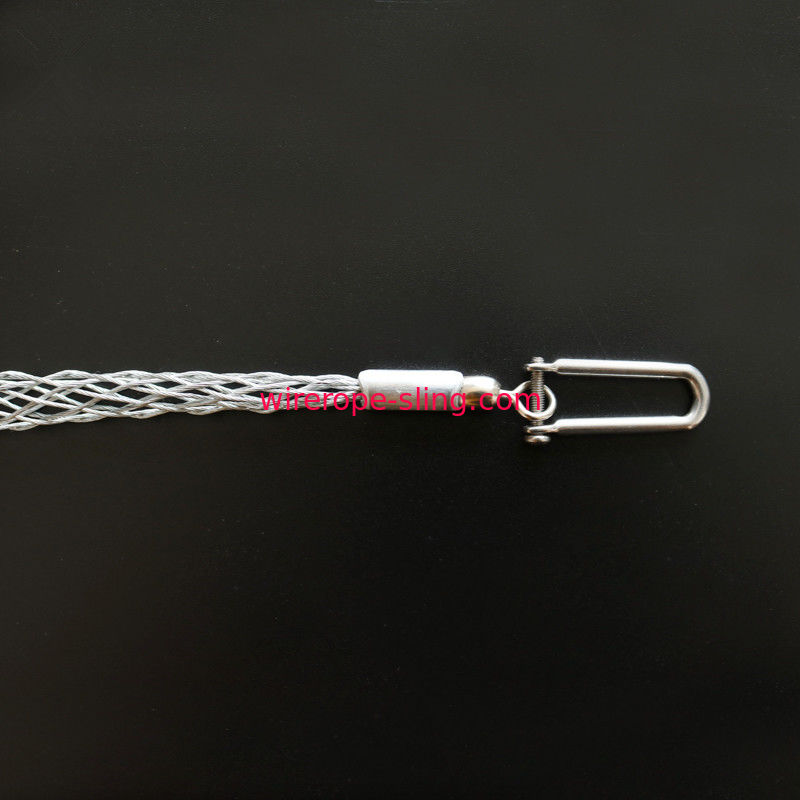

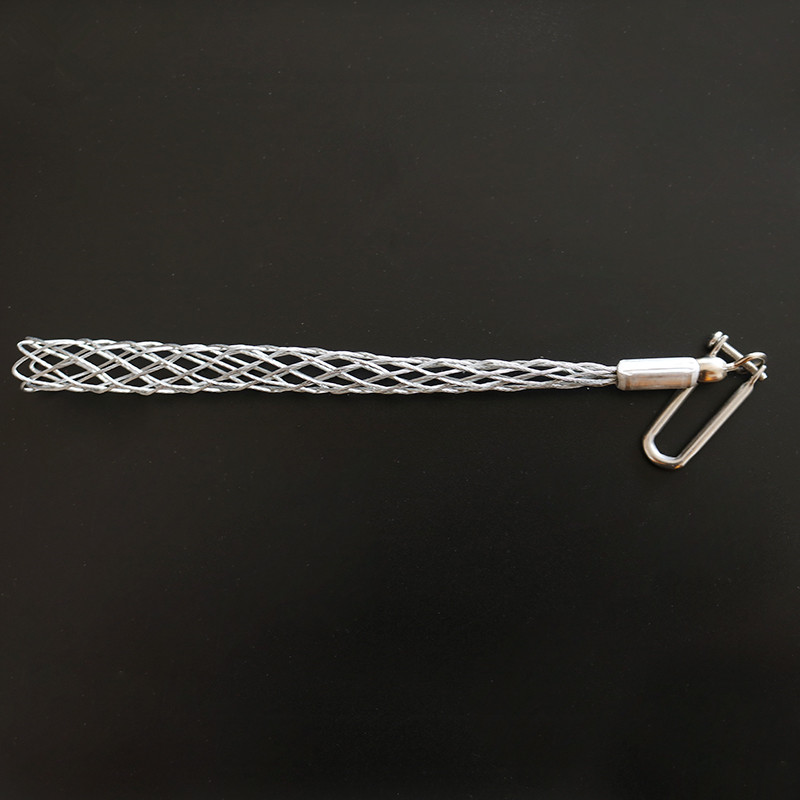

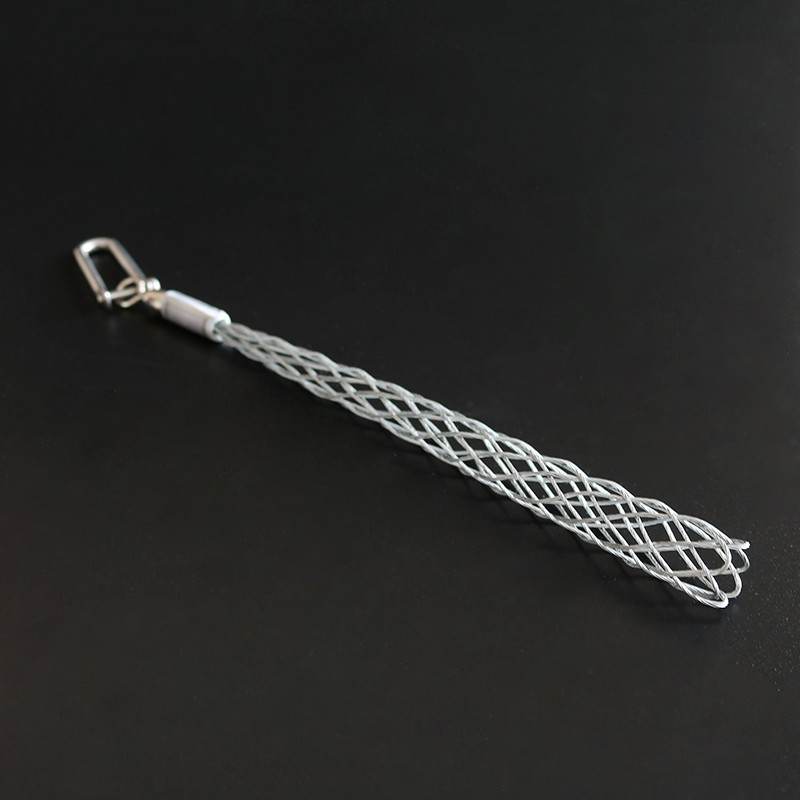

High Tensile Galvanised Wire Rope Standard Minitye Rotate Cable Grip Sling



Minitype Rotate Cable Grips

Suitable for small specifications cables,feeder,dragging head can be rotated,release the torsion.



Please choose suitable sizes.



The use of the cable sock:



Trapping cable first, and then choose an employ or lifting tools holding the sock, now we achieved the goal of stringing,at same time,we also can use cable to hanging the sock,Cable sock is mesh structure, more drawing and more tightly,,it is easily wear in or take out the cable when push it to the object side.



This product was used to connect all kinds of aluminium conductor and insulation wire, ground wire, optical fiber, optical cable and cable when pay-off the line in power and communication line construction,it can pass all kinds of pay-off pulley as well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.



It’s prefect tools in the field of electric power construction,communication lines, offshore oil field, wind power manufacturing, mobile company, electric power, railway, shipbuilding, cable, construction, steel, petrochemical,mechanical industry and so on.



High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 0



pecifications



Minitype Rotate Cable Grips Specification

We can produce by your samples or technical drawings.

We can build the molds and fixtures.

Model

Size Range

(mm)

Total Length

(mm)

Breaking

(KN)

Strength

(KG)

MX-6 4-6 220 0.392 40
MX-9 6-9 223 0.392 40
MX-12 9-12 280 0.49 50
MX-15 12-15 400 0.49 50
MX-18 15-18 440 0.882 90
MX-24 18-24 404 1.176 120
MX-31 25-31 462 1.176 120

Related Products



Various Types Of Cable Pulling Grips

We can produce by your samples or technical drawings.

We can build the molds and fixtures.

High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 1

Packaging & Delivery

The Cable Grip is usually packed by the carton.

High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 2

Application



High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 3

Pre-laced (closed weave) hoisting grips
· Pre-laced hoisting grips is type of hoisting grips with closed weave design which simplifies the installation than traditional open weave, lace-up type grips.
· The closed weave design allows the hoisting grips slip over a un-terminated end of cable of coaxial cable,elliptical waveguide,hybrid (FiberFeed,Hybriflex) or fiber cable...
· The grip securely tightens being pulled,and offer a effective method to hoist the cable in position and can provide support once the cable in place.
· Our pre-laced hoisting grips include a support clamp to provide additional support both during and after installation.

· Made of stainless steel 304 wire
· All sizes optimized for a cable range
· All sizes tested according to strict standard
· Additional support clamp provide additional support

Product line Cable grips
Product type Pre-laced (close weave) hoisting grips
For cable type Coaxial,elliptical waveguide hybrid (FiberFeed,Hybriflex) or fiber cable
Size 1/4, 3/8, 1/2, 5/8, 7/8, 1-1/4, 1-5/8, 2-1/4, 3, 4, 5 in or any other sizes
Number of cables 1 cable
Material Stainless steel 304 wire





Part number Description
HG14PL Pre-laced hoisting grips for 1/4’’ cable,min diameter 6mm
HG38PL Pre-laced hoisting grips for 3/8’’ cable,min diameter 8.38mm
HG12PL Pre-laced hoisting grips for 1/2’’ cable,min diameter 12.7mm
HG58PL Pre-laced hoisting grips for 5/8’’ cable,min diameter 19mm
HG78PL Pre-laced hoisting grips for 7/8’’ cable,min diameter 25.4mm
HG114PL Pre-laced hoisting grips for 1-1/4’’ cable,min diameter 31.75mm
HG158PL Pre-laced hoisting grips for 1-5/8’’ cable,min diameter 45mm
HG214PL Pre-laced hoisting grips for 2-1/4’’ cable,min diameter 50mm
HG3PL Pre-laced hoisting grips for 3 in cable
HG4PL Pre-laced hoisting grips for 4 in cable
HG5PL Pre-laced hoisting grips for 5 in cable

Product Show

High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 4

High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 5

High Tensile Galvanised Wire Rope Sling Standard Minitye Rotate Cable Grip Sling 6
