Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: ISO9001
Model Number: MG
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: $15.00 - $50.00 / Pieces
Packaging Details: Standard export package
Delivery Time: 5-15 working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 80000 Piece/Pieces per Month

Detail Information

Type:Cable GripName:Cable Lifting Slings
Material:Stainless Steel,Hot-dipped Galvanized Steel Cable GripPackaging:Plastic Bags And Carton Box
Color:Gray,whith,etcDuty:Standard Duty
Head:Single /Double HeadApplication:Cable System
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

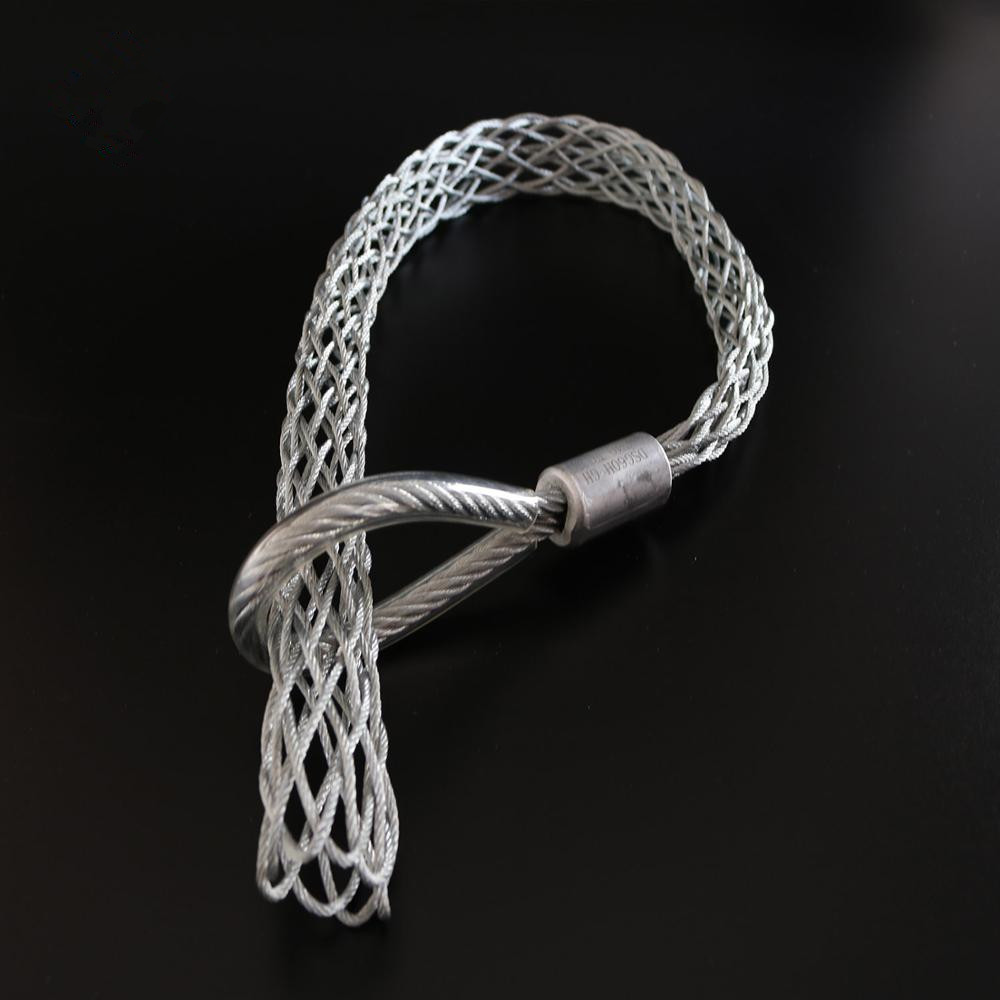

Hot-dipped Galvanized Wire Rope Sling Monocular Multi-strand Cable Grip



This range of grips is available with either a flexible eye or reinforced thimble eye, and in both single and double eye variants. The smaller diameter grips have a single weave construction.

As the diameter of the grips increases, the grips employ a double weave lattice to give the required performance properties. This standard metric range of grips has a long lattice length than normal, although there is also a shorter lattice option available.

  • Made from galvanised steel
  • Designed for metric sized cable
  • Longer lattice as standard
  • Flexible or hard eye options

Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip 0



1. with flexibility,moderate softness,high elasticity,wear resistance,corrosion resistance,closely mesh,the cable can easily set into the open mouth,passing the bend easily,will not hurt the cable,durable.

2. cable mesh grip is the mesh structure,more drawing and more tightly,only need to stay in the opposite direction to promote network,cable can be easily wear into or take out the cable.

3. using Swedish ALURIT hydraulic press to press at the pressure point of cable nets,smooth appearance,large tensile load strength.

4. the material can be hot dip galvanized high strength steel wire rope ,304,316 or 316L.Cable grip using composite weaving method of single strand,double strand,three strands or multi-strand multilayer.

Product Description

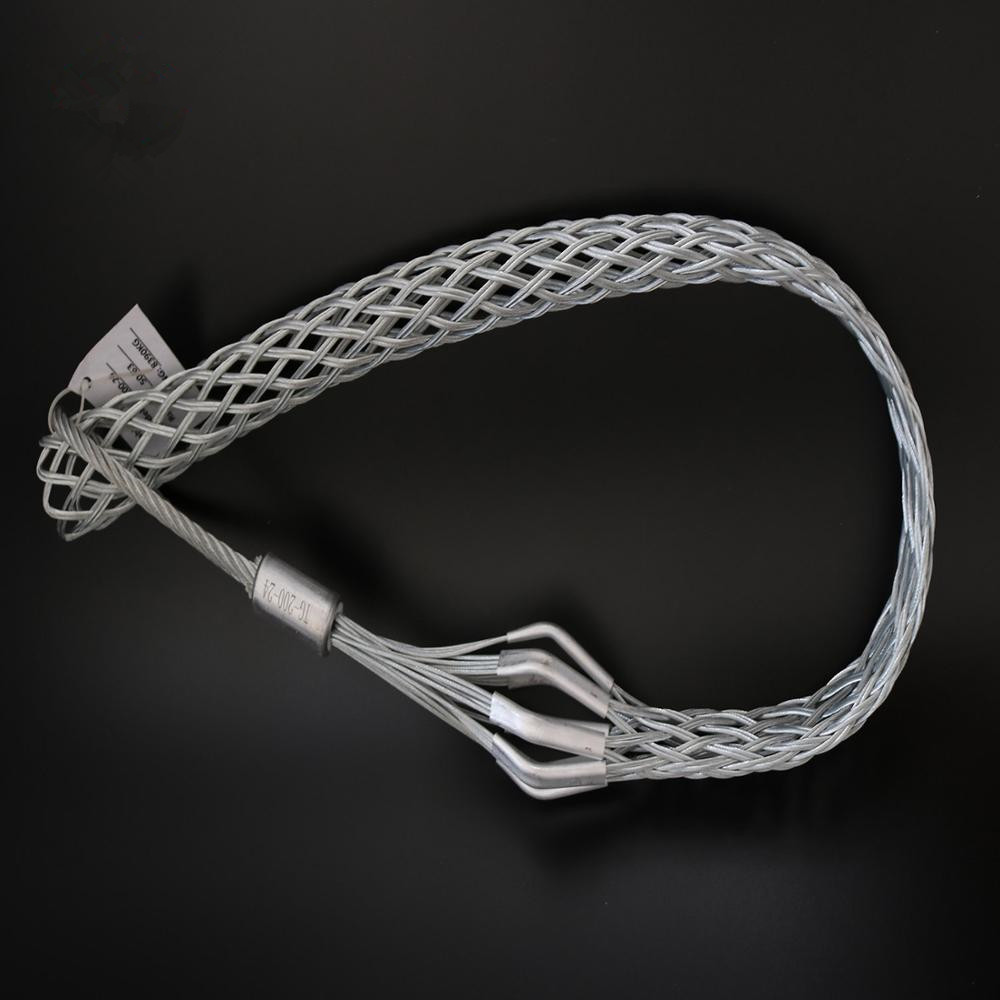

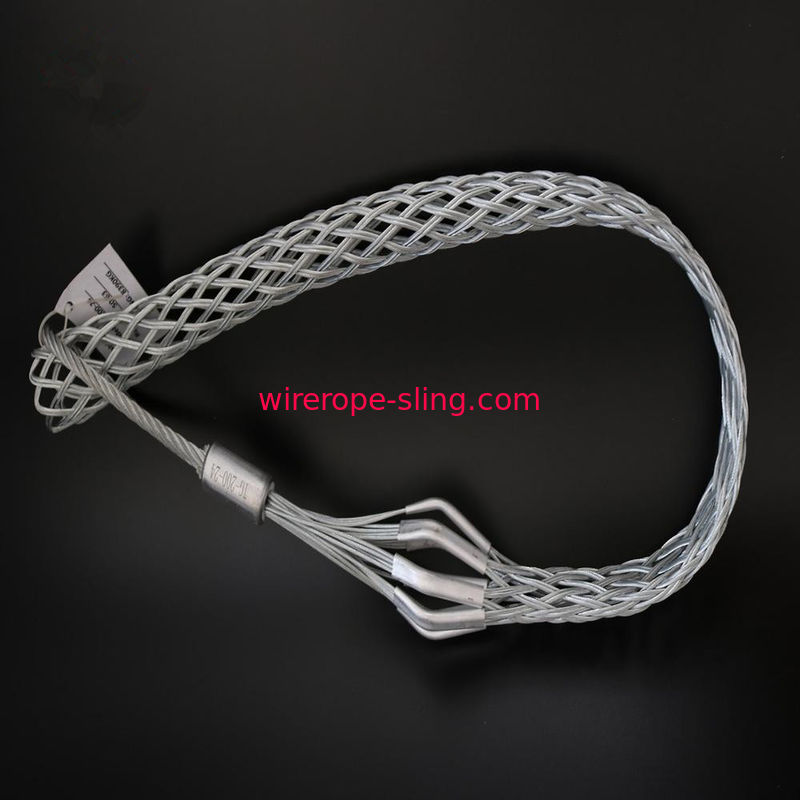

Monocular Single Strands Cable Grip

Used for dragging on cable head,using the single strand soft silk weaving,monocular type.

Advantages:flexible,cable easy through the roundabout.

Middle road load cable grip,wires,drag,in electricity disk or dragging cable.

Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip 1Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip 2



Specifications



Monocular Single Strands Cable Grip Specification

We can produce by your samples or technical drawings.

We can build the molds and fixtures.

Model

Size Range

(mm)

Mesh Length

(mm)

Total Length

(mm)

Breaking

(KN)

Strength

(KG)

MG-5 4-6 140 200 0.981 100
MG-10 7-12 200 270 5.88 600
MG-15 13-18 270 350 8.82 900
MG-20 19-24 300 400 11.8 1200
MG-30 25-34 420 550 15.6 1592
MG-45 35-48 520 650 29.4 3000
MG-60 49-60 680 820 39.2 4000
MG-75 60-75 800 950 43.2 4408
MG-90 75-90 950 1120 49 5000
MG-105 90-105 970 1290 49 5000
MG-135 110-135 1200 1350 58.8 6000
MG-150 130-150 1320 1500 58.8 6000
MG-180 150-180 1500 1750 78.4 8000
MG-230 180-230 1850 2100 78.4 8000
MG-280 230-280 1950 2200 88.2 9000
MG-320 280-320 2000 2300 88.2 9000





Related Products

Related Products



Various Types Of Cable Pulling Grips

We can produce by your samples or technical drawings.

We can build the molds and fixtures.

Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip 3

Packaging & Shipping

Each one put into one plastic bag,then in carton or wooden case.

One carton can load from 20pcs-40pcs.

Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip 4

Safety Wire Rope Sling Cable Lifting Slings Monocular Multi - Strand Cable Grip 5
