Galvanized Wire Rope Cable Slings High Tension Astm Approval With Ane Socket Iso

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: LKS-WRS134
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD0.5-1.5PER SET
Packaging Details: Standard export carton
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/week

Detail Information

Dia.:1.5mm,3.2mm,4.8mm Etc.Standard:AISI, ASTM, BS, DIN, GB, JIS
Length:100mm -3000mm Or As RequiredPacking:Wooden Case
Alloy Or Not:NoSafety Factor:5:1
Application:Industrial Or Lighting Or Hanging Or OtherHS Code:73129000
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

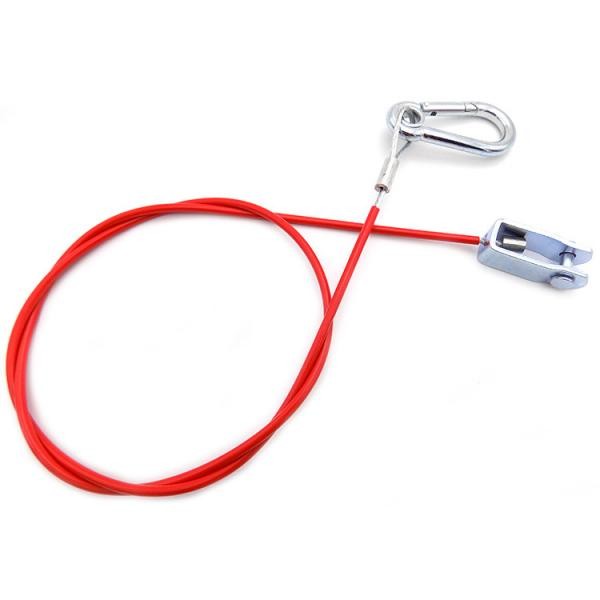

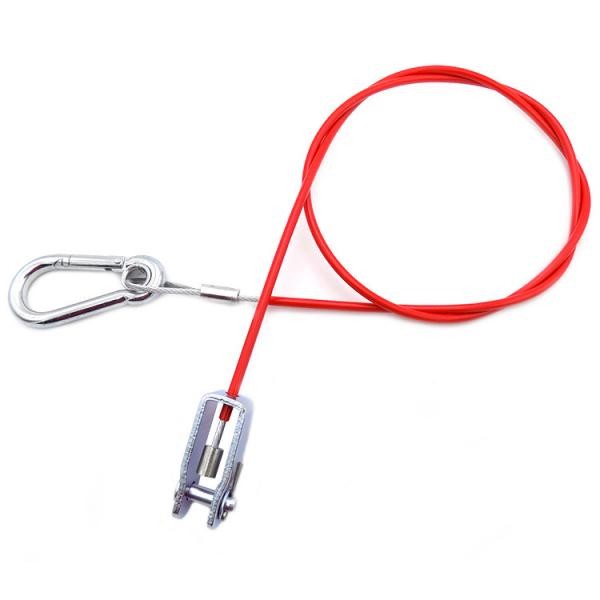

High Tension Red PVC Coated Galvanized Steel Wire Rope Cable With Snap Hook Ane Socket



1.Diameter 1.5mm,3.2mm,4.8mm etc Custom-made available
2.construction 1*7,7*7,1*19,7X19,etc
3.material galvanized or stainless
4.MOQ 500pcs
5.length 100mm-5000mm or as requirement
6.type steel cable for lightings or industrial
7.end parts of fittings

Loops ,eyelet terminals ,hooks ,etc

Flemish eye

Pressed thimble eye

Pressed Soft eye

Spelter Socket

Hand spliced eye

Hooks

Socket

Adjustable locking bloster

8.Lead time 7days if there were enough material in stock
9.sample Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.
10application for industrial
11specification

steel cable with hooks and adjustable locking blosters





Products show;

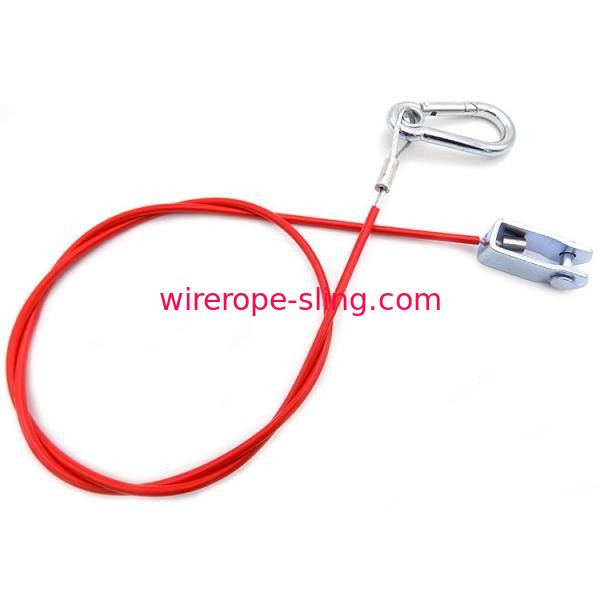

Galvanized Wire Rope Cable Slings High Tension Astm Approval With Ane Socket Iso 0

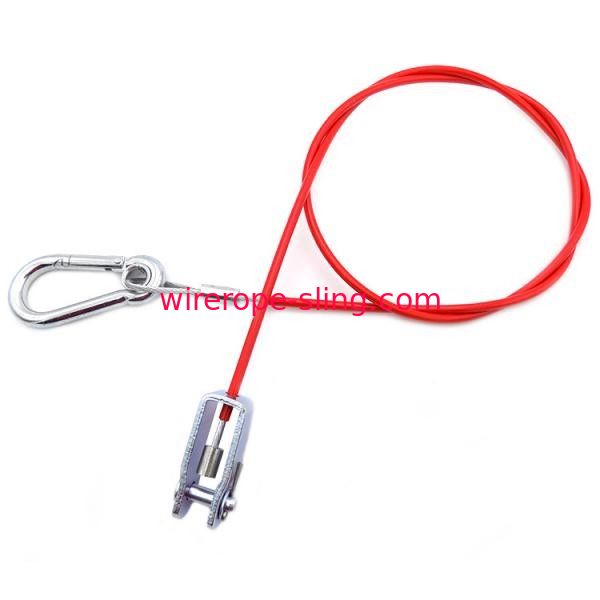

Galvanized Wire Rope Cable Slings High Tension Astm Approval With Ane Socket Iso 1





FQA:

please help us confirm these specific questions:

a. Purpose: For which rope will be used.

b. Size: Diameter of the rope in millimeter or inches

c. Construction: Number of strands, number of wires per strand and type of strand construction.

d. Type of Core: Fiber core( FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).

e. Lay: Right regular lay, left regular lay,etc.

f. Coating: Bright(ungalvanized), galvanized or stainless, PVC or Grease.

g. Grade of wire: Tensile strength of wires.

h. Breaking Load: Minimum or calculated breaking load in tones or pounds.

i. Lubrication: Whether lubrication is desired or not, and required lubricant.

j. Length: Length of wire rope.

k. Packing: In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels.

l. Quantity: By number of coils or reels, by length or weight.

m. Remarks: Shipping marks and any other special requirement.

tensile strength technical table:

Nominal Diameter Approximate Mass Minimum breaking loads - 1770 Mpa
[mm] [kg/m] [kN] [Kg]
3 0.034 5.77 588
4 0.061 10.25 1,045
5 0.095 16.02 1,633
6 0.137 23.07 2,352
7 0.187 31.40 3,202
8 0.244 41.01 4,182
9 0.309 51.90 5,293
10 0.381 64.07 6,535
11 0.461 77.53 7,908
12 0.549 92.27 9,411
13 0.644 108.29 11,045
14 0.747 125.59 12,809
16 0.975 164.03 16,731
18 1.234 207.60 21,175
20 1.524 256.30 26,142

Steel Wire Rope Knowledge:

1. wire rope definition

Wire rope is a type of cable which consists of several strands of steel wire laid into a helix.

Wire ropes are used dynamically for lifting and hoisting in cranes and elevators, and for transmission of mechanical power. Wire rope is also used to transmit force in mechanisms, such as a Bowden cable or the control surfaces of an airplane connected to levers and pedals in the cockpit. Static wire ropes are used to support structures such as suspension bridges or as guy wires to support towers. An aerial tramway relies on wire rope to support and move cargo overhead.

2. Wire rope construction

a. Wires: steel wires for wire ropes are normally made of non-alloy carbon steel with a carbon content of 0.4 to 0.95%. The tensile forces and to run over sheaves with relatively small diameters.

b. Strand: the strand is a component of wire rope usually consisting of an assembly of wires of appropriate diamsions laid helically in one or more layers around a central element.

c. Core: the core is the central element, of fiber or steel, around which are laid helically the outer strands of wire rope. The core provides proper support for the strands under normal bending and loading conditions.

3. Lays of wire rope

The lays of wire ropes, with few exceptions, are roughly divided into two kinds-Lang's Lay and Regular Lay.

The Lang's Lay rope offers a better wearing surface when in use and can be expected to serve for a longer priod than the Regular rope, which, meanwhile, is more flexible than Lang's Lay rope and easily spliced.

4. How to measure rope size

The size of a wire rope is the diameter of the circle which will just enclose all of the strands, The correct method is to measure over any pair of opposite strands.

5. Cores for wire ropes

a. Steel

IWRC (Independent Wire Rope Core) the main core is an independent wire rope, normally having the construction 7x7.

IWRC (Independent Wire Rope Core) the main core is an independent wire strand, normally having the same construction as the outer strands of the rope.

b. Fiber

Fiber cores are stranded and comprise either:

Natural fibres such as sisal, help, jute, and cotton.

Synthetic fibres such as polyamide, polyethylene, and polypropylene.

Asbestos fibres (heat resistant)

6. Preformed ropes

In the preforming process the wires and strands are given their final helical pitch before being laid up into rope.

Ropes made in this way show no tendency to untwist when cut.

7. Lubrication

Lubrication reduces internal friction of the wires and strands and protects against corrosion.

Grease is applied to all ropes.

If special lubricants are required this must be specifically stated at time of ordering.

8. Classification of ropes according to usage

a. Running ropes (stranded ropes) are bent over sheaves and drums. They are therefore stressed mainly by bending and secondly by tension.

b. Stationary ropes, stay ropes (spiral ropes, mostly full-locked) have to carry tensile forces and are therefore mainly loaded by static and fluctuating tensile stresses. Ropes used for suspension are often called cables.

c. track ropes (full locked ropes) have to act as rails for the rollers of cabins or other loads in aerial ropeways and cable cranes.

d. Wire rope slings (stranded ropes) are used to harness various kinds of goods. These slings are stressed by the tensile forces but first of all by bending stresses when bent over the more or less sharp edges of the goods.

9. How to select wire ropes

In the working life of a wire rope are involved a lot of factors. In order to make the best selection, it should be considered the following:

a. adequate load capacity

b. fatigue resistance

c. abrasion resistance

d. corrosion resistance

e. crushing resistance

10. Steel wire rope periodic inspection

Regular inspections will help to determinate when a wire rope must be replaced.

Inspection frequency in the wire rope will be established according to environment conditions, specific use, frequency of use, and so on.

The most common characters to verify in a wire rope are shown in the next table.

Concept General Recommendations
wear 7.5% maximum from nominal diamter
diameter reduction 7.5% maximum from nominal diamter
corrosion if corrosion present, replace immediately
crushing mechanical damage, remove immediately
core exposures remove immediately
Rust clean and lubricant wire rope to prevent corrosion

steel wire rope structure :

1) Main Construction: 1X7, 1X19, 7X7, 7X19, 6X7+FC/IWS, 6X19+FC/IWRC, 6X19S(W)+FC/IWRC, 6X37+FC/IWRC, 6X36WS+FC/IWRC, 19X7, 18X7+FC etc.

2) Length: 10m—2000m / reel

3) Lay: right hand regular lay or left hand regular lay

4) Core: fiber core & steel core

5) Package: soft coil, carton, wooden or plastic reels, wooden case

6) Nominal tensile strength: 1270Mpa -- 1570Mpa



Our products had exported to many regions like North America, South America, Europe, Africa, Asia, Middle East, etc. Our factory professional made steel wire rope ,steel cable ,aircraft ,china,hardware over 20 years experience .20000tons annual yeild are a solid gurantee of qualified products for you. Guarantee excellent quality. We also could do OEM services, can well meet clients' needs and requests.



Welcome to visit our factory!

contact person:Rocky

Phone/whatsapp:+86 13801785300

Skype:rockyyao79
