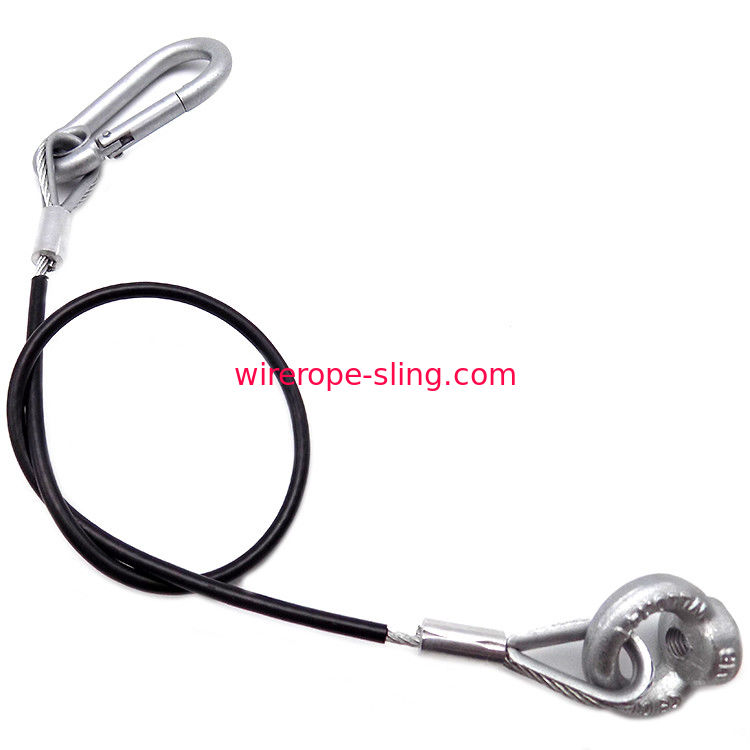

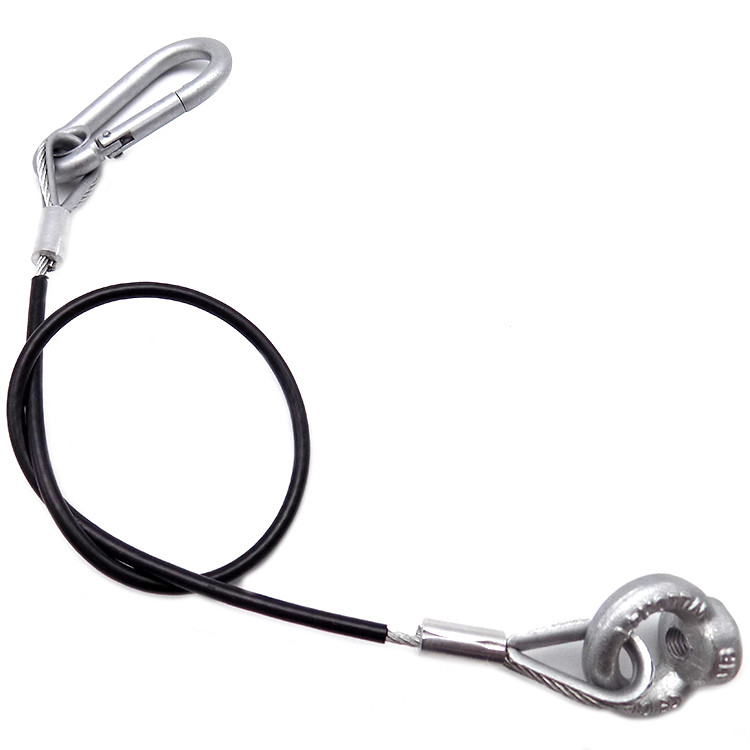

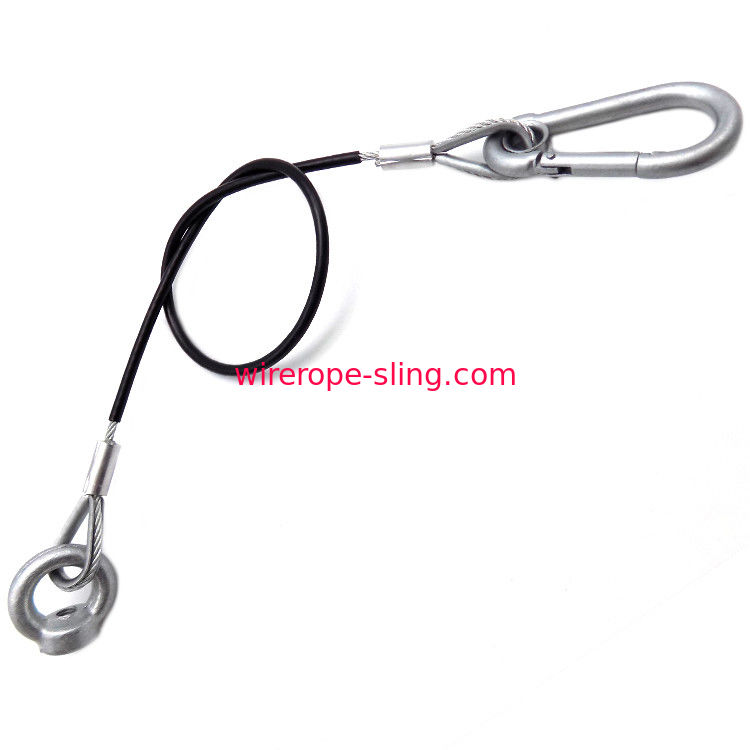

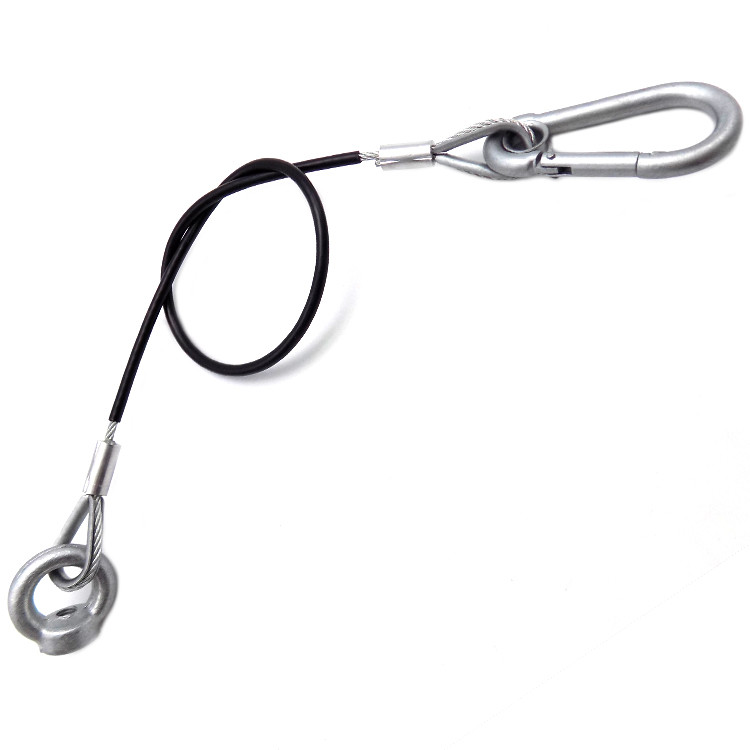

Oem Steel Wire Rope Sling Coated Pvc Galvanized With Thimble Loop Eyes

WHAT IS A WIRE ROPE ASSEMBLY ?

Wire ropes are sometimes known as cables; they generally feature thin strands of steel wound together to create a larger rope that is capable of supporting large amounts of weight. A wire rope assembly includes the wire rope itself as well as any other components that may be used in conjunction with that wire rope. The wire rope assembly will also include any hardware that is designed to secure the rope to a particular machine, or to another cable. Such assemblies are often used in which systems or on cranes.

The main component of any wire rope assembly is, of course, the wire rope itself. The thickness of this rope will usually dictate how much weight it can support, though even thin wire ropes are often capable of handling surprisingly heavy loads. The end of the wire rope may feature a loop that can be used to secure hooks or other hardware in place. The loop itself may be wrapped around a steel reinforcement piece that helps prevent damage to the rope, especially when hardware is attached. The hardware on the end of the cable is used to secure the cable to various objects that must be hauled or otherwise moved.

GENERAL INFORMATION

Figure 1 * Diameter Of Wire Ropes

The diameter of a wire rope is the diameter of circle which encloses all of the wires . When measuring wire rope it is important to take the greatest distance of the outer limits of the Crown's of two opposite strands. A measurement across the valleys will result in incorrect lower readings .

Figure 2 * Method of Measuring Diameter

Cailper,fitted with jaws broad enough to cover not less than two adjacent strands

Figure 3 * Safety Factor Of Wire Rope

It is difficult to fix the safety factor for each type of wire rope to be used for various equipments ,as this factor depends not only on the load carried,but also on the speed of rope working, the kinds of fitting used for rope ends,the acceleration and deacceleration ,length of rope,the number ,size and arrangements of sheave drums etc. The following safty factors are minimum requirements for safety and economy in the common installation .

Figure 4 * Rope Characteristics

This chart is purely an attempt to illustrate the relative characteristics of different constructions of wire rope as indicated in the text . No numerical scale is shown or intended .

QUALITY ASSURANCE

LKS has adopted its management policy of " best quality & Lead time assurance " through continuous technological advanced testing equipment and quality system to meet customer's targets on time and quality criteria .

LKS has achieved ISO 9001:2000 in year 2003. We are the first chinese steel wire rope manufacture certified by JIS in 2001.

We obtained the ISO/TS 16949:2002 automobile industry quality system in November of 2004, and we are the first Chinese wire rope manuafcture being ceritified in this field .
