Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | CE/ ISO9001:2008 |
| Model Number: | LKS-DS |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 Set |
| Price: | USD5-25 per set |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 days after the order confirmation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 Sets monthly |
|
Detail Information |
|||
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Design: | OEM Services Provided | Name: | D-shackle |
| Type: | European Type | Usage: | Rigging Hardware,marine Hardware |
| Surface: | Polish | HS Code: | 7326901900 |
| High Light: |
stainless rigging hardware,boat rigging hardware |
||
Product Description

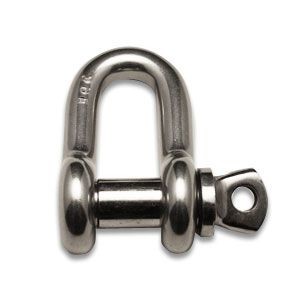

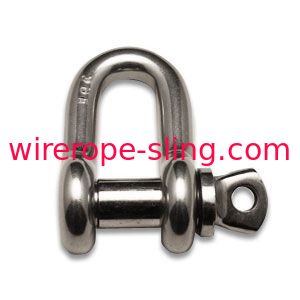

Stainless steel Marine Rigging Hardware screw pin D shackle with hex sink pin
Dee Type Shackle
D shackles are made from grade 304 stainless steel and grade 316 stainless steel, ss316 is better than ss304 in corrosion resistance and rust prevention, if their application areas are very bad like marine and biogas..., we recommend you choose grade 316 stainless steel, If not, SS304 is good enough.
D shackles are available in size from 4mm to 32mm, their detailed dimensions and working load limits are below for your reference. D shackles are produced by hot forging, the surface is mirror polished. If you have any other questions about d shackles, please feel free to contact us, you could find our contact information on the contacts page and the right of this page, we will be very happy to receive your message!
We have many different Stainless Steel Rigging Shackle for your applications, please contact our sales team to get more information.

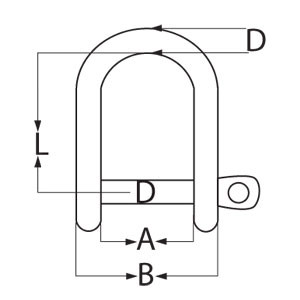

| Dimensions and Weights | |||||
| Part Code | D | A | B | L | WT |
| mm | mm | mm | mm | kgs | |
| SSD0004 | 4 | 8 | 16 | 16 | 0.008 |
| SSD0005 | 5 | 10 | 20 | 20 | 0.014 |
| SSD0006 | 6 | 12 | 24 | 24 | 0.027 |
| SSD0007 | 7 | 14 | 28 | 28 | 0.045 |
| SSD0008 | 8 | 16 | 32 | 32 | 0.064 |
| SSD0010 | 10 | 20 | 40 | 40 | 0.12 |
| SSD0012 | 12 | 24 | 48 | 48 | 0.21 |
| SSD0013 | 13 | 26 | 52 | 52 | 0.28 |
| SSD0014 | 14 | 28 | 56 | 56 | 0.35 |
| SSD0016 | 16 | 32 | 65 | 65 | 0.5 |
| SSD0019 | 19 | 38 | 76 | 76 | 0.88 |
| SSD0022 | 22 | 44 | 88 | 88 | 1.4 |
| SSD0025 | 25 | 50 | 100 | 100 | 2.08 |
| SSD0032 | 32 | 64 | 128 | 128 | 4.26 |
Manufactured from17/4PH precipitation hardening martensitic stainless steel. The factor of Safety 6:1. Standard Screw Collar Pin. Tested and Certified. Manufactured in China.
Manufactured from17/4PH precipitation hardening martensitic stainless steel. The factor of Safety 6:1. Extended Screw Collar Pin. Tested and Certified. Manufactured in China.
Manufactured from17/4PH precipitation hardening martensitic stainless steel. The factor of Safety 6:1. Countersunk Head. Tested and Certified. Manufactured in China.
Manufactured from17/4PH precipitation hardening martensitic stainless steel. The factor of Safety 6:1. E Type Safety Pin. Tested and Certified. Manufactured in China.
AISI 316 Marine Grade Stainless Steel Bow Shackle. Untested
