US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE/ ISO9001:2008
Model Number: LKS-GS-OSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD5-25 per set
Packaging Details: Wooden Case
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 2000 Sets monthly

Detail Information

Usage:Rigging Hardware,marine HardwareType:European Type, US Open
Design:OEM Services ProvidedName:Wire Rope Terminal
Color:SilverMaterial:Steel
Surface:PolishHS Code:7326901900
High Light:

stainless rigging hardware

,

boat rigging hardware

Product Description

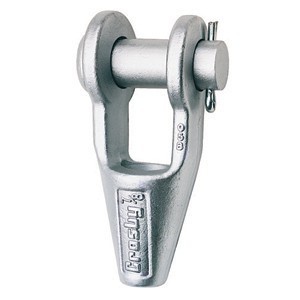

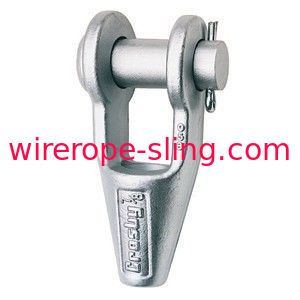

US Standard Galvanized Marine Rigging Hardware G416 Grooved Open Spelter Socket







Product Details



Open type spelter sockets Application:



Forged steel sockets, cast alloy steel 1-5/8" and up
All sockets and larger are magnetic particles inspected and ultrasonic inspected
Can be furnished proof-tested with certificates (additional charges apply, inquire at time of order)
Spelter socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope--ratings are based on recommended use with 6x7, 6x19 or 6x37 IPS, XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope
Cable constructed with a minimal number of strands (e.g., 1x7 Strand) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) time the wire diameter, whichever is greater




Open Grooved Sockets meet the performance requirements of standard certification, Type A, except for those provisions required of the contractor.

Closed grooved Sockets meet the performance requirements of standard certification, Type B, except for those provisions required of the contractor.

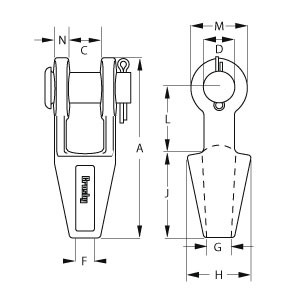

Open Socket Specifications
Part Code Wire Rope Weight Before Swage Dimensions Max After Swage
S-501 mm⌀ kgs/Each A B C D E F H L M N mm⌀
1039021 6 0.24 122 12.7 35.1 17.5 6.85 54 17.5 102 9.65 38.1 11.7
1039049 8 0.51 159 19.6 41.1 20.6 8.65 81 20.6 135 11.9 44.5 18
1039067 9/10 0.59 159 19.6 41.1 20.6 10.4 81 20.6 135 11.9 44.5 18
1039085 11/12 0.94 198 24.9 51 25.4 12.2 108 25.4 170 14.2 51 23.1
1039101 13 0.94 198 24.9 51 25.4 14 108 25.4 170 14.2 51 23.1
1039129 14 2.12 241 31.8 60.5 30.2 15.5 135 31.8 207 17.3 57 29.5
1039147 16 2.05 241 31.8 60.5 30.2 17 135 31.8 207 17.3 57 29.5
1039165 18-20 3.62 294 39.4 70 35.1 20.3 162 38.1 254 19.8 70 36.1
1039183 22 5.23 341 43.2 79.5 41.1 23.9 189 44.5 295 23.9 82.5 39.4
1039209 24-26 8.07 393 50.5 93.5 51 26.9 216 51 340 26.9 95.5 45.7
1039227 28 11.5 440 57 103 57 30.2 243 57 381 30.2 108 52
1039245 32 16.1 484 64.5 114 63.5 33.8 270 63.5 419 31 121 85.5
1039263 34-36 19.8 532 71 127 63.5 36.8 297 63.5 461 35.1 133 65
1039281 38-40 26.5 581 78 140 70 40.1 324 76 502 42.9 146 71.5
1039307 44 40.3 676 86 170 89 47.2 378 89 584 53.5 171 77.5
1042767 48-52 66 799 100 203 95.5 53.5 432 102 683 60 203 90.5





We have many kinds of the socket for the market, there is only an example. If you want to know more socket products, please contact our sales team to get more information.





S-421T Wedge Sockets


US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 0


Wedge socket terminations have an efficiency rating of 80% based on the catalog strength of XXIP wire rope. Meets or exceeds all requirements of ASME B30.26

US-422T Utility Wedge Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 1

Basket is cast steel. Wedge socket terminations have an efficiency rating of 80% based on the catalog strength of wire rope. Wedges are color coded for easy identification. Meets or exceeds all requirements of ASME B30.26

Botton Spelter Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 2

Termination efficiency rating of 100% based on the strength of the wire rope. Sockets and buttons are re-useable

G-517 M-LINE Morning Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 3

Termination efficiency rating of 100% based on the strength of the wire rope. Available in galvanised or painted finish

G-416 Open Spelter Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 4

Open Spelter socket terminations have an efficiency rating of 100%. Ratings are based on recommended use with 6x7, 6x19, or 6x37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC, or IWRC wire rope

G-417 Close Spelter Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 5

Closed Spelter socket terminations have an efficiency rating of 100%. Ratings are based on recommended use with 6x7, 6x19, or 6x37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC, or IWRC wire rope

S-501 Open Swage Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 6

Open Swage Sockets, recommended for use with 6x19 or 6x37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope

S-502 Closed Swage Sockets

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 7

Closed Swage Sockets, Open Swage Sockets, recommended for use with 6x19 or 6x37, IPS or XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope

S-319Shank Hoo for Swaging

US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 8

QUIC-CHECK features - Two strategically placed marks, one just below the shank or eye and the other on the hookup, which allows for a QUIC-CHECK measurement to determine abuse or overload



For more information and product, specifications click on the products above or call our sales office if we don't have what you're looking for.US Standard Marine Rigging Hardware Galvanized Finish G416 Grooved Open Spelter Socket 9
