Malleable Galvanized Wire Rope Clamps , U Bolt Nuts For Vinyl Coated Cable

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: WRC
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Units
Price: USD0.1-10 per unit
Packaging Details: As Request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 50000UNITS MONTHLY

Detail Information

Usage:Light-duty ClipCustomized:Available
Application:Overhead Line AccessoriesColor:Steel Color
Type:ForgedMaterial:Galvanized Steel
HS Code:7326909000
High Light:

steel wire cable clamps

,

wire rope clips

Product Description

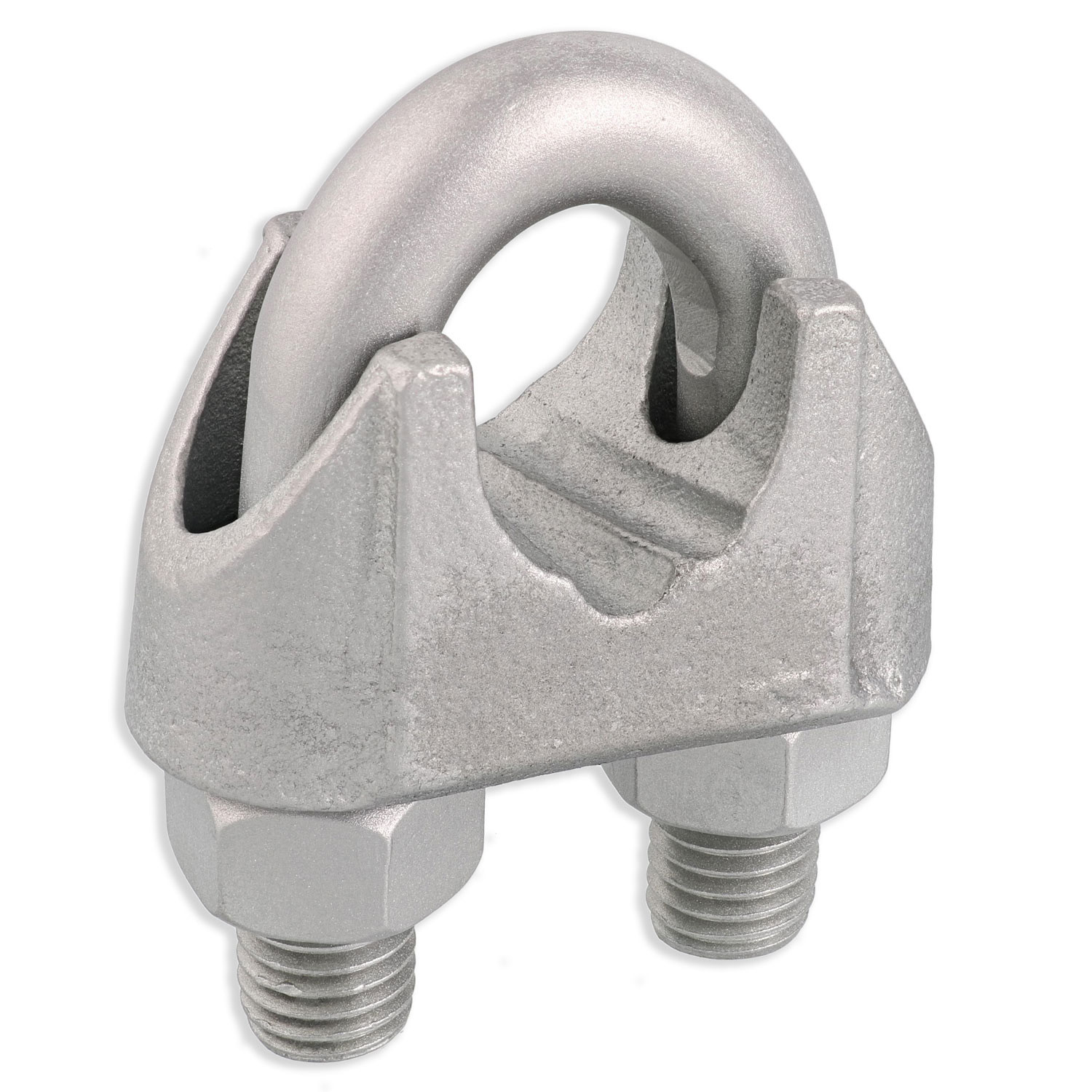

U-Bolts and Nuts are Zinc Plated Wire Rope Cable Clamps for vinyl coated cable



Product Description





  • *U-Bolts and Nuts are Zinc Plated

    **Based on Clean, un-lubricated threads. Table above shows minimum torque required to reach maximum holding power of wire rope clip. Warning: Malleable wire rope clips are not to be used for overhead lifting.

    In order to achieve maximum strength on vinyl coated cable, please remove the vinyl coating from the cable in the area where the wire rope clip, sleeve, or button will be affixed. When selecting termination fittings for vinyl coated cable, select the fitting that is sized to the diameter of the cable, not the diameter of the coating. If you affix the termination fitting over the vinyl coating, the strength of the assembly will be greatly reduced.



Specifications

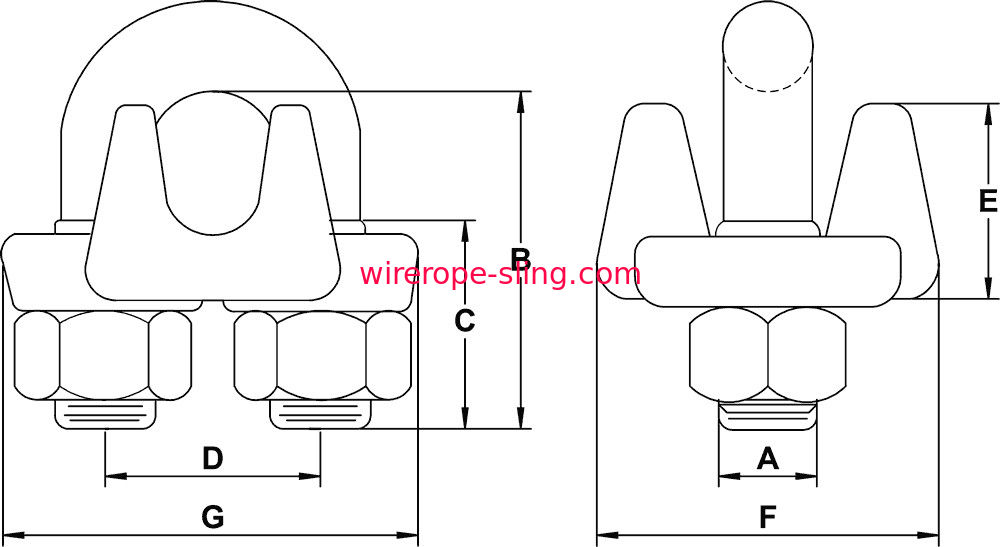

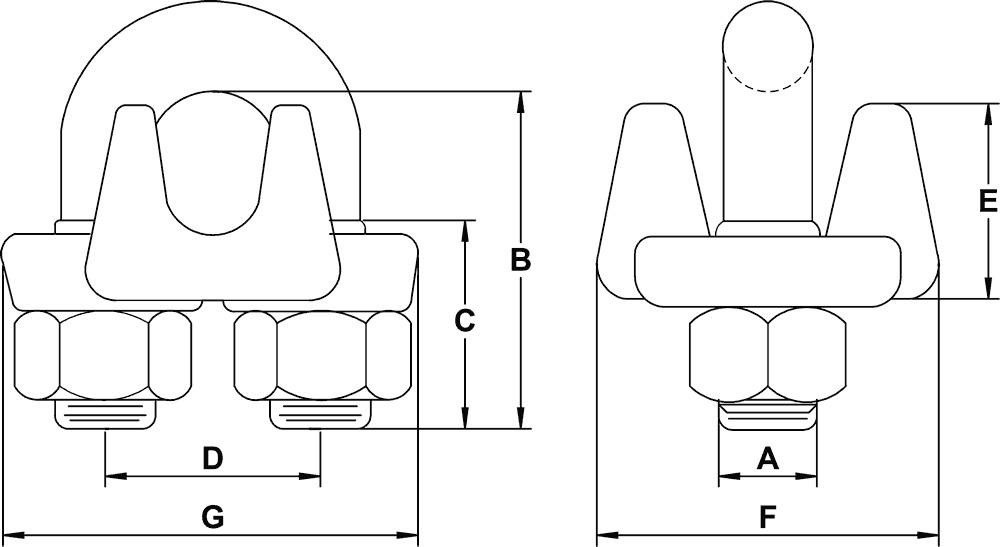

Wire Size Minimum Number of Clips Required Torque (ft/lb)** Amount of Wire to Turn Back Approximate Weight Each (lbs) A B C D E F G
1/16 3 2 4 0.03 0.15 0.65 0.45 0.38 0.38 0.45 0.69
1/8 3 3 4 3/4 0.04 0.18 0.81 0.5 0.5 0.5 0.56 0.94
3/16 3 4.5 5 1/2 0.063 0.25 0.94 0.56 0.56 0.56 0.63 1.06
1/4 3 15 7 0.13 0.31 1.19 0.75 0.75 0.69 0.75 1.31
5/16 3 15 7 3/4 0.15 0.31 1..31 0.84 0.75 0.75 0.75 1.44
3/8 3 30 9 1/2 0.21 0.38 1.63 1 0.88 0.84 0.88 1.63
7/16 4 40 10 1/2 0.37 0.44 2 1.19 1.06 1 1.06 1.88
1/2 4 45 15 1/4 0.37 0.44 2 1.19 1.06 1 1.06 1.88
9/16 4 50 16 0.59 0.5 2.31 1.38 1.25 1.25 1.28 2.09
5/8 4 75 16 0.59 0.5 2.31 1.38 1.25 1.25 1.28 2.09
3/4 5 75 22 1/4 0.84 0.56 2.56 1.56 1.31 1.44 1.56 2.38
7/8 5 130 23 1/2 1.25 0.63 3.06 1.81 1.63 1.75 1.81 2.88
1 6 130 31 1.66 0.63 3.44 2 1.88 2.06 2 3




Drop forged wire rope clips vs. malleable wire rope clips

Malleable Galvanized Wire Rope Clamps , U Bolt Nuts For Vinyl Coated Cable 0



While wire rope clips are not designed to be used in an overhead lifting situation (swage sleeves should be used instead), drop forged wire rope clips are a heavy duty wire rope clip that can be used for sustaining overhead loads. Examples include guy lines, support lines, scaffolding, etc. Drop forged clips are galvanized, meaning they have a heavy coating of a zinc solution that will hold up to worksite abuse and the elements for a long time. Drop forged steel are excellent for use as guy wire clamps for heavy duty guying applications because they are both strong and resistant to corrosion.

Malleable Clips are a light duty wire rope clip and are not for anything overhead. As the name “malleable” indicates, it is a softer wire rope clip, thus a lighter duty option. They can be used for fences and other applications that do not sustain loads overhead.

Overhead lifting vs. sustaining overhead loads

The ‘overhead lifting’ versus ‘sustaining overhead loads’ can be confusing, but a good rule of thumb to ask is: “Is the object being moved or being held in place?” If it is being moved, then wire rope clips are not to be used. If it is being held in place, then the next question is: Is it above ground (suspended from ceiling, an awning, scaffolding, etc…) or will it be on a fence or on another object near the ground? If it is above ground, heavy duty drop forged is the best choice. If on a fence near the ground, malleable clips are acceptable.

It’s important to note that wire rope clips diminish the working load limit of the wire rope to generally about 80% of its original strength.

How to use wire rope clips

The proper way to use wire rope clips can be remembered this way: “Never saddle a dead horse.” The saddle of the clip is the piece that fits into the U bolt. The dead end of a wire rope is the end of the eye that contains the cut side. The U bolt should always be in contact with the dead end, while the saddle should be on the live end.



Malleable Galvanized Wire Rope Clamps , U Bolt Nuts For Vinyl Coated Cable 1



Hot Selling US Type Malleable Galvanized Wire rope Clip


Commodity name us type malleable galvanized wire rope clip
Brand name SailRigging
Usage Fixing the wire rope
Main standard US Type Drop Forged Wire Rope Clip,US Type Malleable Wire Rope Clip,Type A Wire Rope Clip,Din741 Wire Rope Clip,Type B Wire Rope Clips
Material Carbon steel, Malleable Iron, Stainless steel 304 or 316
Finish Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished
Technology Drop forged, Casting,Polished
Size Different size available (1/8''-1 1/2'')
M.O.Q 100PCS per Size
Packing Gunny bag or carton and pallet / by customer requirements.
Delivery time 10-20days after order confirmation
Payment term T/T, L/C, Western Union
Business type Manufacturer, trading
Certifications ISO9001,CE,BV,SGS
Notes Special specifications and marks can be made according to customers requirements;
Main products

Eye bolts,Shackles,Turnbuckles,Wire Rope Clips,Load binders,Lifting Hooks,Connecting Links,Master Links,Swivels and many other rigging hardwares.
