Light Duty Wire Rope Cable Clamps M5 Stainless Steel Corrosion Resistance

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: WRC
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Units
Price: USD0.1-10 per unit
Packaging Details: As Request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 50000UNITS MONTHLY

Detail Information

Material:StainlessType:Forged
Application:Overhead Line AccessoriesColor:Steel Color
Customized:AvailableUsage:Light-duty Clip
HS Code:7326909000
High Light:

steel wire cable clamps

,

wire rope clips

Product Description

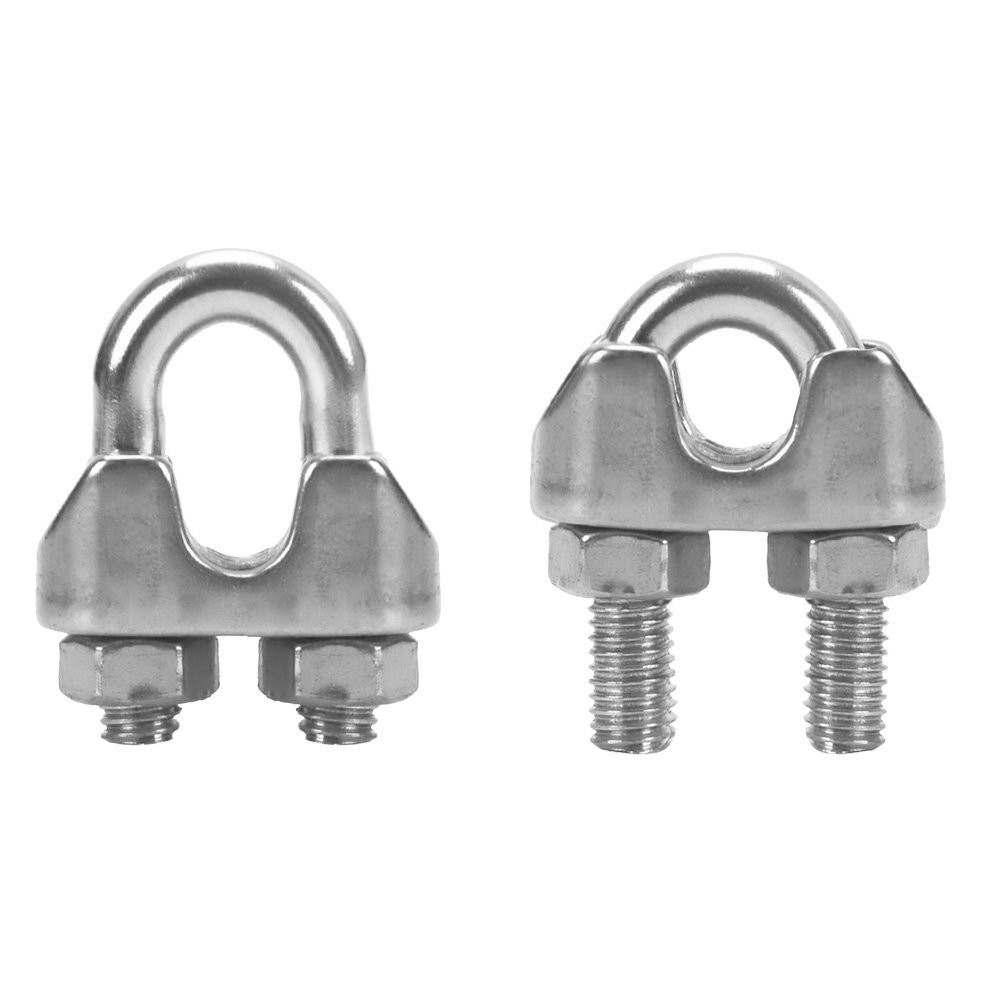

M5 3/16” Stainless Steel Wire Rope Cable Clamps 5mm Wire Rope Cable Clamp Fastener



Product Description

Specifications:
Product Name: Stainless steel wire rope clamps
Material: Stainless Steel; Package Content: 20* M5 wire rope clip
Please kind note that please be sure to use the right number of clips for a secure connection











Product features

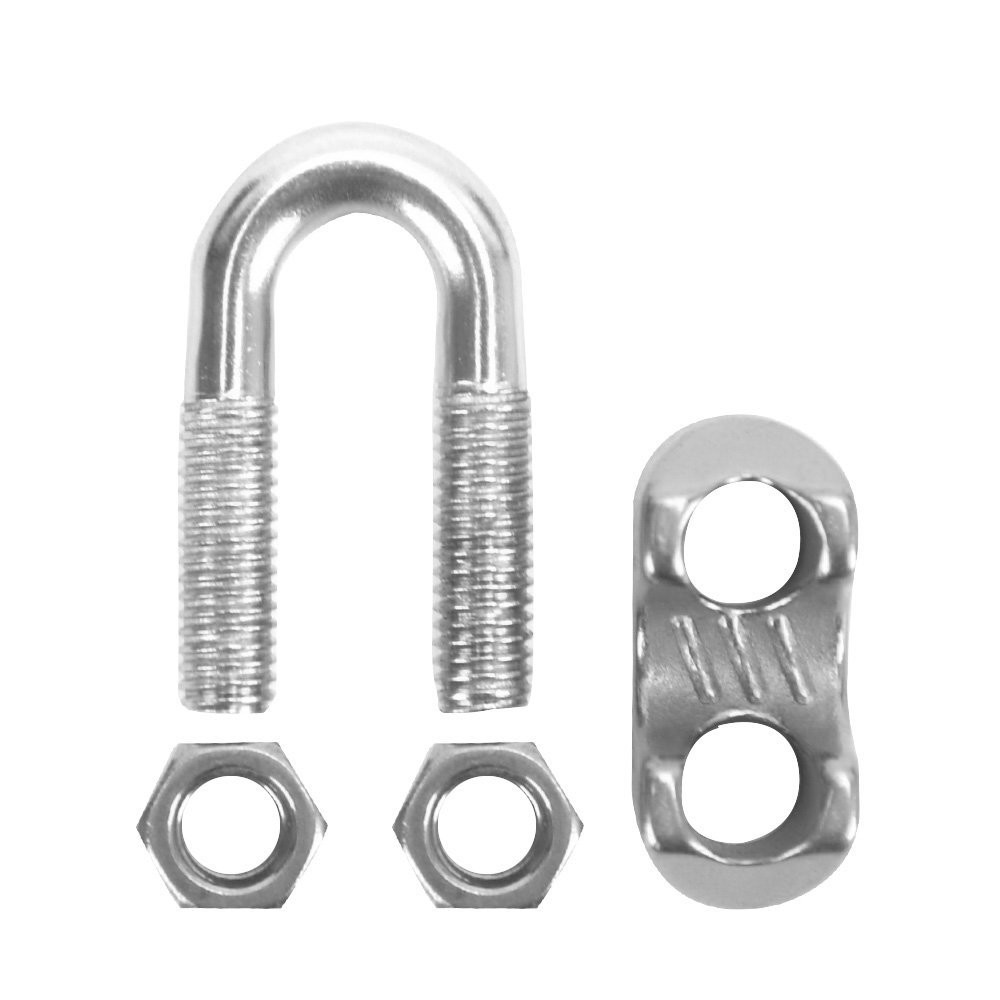

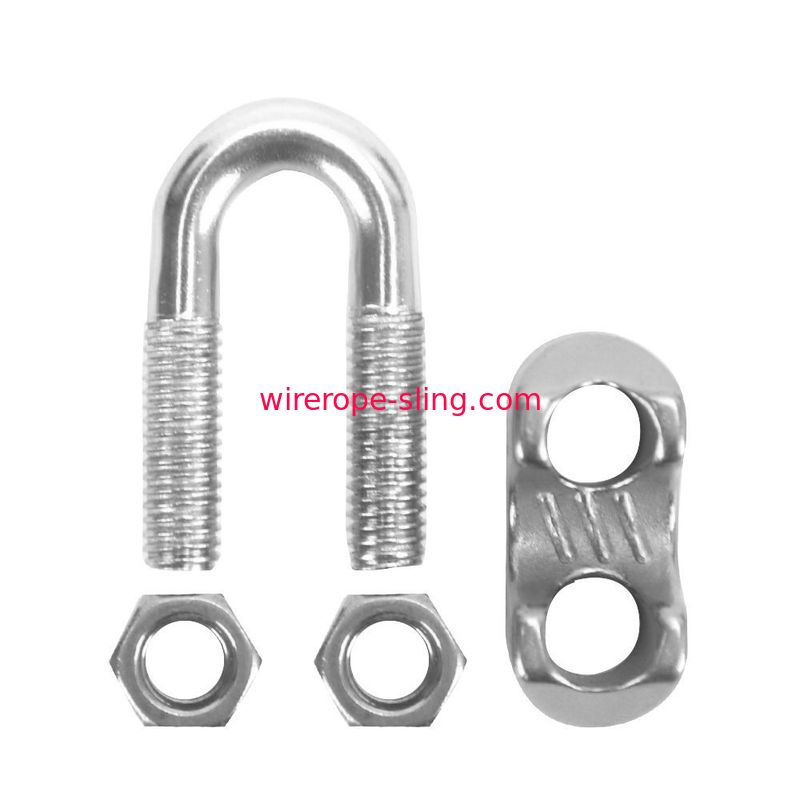

  • The wire rope clamp clip is a U bolt Shape with a special insert, which is ideal for rigging rope, wire and cable in unlimited applications.
  • Material: Stainless Steel for Corrosion Resistance.
  • Suitable for 3/16" diameter wire rope or cables.

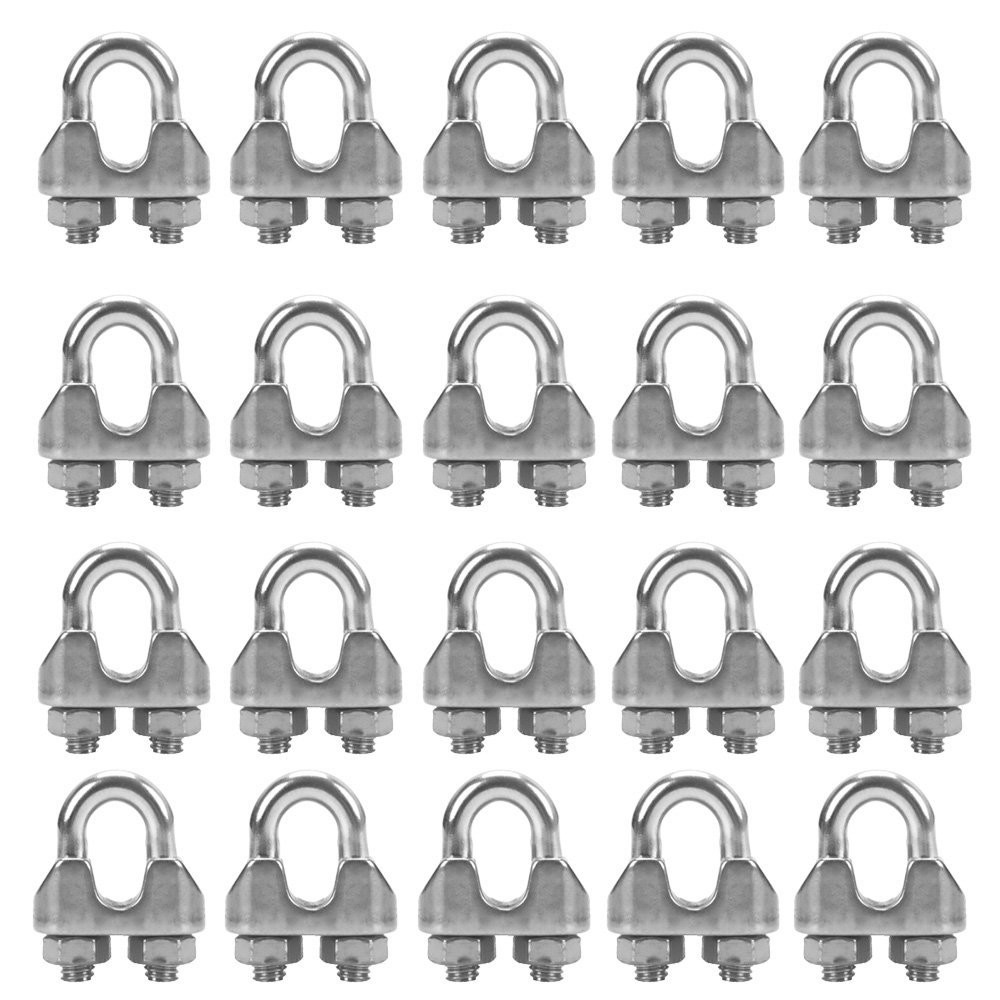

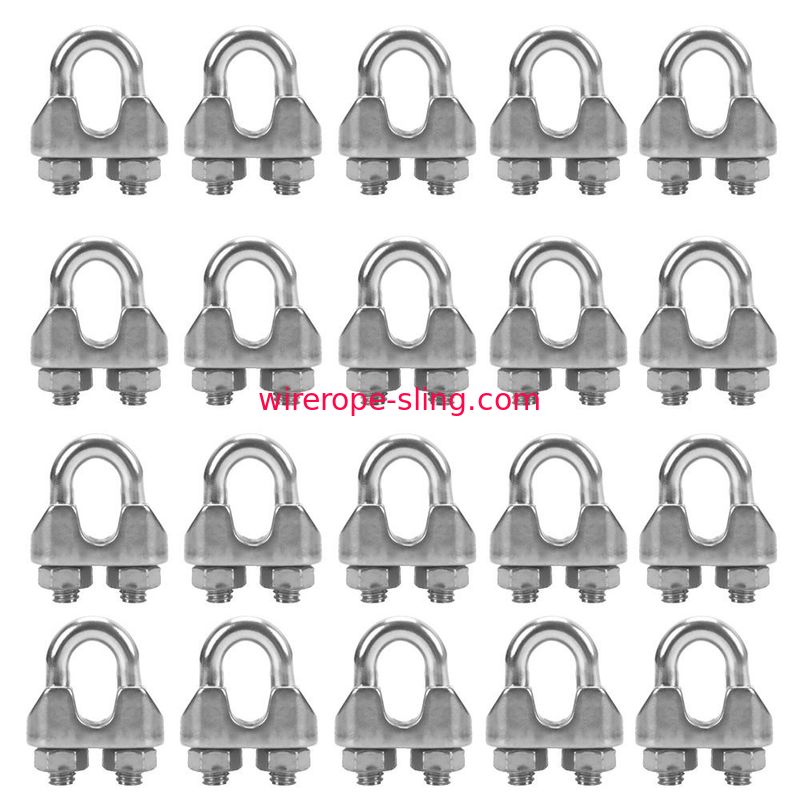

  • There are 20pcs M5 stainless steel wire rope in a plastic case.
  • A suggested minimum of 3 clamps or clips are clamped on ensuring the end of the cable does not slip out.

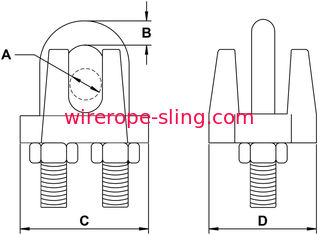

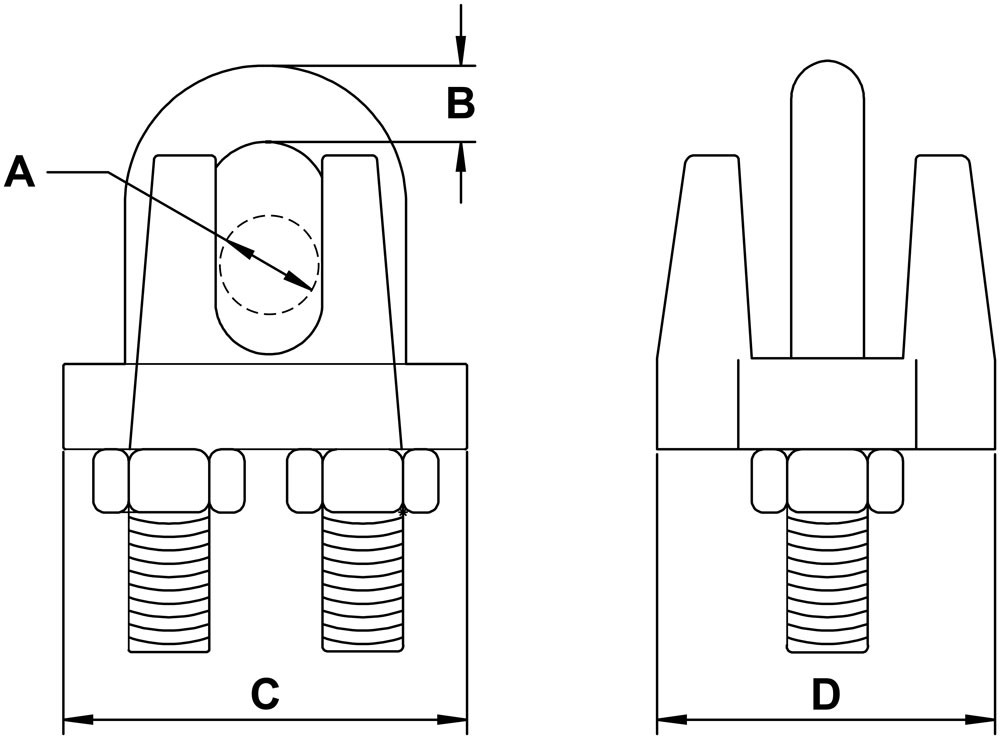

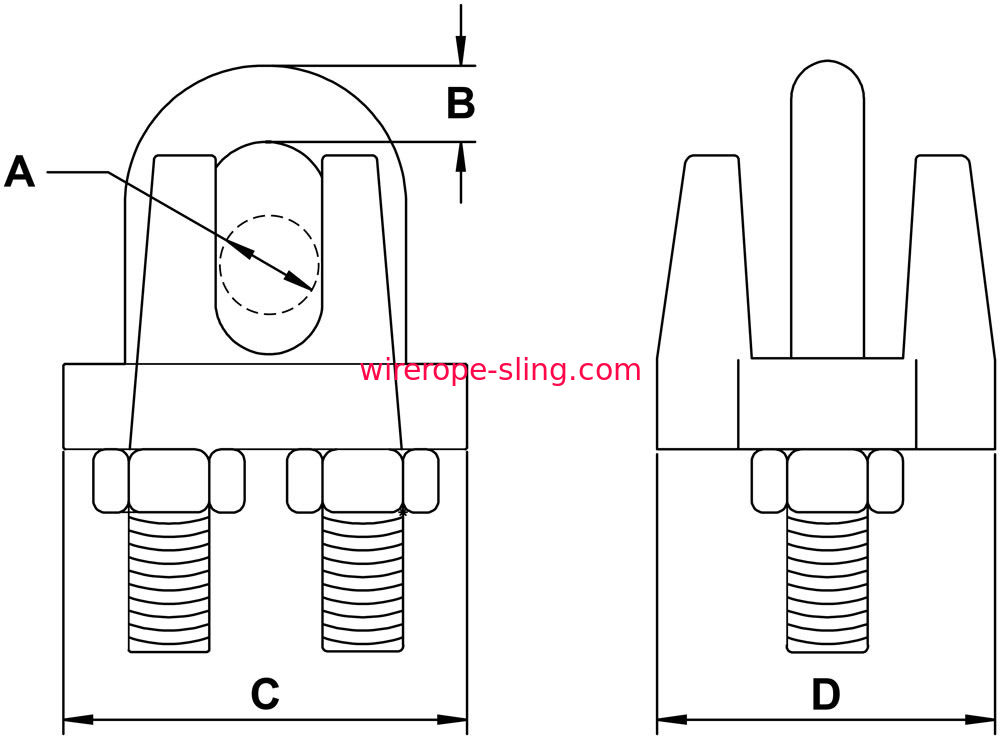

Cable Size (A) B C D WT (lbs) Minimum Number of Clips Required Torque (ft/lb)** Amount of Wire to Turn Back
3/32" 3/32 1/2 9/16 0.03 3 2 4
1/8" 1/8 5/8 5/8 0.03 3 3 4-3/4
3/16" 3/16 7/8 13/16 0.06 3 4.5 5-1/2
1/4" 1/4 1-1/8 7/8 0.10 3 15 7
5/16" 5/16 1-3/8 1-1/8 0.18 3 15 7-3/4
3/8" 3/8 1-3/4 1-3/8 0.35 3 30 9-1/2
1/2" 7/16 2 1-1/2 0.55 4 45 15-1/4
5/8" 1/2 2-5/16 1-7/8 0.90 4 75 16
3/4" 9/16 2-1/2 2-1/8 1.05 5 75 22-1/4

**Based on Clean, un-lubricated threads. Table above shows minimum torque required to reach maximum holding power of wire rope clip.



Packaging & Delivery

Packaging Details

Malleable Rigging Hardware Heavy Duty Wire Rope Clip Clamp
Cartons Packed in carton then on steel pallet.

Delivery Time

Shipped in 20 days after payment



Product name Stainsteel steel wire rope clip
Model BT-WD24
Size CUSTOM
Material Stainless steel
Features

1. we can guarantee the best material according to related quotation.

2. Customized Service Provided

3. better welded products.

Packaging Polybag, carton, according to customers's requirments
Sample time 1-3 days for Nomal iterm, 7-15days for a new mould.
Delivery time Usually 10-20 days, if we have this iterms in stock, we could delivery them once we received the payment
