Synthetic Rope Winch Line Light Weight Non Rotation With Sheath ATV UTV

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: LKRWL
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD5-15 per set
Packaging Details: Wooden Case or asrequest
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability:

Detail Information

Power Source:ElectricApplication:ATV/UTV, ATV/UTV, Pulling
Size:3/16'',1/4'',5/16'',3/8'',1/2''Holder Form:Hook
Package Quantity:1Material:100%UHMWPE/Spectra1000
Warranty:One YearColor:Grey, Blue, Green, Pink Or As Request
High Light:

synthetic winch rope

,

winch line extension

Product Description

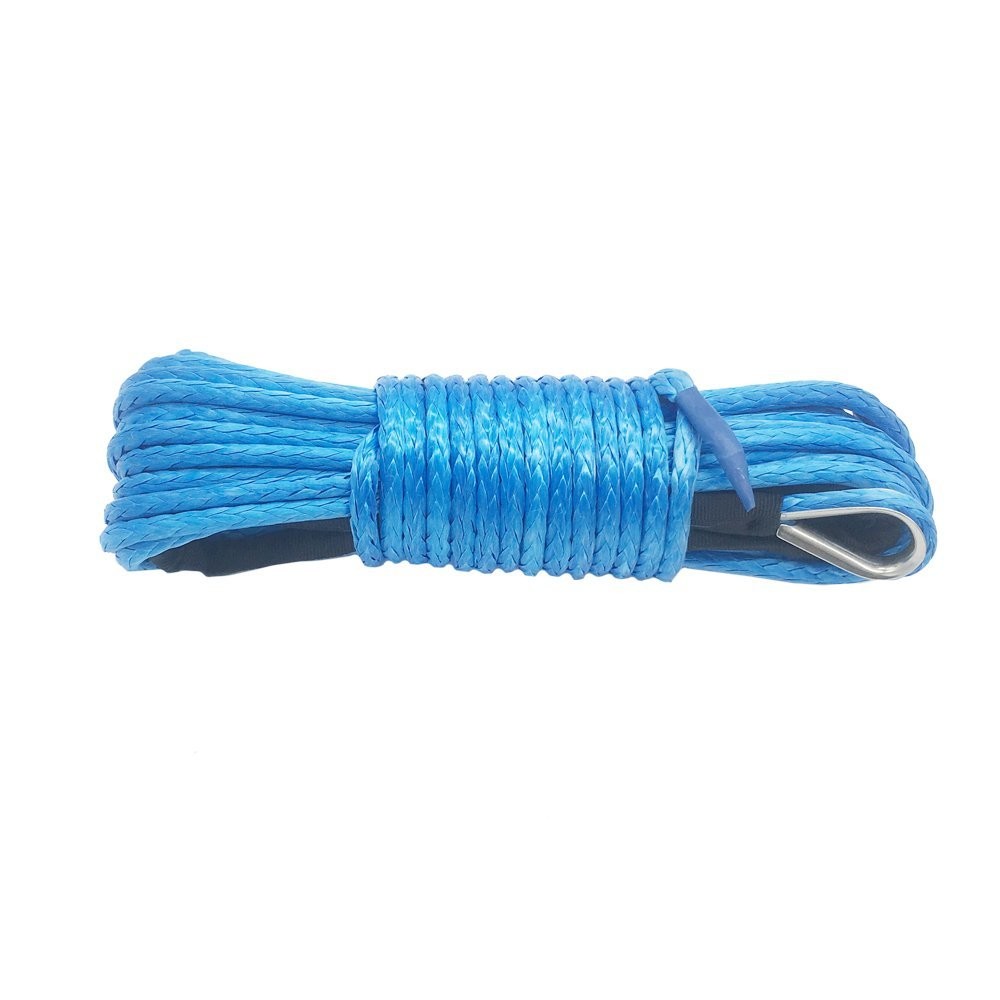

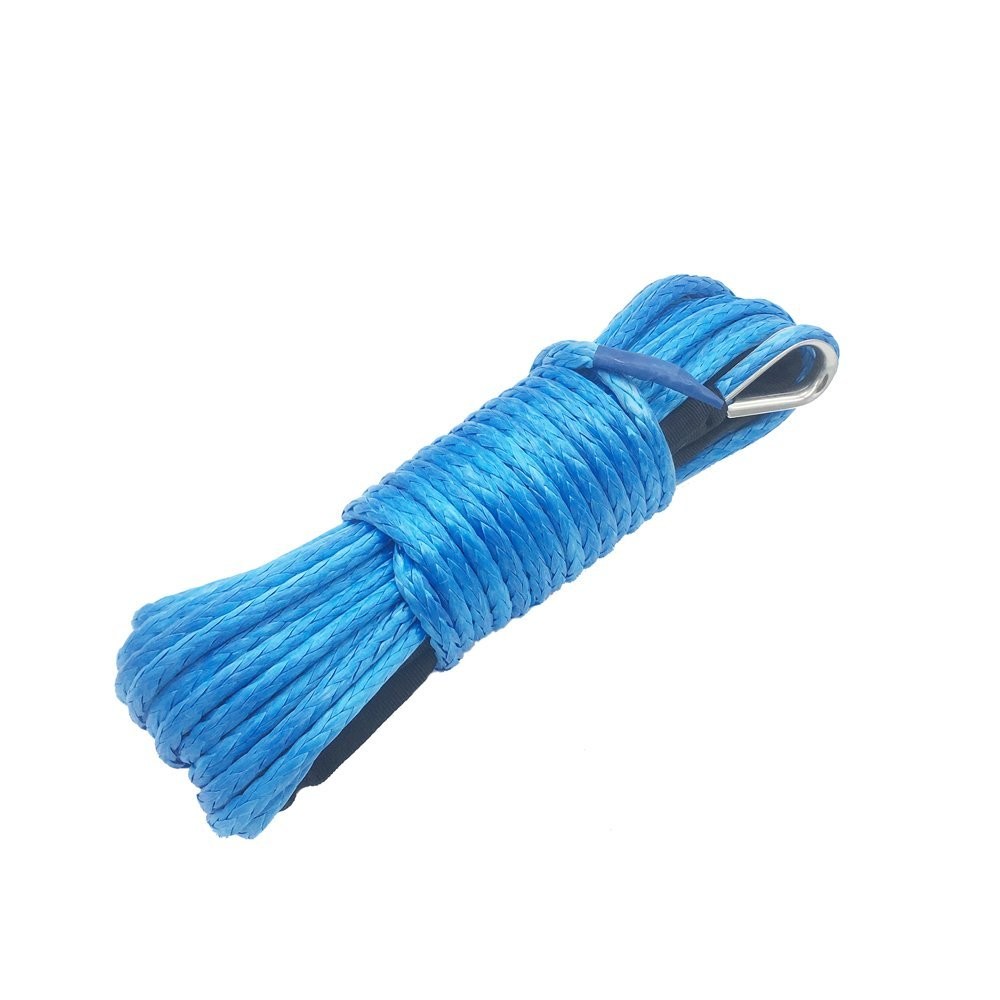

Ucreative 1/4 x 50' 7700LBs Synthetic Winch Line Cable Rope with Sheath ATV UTV

Product description



Very light, float in water.

Easy to handle and splice.

Minimal stretch and non rotation.

Good resistance to UV and chemicals.

To prevent overheating, slippage, rough or sharp surfaces.

Upgrade your winch with stronger synthetic winch rope than traditional steel cables.



Color: Blue

Length: 15m(50ft)

Thickness: 6mm(1/4")

Material: Synthetic Fiber

Breaking Strength: Average 7700 lbs

Suitable for: Universal fits most car SUV ATV.



Package Include:

1x Synthetic Winch Rope



Note:

Please allow 1-3cm error due to manual measurement. pls make sure you do not mind before you bid.







Ultrex is a 12-strand rope made from 100% UHMWPE fiber, it is stronger than steel wire rope size-for-size (view our Wire Rope Winch Cables and compare). It splices easily—even in the field—and runs well through sheaves and has zero water absorption. Covered in Maxijacket, a tough urethane coating that protects the rope from excessive abrasion and wear. An excellent wire rope alternative, great for off road winches and chippers. Protective chafe sleeve and a Blue Line Thimble help to keep the rope in top shape (5/16" winch lines feature a standard galvanized thimble). Add on our optional Grade 80 hook that is both strong and easy to take on and off.

We splice these winch lines in house, which means we can splice customer lengths and even different diameters upon your request. Please Contact Us with your specific inquiry.



You can't buy stronger rope than this! Maybe you've heard about a rope that's replacing wire rope for winch lines…this is it! This rope is made from a special 100% Ultra High Molecular Weight Polyethylene (UHMWPE Spectra to be exact, which is actually more durable than Dyneema) that is stronger than wire rope (aka steel cable) size-for-size. To be clear--if you pull this 5/16" rope against 5/16" steel winch line, you will break the steel winch line first. It has many other great benefits too, such as being flexible, easily spliced, repairable in the field and even floating on water. You can even use this rope in freezing conditions!

Around here, in the Pacific Northwest, many call this "logging rope" because so many loggers have used it to make extensions, or even as a drum line (aka winch line). We stock it in common sizes, but we also get special pieces in larger diameters like 1" and 1-1/8". And please, stack this rope up against the competition and you'll see how well it specs out.

We have one local customer that retrieves off-road vehicles for a living. They have put this rope to the test time and time again, expecting it to fail. Guess what! It hasn't! They have had a few straps (yes, we can splice straps for you too) in service for years, and they're still performing well. You won't be disappointed!


  • Package Include: 1x Synthetic Winch Rope
  • Material: Synthetic Fiber. Color: Blue(may )
  • Minimal stretch and non rotation.Good resistance to UV and chemicals.
  • Upgrade your winch with stronger synthetic winch rope than traditional steel cables.
  • Length: 15m(50ft). Thickness: 6mm(1/4"). Breaking Strength: Average 7700 lbs










Features

  • Wire rope winch cable, great for two trucks, industrial winch users and off-road enthusiasts
  • Made from 6x19 class wire rope, IWRC EIPS specification
  • Supplied with a premium self-closing swivel sling hook, spring-loaded safety latch included
  • Latch closes automatically once load is applied and is made from durable alloy steel, much more durable than standard spring-loaded safety latches
  • Eyes are professionally formed using a 500T hydraulic swage press
  • Eyes are buffered with heavy-duty steel thimbles--they provide protection against wear and deformation of the wire rope eye and promote a longer service life



We have different Wire Rope Winch Line Extensions for your options,here is our technical table as belows;





Rope Size Length (ft) Breaking Strength (lbs) Weight (lbs) Price
5/16" 50 13,500 1.82 $124.10
5/16" 75 13,500 2.42 $163.88
5/16" 100 13,500 3.02 $203.67
5/16" 125 13,500 3.62 $243.45
5/16" 150 13,500 4.22 $283.23
5/16" 175 13,500 4.82 $323.01
5/16" 200 13,500 5.42 $362.79

3/8" 50 20,000 2.41 $146.13
3/8" 75 20,000 3.28 $196.30
3/8" 100 20,000 4.16 $246.47
3/8" 125 20,000 5.03 $296.65
3/8" 150 20,000 5.91 $346.82
3/8" 175 20,000 6.78 $396.99
3/8" 200 20,000 7.66 $447.16

1/2" 50 37,400 4.25 $261.52
1/2" 75 37,400 5.8 $362.75
1/2" 100 37,400 7.35 $463.99
1/2" 125 37,400 8.9 $565.22
1/2" 150 37,400 10.45 $666.45
1/2" 175 37,400 12 $767.69
1/2" 200 37,400 13.55 $868.92

5/8" 50 53,000 6.56 $357.01
5/8" 75 53,000 8.93 $500.69
5/8" 100 53,000 11.31 $644.38
5/8" 125 53,000 13.68 $788.07
5/8" 150 53,000 16.06 $931.76
5/8" 175 53,000 18.43 $1,075.44
5/8" 200 53,000 20.81 $1,219.13

3/4" 50 75,000 9.12 $509.53
3/4" 75 75,000 12.5 $717.34
3/4" 100 75,000 15.87 $925.15
3/4" 125 75,000 19.25 $1,132.97
3/4" 150 75,000 22.62 $1,340.78
3/4" 175 75,000 26 $1,548.59
3/4" 200 75,000 29.37 $1,756.40

7/8" 50 98,000 13.79 $659.14
7/8" 75 98,000 18.66 $921.28
7/8" 100 98,000 23.54 $1,183.42
7/8" 125 98,000 28.41 $1,445.56
7/8" 150 98,000 33.29 $1,707.70
7/8" 175 98,000 38.16 $1,756.40
7/8" 200 98,000 43.04 $2,231.98


Rope Winch Lines

WINCH LINES OF ALL SIZES AND TYPES, BUILT TO ORDER!

We are a full line rigging shop, which means we carry wire rope and premium synthetic ropes in bulk. We also carry all of the fittings, and we have the right equipment to make professional winch lines on demand. Look at the table below to understand the four types of winch lines offered on this page. If you don't see what you're looking for, just give us a call, and we will happily provide you with a custom quote.

Material Hook Type Description
Steel Cable Standard Hook This is the most common type of winch line because it is most affordable. Non-swiveling hook, made from alloy steel, safety latch included.
Steel Cable Swivel Hook The overall function is similar to a standard hook, only this hook swivels which makes for easier connections, hook positioning and less binding.
Steel Cable Self-Closing Swivel Hook Also known as a "safety hook", this hook features a heavy-duty latch that opens outward, and closes immediately once a load is applied. This hooks also swivels, and generally is more durable than other hooks.
Steel Cable Extension w/ Hook An extension is a quick and easy way to get extra length / reach. Just connect the hook on your existing winch line to the thimbled eye of the extension, and you're off and running.
Ultrex Synthetic Optional Hook Made from Yale Cordage's premium Ultrex rope, these winch lines are incredibly lightweight, yet stronger than steel cable of the same size. Equipped with a durable Blue Line Thimble, and available with an optional, removable sling hook with safety latch.
