Heavy - Duty Hook Rope Winch Line Long Service Life Durable With Self Closing Latch

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001 : 2008
Model Number: LKSWL
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD5-15 per set
Packaging Details: Wooden Case or asrequest
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability:

Detail Information

Steel Grade:Stainless Or GalvanziedStandard:AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge:0.3-11mmHolder Form:Hook
Package Quantity:1Alloy Or Not:Non-alloy
Dia.:As Request Or Standard FormHS Code:73121000
High Light:

synthetic winch rope

,

winch line extension

Product Description

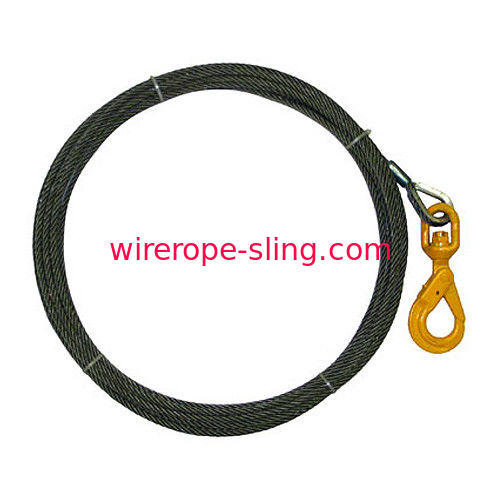

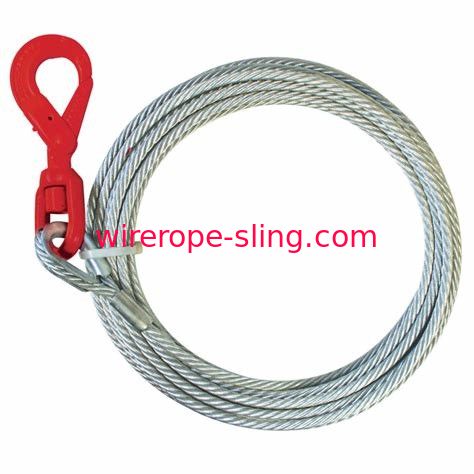

Swivel Safety Hook Winch Lines



These cables are similar to our swivel hook winch cables, except they feature a premium, heavy-duty hook with a self-closing latch (aka safety hook). The latches on these hooks are very durable and open outward making for a wider throat than on normal hooks. Once a load is applied, the latch snaps shut and stays that way until you release the "trigger" on the back side of the hook body. Swivel hooks make positioning and connecting easier and help to prevent unwanted torque on the cable.

Made from IWRC XIP wire rope, meaning they have a steel core and a high breaking strength. We form the eyes using industry standard steel swage sleeves and a 500T industrial swage press. A galvanized thimble in the eye protects the cable from excessive wear. Although most commonly sold to tow truck operators, these cables are great for anyone that needs a replacement winch cable.






Features

  • Wire rope winch cable, great for two trucks, industrial winch users and off-road enthusiasts
  • Made from 6x19 class wire rope, IWRC EIPS specification
  • Supplied with a premium self-closing swivel sling hook, spring-loaded safety latch included
  • Latch closes automatically once load is applied and is made from durable alloy steel, much more durable than standard spring-loaded safety latches
  • Eyes are professionally formed using a 500T hydraulic swage press
  • Eyes are buffered with heavy-duty steel thimbles--they provide protection against wear and deformation of the wire rope eye and promote a longer service life



We have different Swivel Safety Hook Winch Lines for your options,here is our technical table as belows;



Wire Rope Size Construction Length (ft) Breaking Strength (lbs) Weight (lbs) Price
5/16" 6x19 Class 50 10,540 12.09 $101.40
5/16" 6x19 Class 75 10,540 16.59 $114.10
5/16" 6x19 Class 100 10,540 21.09 $126.90
5/16" 6x19 Class 125 10,540 25.59 $139.70
5/16" 6x19 Class 150 10,540 30.09 $152.50

3/8" 6x19 Class 50 15,100 16.25 $108.30
3/8" 6x19 Class 75 15,100 22.75 $124.20
3/8" 6x19 Class 100 15,100 29.25 $140.20
3/8" 6x19 Class 125 15,100 35.75 $156.20
3/8" 6x19 Class 150 15,100 42.25 $172.10

7/16" 6x19 Class 50 20,400 23.49 $159.30
7/16" 6x19 Class 75 20,400 32.24 $184.90
7/16" 6x19 Class 100 20,400 40.99 $210.40
7/16" 6x19 Class 125 20,400 49.74 $236.00
7/16" 6x19 Class 150 20,400 58.49 $261.50

1/2" 6x19 Class 50 26,600 29.27 $172.80
1/2" 6x19 Class 75 26,600 40.77 $204.80
1/2" 6x19 Class 100 26,600 52.27 $236.70
1/2" 6x19 Class 125 26,600 63.77 $268.70
1/2" 6x19 Class 150 26,600 75.27 $300.60
1/2" 6x19 Class 175 26,600 86.77 $332.60
1/2" 6x19 Class 200 26,600 98.27 $364.50

9/16" 6x19 Class 50 33,600 40.37 $243.00
9/16" 6x19 Class 75 33,600 55.12 $278.10
9/16" 6x19 Class 100 33,600 69.87 $313.30
9/16" 6x19 Class 125 33,600 84.62 $348.40
9/16" 6x19 Class 150 33,600 99.37 $383.60
9/16" 6x19 Class 175 33,600 114.12 $418.70
9/16" 6x19 Class 200 33,600 128.87 $453.80

5/8" 6x19 Class 50 41,200 47.15 $249.90
5/8" 6x19 Class 75 41,200 65.15 $288.20
5/8" 6x19 Class 100 41,200 83.15 $326.60
5/8" 6x19 Class 125 41,200 101.15 $364.90
5/8" 6x19 Class 150 41,200 119.15 $403.20
5/8" 6x19 Class 175 41,200 137.15 $441.60
5/8" 6x19 Class 200 41,200 155.15 $479.90
5/8" 6x19 Class 225 41,200 173.15 $518.20
5/8" 6x19 Class 250 41,200 191.15 $556.60

3/4" 6x19 Class 50 58,800 72.37 $416.00
3/4" 6x19 Class 75 58,800 98.37 $467.10
3/4" 6x19 Class 100 58,800 124.37 $518.20
3/4" 6x19 Class 125 58,800 150.37 $569.30
3/4" 6x19 Class 150 58,800 176.37 $620.40
3/4" 6x19 Class 175 58,800 202.37 $671.50
3/4" 6x19 Class 200 58,800 228.37 $722.70
3/4" 6x19 Class 225 58,800 254.37 $773.80
3/4" 6x19 Class 250 58,800 280.37 $824.90
3/4" 6x19 Class 275 58,800 306.37 $876.00
3/4" 6x19 Class 300 58,800 332.37 $927.10

Rope Winch Lines

WINCH LINES OF ALL SIZES AND TYPES, BUILT TO ORDER!

We are a full line rigging shop, which means we carry wire rope and premium synthetic ropes in bulk. We also carry all of the fittings, and we have the right equipment to make professional winch lines on demand. Look at the table below to understand the four types of winch lines offered on this page. If you don't see what you're looking for, just give us a call, and we will happily provide you with a custom quote.

Material Hook Type Description
Steel Cable Standard Hook This is the most common type of winch line because it is most affordable. Non-swiveling hook, made from alloy steel, safety latch included.
Steel Cable Swivel Hook The overall function is similar to a standard hook, only this hook swivels which makes for easier connections, hook positioning and less binding.
Steel Cable Self-Closing Swivel Hook Also known as a "safety hook", this hook features a heavy-duty latch that opens outward, and closes immediately once a load is applied. This hooks also swivels, and generally is more durable than other hooks.
Steel Cable Extension w/ Hook An extension is a quick and easy way to get extra length / reach. Just connect the hook on your existing winch line to the thimbled eye of the extension, and you're off and running.
Ultrex Synthetic Optional Hook Made from Yale Cordage's premium Ultrex rope, these winch lines are incredibly lightweight, yet stronger than steel cable of the same size. Equipped with a durable Blue Line Thimble, and available with an optional, removable sling hook with safety latch.
