30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks
30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks 30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks 30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks

30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: Eye-and-Eye
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly
Contact Now

Detail Information
Wire Rope Dia.:3/8"/ 9.5 MMWLL:4250 LBS/ 2T
Breaking Strength:15087 LBS/ 6.8 TConstruction:6x19 Class
Length (ft):100'/ 30 MSafety Factor:3.55
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

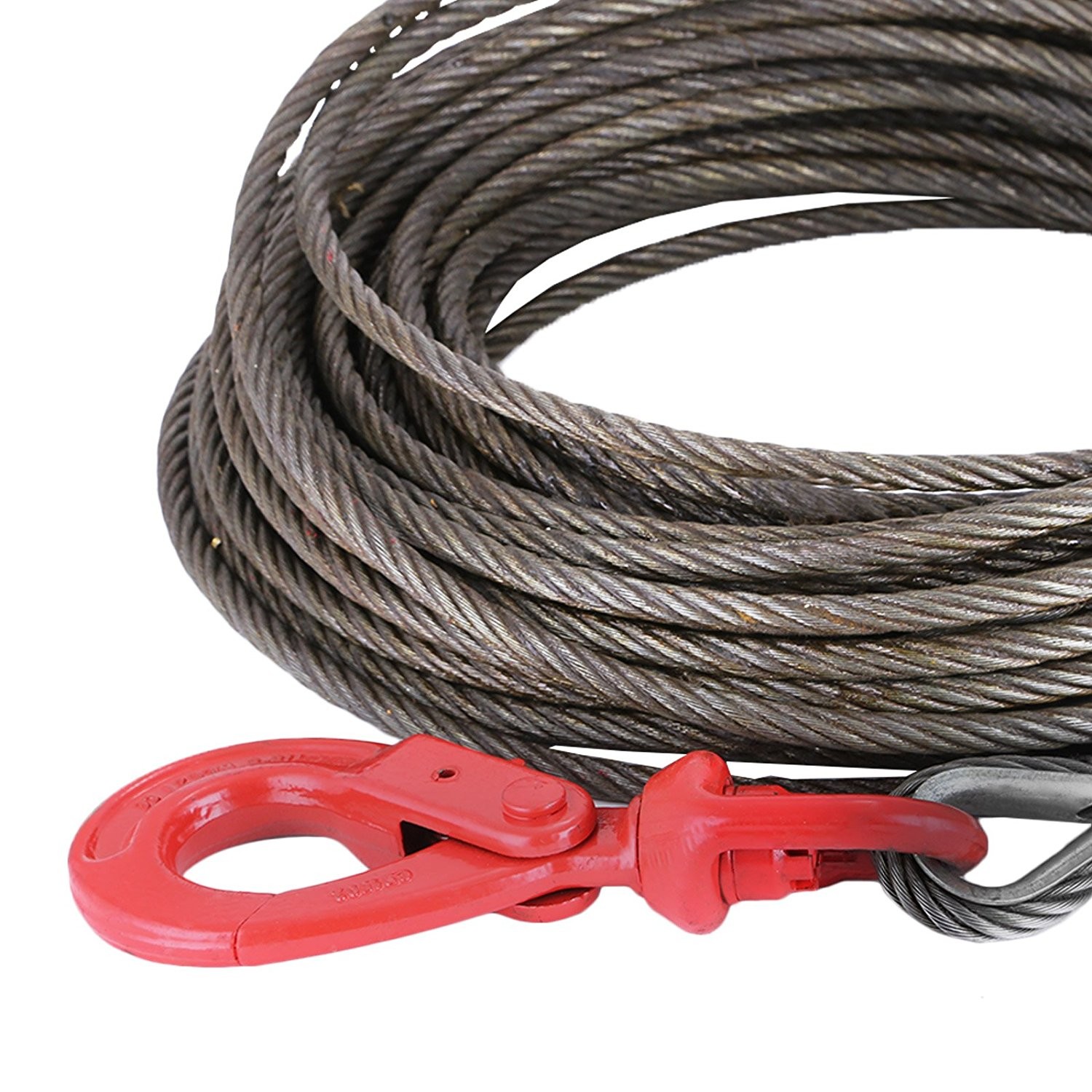

3/8” 100 FT Wire Rope Sling 2T with Self Locking Swivel Hook for Tow Truck









30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks 0



Product features



  • Cable length: 100'/ 30 M, cable diameter: 3/8"/ 9.5 MM
  • Wire Rope Working Limit Load (WLL): 4250 LBS/ 2 T; Ultimate Breaking Strength: 15087 LBS/ 6.8 T
  • The wire rope with self locking swivel hook is capable of bearing long distance loading, with high tensile strength, fatigue strength and good impact toughness
  • The 3/8" wire rope with light weight, easy to carry and transport; 3.55 high load safety factor, safe and reliable using
  • Good corrosion resistance and wear resistance, suitable for traction, pulling, strapping, can work in harsh environments of various harmful media for precision instruments



Product Description



Size:100 FT

3/8” 100 FT Wire Rope 2T Steel Core Fiber Core Winch Cable with Self Locking Swivel Hook Steel Cable for Tow Truck Flatbed

Specification:
Working Limit Load (WLL): 4250 LBS/ 2T
Ultimate Breaking Strength: 15087 LBS/ 6.8 T
Safety Factor: 3.55
Self Locking Swivel Hooks
Prevent accidental release of loading V-chain or V-strap
Eliminate inadvertent re-hooking during movement
can bear long distance loading, high tensile strength, high fatigue strength
Good impact toughness, easy to carry and transport; good corrosion resistance and wear resistance
Suitable for traction, pulling, strapping, can work in harsh environments of various harmful media for precision instruments



The most common size: wire rope slings having soft eyes at both end used for heavy lifting operations with safety factor of 7, length 6m, 12m, 16m, 20m, and the swl from 5 ton to 40 ton.

Diam. of Rope in. Min. Length (SL) of Sling ft.-in. Loop Dimensions Rated Capacities in Tons (2000lbs)
IPS Rope--IWRC EIPS Rope--IWRC
* Choker Hitch Single Leg Vertical Basket Hitch** * Choker Hitch Single Leg Vertical Basket Hitch**
W in. L in. 60° 45° 30° 60° 45° 30°
1/4 1-6 2 4 .42 .56 .97 .79 .56 .48 .65 1.1 .91 .65
3/8 2 3 6 .93 1.2 2.1 1.8 1.2 1.1 1.4 2.5 2.0 1.4
1/2 2-6 4 8 1.6 2.2 3.8 3.1 2.2 1.9 2.5 4.4 3.6 2.5
5/8 3 5 10 2.5 3.4 5.9 4.8 3.4 2.9 3.9 6.8 5.5 3.9
3/4 3-6 6 12 3.6 4.9 8.4 6.9 4.9 4.2 5.6 9.7 7.9 5.6
7/8 4 7 14 4.9 6.6 11 9.3 6.6 5.7 7.6 13 11 7.6
1 4-6 8 16 6.4 8.5 15 12 8.5 7.4 9.8 17 14 9.8
1 1/8 5 9 18 7.8 10 18 15 10 9.0 12 21 17 12
1 1/4 5-6 10 20 9.2 12 21 17 12 11 15 29 21 15
1 3/8 6 11 22 11 15 25 21 15 13 18 31 25 18
1 1/2 7 12 24 13 17 30 25 17 16 21 39 30 21
1 3/4 8 14 28 18 24 43 35 25 21 28 49 40 28
2 9 16 32 23 30 55 45 32 28 37 63 52 37
2 1/4 10 18 36 30 40 69 56 40 35 44 77 63 44
2 1/2 11 20 40 36 48 84 68 48 42 54 94 77 64
2 3/4 12 22 44 43 58 101 82 58 50 67 116 94 67
3 13 24 48 51 68 118 97 68 59 79 136 111 79




Attention for lifting


A) if a single leg wire rope sling, the hanging point must be located directly above the center of gravity of the suspended object.
B) if the 2 legs wire rope sling, the hanging points should be on both sides of the goods and the hooks are above the center of gravity of the suspended objects.
C) if it is three legs or four legs wire rope sling, the hanger must be proportioned on the plane around the cargo and the hook is located directly above the center of gravity of the suspended object.

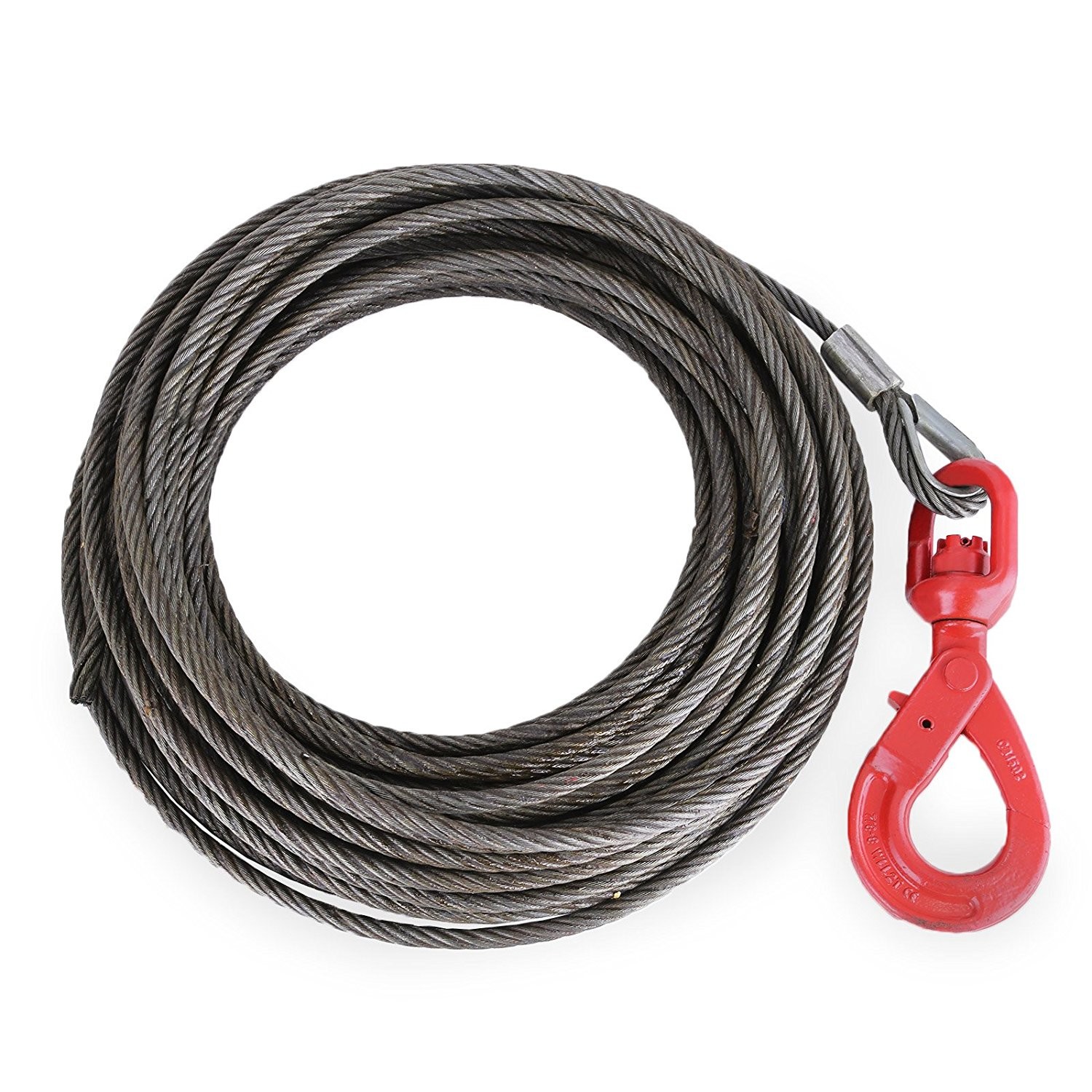

30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks 1

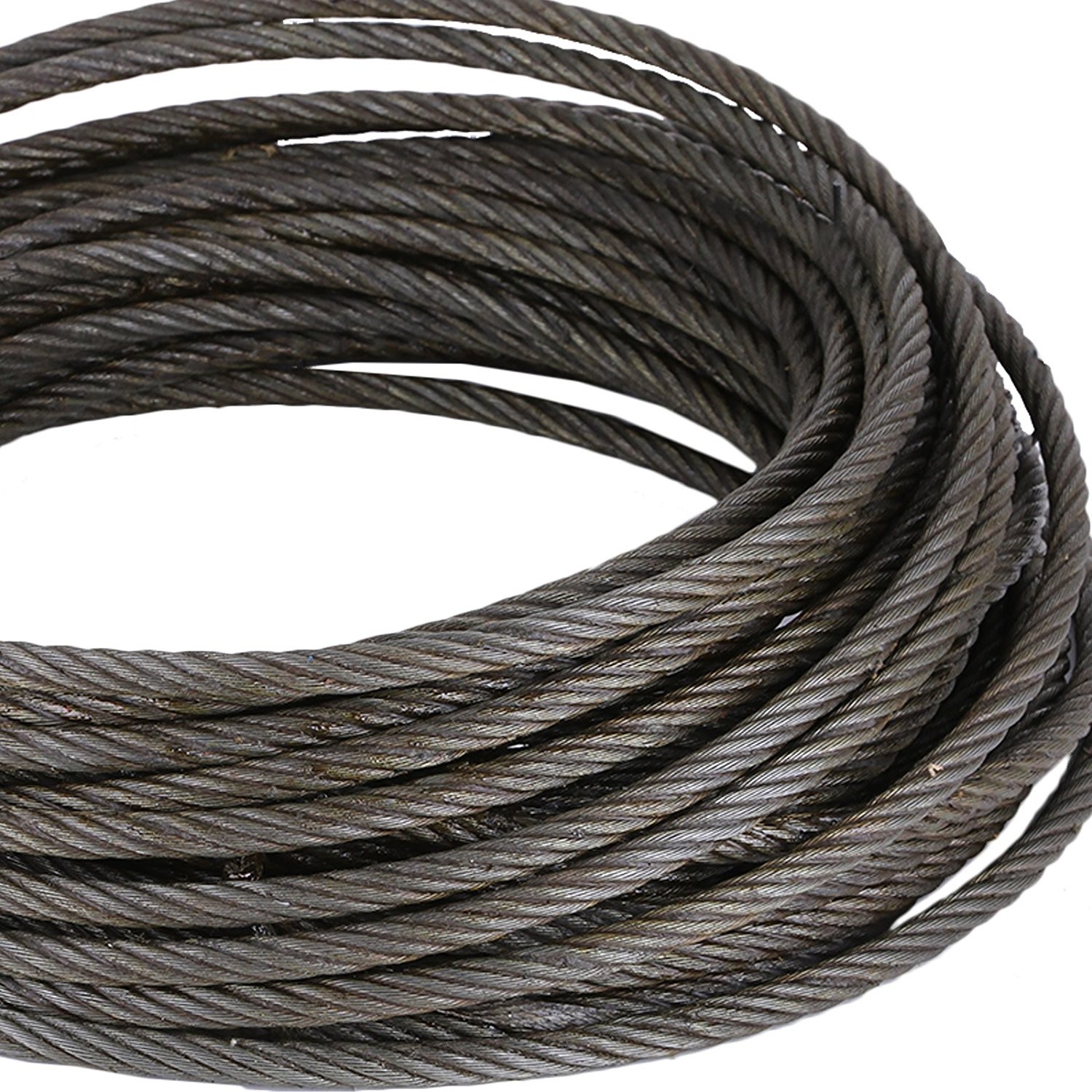

30 M Fiber Core Wire Rope , Steel Wire Cable With Self Locking Swivel Hooks 2
