3 - Leg Wire Rope Bridle Sling Stable 52000 Lbs WLL For Overhead Lifting

China 3 - Leg Wire Rope Bridle Sling Stable 52000 Lbs WLL For Overhead Lifting supplier

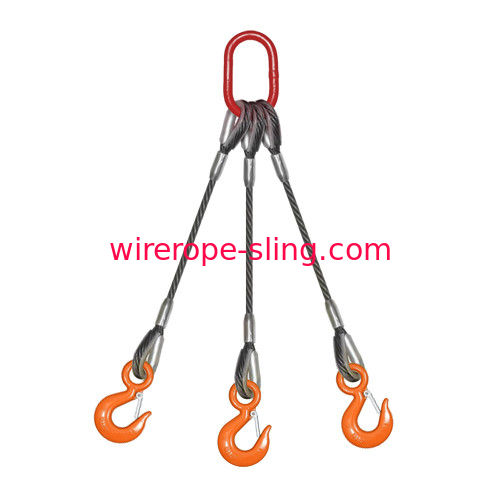

Large Image :  3 - Leg Wire Rope Bridle Sling Stable 52000 Lbs WLL For Overhead Lifting

Product Details:

Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001: 2008
Model Number: WRBTOS1X05

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD2000/TON
Packaging Details: Wooden Cases
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 5000sets monthly
Contact Now
Detailed Product Description
Wire Rope Size: 1" Name: Triple Leg TOS
Weight (lbs): 143.15 Construction: 6x19 Class
Length (ft): 5,10,15,20&more Safety Factor: 5:1



3-Leg Bridle Wire Rope Slings are constructed of three wire rope assemblies that are attached to an Oblong Ring. The lifting ends of the wire rope legs can be fitted with a variety of hooks, eyes, or rings to allow attachment to nearly any object. 3 Leg Slings are designed to handle unbalanced loads. Wire Rope Slings are constructed of strong, high-quality steel that is resistant to corrosion, heat, sunlight and most chemicals. 3-Leg Wire Rope slings are custom built to meet your specific needs for any application.



1" x 5 ft TOS 3-Leg Wire Rope Bridle Sling - 52000 lbs WLL for overhead lifting



  • Three leg wire rope bridle with sling hooks at end of each leg, a very popular style
  • Using multiple legs helps with load stability and control during the lift, ideal for picks where multiple pick points are needed/desired
  • Made from 6x19 class wire rope, IWRC EIPS specification
  • Eyes are professionally formed using a 500T hydraulic swage press
  • Eyes are buffered with heavy-duty steel thimbles…they provide protection against wear and deformation of the wire rope eye and promote a longer service life for sling
  • Available with vinyl or metal load tag







Specifications



Model
TOS
Wire Rope Size 1"
Type Triple Leg TOS
Construction 6x19 Class
Length (ft) 5
WLL @ 60º (lbs) 52,000
WLL @ 45º (lbs) 42,000
WLL @ 30º (lbs) 30,000
Safety Factor 5:01
Weight (lbs) 143.15





Rigging and safety gear purchased from LKING STEEL LIMITED should be used in strict accordance with all industry and OSHA standards. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear; therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used.



Technical Table



Item #

Wire Rope Size Length (ft) WLL @ 60º (lbs) WLL @ 45º (lbs) WLL @ 30º (lbs) Weight (lbs)
WRBTOS014X05 1/4" 5 3,400 2,800 1,940 5.49
WRBTOS014X10 1/4" 10 3,400 2,800 1,940 7.23
WRBTOS014X15 1/4" 15 3,400 2,800 1,940 8.97
WRBTOS014X20 1/4" 20 3,400 2,800 1,940 10.71

WRBTOS516X05 5/16" 5 5,200 4,200 3,000 7.48
WRBTOS516X10 5/16" 10 5,200 4,200 3,000 10.18
WRBTOS516X15 5/16" 15 5,200 4,200 3,000 12.88
WRBTOS516X20 5/16" 20 5,200 4,200 3,000 15.58

WRBTOS038X05 3/8" 5 7,400 6,000 4,400 11.77
WRBTOS038X10 3/8" 10 7,400 6,000 4,400 15.67
WRBTOS038X15 3/8" 15 7,400 6,000 4,400 19.57
WRBTOS038X20 3/8" 20 7,400 6,000 4,400 23.47

WRBTOS716X05 7/16" 5 10,000 8,200 5,800 17.17
WRBTOS716X10 7/16" 10 10,000 8,200 5,800 22.42
WRBTOS716X15 7/16" 15 10,000 8,200 5,800 27.67
WRBTOS716X20 7/16" 20 10,000 8,200 5,800 32.92

WRBTOS012X05 1/2" 5 13,200 10,800 7,600 24.94
WRBTOS012X10 1/2" 10 13,200 10,800 7,600 31.84
WRBTOS012X15 1/2" 15 13,200 10,800 7,600 38.74
WRBTOS012X20 1/2" 20 13,200 10,800 7,600 45.64

WRBTOS916X05 9/16" 5 16,600 13,600 9,600 36.62
WRBTOS916X10 9/16" 10 16,600 13,600 9,600 45.47
WRBTOS916X15 9/16" 15 16,600 13,600 9,600 54.32
WRBTOS916X20 9/16" 20 16,600 13,600 9,600 63.17

WRBTOS058X05 5/8" 5 20,000 16,600 11,800 43.13
WRBTOS058X10 5/8" 10 20,000 16,600 11,800 53.93
WRBTOS058X15 5/8" 15 20,000 16,600 11,800 64.73
WRBTOS058X20 5/8" 20 20,000 16,600 11,800 75.53

WRBTOS034X05 3/4" 5 30,000 24,000 16,800 77.44
WRBTOS034X10 3/4" 10 30,000 24,000 16,800 93.04
WRBTOS034X15 3/4" 15 30,000 24,000 16,800 108.64
WRBTOS034X20 3/4" 20 30,000 24,000 16,800 124.24

WRBTOS078X05 7/8" 5 40,000 32,000 22,000 110.68
WRBTOS078X10 7/8" 10 40,000 32,000 22,000 131.98
WRBTOS078X15 7/8" 15 40,000 32,000 22,000 153.28
WRBTOS078X20 7/8" 20 40,000 32,000 22,000 174.58

WRBTOS1X05 1" 5 52,000 42,000 30,000 143.15
WRBTOS1X10 1" 10 52,000 42,000 30,000 174.58
WRBTOS1X15 1" 15 52,000 42,000 30,000 198.65
WRBTOS1X20 1" 20 52,000 42,000 30,000 226.4
