3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier
3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier

3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,DNV,BV
Model Number: CW-LS-3/4
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: USD1-100 PER SET
Packaging Details: Wooden Box
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 50000SETS Monthly
Contact Now

Detail Information
Model:LS-3/4Wire Rope Size:3/4"
Type:Tea Cup SlingsConstruction:6x19 Class
Length (ft):5,,10,20,30,40,50...Safety Factor:5:1
High Light:

wire rope slings with hooks

,

steel wire sling

Product Description

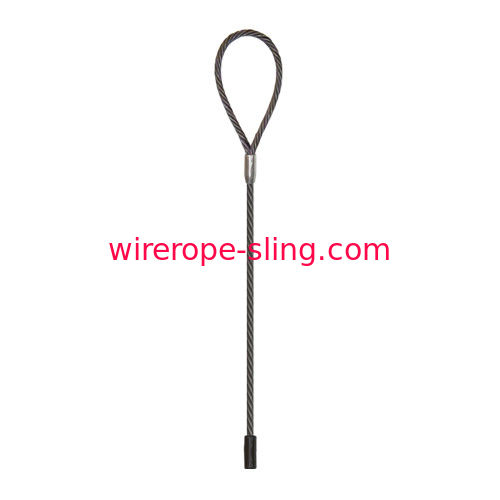

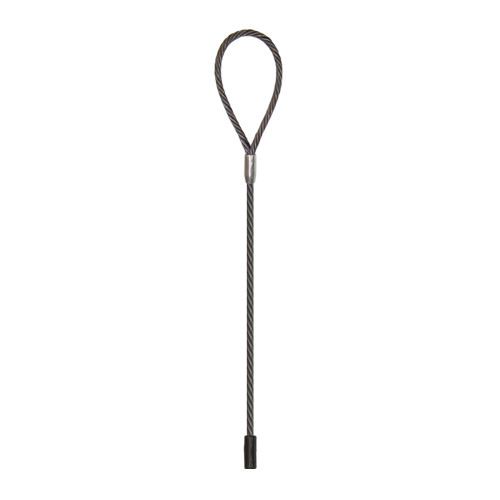

3/4" x 5 ft Wire Rope Sling use with the Tea Cup Pip Carrier from Caldwell







These slings are made specifically to use with the Tea Cup Pip Carrier from Caldwell. They feature a pressed eye on one end and a specially-sized pressed ferrule on the other end. The ferrules mate to the appropriately sized Tea Cup. Be sure to check the reference chart in the Product Notes tab. Caldwell keeps them in stock to expedite the shipping of your entire assembly. Keep in mind that you can't really use the Tea Cup without an appropriate sling, so it's best to buy them together...and we give you a discount when you do!



  • A wire rope sling specifically made to work with the Tea Cup Pipe Carriers

  • Professionally swaged eye on top with a professionally pressed ferrule on the opposite end

  • Load-rated and tagged

  • BE SURE TO CHOOSE THE RIGHT SIZE SLING AND TEACUP COMBINATION…SEE CHART IN PRODUCT NOTES TAB



These slings are specifically made to work with the Tea Cup Pipe Carriers from Caldwell. Be sure to reference the chart and pictures below so that you pair the proper Tea Cup and sling size. Different lengths of slings are available, please inquire with us directly should you need a custom sling.

3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier 0





3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier 1 3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier 2

3/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier 33/4" X 5 Ft Wire Rope Sling Wear Resisting With The Tea Cup Pip Carrier 4



Technical Table



MPN

Wire Rope Size

Length (ft)

WLL (lbs)

Weight (lbs)

LS-3/4

3/4"

5

9,800

9

LS-7/8

7/8"

5

13,200

14

LS-1

1"

5

17,000

19

LS-1-1/8

1-1/8"

5

20,000

26

LS-1-1/4

1-1/4"

5

26,000

33

LS-1-1/2

1-1/2"

5

36,000

52
