China Wire Rope Sling manufacturer

Ceiling light Suspension Hanging Kit Nickel Plated Brass With Adjustable Gripper YW86340

Product Details:
Place of Origin: SHANGHAI, CHINA
Brand Name: LKS
Certification: CE, ISO9001/SGS/ROHS
Model Number: LKS-YW-86340
Standard: DIN, GB,JIS,ASTM
Length: As customer's requested
Payment & Shipping Terms:
Minimum Order Quantity: 300 PCS
Price: Negotiable
Packaging Details: 2pcs / PP bag, 35*25*18cm Carton
Delivery Time: 8 - 15 work days
Payment Terms: T/T, Western Union
Supply Ability: 200,000 PCS a Month

Detail Information

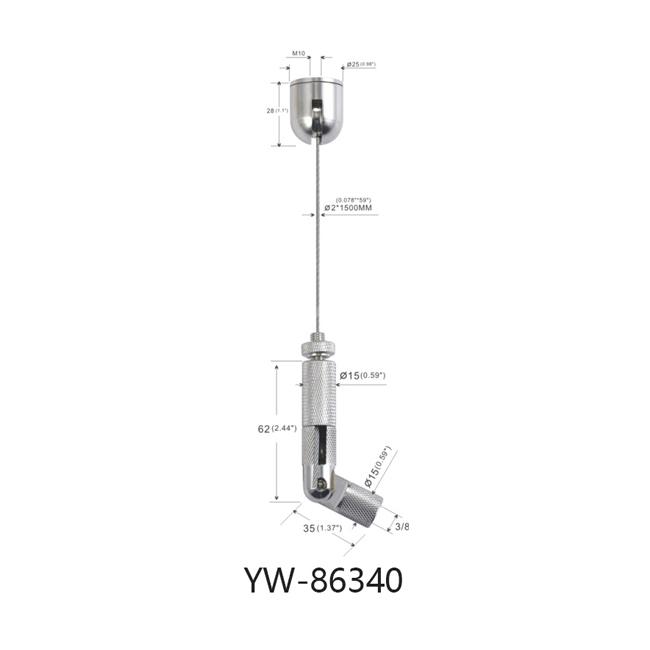

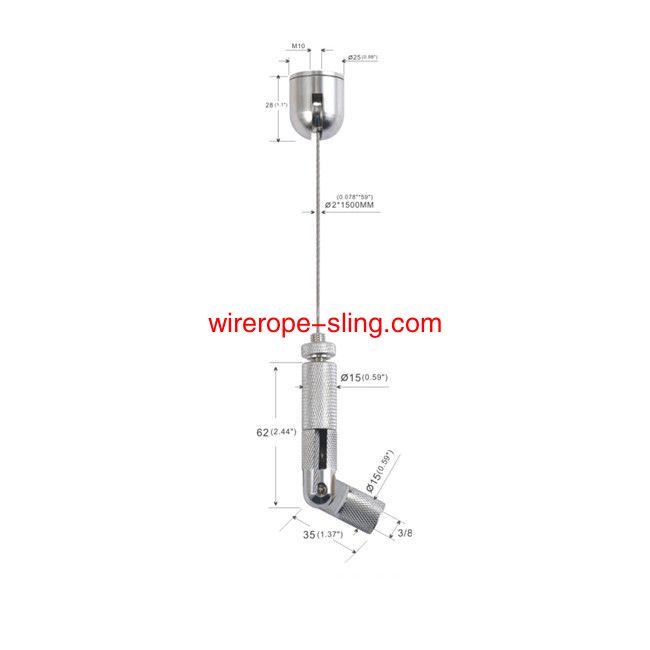

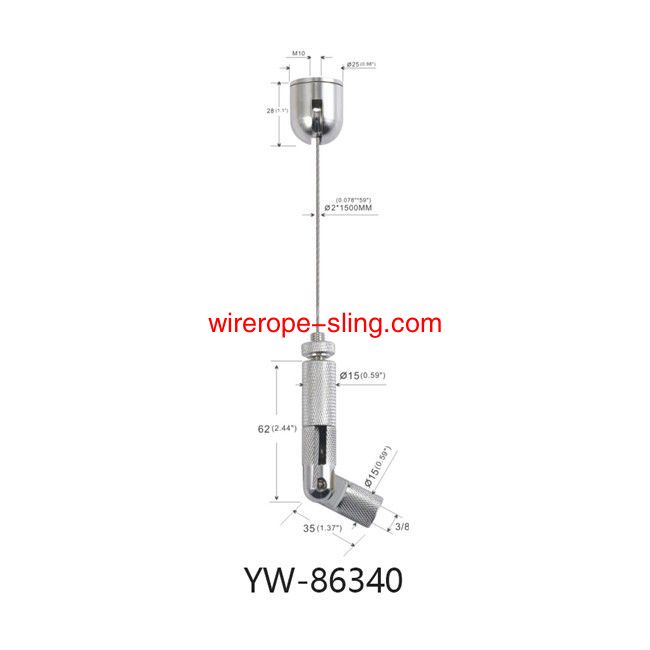

Item NameYW-86340MaterialBrass
Wire Diameter2mmCeiling Size25*28mm
SampleFree Sample Available For Existing DimensionGripper Size15*62mm
Lead Time8-15 Business DaysWire Length1500mm, Customized
High Light:

Suspension Hanging Kit

,

Suspension Cable Hanging kit

Product Description


Ceiling light Suspension Hanging Kit Nickel Plated Brass With Adjustable Gripper YW86340


High quality wire cable display, sign and picture hanging systems. Innovative and fully expandable suspended displays offering incredible flexibility, so you can change shelving or layout configuration with ease.

Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important.

All display systems offer full range of mounting combinations: Floor to Ceiling, Floor to Wall, Ceiling to Wall, Wall to Wall and Ceiling Mount for Hanging Displays.

Our display systems are suited to current trends in interior design, offering elegance and transparency for cable suspension systems in the home or workplace.

Cable display supports and clamp accessories are designed to hold glass, acrylic and wooden shelving and display panels securely in place.

Please Note: Cable display systems are designed for interior use only.

All our cable display systems MUST only be used in conjunction with 7x7 construction stainless steel wire rope.


Specification:



 1.Main Wire Diameter

 ∅2mm(0.078”)
 2.Construction 1*7,7X7,1*19,7*19 etc
 3.Material Stainless steel
 4.MOQ 300pcs
 5.Length 1500mm, as the requirement
 6.Type Single leg
 7.Surface treatment Chrome, Nickel, Black, White, and Silver
 8.End parts of fittings Eyelets terminals
 Screws
 Clips
 Hooks
 All kinds of grippers
 Ceiling attachment
 locking screws
 A large selection of end fittings, including eye bolts, links, springs,
 hooks, thimble, clips, stops, ball, ball shanks, sleeve, stamped eye,
 handles, etc
 9.Lead time 10-15 workdays if there were enough material in stock
 10.Sample

 Free sample available if all of the dimensions same as our existing one




Description:



We Have Wire Suspension Kits that allow you to fit our high-quality LED panels to any flat surface, ceiling, or wall. Give Yourself The Benefits of LED Panel lighting Anywhere. A simple solution that complements our panels and allows you to make a very neat and clean lighting solution.

The kit is supplied together with a 1m stop-end cable plus a suspension hook whose height can be set using the inbuilt self-locking clutch mechanism. Simply push the button to release the grip while fine adjustments are made.

With the kind of lighting panels LED the latest technology and low power consumption, not just get savings up to 80% on the electricity bill, but we are an ecological alternative of high quality and wide possibilities in the field of decoration and design.





Cable:



Cable (also known as wire rope) is available in many different types of construction. Wire rope consists of strands laid helically around a supporting core. Individual strands are composed of a number of wires laid helically around a center (core) of wire. The lay of a cable is defined by the direction in which the strands are laid into the rope, and by the direction the wire is laid into strands. The cable that is 7 X 7 refers to the number of strands (7) which has (7) wires each. The center strand (core), with 6 strands laid around the core.





Advantage:



Ceiling light Suspension Kit Nickel Plated Brass With Adjustable Gripper YW86340 0  High-quality wire cable display, sign, and picture hanging systems. Innovative and fully expandable suspended displays offering incredible flexibility, so you can change shelving or layout configuration with ease.

Ceiling light Suspension Kit Nickel Plated Brass With Adjustable Gripper YW86340 0Cable display systems are ideal for the home, museums, art galleries, public buildings, corporate identity, or wherever visual communication is important.

Ceiling light Suspension Kit Nickel Plated Brass With Adjustable Gripper YW86340 0All display systems offer a full range of mounting combinations: Floor to Ceiling, Floor to Wall, Ceiling to Wall, Wall to Wall, and Ceiling Mount for Hanging Displays.

Ceiling light Suspension Kit Nickel Plated Brass With Adjustable Gripper YW86340 0Our display systems are suited to current trends in interior design, offering elegance and transparency for cable suspension systems in the home or workplace.

Ceiling light Suspension Kit Nickel Plated Brass With Adjustable Gripper YW86340 0Cable display supports and clamp accessories are designed to hold glass, acrylic, and wooden shelving and display panels securely in place.





Our Company:



1. Experience
10 years of experience specializing in manufacturing wire cable assembly and elastic ropes.
Our products have a wide range of applications inside the lighting fixture, flowerpot, billboards, vehicles such as brake, gear, window, and another hanging system.


2. High-quality direct manufacture
Our factory has advanced manufacturing equipment, including CNC high precision automatic lathes, Grinder and Polishing Machines, Automatic, Polishers, and ISO manage.


3.OEM
OEM, custom-made available, free samples available, we supply our customer with custom
designed fittings and terminals as per their specification.








FAQ



Q: How can you make sure that your quality is good?
A: We have strict production process and professional quality control team to avoid any quality problem. All goods will be 100% inspected before leaving factory.

Q: Which payment way can you support?
A: We recommend alibaba trade assurance. But West Union and T/T are also acceptable.

Q: How can we get goods? And how long will it take?
A: Goods will be delivered by DHL, UPS, Fedex, TNT, etc. Generally, it will take 7-30 days to get them.

Q: How to order the products?
A: First, send us all the requirement you need.
Second, we agree on all the terms and get your payment to start your goods.
Third, to offer you documents and the pictures of the finished products to check Finally, to tracking the goods until you get them.



Ceiling light Suspension Kit Nickel Plated Brass With Adjustable Gripper YW86340 5
