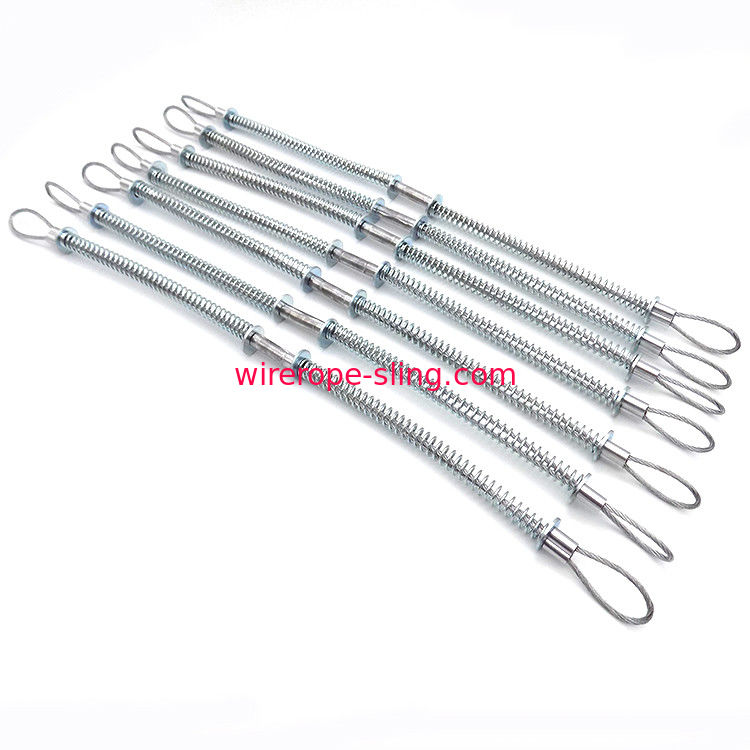

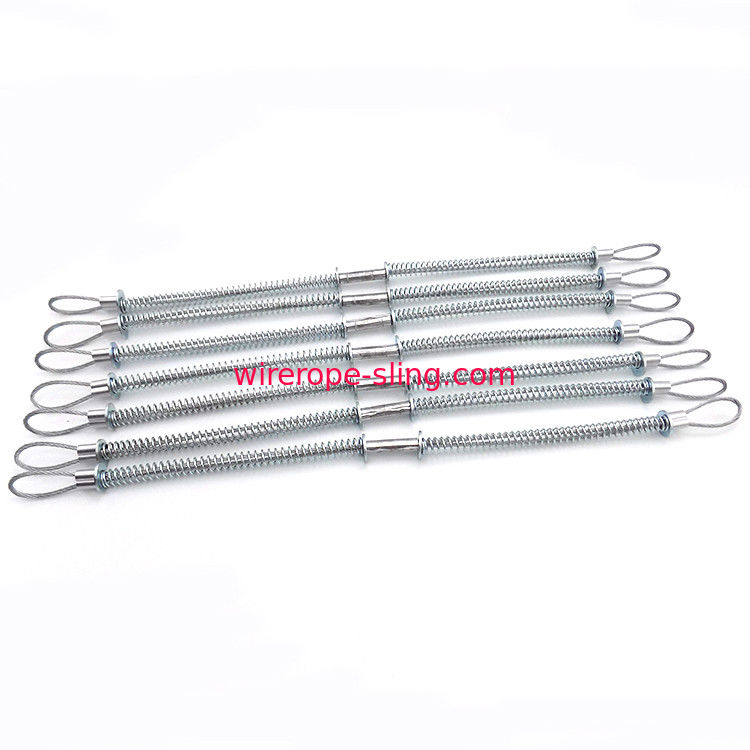

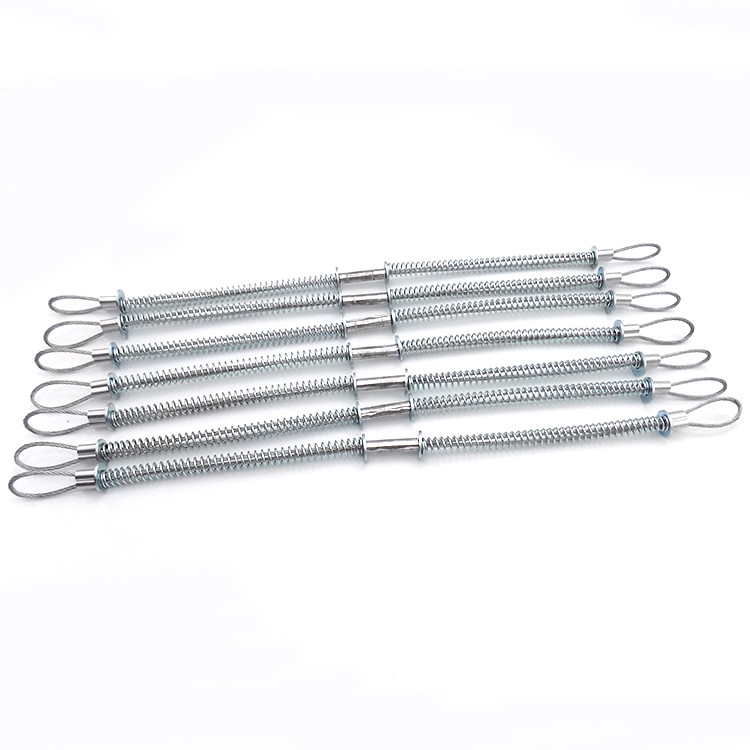

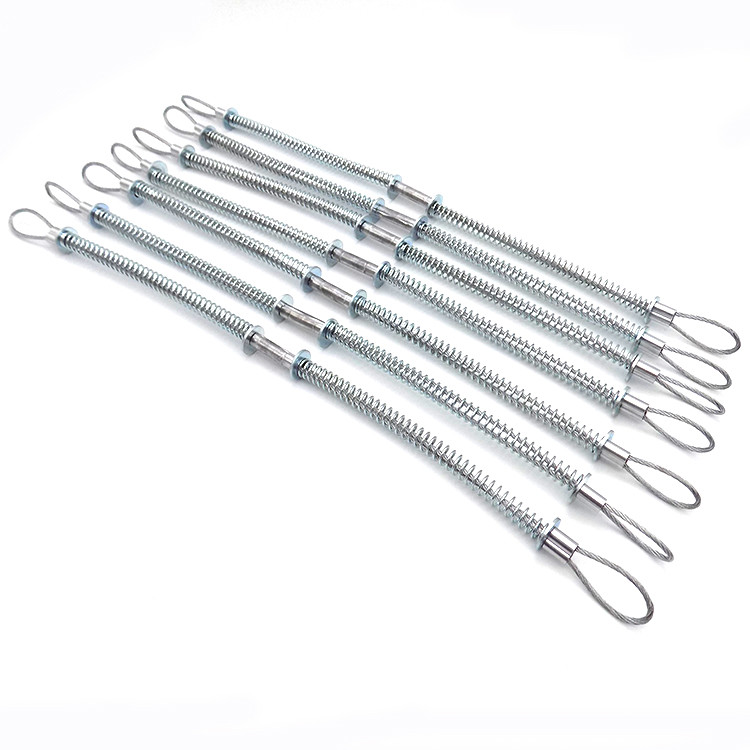

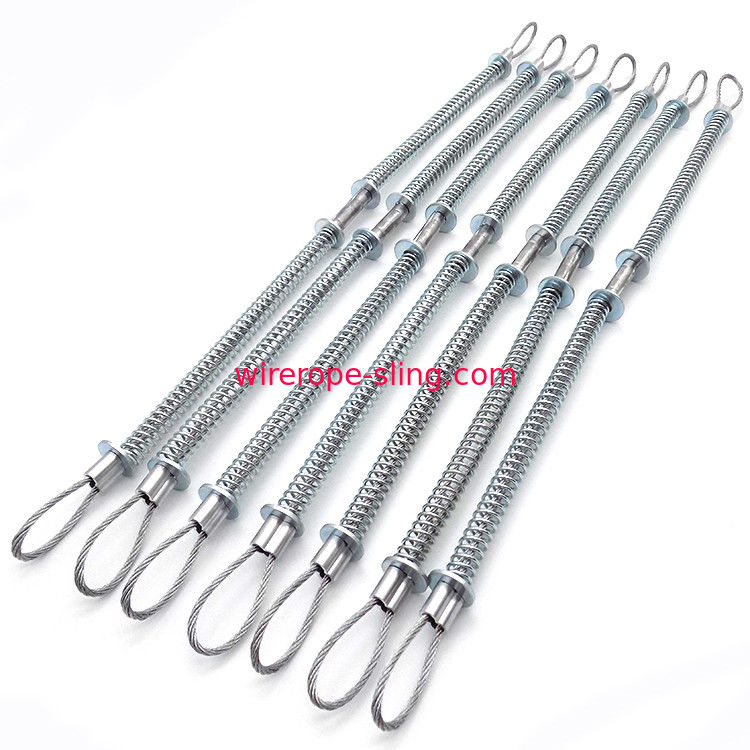

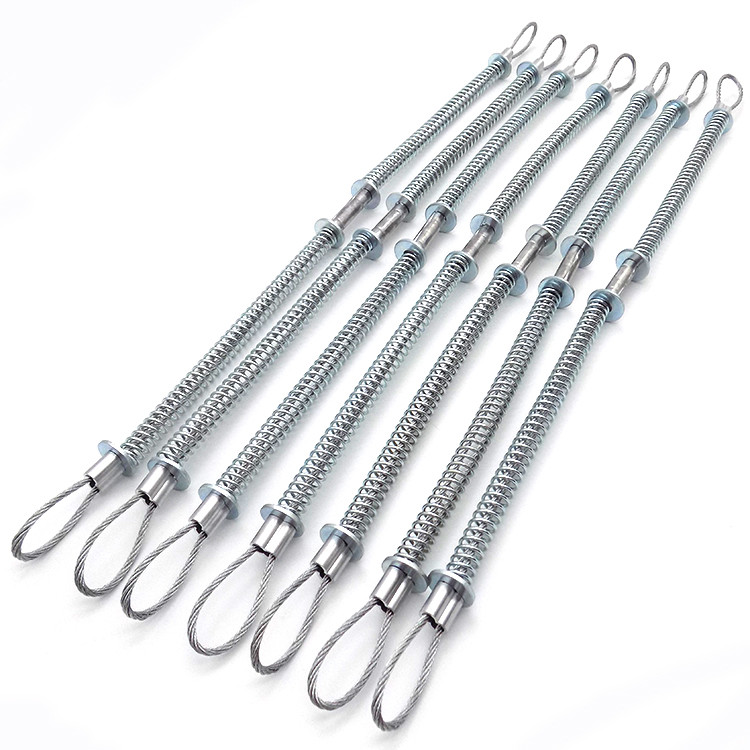

Whipcheck Safety Cable Steel Rope Sling 2mm - 8mm Galvanized Stainless

Product Description

Whipcheck safety cable 2mm-8mm Galvanized / Stainless wire rope Sling Hose

WHIP CHECKS HOW TO

Whip checks help minimize injuries or accidents resulting from hose or coupling failure. A whip check extends across the hose fittings to give standby safety for hose. Simply pull back the spring and slip the loops on the whip check over each hose before connection to provide security against hose whip.

• must be installed in the extended position (no slack)
• maximum operating pressure: 200 PSI
• cable reaches across hose fittings to provide standby safety for hose
• spring-loaded loops in the cable ends open easily to pass over the couplings for a firm grip on the hose
• no tools needed, easy to install and remove
• cable shipped with safety restraint labels attached
• high resistant to rust and corrosion
• hose-to-hose or hose-to rigid outlet
• with safety clip and lanyard option
• with stainless steel safety marine eye used to connect safety cable to a bolt on tool option
• with bronze/copper ferrule for special environmental conditions option

Whip checks are designed with a 5 to 1 safety margin at 200 psi. At 300 psi that margin drops to 3 to 1. Any pressure above that is not a suitable application for whip checks and may result in injury or death in the event of an explosive coupling decompression. We recommend whip checks be used only on AIR HOSES carrying no more than 200 PSI. Any other use is at your own risk.

	HOSE-TO-HOSE SERVICE WHIP CHECKS Whipcheck designed specifically to secure a hose-to-hose connection.
Cable Hose I.D. Length Max WP psi Part Number 1/8" 1/2" - 1-1/4" 20-1/4" 200 WCH1 3/16" 1/2" - 2" 28" 200 WCH3 1/4" 1-1/2" - 3" 38-1/4" 200 WCH2 3/8" 4" 44" 200 WCH4
	HOSE-TO-TOOL WHIP CHECKS Whip check designed specifically to secure a hose-to-tool connection.
Cable Hose I.D. Length Max WP psi Part Number 1/8" 1/2" - 1-1/4" 20-1/4" 200 WCHT1 3/16" 1/2" - 2" 28" 200 WCHT3 1/4" 1-1/2" - 3" 38" 200 WCHT2 3/8" 4" 44" 200 WCHT4
	BRONZE/COPPER FERRULE WHIPCHECKS WCH2 made with bronze/copper ferrules for special environmental conditions. Cable size: 1/4", Part #: WCH2B
	304 SS CABLE WHIPCHECKS WCH1 or WCH2 made with 304 stainless steel cable and springs with bronze/copper ferrules for special environmental conditions. Cable size: 1/8", Part #: WCH1SS Cable size: 1/4", Part #: WCH2SS
	BOLT-ON WHIPCHECKS WCHT1 made with stainless steel safety marine eye used to connect safety cable to a bolt on tool. Cable size: 1/8", Part #: WCHT1E
	HOSE-TO-HOSE LANYARD WHIPCHECKS WCH1 made with safety clips and lanyards used to lock Air King, A type, Surelock Couplings. Cable size: 1/8", Part #: WCH1C
	HOSE-TO-TOOL LANYARD WHIP CHECKS WCHT1 made with safety clips and lanyards used to lock Air King, A type, Surelock Couplings. Cable size: 1/8", Part #: WCHT1C

� Whip check is the low cost answer to eliminate injuries caused by broken air hose connections
� Whip checks use strong steel cables to help prevent hose whip.
� Highly resistant to rust and corrosion
� Hose-to-hose or hose-to-rigid outlet
� No tools needed - Easy to install and remove
� Upon request, whip checks are also available with bronze/copper ferrules.
� Also available with 304 stainless steel cable and springs with bronze/copper ferrules.
� Accepted by: OSHA, MSHA, U.S. Army Corps. of Engineering, Bureau of Mines, Bureau of Reclamation

INSTALLATION !!!

Incorrect Install Whip checks should NOT be installed with slack in the safety cable.	Correct Install Whip checks should be installed in the FULLY EXTENDED position.
