Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | LKS |
| Certification: | ISO9001 |
| Model Number: | WB10 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100sets |
| Price: | US$1-US$20 per Set |
| Packaging Details: | Polyster bag+ Standard Export Carton |
| Delivery Time: | 5-15 Working Days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000Sets Monthly |
|
Detail Information |
|||
| Name: | Whipcheck Safety Cable | Standard: | AISI, ASTM, BS, DIN, GB |
|---|---|---|---|
| Alloy Or Not: | Non-alloy | Diameter: | 1mm-5mm,or As Your Requirement |
| Process: | Die Casting,punching | Application: | Use Of Whip Checks |
| Keyword: | Hose Safety Cable | Steel Grade: | Carbon Steel & Stainless Steel |
| High Light: |
wire rope slings with hooks,steel wire sling |
||
Product Description
Selling Units:
Single item
Single package size:
41X41X17 cm
Single gross weight:
24.0 kg
Package Type:

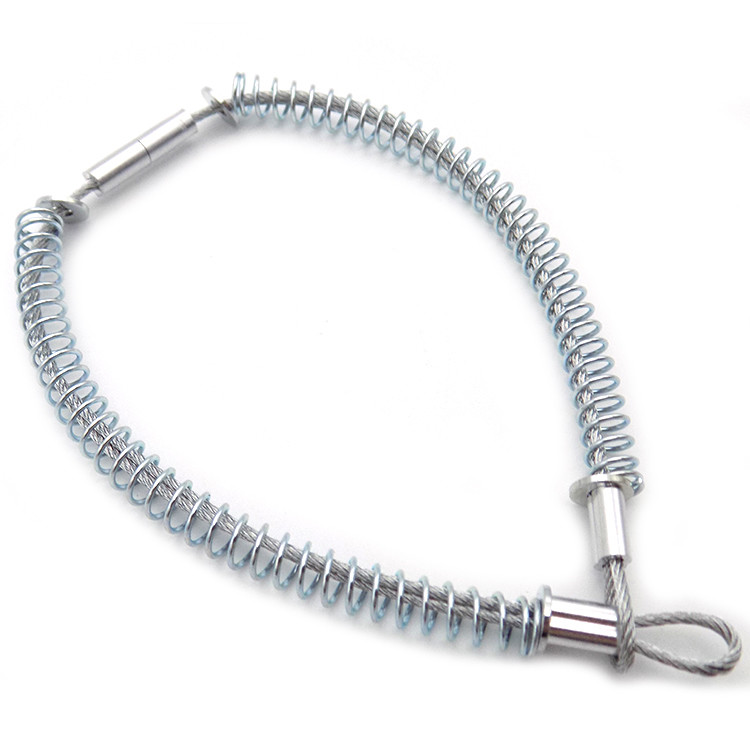

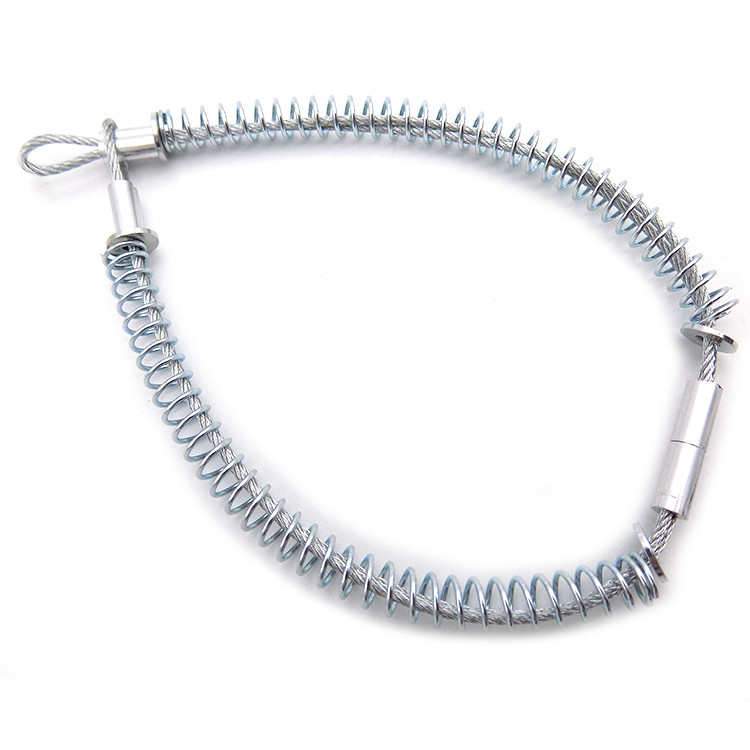

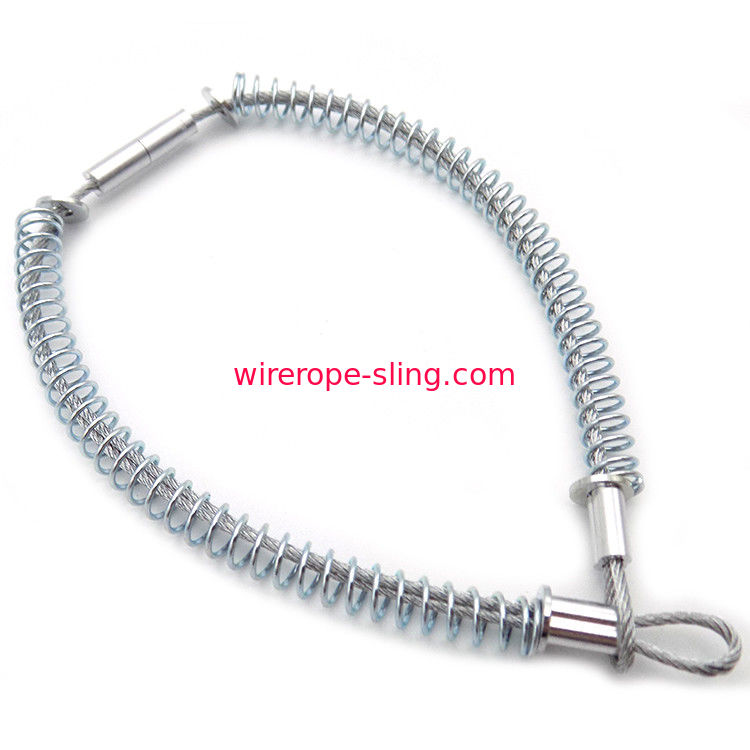

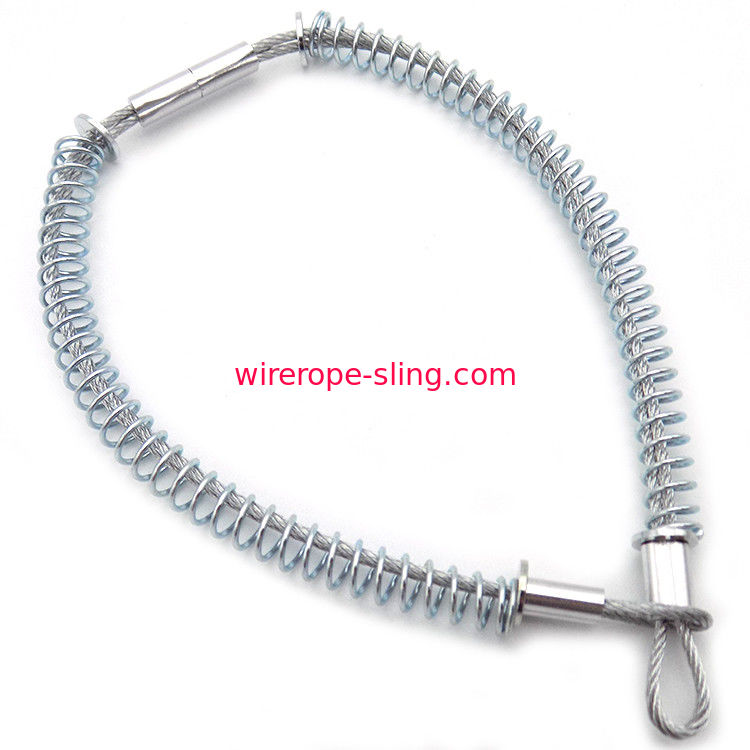

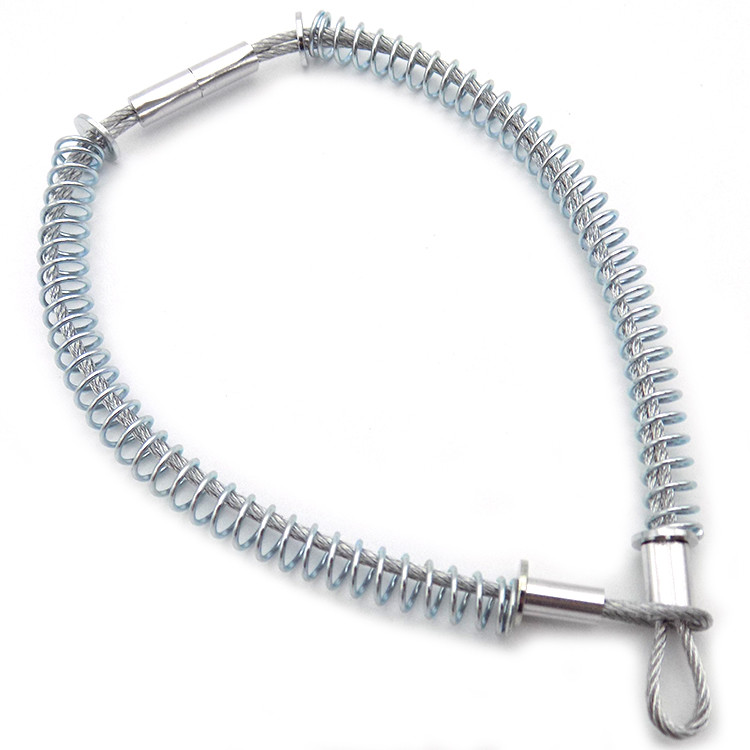

10mm Spring Through High Tension Stainless Steel Whips Check Safety Cable
whip check safety cab;e in standard export carton or as requirement
Lead Time :
15
Whipcheck Safety Cables are used at all blast hoses for the safe holding of coupled connections in case of accidental separation. The Whipcheck Safety Cables relieve the couplings of the weight of the hose and reduce the danger caused by hose couplings failure. The Cables also help keeping the blast hose from whipping about in the event of a coupling failure.
Hose couplings may separate from air and blast hoses for a variety of reasons:
- Coupling screws may lose their holding power due to internal wear on the hose tubing
- Use of improper coupling screws may interfere with the proper fit between couplings and hose
- Hose outer diameter may be too small for the coupling
- The continual strain caused by pulling hoses around job sites can weaken the coupling’s grip on the hose
- Couplings can also have been damaged by vehicles or other equipment.
Whipcheck Safety Cables are strongly recommended by vertical applications, when air and blast hoses are suspended. Hose couplings are not designed to support the weight of the hose. Additional supports are required to relieve the added tension.
Constructed of corrosion resistant, high strength steel, Whipcheck Safety Cables may be installed on hose-to-hose and hose-to-fixed coupling connections.
| Hose to Tool | ||||
| Part Number | Hose ID(in.) | Cable(in.) | Length(in.) | Max.Work. Press.(PSI) |
| WSR1 | 1/2 - 1-1/4 | 1/8 | 20-1/4 | 200 |
| WSR3 | 1/2 - 2 | 3/16 | 28 | 200 |
| WSR2 | 1-1/2 - 3 | 1/4 | 38 | 200 |
| WSR4 | 4 | 3/8 | 44 | 200 |
| Hose to Hose | ||||
| Part Number | Hose ID(in.) | Cable(in.) | Length(in.) | Max.Work. Press.(PSI) |
| WB1 | 1/2 - 1-1/4 | 1/8 | 20-1/4 | 200 |
| WB3 | 1/2 - 2 | 3/16 | 28 | 200 |
| WA2 | 1-1/2 - 3 | 1/4 | 38-1/4 | 200 |
| WA4 | 4 | 3/8 | 44 | 200 |
how to choose material:1stain1.1.1.
1. stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2. galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
| Diameter | construction | weight(100m) | Minimum Breaking load(N) |
| 1.0mm | 1*19 | 0.495 | 950(95kg) |
| 7*7 | 0.393 | 650 (65kg) | |
| 1.2mm | 1*19 | 0.713 | 1440(144kg) |
| 7*7 | 0.566 | 950(95kg) | |
| 1.5mm | 1*19 | 1.114 | 2200(220kg) |
| 7*7 | 0.884 | 1500(150kg) | |
| 1.8mm | 1*19 | 1.604 | 3200(320kg) |
| 7*7 | 1.273 | 2100(210kg) | |
| 2.0mm | 1*19 | 1.98 | 3900(390kg) |
| 7*7 | 1.527 | 2650(265kg) | |
| 2.4mm | 1*19 | 2.851 | 5650(565kg) |
| 7*7 | 2.264 | 3800(380)kg | |
| 2.5mm | 1*19 | 3.094 | 6100(610kg) |
| 7*7 | 2.381 | 4100(410kg) | |
| 3.2mm | 7*7 | 4.024 | 6850(685kg) |
| 7*19 | 3.901 | 6800(680kg) | |
| 3.8mm | 7*19 | 5.675 | 9650(965kg) |
| 7*7 | 5.502 | 9600(960kg) | |
| 4.0mm | 7*19 | 6.609 | 12500(1250kg) |
| 4.2mm | 7*7 | 6.933 | 13000(1300kg) |
| 4.5mm | 7*7 | 7.958 | 13500(1350kg) |
| 4.8mm | 7*19 | 8.778 | 15300(1530kg) |
| 6.0mm | 7*19 | 8.716 | 23900(2390kg) |
