Non - Alloy Galvanized Wire Rope ASTM Standard For Harbour Mobile Crane

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 8 x K25F - EPIWRC (K)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description





8 x K25F - EPIWRC (K) - Compacted Galvanized Steel Wire Rope for Harbour Mobile Crane





Product Details





Endurance is everything. 8 x K25F - EPIWRC (K) - Compacted Galvanized Steel Wire Rope – the high-performance hoisting rope for harbour mobile cranes – impresses with its exceptional long service life and high breaking strength due to its innovative SUPERFILL® compaction. 8 x K25F - EPIWRC (K) - Compacted Galvanized Steel Wire Rope lasts much longer!.



►MULTILAYER SPOOLING

►SUPERFILL®

►PLASTFILL®







Specifications



  • 12 – 50mm: 8 x K25F - EPIWRC (K), RCN 06
  • 52 – 54mm: 8 x K35F - EPIWRC (K), RCN 10
  • Ordinary lay, right or left lay.
  • Use without rope swivel



Applications



  • Harbour Mobile Crane
  • Ship to Shore Crane
  • Van Carrier, RTG, RMG



Did you choose the right wire rope?


First of all, from the building tower, we have 35W*7, 18*7+FC, 6*19W+FC and 6*29Fi+IWRC, which are high in tower crane and high lift, we should choose non rotating wire rope (also called anti rotating wire rope or twisted wire rope).
For the wire rope of pile driving machine, we usually choose the type of wire rope according to the weight of the hammerhead of the piling machine. The common wire rope structure has 6*36WS+IWRC, 6*31WS+IWRC, 8*K31WS+IWRC, 6*K36WS+IWRC, 8 x K25F - EPIWRC (K) and the forging wire rope that has gradually occupied the market in the last two years, and the specifications of the wire rope of the piling machine are commonly 28MM/30MM/32MM
The steel wire rope used in the rotary excavator used to choose 35W*7, and the recent special rope of the rotary excavator recommended by the Nantong steel rope steel rope is a good occupation of the market of the rotary excavator. The structure of the special rope for the rotary excavator is 35W*K7, not only the broken tensile force of the wire rope is high, but also the anti rotation performance of the wire rope is well reflected. The common wire rope specifications are 26MM/28MM/30MM/32MM/36MM
The steel wire rope recommended by the large steel rope is mostly 35W*7 and 4V*39S+5FC.
Selection of wire rope for small crane, large steel rope recommended 6*36WS+FC or 6*29Fi+FC,8 x K25F - EPIWRC (K)




Technical Table

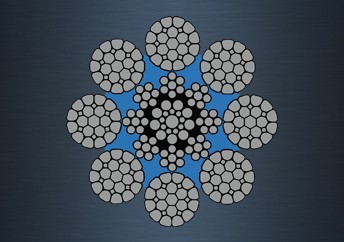

Non - Alloy Galvanized Wire Rope ASTM Standard For Harbour Mobile Crane 0

Breaking Loads
Nominal Diameter Weight Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [inch] [kg/m] [kN] [Kg] [kN] [Kg]
12 9/16 0.64 110 11,217 122 12,441
14 5/8 0.85 150 15,296 166 16,927
16   1.13 196 19,986 217 22,128
18   1.40 247 25,187 274 27,940
20 7/8 1.78 306 31,203 339 34,568
22   2.11 370 37,729 410 41,808
24 1 2.49 441 44,969 502 51,190
25   2.74 478 48,742 529 53,943
26   2.94 517 52,719 572 58,328
28   3.51 600 61,183 664 67,709
29   3.72 643 65,568 712 72,604
30 1 1/4 3.94 688 70,156 762 77,702
32   4.65 783 79,844 867 88,409
34   5.24 882 89,939 977 99,626
36 1 1/2 6.02 999 101,870 1,097 111,863
38   6.69 1,104 112,577 1,223 124,711
40   7.41 1,223 124,711 1,355 138,172
42   8.17 1,349 137,560 1,494 152,346
44   9.00 1,480 150,918 1,639 167,131
46   9.80 1,618 164,990 1,792 182,733
48   10.55 1,762 179,674 1,951 198,947
50   11.44 1,912 194,970 2,117 215,874
54   13.41 2,230 227,397 2,469 251,768
