China Wire Rope Sling manufacturer

Corrosion Resistance Galvanized Wire Rope Rotation Resistant Optimum Winding Behavior

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 16 x 7 - IWRC (K)
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description




16 x 7 - IWRC (K) - Rotation Resistant Galvanized Steel Wire Rope for Tower Crane



Product Details


Rotation is a thing of the past, the future is PERFECTION TK15. Check out this ideal combination of exceptional torsional stability and high breaking forces, long service life and optimum winding behavior. Rotation resistant. Cost-effective. Safe.


MULTILAYER SPOOLING

SUPERFILL®

PLASTFILL®



  • Specifications
  • 16 x 7 - IWRC (K), RCN 23-2
  • Ordinary lay or lang’s lay, right or left lay

.





Applications



  • Tower Crane

  • Crane Crawler

  • Crane All Terrain

  • Crane Slurry Trench

  • Cutter Pile

  • Driver

   Multi strand non rotating wire rope is widely used in shaft lift, shaft channel, shaft balance, lifting machinery, port handling and other fields. Although many domestic metal products enterprises have the ability to produce, the quality of products varies greatly. The production of multi strand non rotating wire rope is very simple, but in fact, the technical requirements of multi strand non rotating wire rope production are very high. In order to meet the requirements of high-end use, it is necessary to find the best process route and the optimum configuration of the equipment, and organize the production in a reasonable and orderly way.

Non rotating wire rope: 35W*7 non rotating wire rope, 18*7 non rotating wire rope, 19*7 non rotating wire rope, 18*19S non rotating wire rope, 24W*7 non rotating wire rope. No rotation rope, also called multi layer steel rope, the earliest process is the 34*7, 35*7,36*7, and rope 3 times forming with the diameter of the wire, and 35W*7 is two times forming, and the contact of small shares is in line contact state, the thickness of the steel wire is different, the density increases, the breaking tension increases, and the non rotation weight is 30% higher than the 6*19,6*37 of the same diameter. The end force increases by 30% directly, and the surface of the non rotating rope is even and smooth, and the abrasion resistance is 30% higher than that of the ordinary 6 strand rope. Therefore, the life of the non rotating rope is much higher than that of the 6 strand rope.

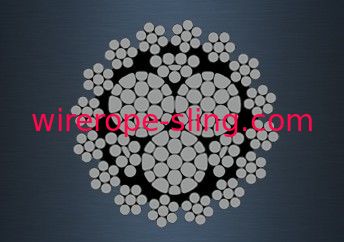

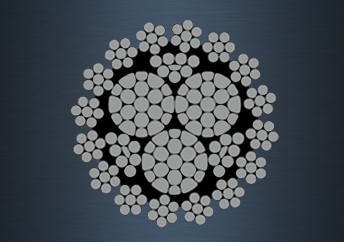

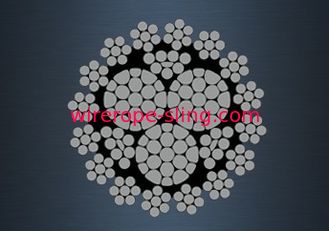

Cross Section Show

Corrosion Resistance Galvanized Wire Rope Rotation Resistant Optimum Winding Behavior 0
.

Breaking Loads
Nominal DiameterWeightMinimum Breaking Loads
1770 Mpa1960 Mpa2160 Mpa
[mm][kg/m][kN][Kg][kN][Kg][kN][Kg]
70.23363,671404,079434,385
80.30494,997535,404565,710
90.38606,118676,832717,240
100.48747,546828,362878,872
110.56909,17710010,19710610,809
120.6710811,01311812,03312612,848
130.7812612,84814014,27614815,092
140.8914614,88816216,51917217,539
151.0416817,13118618,96719720,088
161.1619119,47721121,51622422,842
171.3221521,92423924,37125325,799
181.4924124,57526727,22628428,960
191.6426927,43029830,38831632,223
201.8229830,38833033,65135035,690
212.0132833,44736437,11838639,361
222.2036036,71039940,68742343,134
232.4039440,17743644,46046347,213
242.6142943,74647548,43750451,394
