China Wire Rope Sling manufacturer

Compacted Galvanized Steel Rope , Drilling Line Wire Rope CE Certificated

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CE, CCS, Lloyd’s, ABS,DNV
Model Number: 6X19 (12/6+6F/1) Compacted
Payment & Shipping Terms:
Minimum Order Quantity: 1000mtrs
Price: USD1200 per Ton
Packaging Details: Wooden Reel or as request
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 1000tons monthly

Detail Information

Material:SteelSurface:Galvanized
Tensile Strength:1570,1670,1770,1870,1960MPALength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel,Steel ReelLay:RHOL,LHOL,RHLL,LHLL
Standard:ASTM, BS, GB, JISAlloy Or Not:Non-alloy
High Light:

galvanized cable wire

,

galvanized steel wire rope

Product Description





6X19 (12/6+6F/1) Compacted Galvanized Steel Wire Rope - Drill lines / drilling ropes



Product Details

The main tower crane wire rope we say is the lifting of the wire rope of the tower crane. The common tower crane in the past has 6*37+FC, and there are many liner&compacted contact wire rope, such as 6*36WS+FC, 6*29Fi+IWRC, 6*31WS+FC, 35W*7, 18*7+FC, 4V*39S+5FC and so on. The common problems of the wire rope damage of the tower crane are broken wire and broken strand; steel wire The rope is curved and wavy; the wire rope appears jumping or the rope diameter is partially larger; the multi ply non rotating wire rope has a long shape; the outer rope strands are loose; there are many factors causing the quality problems of the wire rope, most of which are due to the repeated bending of the wire rope during the movement process, resulting in the fatigue breaking or grinding of the wire rope. In addition to the improper cutting of the wire rope during the handling or opening of the wire rope, such as the loosening of the 35W*7 cutting or the improper rope in the multi strand non rotating wire rope, the wire rope will also have a lot of quality problems.


6X19 filler (often referred to as 6X25) is available with both FC (fibre core) and IWRC (independent wire rope core). With a fibre core, and due to the smaller wires used within the construction, 6X19 filler will generally achieve a superior fatigue life to the other 6X19 constructions. 6X19 filler wire rope has been a very popular construction for producing wire rope slings from 1 tonne safe working load up to 5 tonnes. One very good example is the high volume use of this construction in the North Sea Oil industry where it is used for the production of pipeslings.





Applications



  • General engineering applications
  • Drill lines / drilling ropes
  • Elevator rope / lift rope
  • Derricking ropes
  • Wire rope slings
  • Pendant ropes
  • Crane ropes
  • Hoist ropes
  • Sand, coring and swabbing lines
  • Ground cables / Ground haulage
  • Excavator rope / Scraper ropes
  • Trawl wraps / Pelagic sweeps
  • Oil well / Oil field
  • Fishing ropes
  • Drag ropes








Cross Section Show

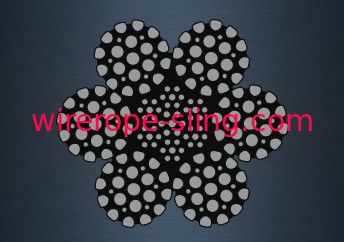

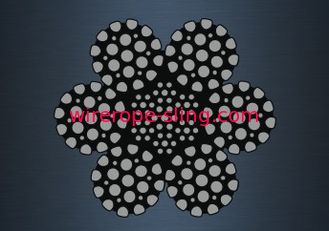

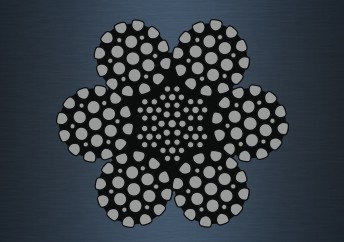

6X19 (12/6+6F/1) Filler Compacted - IWRC



Compacted Galvanized Steel Rope , Drilling Line Wire Rope CE Certificated 0

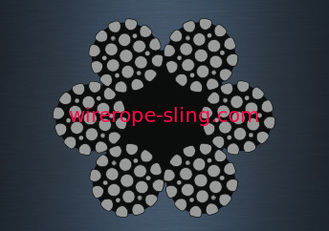

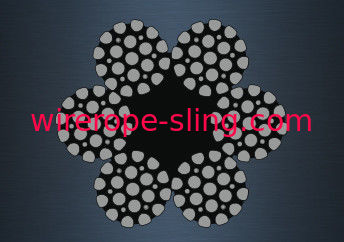

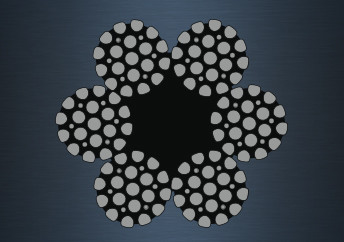

6X19 (12/6+6F/1) Filler Compacted - F.C.



Compacted Galvanized Steel Rope , Drilling Line Wire Rope CE Certificated 1



6x19 (9/9/1) Seale Compacted - IWRC



Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
14
0.784 123.50 12,597 136.76 13,949
16
1.024 161.31 16,453 178.63 18,219
18
1.296 204.16 20,824 226.07 23,059
20
1.600 252.05 25,708 279.10 28,468
22
1.936 304.98 31,107 337.72 34,447
24
2.304 362.95 37,020 401.91 40,994
26
2.704 425.96 43,448 471.69 48,111
28
3.136 494.01 50,389 547.04 55,798
30
3.600 567.11 57,845 627.98 64,054
32
4.096 645.24 65,814 714.51 72,879
34
4.624 728.42 74,298 806.61 82,274
36
5.184 816.64 83,296 904.30 92,238
38
5.776 909.89 92,809 1007.57 102,771
40
6.400 1008.19 102,835 1116.42 113,874
42
7.056 1111.53 113,376 1230.85 125,546
44
7.744 1219.91 124,431 1350.86 137,788
46
8.464 1333.33 136,000 1476.46 150,598
48
9.216 1451.80 148,083 1607.64 163,979



6X19 (9/9/1) Seale Compacted - Fibre Core



Breaking Loads
Nominal Diameter Approximate Mass Minimum Breaking Loads
1770 Mpa 1960 Mpa
[mm] [kg/m] [kN] [Kg] [kN] [Kg]
14
0.704 114.48 11,677 126.77 12,930
16
0.919 149.53 15,252 165.58 16,889
18
1.163 189.25 19,303 209.56 21,375
20
1.436 233.64 23,831 258.72 26,389
22
1.738 282.70 28,835 313.05 31,931
24
2.068 336.44 34,317 372.56 38,000
26
2.427 394.85 40,274 437.24 44,598
28
2.815 457.93 46,709 507.09 51,723
30
3.231 525.69 53,620 582.12 59,376
32
3.676 598.12 61,008 662.32 67,556
34
4.150 675.22 68,872 747.70 76,265
36
4.653 756.99 77,213 838.25 85,501
38
5.184 843.44 86,030 933.98 95,265
40
5.744 934.56 95,325 1034.88 105,557
42
6.333 1030.35 105,095 1140.96 116,377
44
6.950 1130.82 115,343 1252.20 127,724
46
7.596 1235.96 126,067 1368.63 139,600
48
8.271 1345.77 137,268 1490.23 152,003
