Swaged 6x26 WS Logging Cable 173.6lbs Weight 3/4" Diameter For Winch Drum

China Swaged 6x26 WS Logging Cable 173.6lbs Weight 3/4" Diameter For Winch Drum supplier
Swaged 6x26 WS Logging Cable 173.6lbs Weight 3/4" Diameter For Winch Drum supplier Swaged 6x26 WS Logging Cable 173.6lbs Weight 3/4" Diameter For Winch Drum supplier

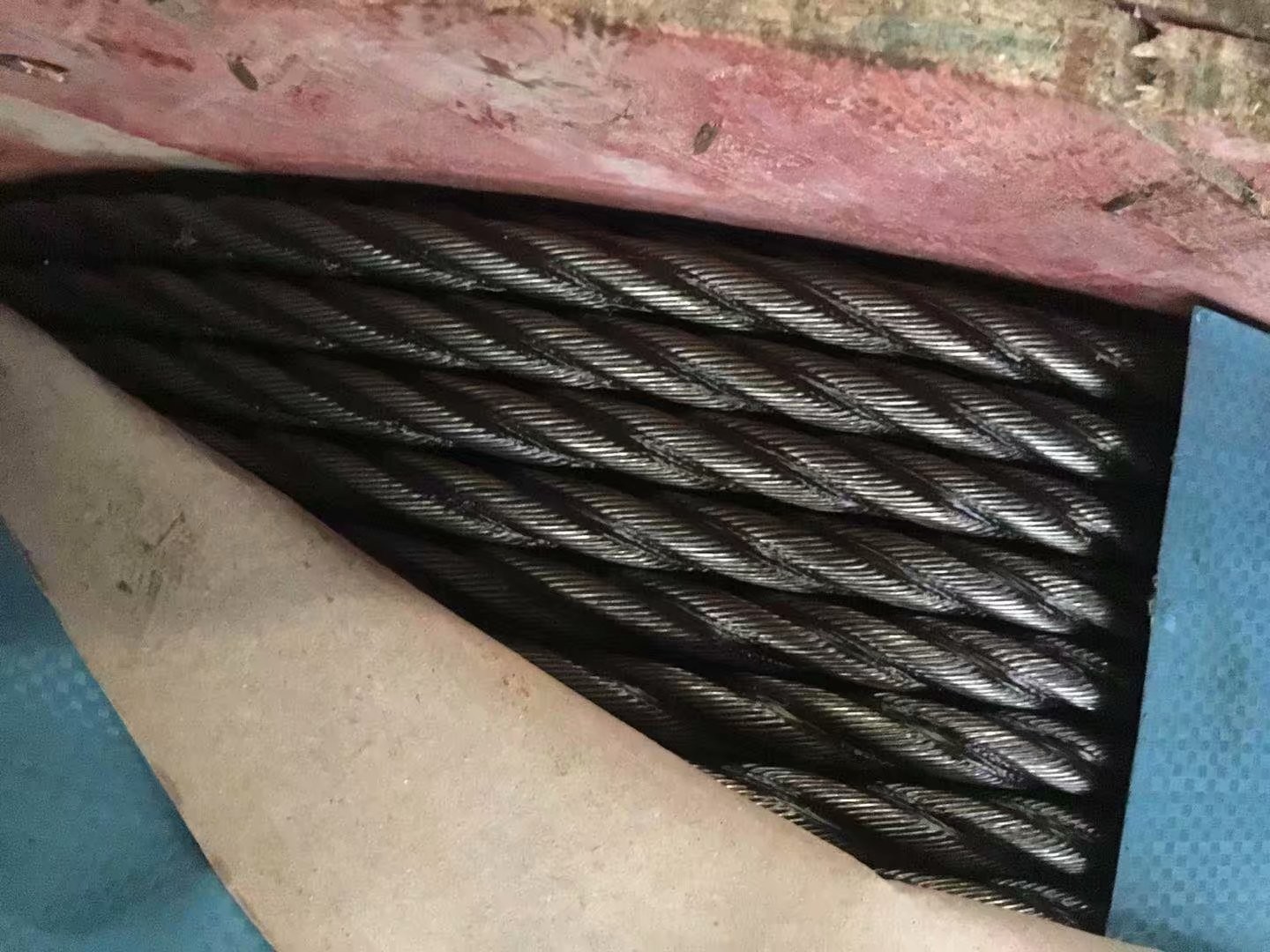

Large Image :  Swaged 6x26 WS Logging Cable 173.6lbs Weight 3/4" Diameter For Winch Drum

Product Details:

Place of Origin: China
Brand Name: LKS
Certification: CE / ISO 9001
Model Number: WRADL

Payment & Shipping Terms:

Minimum Order Quantity: 1mtrs
Price: USD1600/ton
Packaging Details: Wood Reels
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now
Detailed Product Description
Diameter: 3/4" Type: Swaged 6x26 WS
Length (ft): 125 Breaking Load: 70,000lbs
Weight: 173.6lbs OEM/ODM: Available

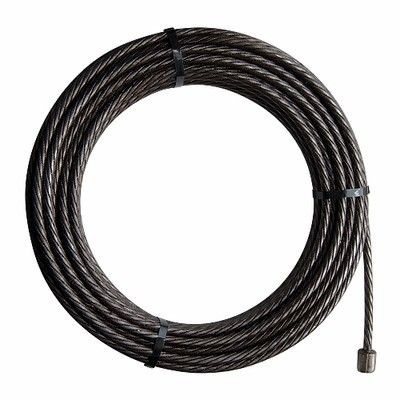

3/4" x 125 ft  Swaged 6x26 WS Wire Rope Cable Assemblies Logging Drumline



Whether you have a John Deere, a CAT, or some other brand of tractor or skidder, we can make a logging cable to fit your winch drum. Here, we call them drumlines, but you might call them a winch line, skidder line or even a mainline. Call them what you want, just figure out what diameter of cable you need and the length, and we'll take it from there. All cables shown here have a swaged ferrule (aka nub) on one end for quick attachment to your drum.





3/4" x 125 ft Swaged Logging Drumline - 70000 lbs Breaking Strength



  • Logging winch line cut, coiled and fitted with a tapered ferrule on one end
  • Made with 6x26 WS high-performance swaged wire rope, which is compacted after being closed…this means a greater linear density and higher strength rating
  • This is the best wire rope you can use for general logging operations as it combines high-strength with the best abrasion resistance on the market
  • Use with standard Choker Hooks, including sliders
  • Custom lengths and configurations available, call to order



Specification

Wire Rope Size 3/4"
Type Swaged
Length (ft) 125
Breaking Strength (lbs) 70,000
Approx. Weight (lbs) 173.6







Regular Cable vs. Swaged Cable
While there's nothing wrong with regular wire rope for use as a drumline, many of our customers choose to go with swaged cable. Our regular wire rope is typically a 6x26 WS construction. This gives you larger outer wires and flexibility, which is a great combination. It's also quite affordable, and if treated well it will give a good lifespan. But, swaged line has all those benefits and then some. Swaged cable is also a 6x26 WS construction, but it's compacted. This gives it two main advantages. Because it's compacted, it's smoother, which makes it hold up better on the drum...it doesn't "scrub" and wear itself out from abrasion. It also has greater linear density (it weighs more per foot) and is therefore stronger by quite a margin vs. regular cable.

What About a Custom Drumline?
Absolutely! We're a full line rigging shop. We have thousands of feet of cable in stock and hundreds of ferrules, so we can make a cable to your specs without a problem. We can make one in a smaller or bigger diameter, shorter or longer length, or with eyes, hooks and other rigging attached. Just give us a call and we can help!





Wire Rope Size Type Length (ft) Breaking Strength (lbs) Approx. Weight (lbs)
5/8" Regular 50 41,200 36.8
5/8" Regular 75 41,200 54.8
5/8" Regular 100 41,200 72.8
5/8" Regular 125 41,200 90.8

5/8" Swaged 50 49,000 49.3
5/8" Swaged 75 49,000 73.6
5/8" Swaged 100 49,000 97.8
5/8" Swaged 125 49,000 122.1

3/4" Regular 50 58,800 53.1
3/4" Regular 75 58,800 79.1
3/4" Regular 100 58,800 105.1
3/4" Regular 125 58,800 131.1

3/4" Swaged 50 70,000 70.1
3/4" Swaged 75 70,000 104.5
3/4" Swaged 100 70,000 139.1
3/4" Swaged 125 70,000 173.6
