34X7 PFC Rotation Resistant Rope

Product Details:
Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 34X7 PFC
Payment & Shipping Terms:
Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly

Detail Information

Material:SteelSurface:As Request
Processing:As RequestDiameter:16mm-40mm
Core:Fiber Core/IWSLength:500mtrs/1000mtrs/2000mtrs Available
Packing:Wooden Reel
High Light:

wire rope cable

,

steel rope cable

Product Description





34X7 PFC Non-Rotation Steel Wire Rope for automobile crane, tower crane



2.6.3 Ropes with coverings and/or fillings

2.6.3.1
solid polymer-covered rope
rope covered (coated) with a solid polymer

2.6.3.2
solid polymer-filled rope
rope in which the free internal spaces are filled with a solid polymer that extends to, or slightly beyond, the outer circumference of the rope
Figure 21 — Solid polymer filled rope

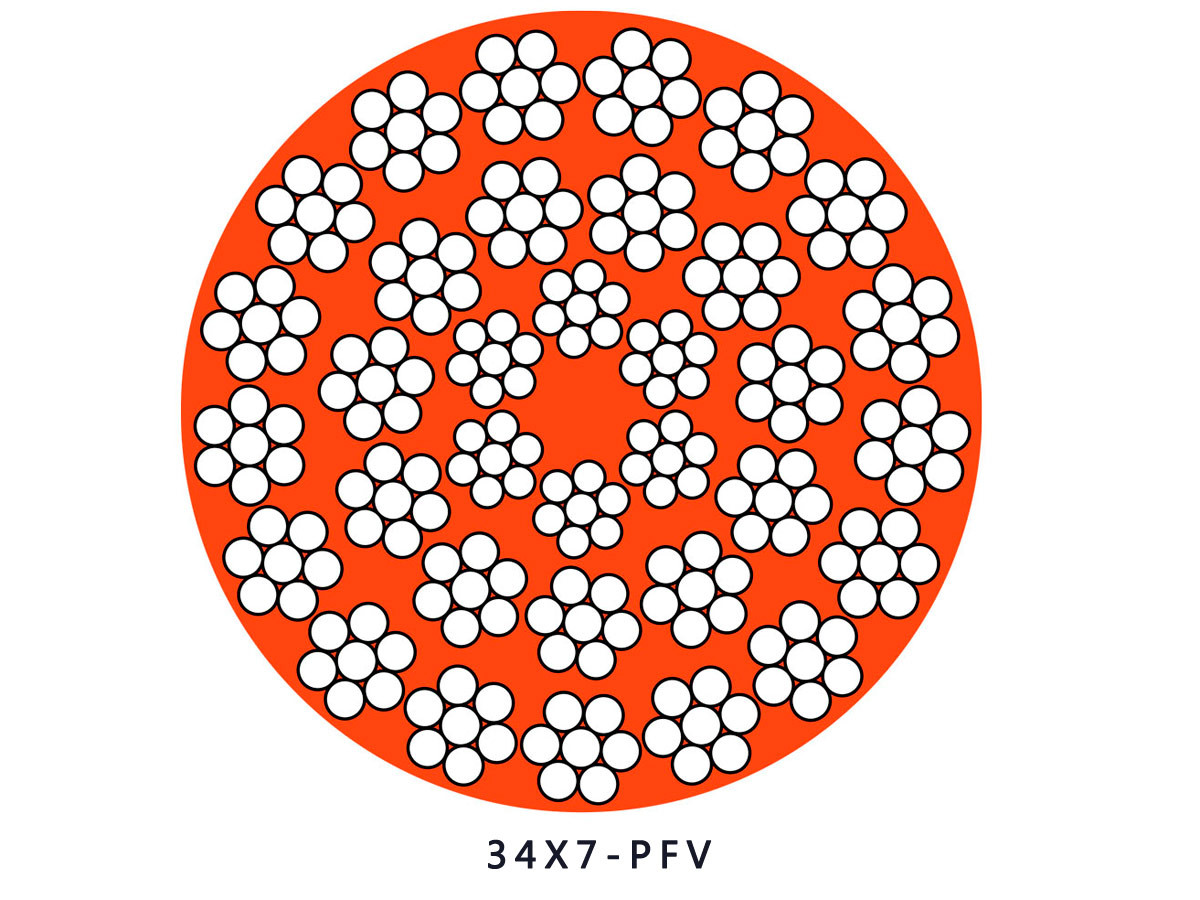

34X7 PFC Rotation Resistant Rope 0




2.6.3.3
solid polymer covered and filled rope
rope which is covered (coated) and filled with a solid polymer

rotation-resistant rope
multi-strand rope (superseded)
non-rotating rope (superseded)
stranded rope designed to generate reduced levels of torque and rotation when loaded
Note 1 to entry: Rotation-resistant ropes generally comprise an assembly of at least two layers of strands laid helically around a centre, the direction of lay of the outer strands being opposite to that of the underlying layer.
Note 2 to entry: Ropes having three or four strands can also be designed to exhibit rotational-resistant properties.



Multi Layer non rotating wire rope is also called resistance rotary wire rope. Multi storey non rotating wire rope specifications: 35W*7,18*7,19*7,18*19S. Among them, 18*7,19*7 is also called micro rotary wire rope and half rotary wire rope. Non rotating wire rope is mainly used for wharf crane, electric hoist crane, automobile crane, tower crane. The structure wire rope specifications: 18*7-3mm-60mm, 35W*7-12mm-60mm

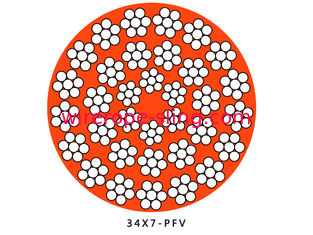

34X7 PFC Rotation Resistant Rope 1





Advantage:



  • Excellent anti rotation performance.
  • It can carry out the whole rope injection process, greatly improving the performance and service life of the wire rope.




Application





  • Main and auxiliary lifting rope, such as tower crane, crawler type hydraulic crane and so on.



Technical Table




Dia. Weight(kg/m)
(kN)
Inner Dia.() Outer Dia.(Including outer plastic)
(inch) (mm) (inch) (mm)
1 1/5 30.2 1 4/9 36.5 3.65 467
1 1/4 31.8 1 1/2 38.1 4.84 512
1 1/3 33.3 1 4/7 39.7 5.13 534
1 3/8 34.9 1 5/8 41.3 5.71 649
1 4/9 36.5 1 2/3 42.9 6.10 734
1 4/7 39.7 1 4/5 46.0 7.10 823
1 5/8 41.3 1 7/8 47.6 7.89 913
1 2/3 42.9 2 49.2 8.14 979
1 3/4 44.5 2 50.8 8.75 1,032
1 7/8 47.6 2 1/8 54.0 10.04 1,192
2 50.8 2 1/4 57.2 11.43 1,352
