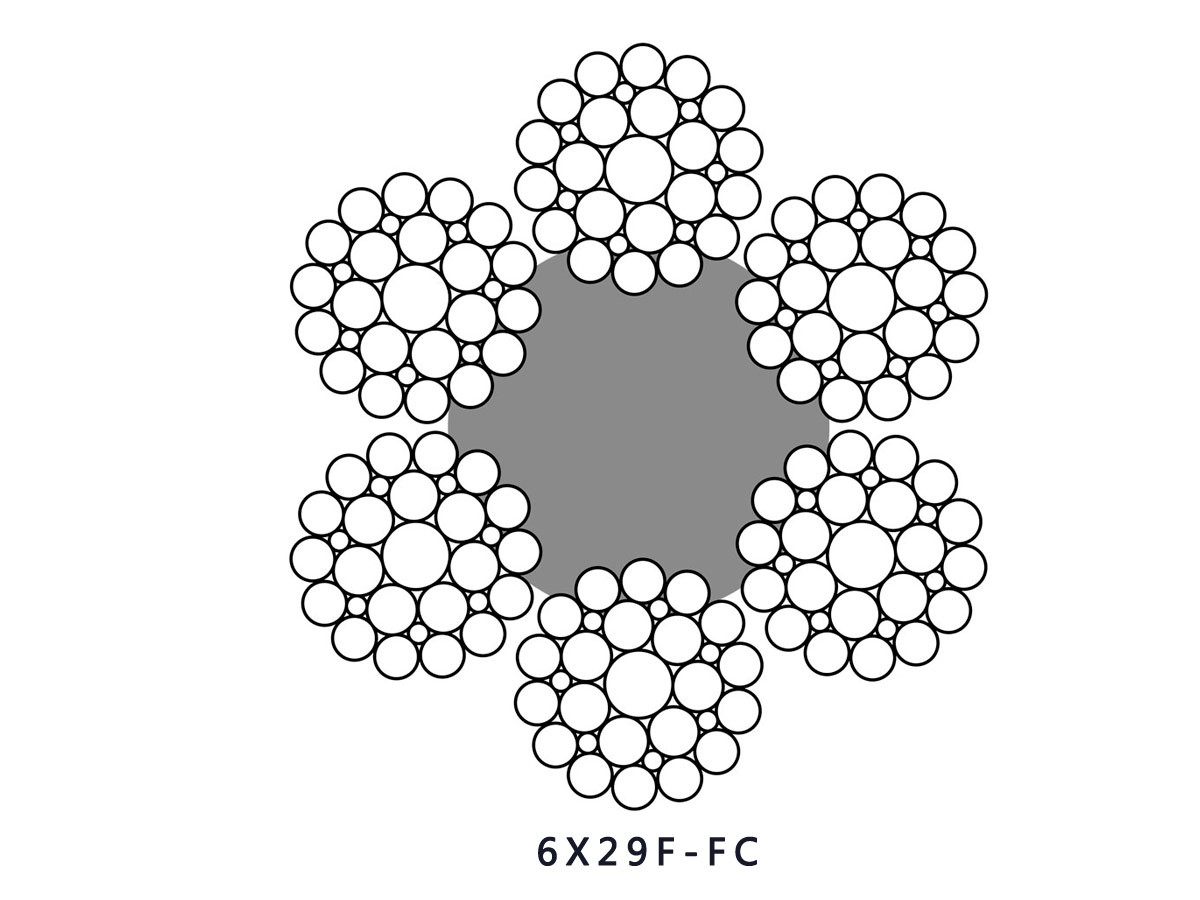

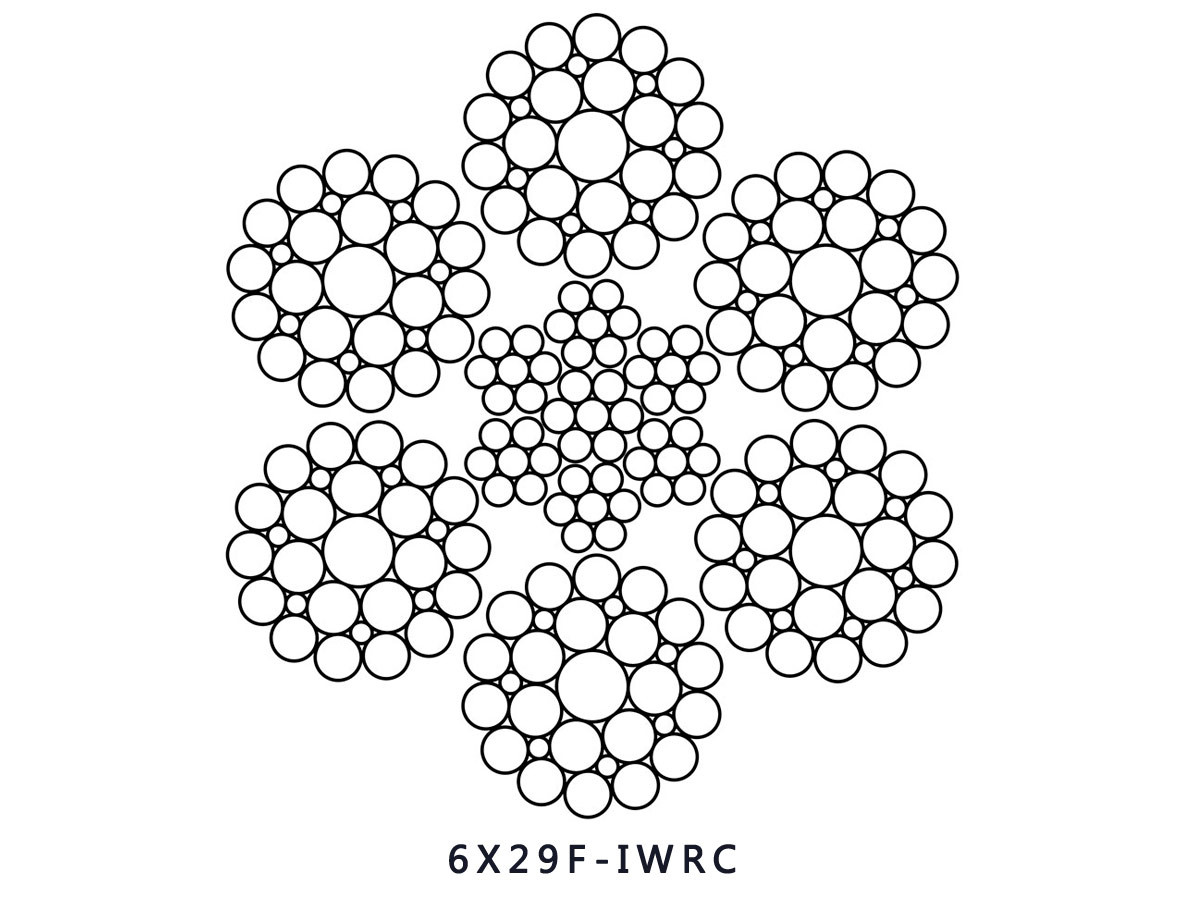

6x29Fi Steel Wire Rope Galvanized Or Ungalvanized

China 6x29Fi Steel Wire Rope Galvanized Or Ungalvanized supplier
6x29Fi Steel Wire Rope Galvanized Or Ungalvanized supplier 6x29Fi Steel Wire Rope Galvanized Or Ungalvanized supplier

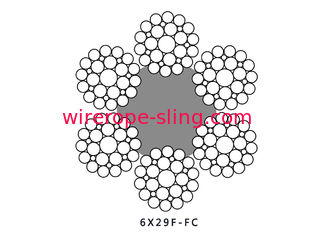

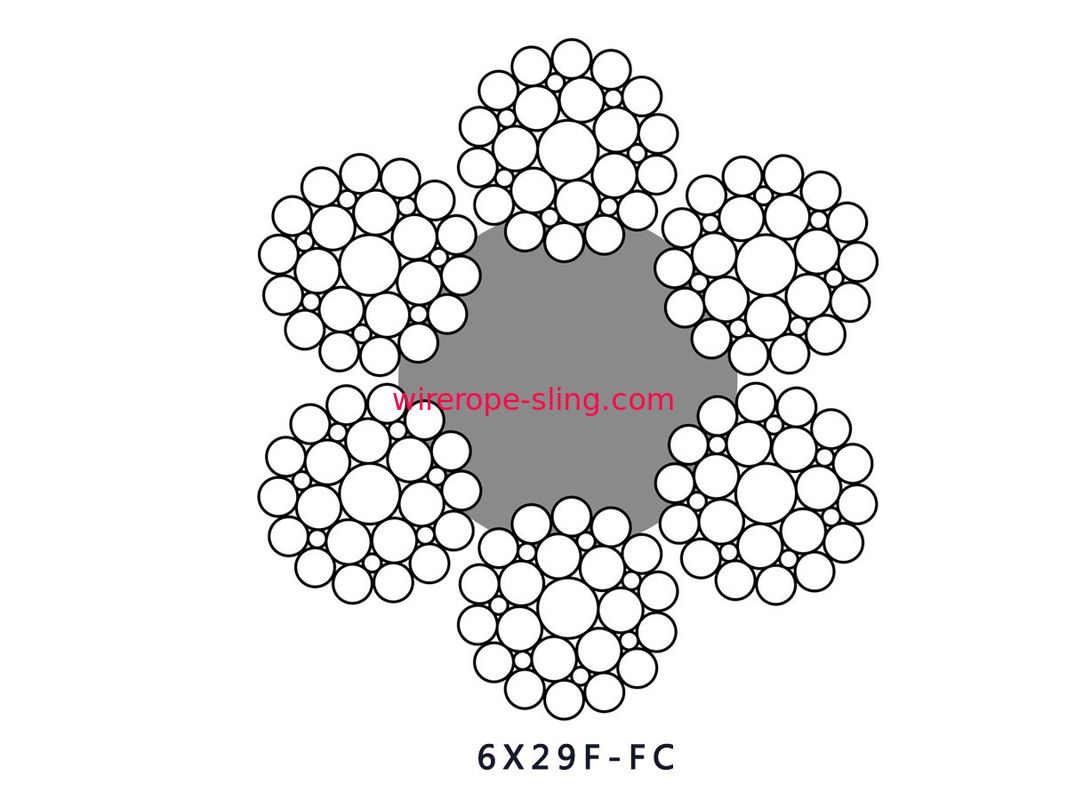

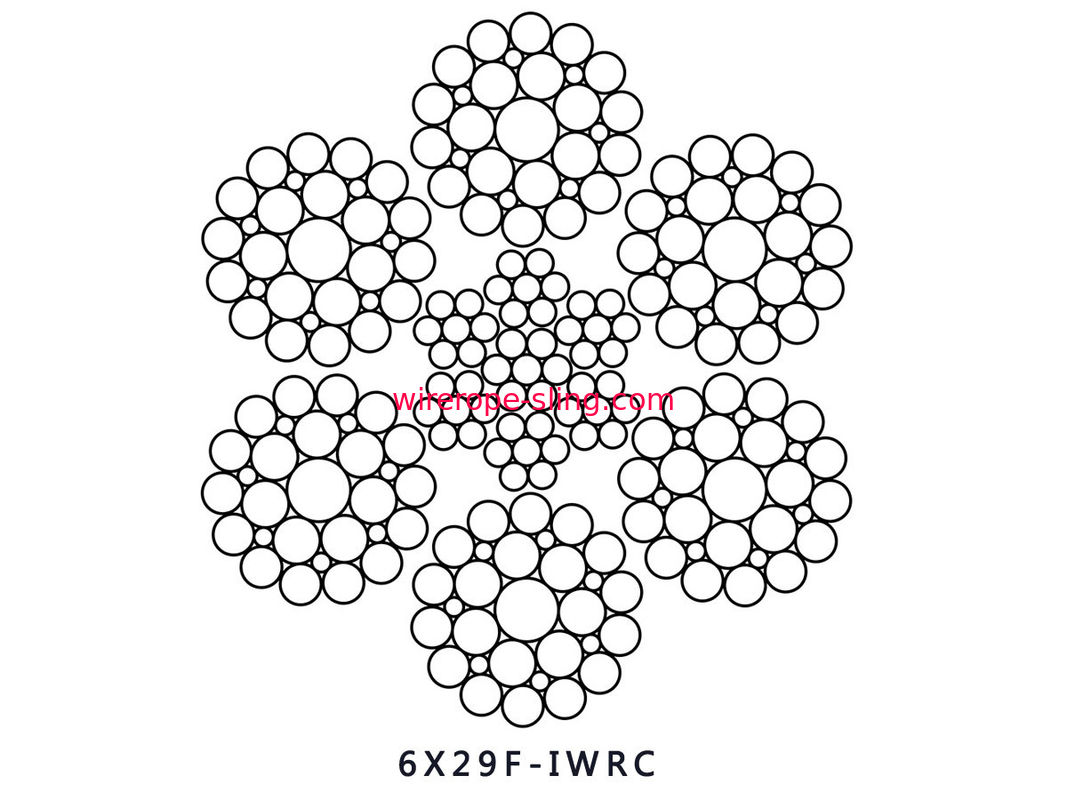

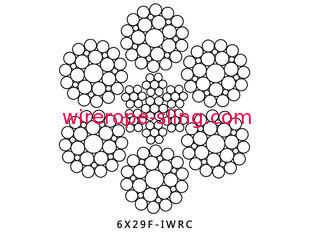

Large Image :  6x29Fi Steel Wire Rope Galvanized Or Ungalvanized

Product Details:

Place of Origin: China
Brand Name: LKS
Certification: CCS,ISO9001
Model Number: 6x29Fi

Payment & Shipping Terms:

Minimum Order Quantity: 1mtrs
Price: USD1800/tons
Packaging Details: Standard Seaworthy Packing or as request
Delivery Time: 15 days after the order confirmation
Payment Terms: L/C, T/T
Supply Ability: 100tons monthly
Contact Now
Detailed Product Description
Material: Steel Surface: Galvanized Or Ungalvanized
Tensile Strength: UP TO 1960N/mm2 Diameter: 18mm-60mm
Core: FC/IWR Length: 500mtrs/1000mtrs/2000mtrs Available
Packing: Wooden Reel,Steel Reel



Special Features:



  • Use the technology of the strands of oil.
  • 6X19 parallel lay wire rope is characterized by excellent wear resistance and extrusion resistance.
  • 6X19 parallel lay wire rope mainly includes several structures, such as 6X19S, 6X25FI, and 6X26WS. The most suitable steel rope structure must be selected according to different application conditions.
  • Under the same steel rope diameter, with the increase in the number of steel wires per share, its wear resistance and extrusion resistance will decrease, and its fatigue resistance will increase.





6x29Fi Steel Wire Rope Galvanized Or Ungalvanized



Technical Table



Wire Rope Dia


Weight/(kg/100m)

Tensile Strength/MPa

1570

1670

1770

1870

Minimum Breaking Load/kN

D/mm

deviation
/%

Natural fiber core

Synthetic fiber core

IWR

FC

IWR

FC

IWR

FC

IWR

FC

IWR

18

+5
0

123

120

135

168

181

179

193

189

204

200

216

20

152

148

167

207

224

220

238

234

252

247

266

22.5

192

188

212

/

/

279

301

296

319

/

/

24.5

228

223

251

/

/

331

357

351

378

/

/

26

257

251

283

350

378

373

402

395

426

417

450

28

298

291

328

406

438

432

466

458

494

484

522

28.5

309

301

340

/

/

448

483

474

512

/

/

30

342

334

376

466

503

496

535

526

567

555

599

31.5

377

368

415

/

/

547

590

580

625

/

/

32

389

380

428

531

572

564

609

598

645

632

682

34

439

429

483

599

646

637

687

675

728

713

770

36

492

481

542

671

724

714

770

757

817

800

863

36.5

506

494

557

/

/

734

792

778

839

/

/

38

549

536

604

748

807

796

858

843

910

891

961

39.5

593

579

652

/

/

860

928

911

983

/

/

40

608

594

669

829

894

882

951

935

1010

987

1070

42

670

654

737

914

986

972

1050

1030

1110

1090

1170

44

736

718

809

1000

1080

1070

1150

1130

1220

/

/

46

804

785

884

1100

1180

1170

1260

1240

1330

/

/

48

876

855

963

1190

1290

1270

1370

1350

1450

/

/

50

950

928

1040

1300

1400

1380

1490

1460

1580

/

/

52

1030

1000

1130

1400

1510

1490

1610

1580

1700

/

/

54

1110

1080

1220

1510

1630

1610

1730

1700

1840

/

/

56

1190

1160

1310

1620

1750

1730

1860

1830

1980

/

/

58

1280

1250

1410

1740

1880

1850

2000

1960

2120

/

/

60

1370

1340

1500

1870

2010

1980

2140

2100

2270

/

/

Note: Wires aggregate breaking force =Wire Rope Breaking Load X1. 321(IWR) or X1. 226(FC)



The widely used contact wire rope caused by the first and second bending causes the monofilament fracture easily, and the cross parts between the monofilaments are rubbed with each other because of the monofilament, which has the disadvantage of serious damage to the steel rope.
On the contrary, wire contact wire rope reduces these bending and internal friction, in order to prevent broken wire and improve the contact state between the monofilaments in the strand, the structure has SEAL (S), FILLER (Fi), WARRINGTON (W) and so on. And in order to make the monofilament in a fine diameter and more total, the softness of the wire rope is increased, and it is combined into SEAL-FILLER (SFI), WARRINGTON SEAL (WS) or point contact form into SEMI-SEAL (SES), SEMI-FILLER (SEFI) and so on.


Characteristics and contact state of wire rope with wire contact

No fatigue caused by second times of bending.
There is almost no internal friction.
The effective broken area is large, so it is important to cut off the load.
The monofilament in the strand is tightly wound without causing structural damage.

Recently, customers have chosen the steel wire rope structure suitable for use, and the WS wire rope which can adjust the number of monofilament in the structure can be more effective.

Characteristics and contact state of wire rope with wire contact

Wire contact wire rope and other wire rope must be strictly checked for its use conditions. There are many kinds of equipment for using wire rope, and the factors that cause damage to the wire rope are also repeated. The basic use of the classification is as follows.

Conditions of use

The structure of the wire rope

Wire rope damage caused by friction

6 * S (17), 6 x S (19), 6 x W (19), 6 * Fi (17), 6 x Fi (21).

Friction causes the same fatigue of a wire rope

6 x WS (26), 6 x WS (31), 6 x WS (36), 6 x Fi (25), 6 x Fi (29)

Although softness is good and friction is low, fatigue is the main cause of wire rope damage.

6 x WS (36), 6 x WS (41), 6 x Fi (41), 6 * SFi (41).
